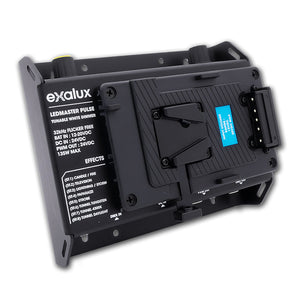

Exalux Ledmaster Pulse

Exalux Ledmaster Pulse

SKU: EX-LMA.001.007
£864.38 GBP ex VAT
£1,037.26 GBP inc VAT
ex VAT £864.38 GBP ex VAT
£1,037.26 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

EXALUX™ LEDMASTER PULSE is a constant voltage LED dimmer designed to power LED fixtures on film sets.

The unit can be powered using typical V-Mount-compatible batteries or an external AC powered 24VDC PSU.

LEDMASTER PULSE features a high efficiency step-up converter that boosts and regulates the battery voltage to 24VDC, so that you can optimally power your LED lighting device regardless of the battery’s charge level.

The Dimmer offers 4 CCT adjustment ranges and is therefore compatible with a wide variety of Constant Voltage LED fixtures such as EXALUX™ LEDZEP™.

  • 2 independent 4,5A channels, 135W Power Rating,
  • Manual / Remote control,
  • Built-In DMX 512 decoder,
  • 2 operating modes: Tunable White / Special FX,
  • 4 selectable CCT range : 2200K>5600K, 2200K>6500K, 2600K>6200K, 2700K>6500K,
  • 4 CCT presets (3200K, 4000K, 4300K, 5600K),
  • Trigger input,
  • 32kHz Flicker Free PWM Frequency,
  • Lock function,
  • Analog potentiometers for dimming,
  • Digital encoder for CCT and others settings,
  • LED display.
FEATURES
Technology: Low Side PMW with phase shift
Control Mode: CCT / Special FX
Dimming Curve: Logarithmic
CCT Synthesizer Ranges: 2 600K > 6 200K
2 700K > 6 500K
2 200K > 5 600K
2 200K > 6 500K
CCT Presets: 3 200K, 4 300K, 5 000K, 5 600K
PMW Frequency: 4 > 32 kHz
Built-In Special Effects: Candle/Fire, TV, Lightning, Paparazzi, Strobe, Tunnel

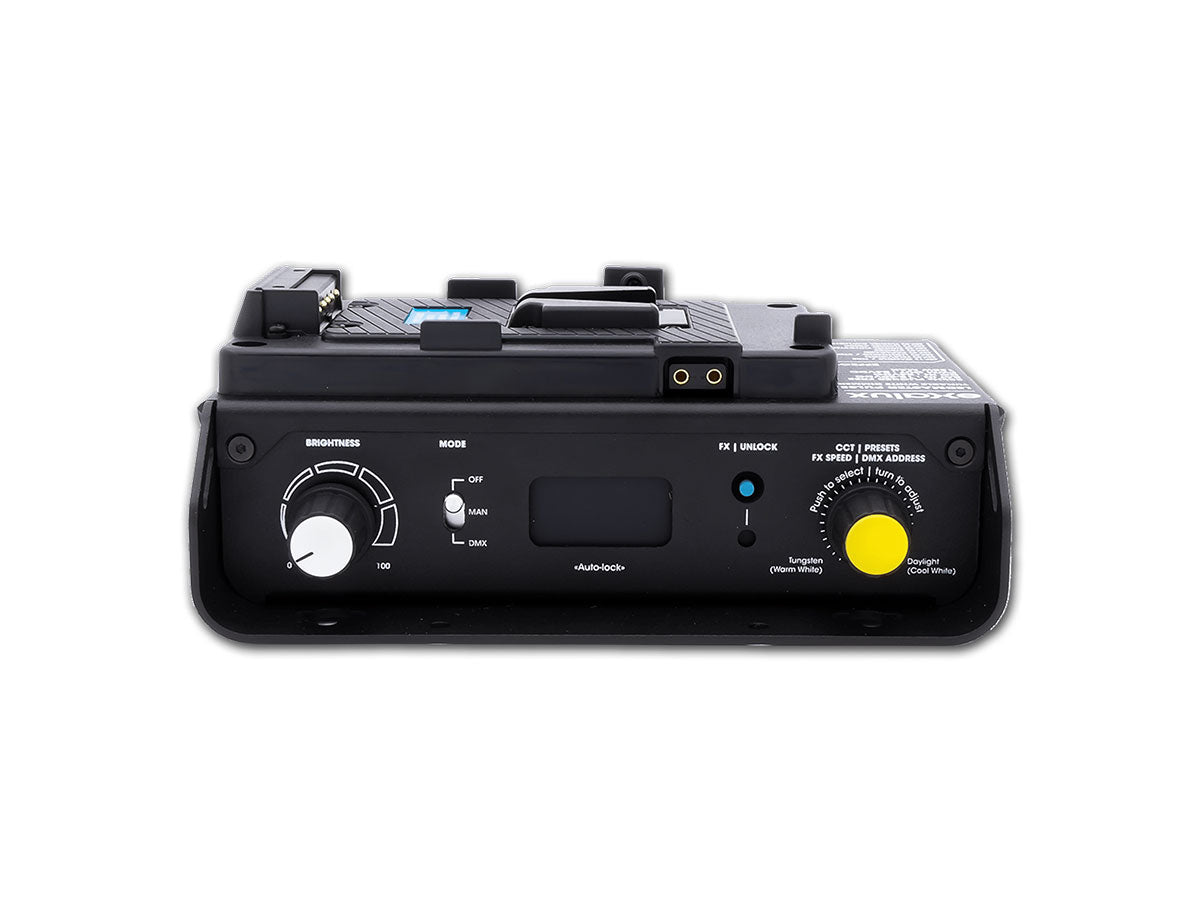

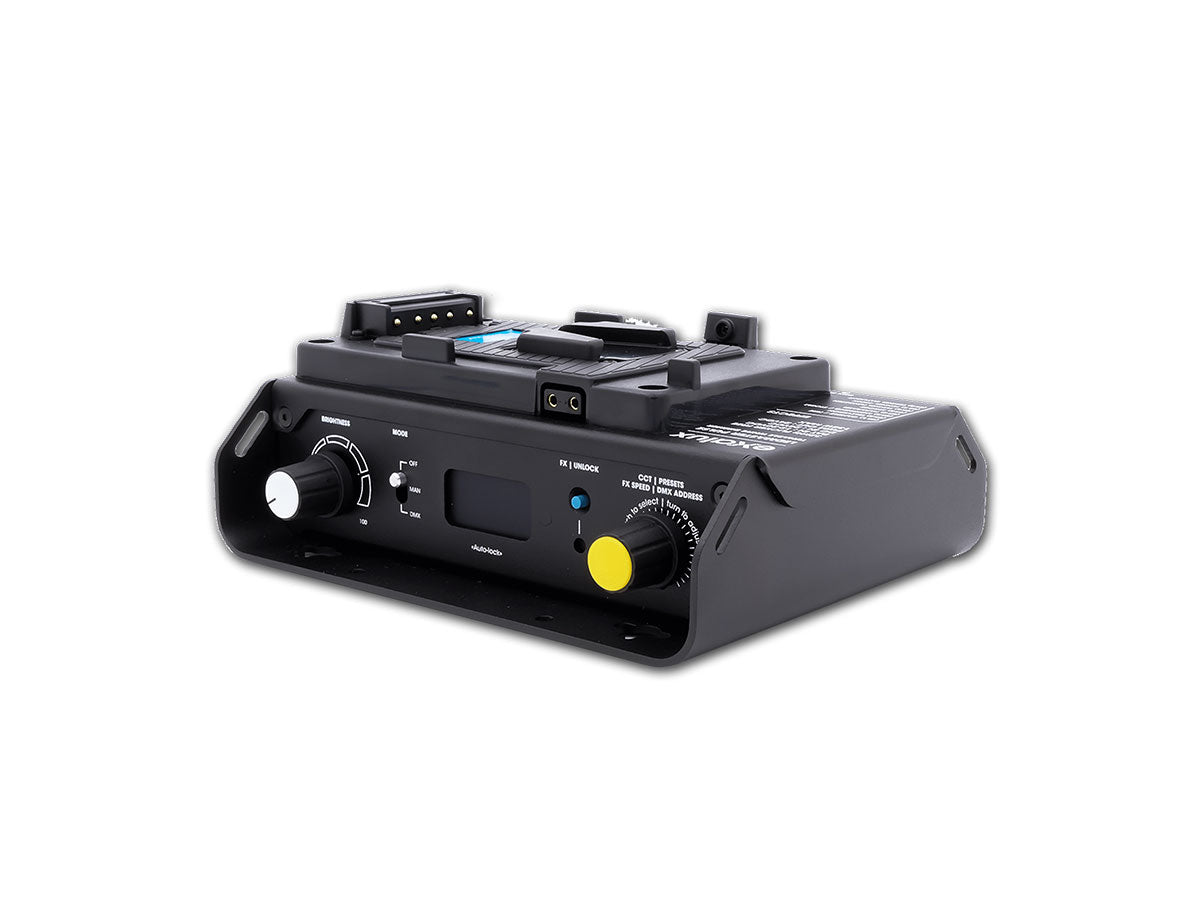

Controls: “OFF-ON” (Switch)
Mode : Manual / DMX / Settings (Switch)
Manual CCT / Dimming Dial (Push knob)
Manual Dimming Dial (Analog knob)
Lock/Unlock/FX Switch
Display: 4 digits LED display (Red)
Firmware Update: Bootloader, via XLR5 Input (a specific cable is required)
TECHNICAL SPECIFICATIONS
Power Rating: 135W
Output Voltage: 24VDC PWM
Current Load: 5,6A x 2 channels
Built-In Converter: Type : Synchronous switching step-up
Switching Frequency : 1MHz
Efficiency : 93%~98%

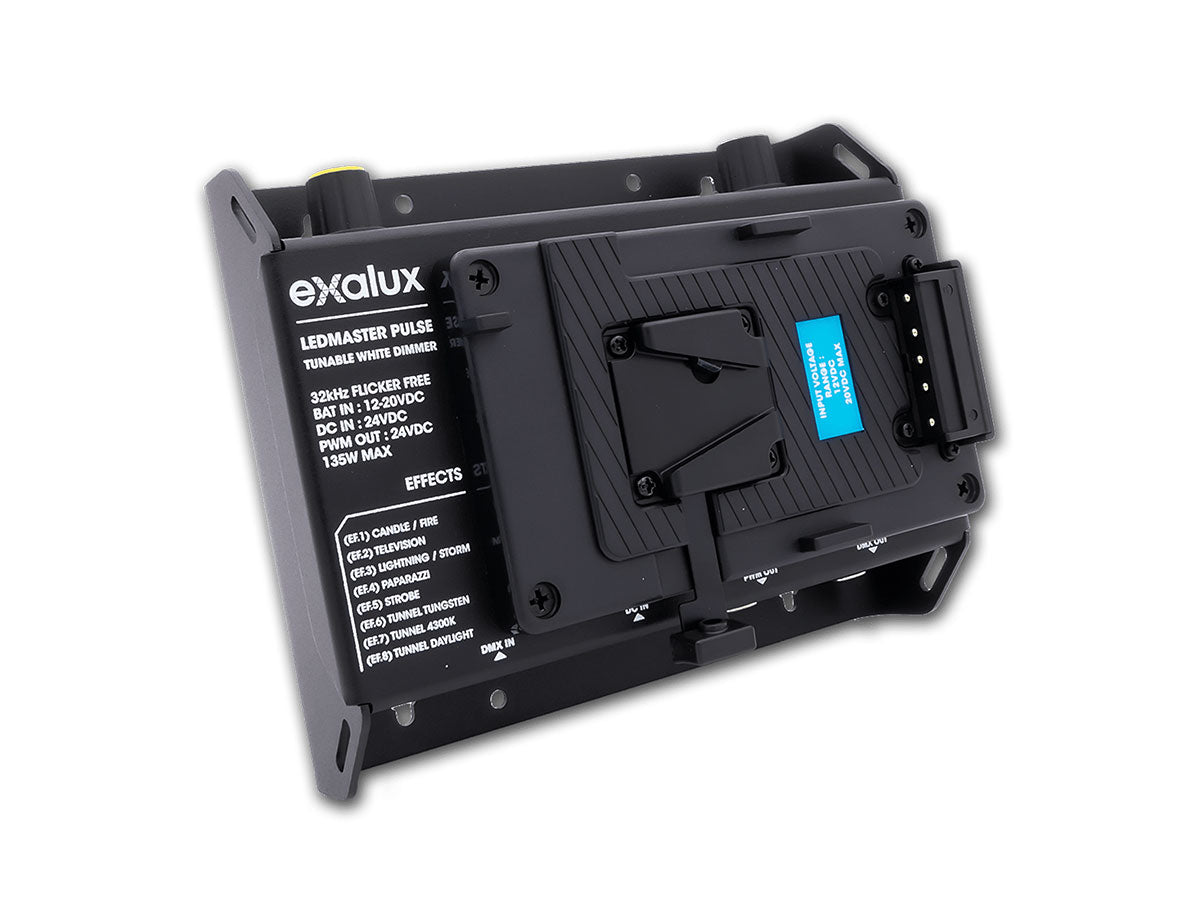

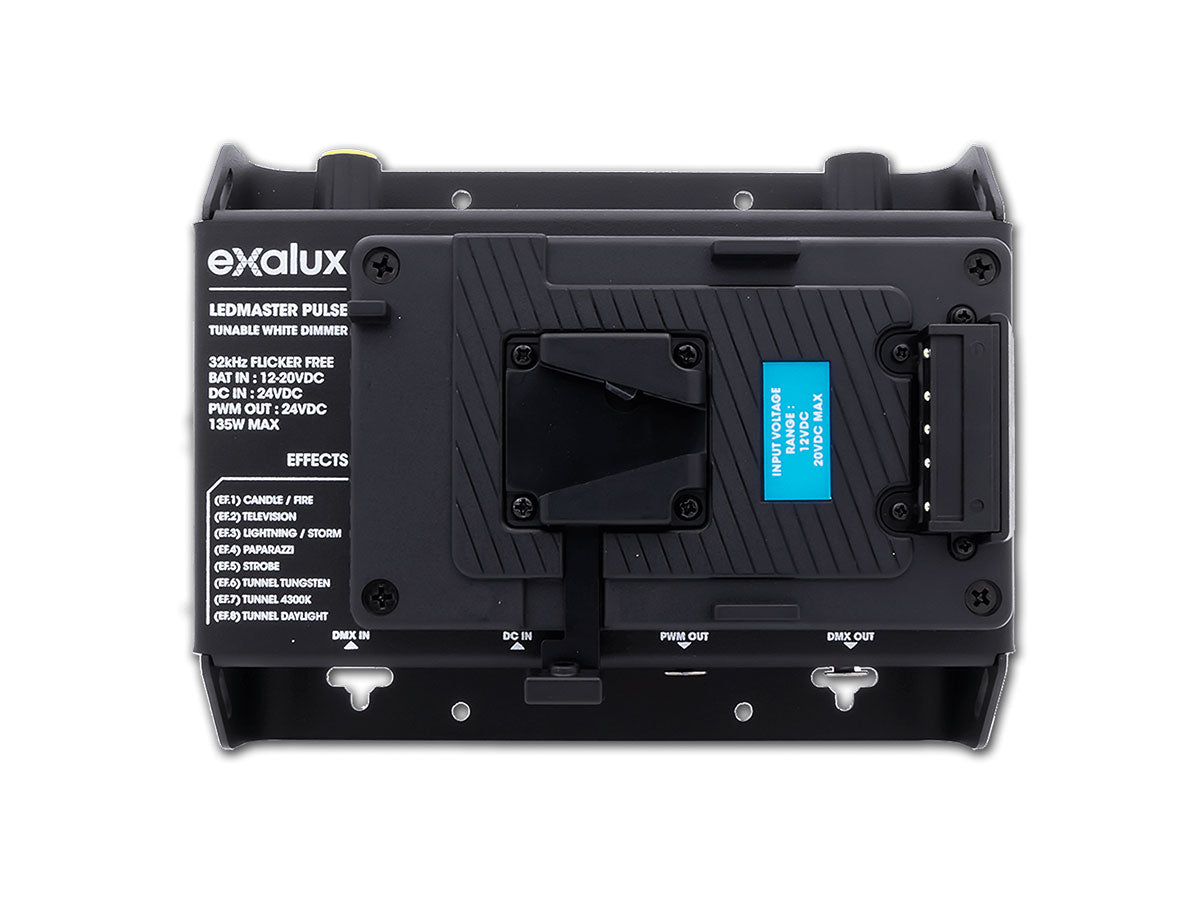

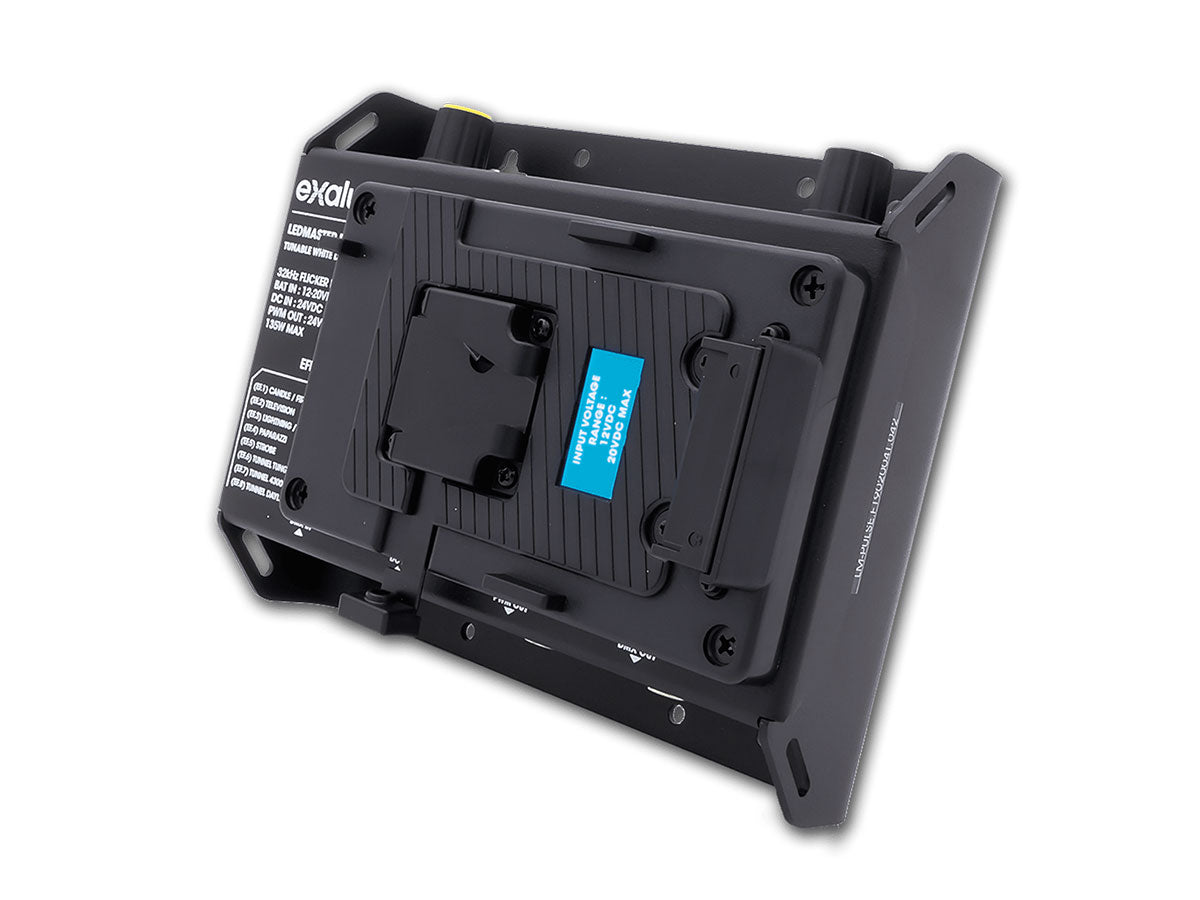

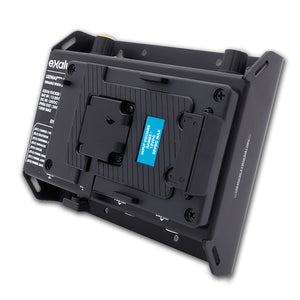

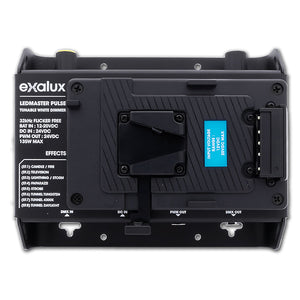

Battery Socket: Standard V-Mount
Trigger Input: Jack 2.5mm
Housing / Mounting: Aluminium, black painting
Protection: Shortcircuit / Overcurrent (Internal Fuse)
Certifications: CE, RoHS
Weight: 665g
DMX INTERFACE
Protocol: DMX512-A
RDM ANSI E1.20
Universe Support: 1
DMX Frame Rate: 0,8-830Hz
End to End Latency: < 5ms

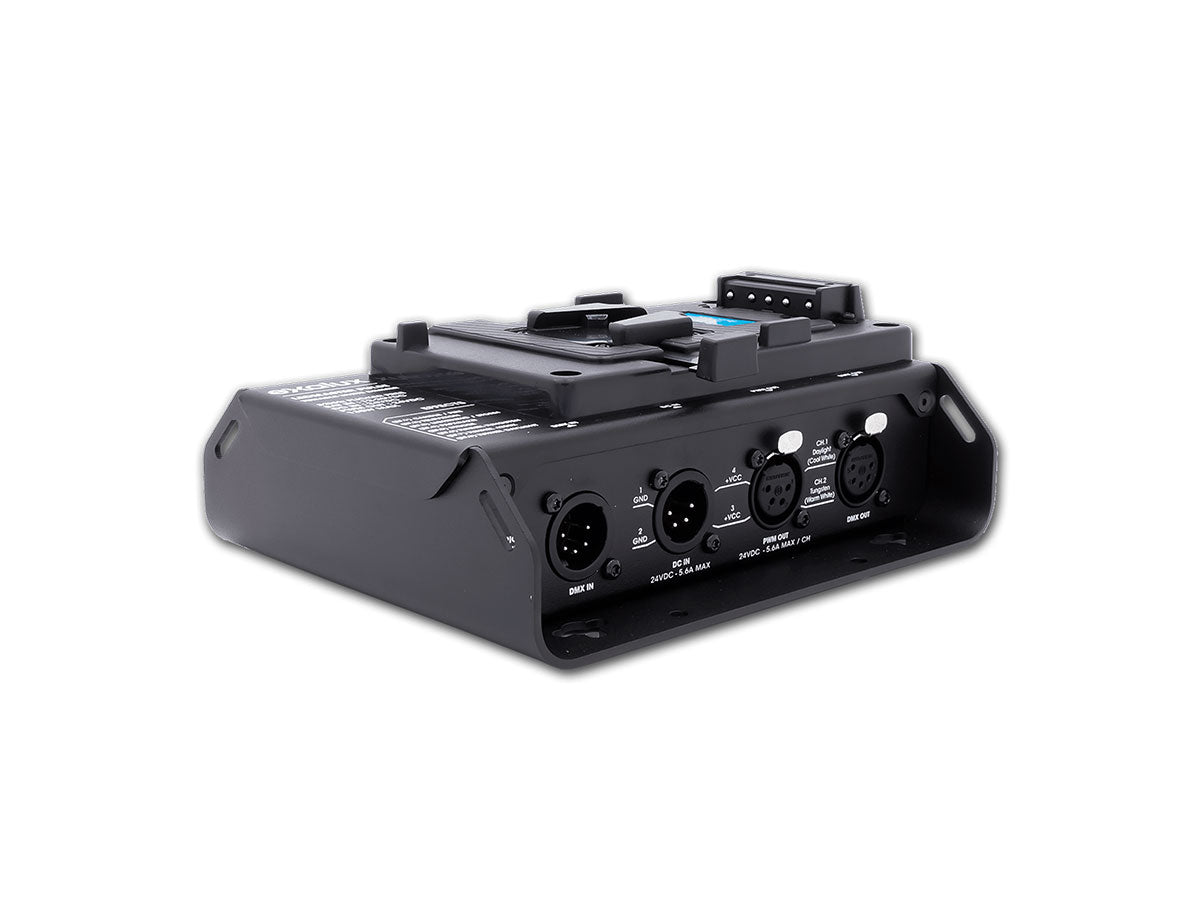

DMX Input: Neutrik XLR 5 pins Female
DMX Output: Neutrik XLR 5 pins Male
OPERATING CONDITIONS
DC Input: XLR 4 INPUT
24VDC
V-Lock Input: 10 ~ 18VDC
Storage Temperature: Min : -30°C | Typ : 25°C | Max : +80°C
Operating Temperature: Min : -20°C | Typ : 25°C | Max : +70°C
  • LEDMASTER PULSE Unit
  • Exalux Pouch
  • Adjustable Neck Lanyard
