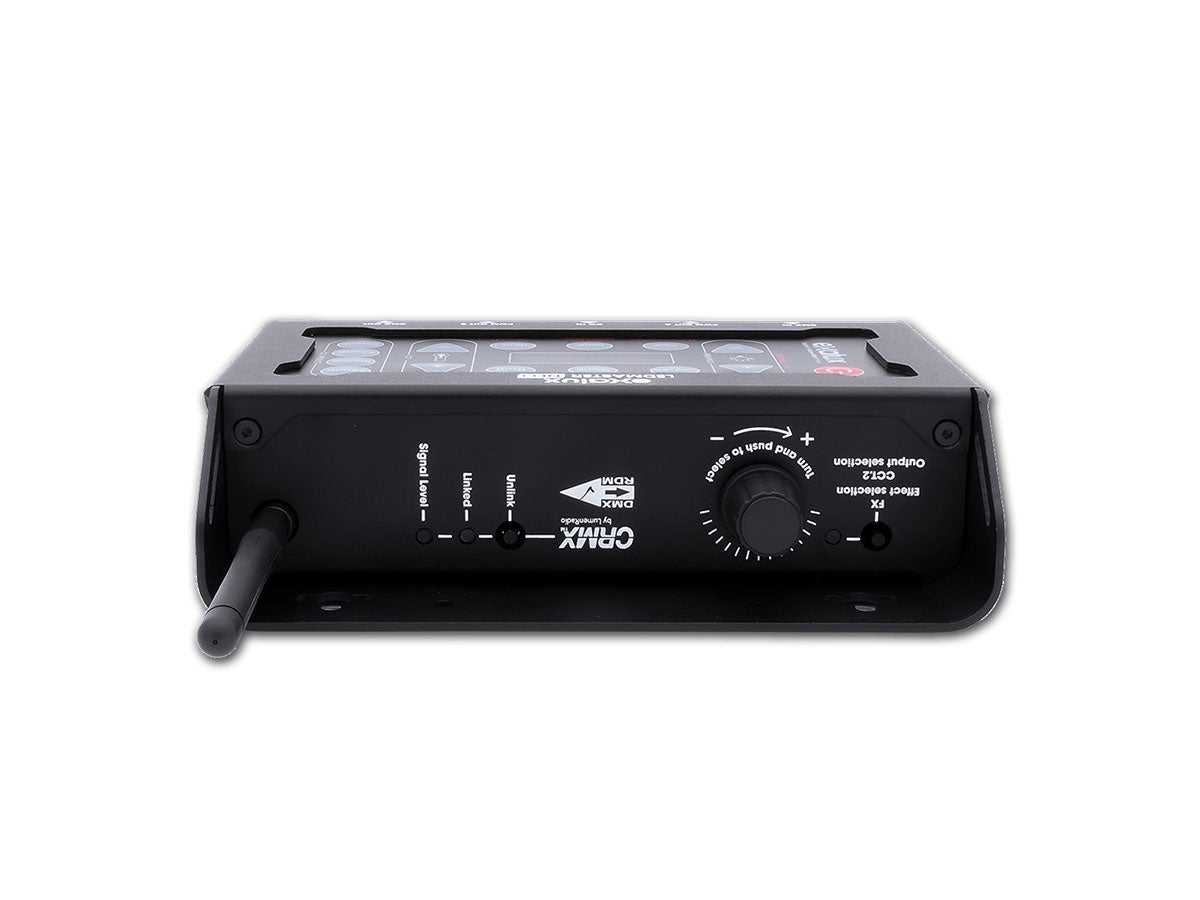

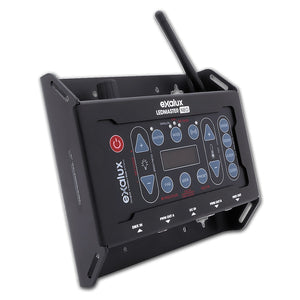

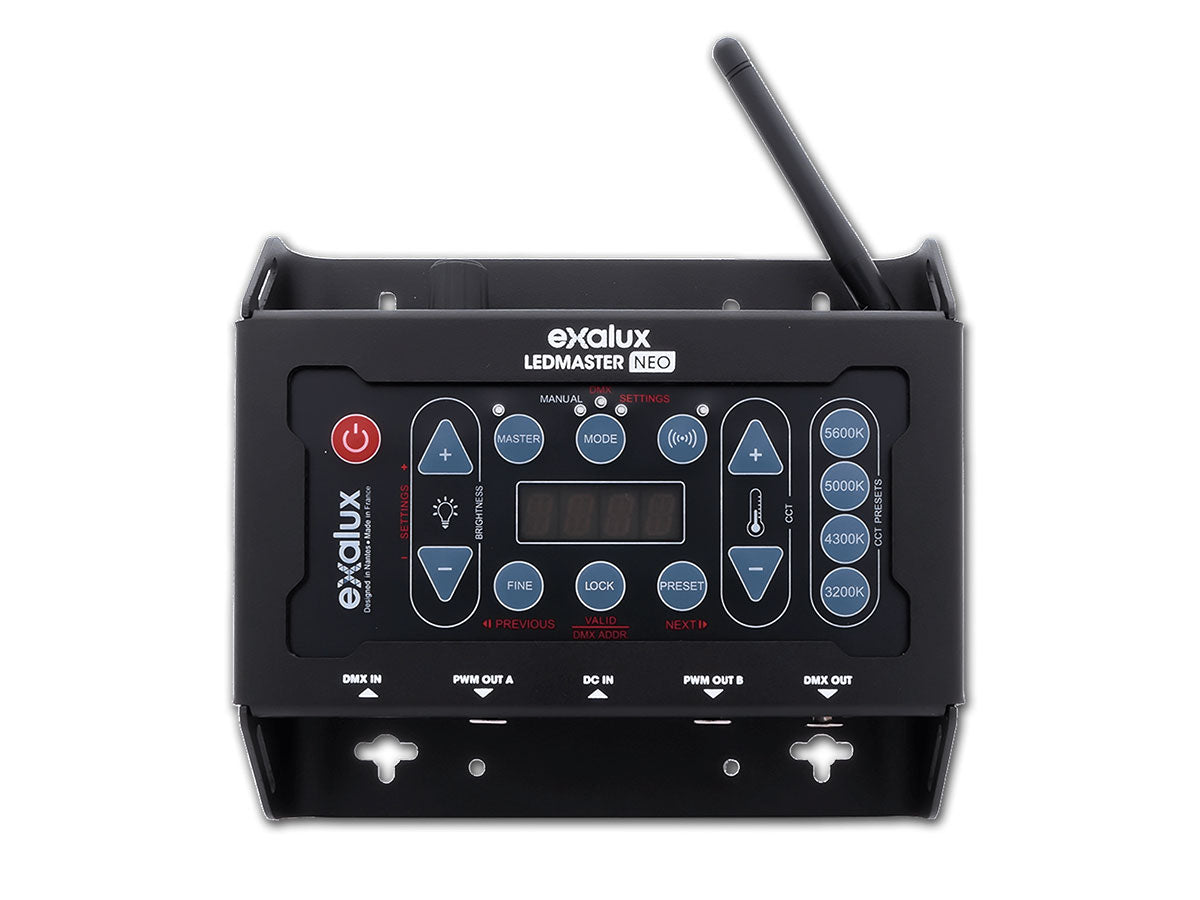

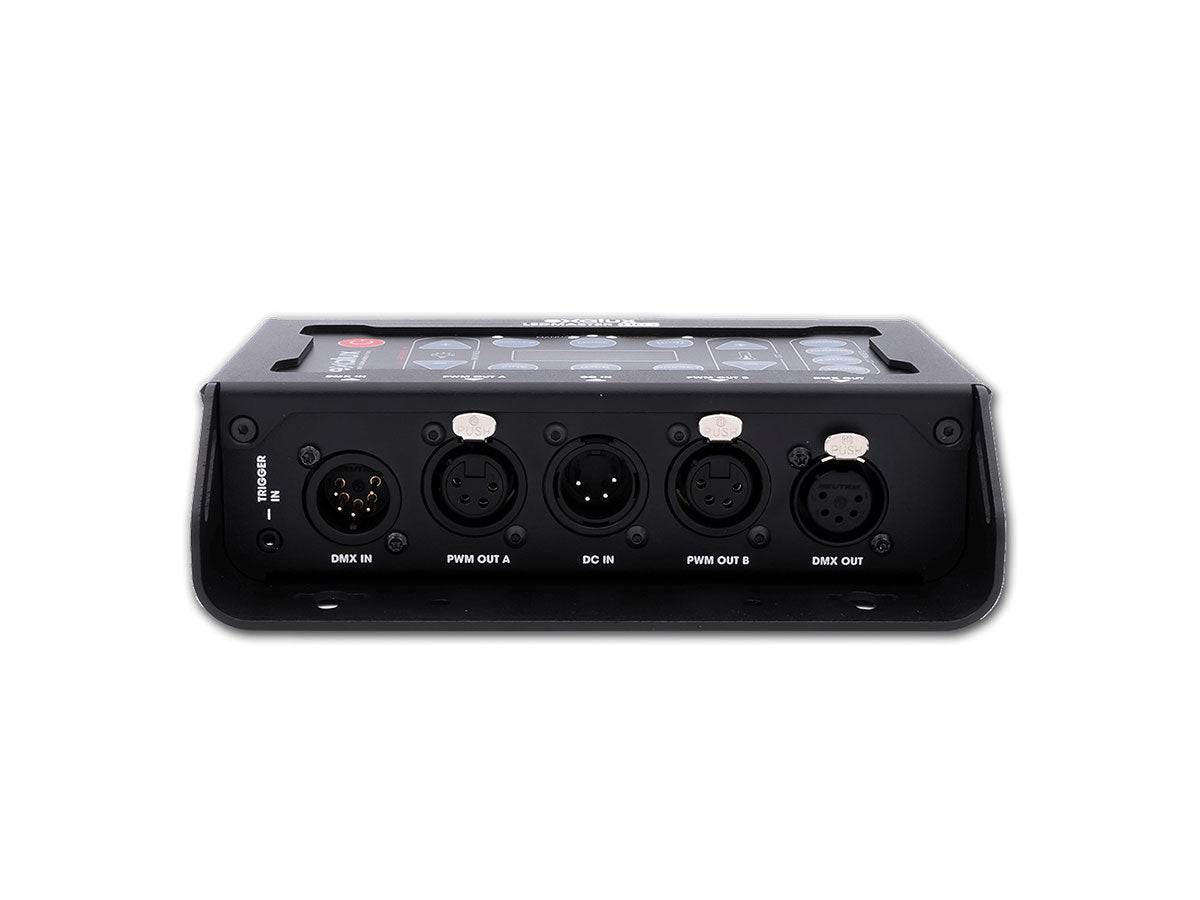

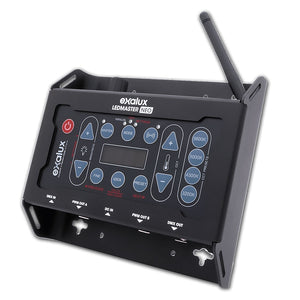

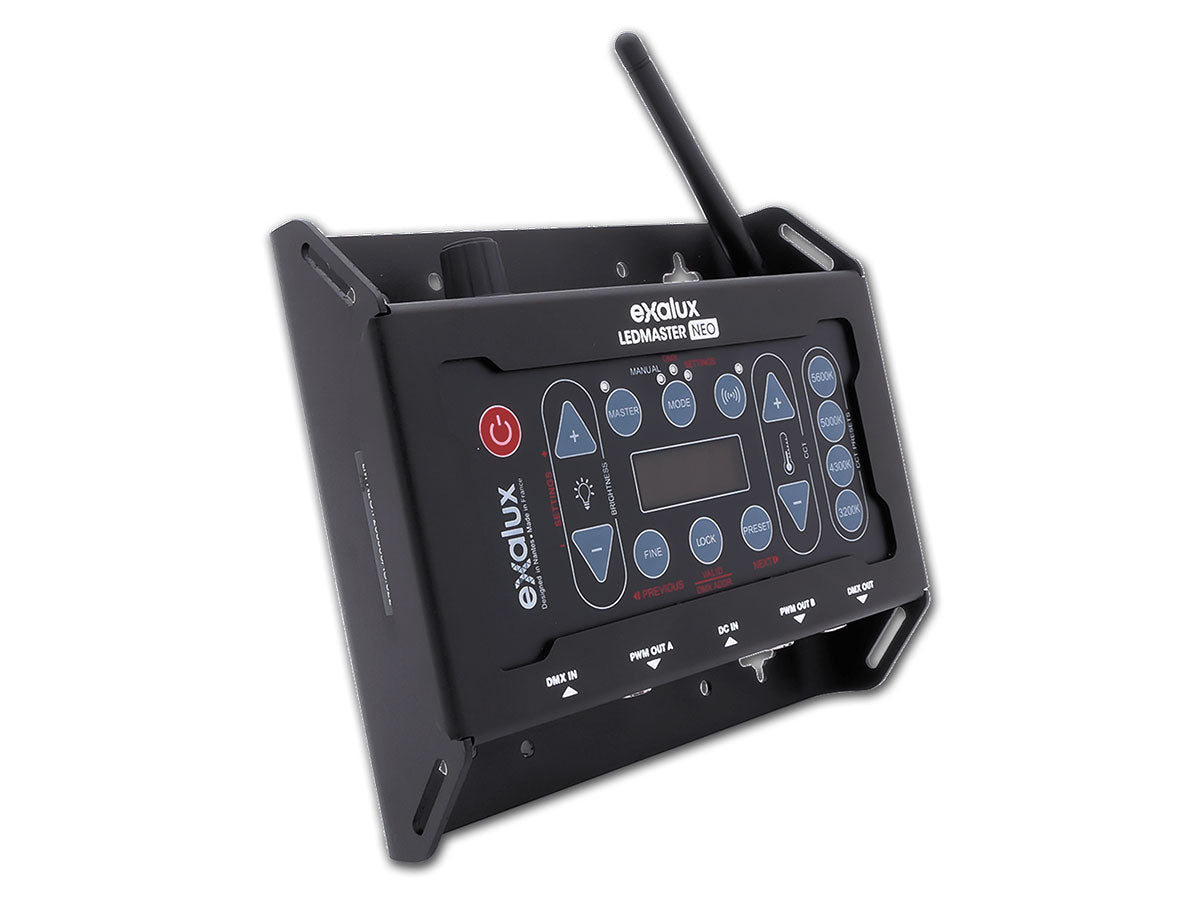

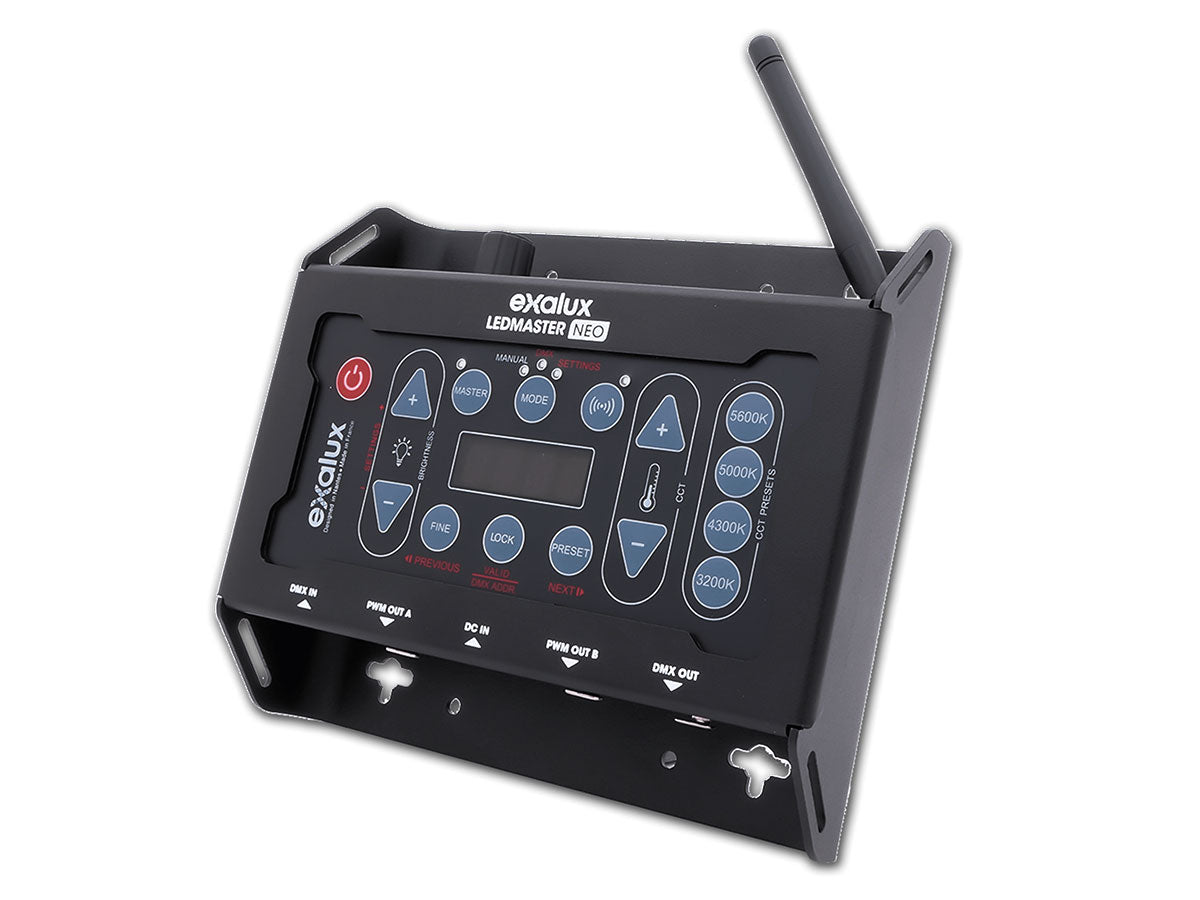

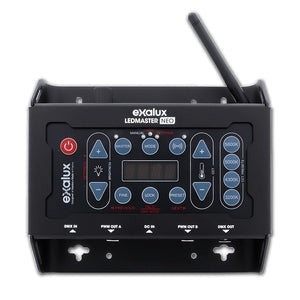

Exalux Ledmaster Neo
Exalux Ledmaster Neo
SKU:
EX-LMA.001.012
Regular price
£927.02 GBP ex VAT
£1,112.42 GBP inc VAT
£1,112.42 GBP inc VAT
Regular price
ex VAT
Sale price
£927.02 GBP ex VAT
£1,112.42 GBP inc VAT
Unit price
per
£1,112.42 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
EXALUX™ LEDMASTER NEO is a constant voltage LED dimmer designed to power LED fixtures on film sets.
Thanks to its high output capacity, LEDMASTER NEO allows to softly drive 480W of LED light (@24VDC).
LEDMASTER NEO is really ideal for dimming LED panels with a high output lumens.
The two individual outputs can be used in a different way:
- Tunable White Sync mode: both outputs operate simultaneously (240W+240W),
- Tunable White Dual mode: both outputs operate individually (240W+240W),
- Dual Channel: only one output is used at full power (480W).
- 4 independent channels, 480W Power Rating,
- Manual / Remote control,
- Built-In DMX/RDM 512 decoder,
- Built-In CRMX / RDM Receiver,
- 2000K>7000K patented CCT synthesizer,
- 3 operating modes: Tunable White / Dual Channel / Special FX,
- Master /Slave Operation,
- 4 CCT presets (3200K, 4300K, 5000K, 5600K),
- Trigger input,
- 32kHz Flicker Free PWM Frequency,
- Lock function,
- Analog potentiometers for dimming,
- Digital encoder for dimming, CCT and others settings,
- LED display.
| FEATURES | |
| Technology: | Low Side PMW with phase shift |
| Control Mode: | CCT / Dual Channel / Special FX |
| Dimming Curve: | Logarithmic |
| CCT Synthesizer Ranges: | 2 000K > 6 500K |
| CCT Presets: | 3 200K, 4 300K, 5 000K, 5 600K |
| PMW Frequency: | 4 > 32 kHz |
| Built-In Special Effects: | Candle/Fire, TV, Lightning, Paparazzi, Strobe, Tunnel |
| Controls: | “OFF-ON” (Switch) Mode : Manual / DMX / Settings (Switch) Manual CCT / Dimming Dial (Push Encoder) CCT Adjust (Switch) Dimming (Switch) CCT Presets Master/Slave Mode (Switch) Wireless On/Off (Switch) Fine / Coarse (Switch) Lock (Switch) |
| Display: | 4 digits LED display (Red) |
| Firmware Update: | Bootloader, via XLR5 Input (a specific cable is required) |
| TECHNICAL SPECIFICATIONS | |
| Power Rating: | Out A : 240W Out B : 240W Out A+Out B : 240W+240W |
| Output Voltage: | 24VDC PWM |
| Current Load: | Up to 20A (up to 10A per channel) |
| Trigger Input: | Jack 2.5mm |
| Housing / Mounting: | Aluminium, black painting |
| Protection: | Shortcircuit / Overcurrent (Internal Fuse) |
| Certifications: | CE, RoHS |
| Weight: | 670g |
| DMX INTERFACE | |
| Protocol: | DMX512-A RDM ANSI E1.20 |
| Universe Support: | 1 |
| DMX Frame Rate: | 0,8-830Hz |
| End to End Latency: | < 5ms |
| DMX Input: | Neutrik XLR 5 pins Female |
| DMX Output: | Neutrik XLR 5 pins Male |
| RADIO INTERFACE | |
| Standard / Technology: | LumenRadio CRMX™ |
| Frequency: | 2.402 ~ 2.480 GHz |
| Antenna: | Omnidirectional 2.4GHZ 2.0dBi, SMA |
| RF Output: | 20 dBm (100mW) |
| RF Modulation: | GFSK |
| Range: | Up to 300m (depending on the transmitter and the environment) |
| OPERATING CONDITIONS | |
| DC Input: | XLR 4 INPUT 24VDC |
| Storage Temperature: | Min : -30°C | Typ : 25°C | Max : +80°C |
| Operating Temperature: | Min : -20°C | Typ : 25°C | Max : +70°C |
- LEDMASTER NEO Unit
- Exalux Pouch
- Adjustable Neck Lanyard
