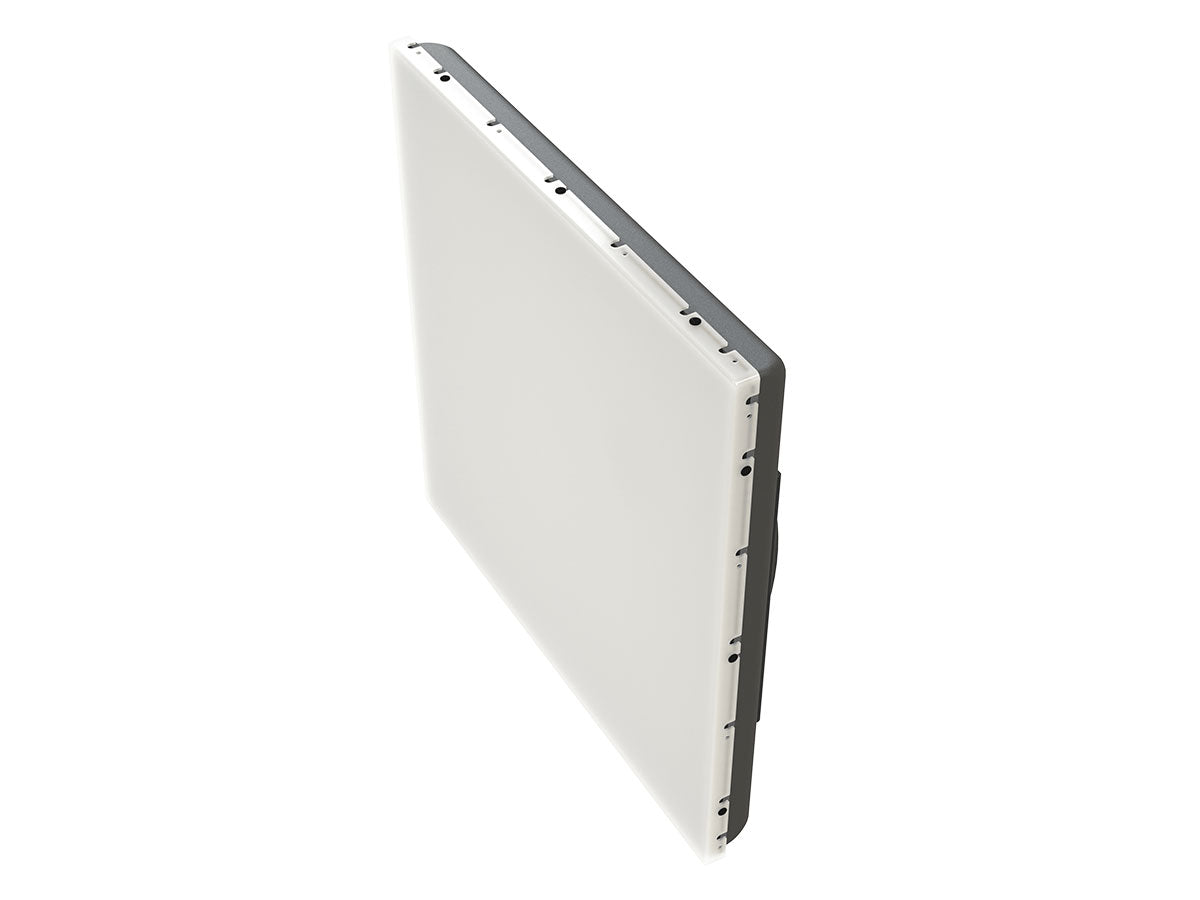

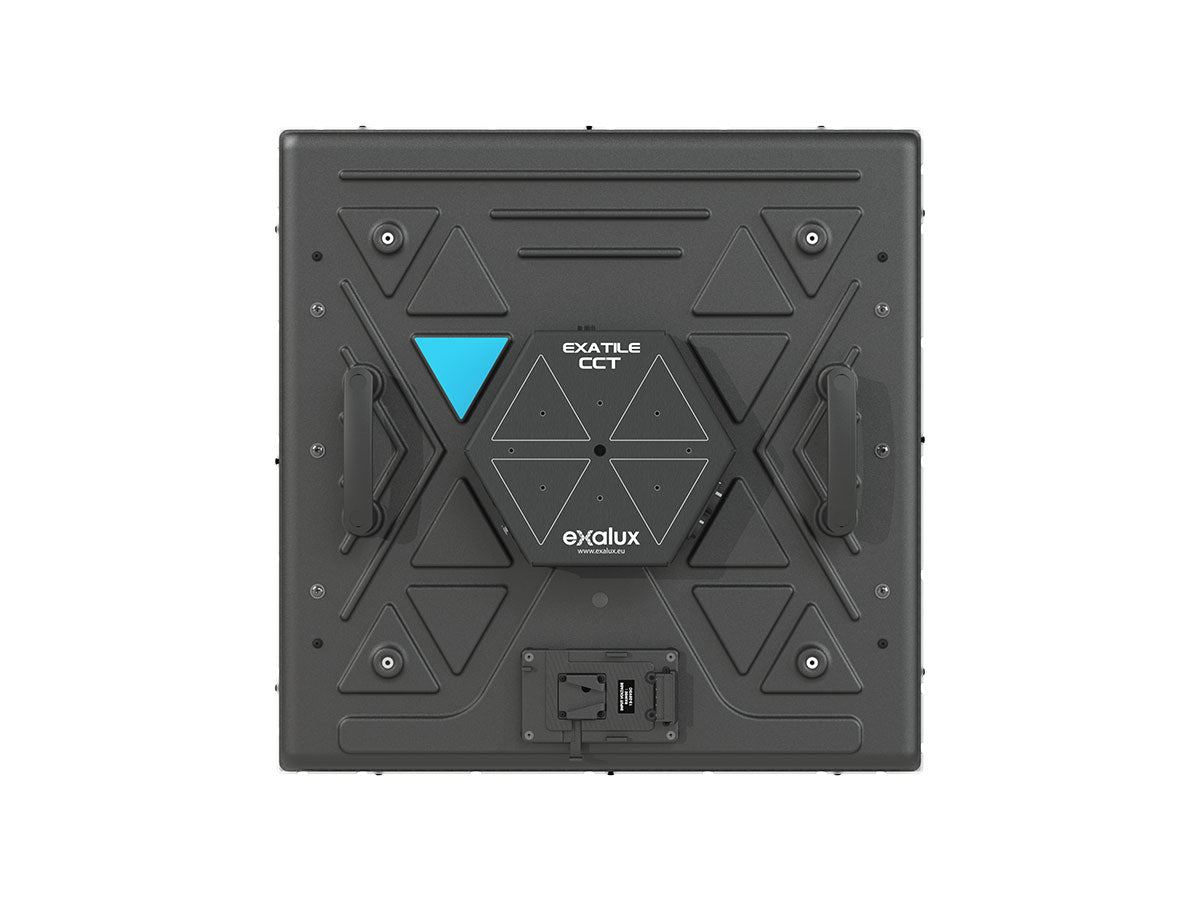

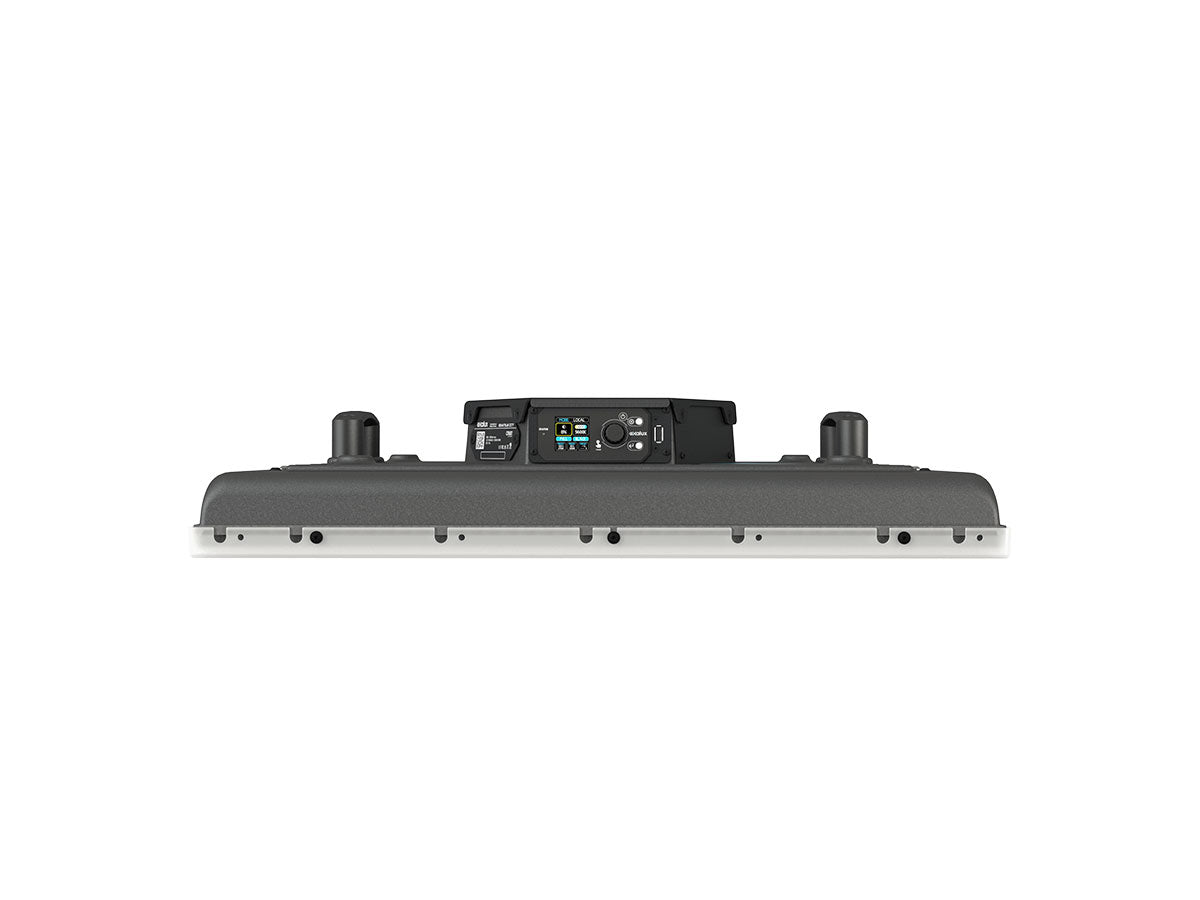

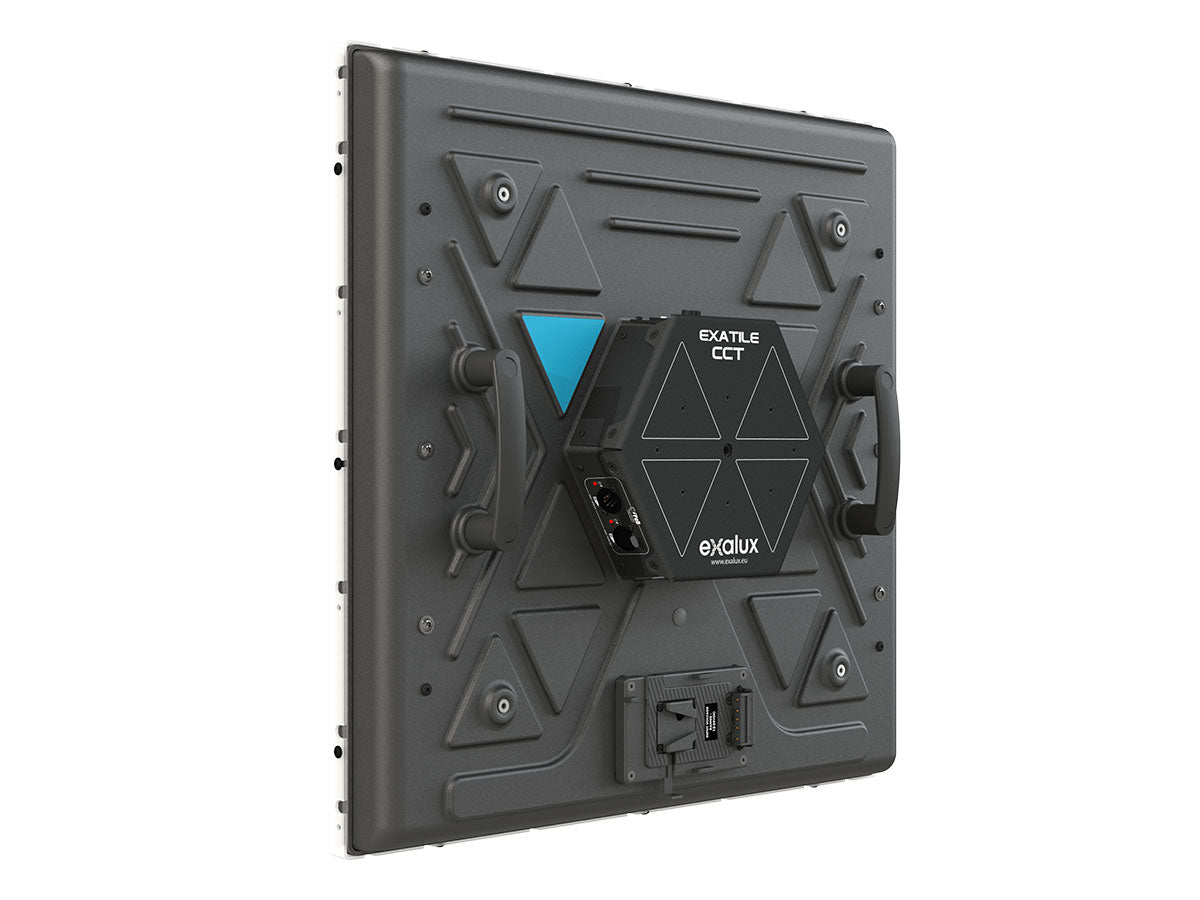

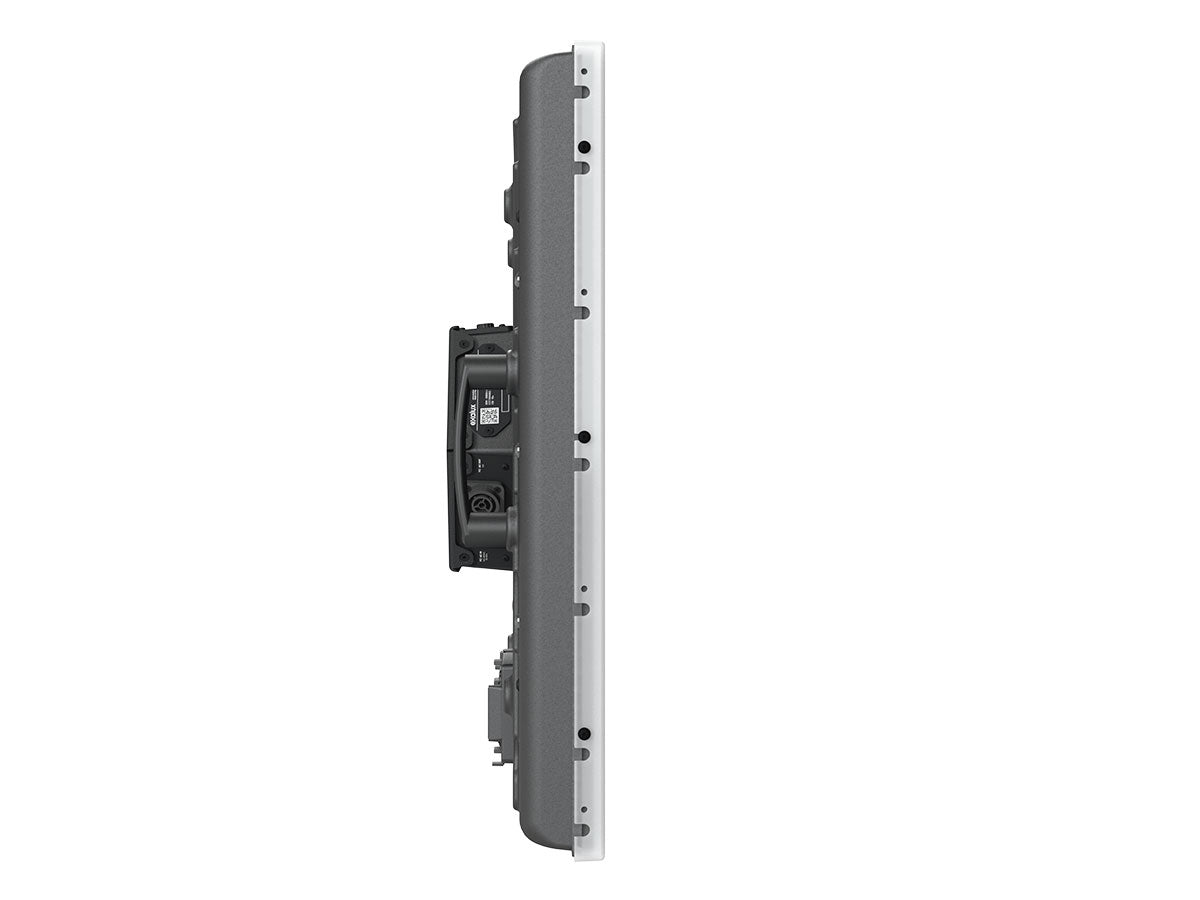

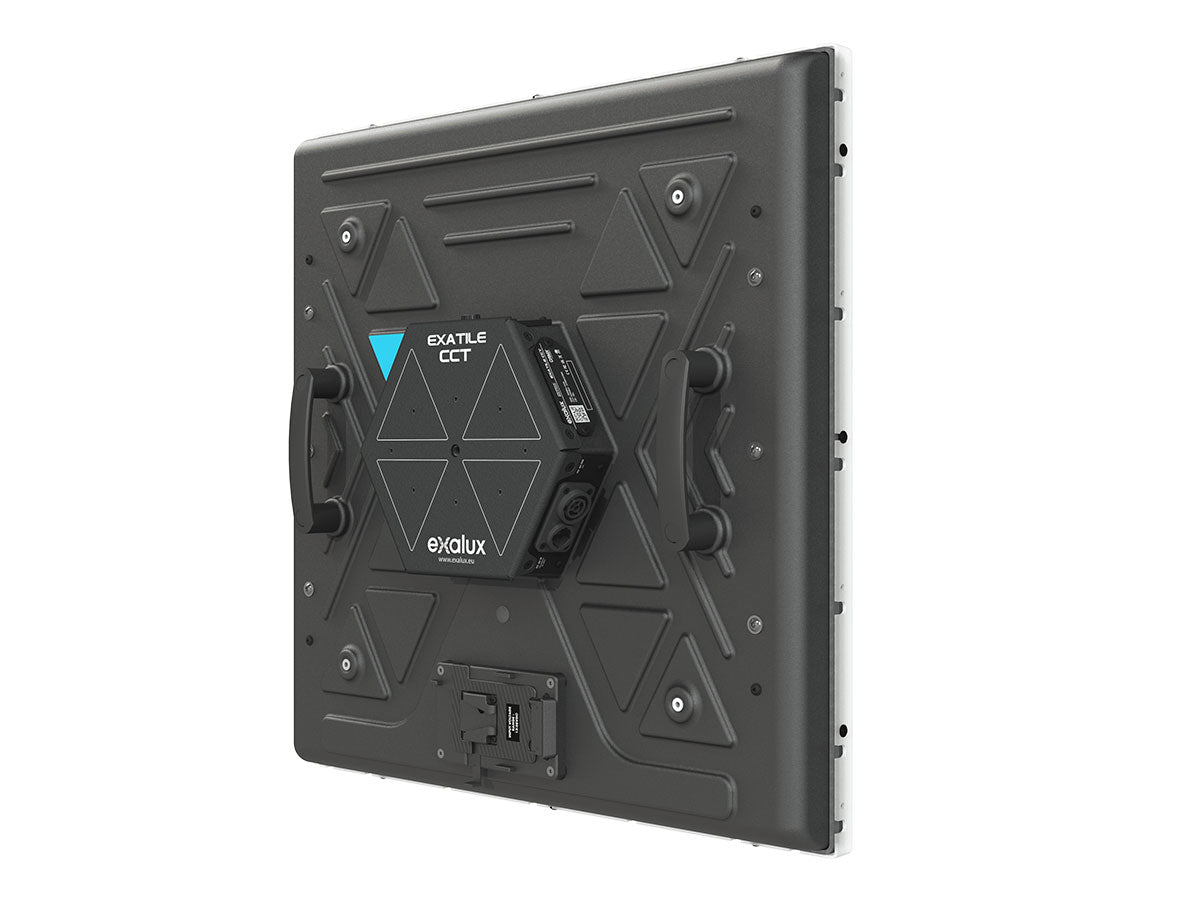

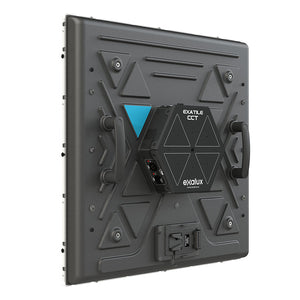

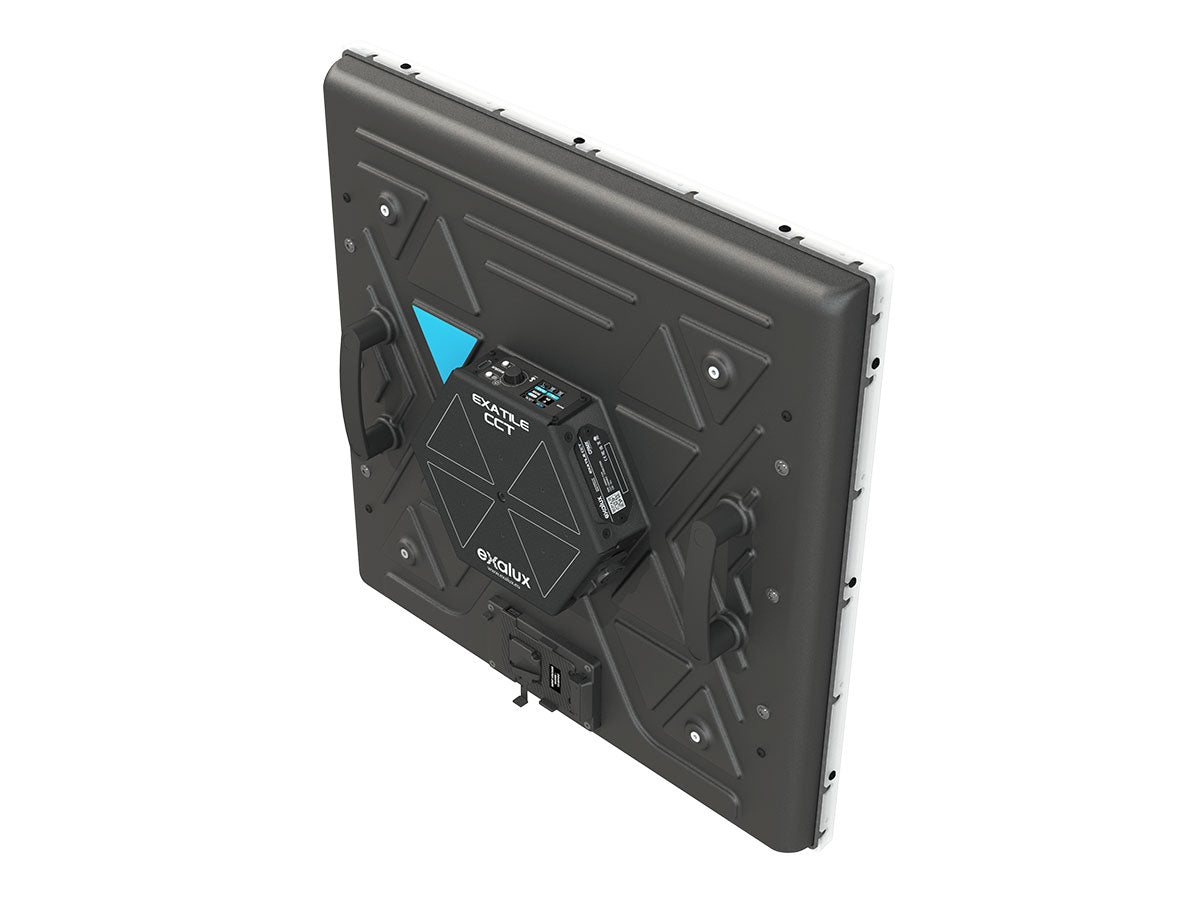

With EXATILE CCT, EXALUX introduces the perfect tunable white LED ceiling tile for the film and broadcast markets.
EXATILE CCT is based on a high efficiency backlighting system ensuring perfect light uniformity over the entire tile’s surface. It can be used for ceiling lighting as well as close-up lighting on location. You can also set it up in the camera’s filed of vision, that’s what it’s made for!
- CCT range of 3100K – 5700K,
- High CRI (Ra 97 min),
- Internal PSU & dimmer,
- Fully dimmable from 0 to 100%,
- Fully flicker-free,
- Control Modes : local, remote
- DMX/RDM + Wireless DMX (LumenRadio CRMX™),
- V-Mount battery powered (14,4-26VDC),
- 100-240VAC input,
- 60W Power Draw,
- IPX4.
| TECHNICAL SPECIFICATIONS | |
| LED Engine: | CCT : 3100 > 5700K CRI (Ra) : Min : 96 | Max : 97 TLCI : 98 TM-30 Rf : 96 TM-30 Rg : 104 ⊿uv @3200K : -0.0034 ⊿uv @5600K : -0.0008 Beam : 120° Illuminance: 1 100 lux (@1m) |
| Dimming Range: | 0 > 100% |
| Supported Protocols: | DMX Wireless (LumenRadio CRMX™) |
| Control Modes: | Manual (knob / switches) Remote (DMX / BLE / CRMX) |
| User Interface: | Colour TFT display, LED indicators, Backlit buttons |
| Power Consumption: | 60W Max |
| IP Rating: | IPX4 |
| Certifications: | CE, RoHS |
| Weight: | 5.75Kg |
| OPERATING CONDITIONS | |
| AC Input Voltage: | 100-240VAC |
| Storage Temperature: | Min : -30°C | Typ : 25°C | Max : +70°C |
| Operating Temperature: | Min : -20°C | Typ : 25°C | Max : +50°C |
| RADIO INTERFACE | |
| Standard / Technology: | CRMX, CRMX², W-DMX G3/G4s |
| Frequency: | 2.402 ~ 2.480 GHz |
| Antenna: | Omnidirectional, 2.4GHZ, 1.6dBi, SMA |
| Rx Sensitivity: | -93 dBm |
| RF Modulation: | GFSK |
| Range: | Up to 500m |
| DMX INTERFACE | |
| Protocol: | DMX512-A |
| Universe Support: | 1 |
| DMX Frame Rate: | 0,8-830Hz |
| End to End Latency: | < 5ms |
| DMX Input: | Neutrik XLR 5 pins male (1) / PoD Compliant |
| DMX Output: | Neutrik XLR 5 pins Female (1) / PoD Compliant |
| USB INTERFACE | |
| Standard: | USB 2.0 Hi-Speed |
| Ports: | USB-A Host |
| POWER | |
| V-Lock: | 14.4-14.8VDC~26VDC |
| AC Input: | 100-240VAC |
- EXATILE CCT
- AC POWER CABLE
