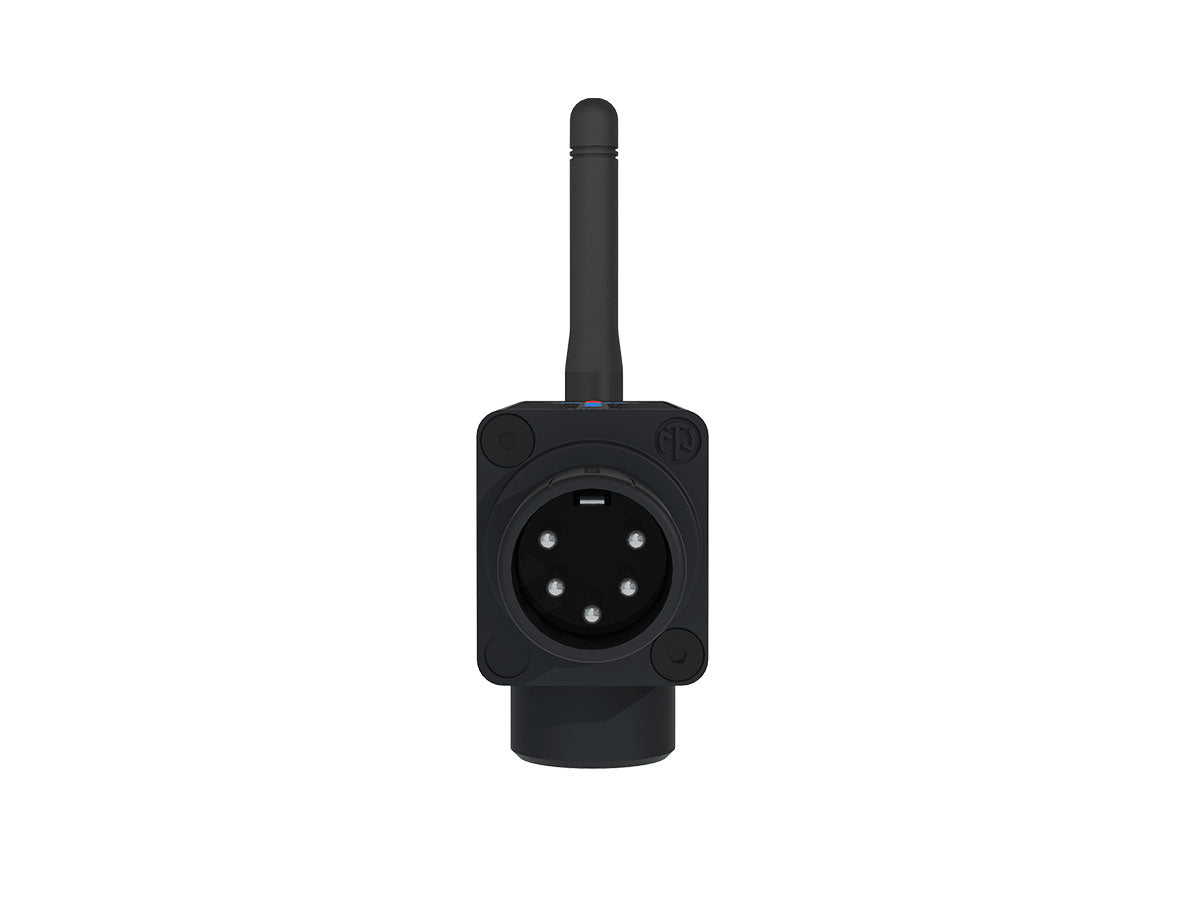

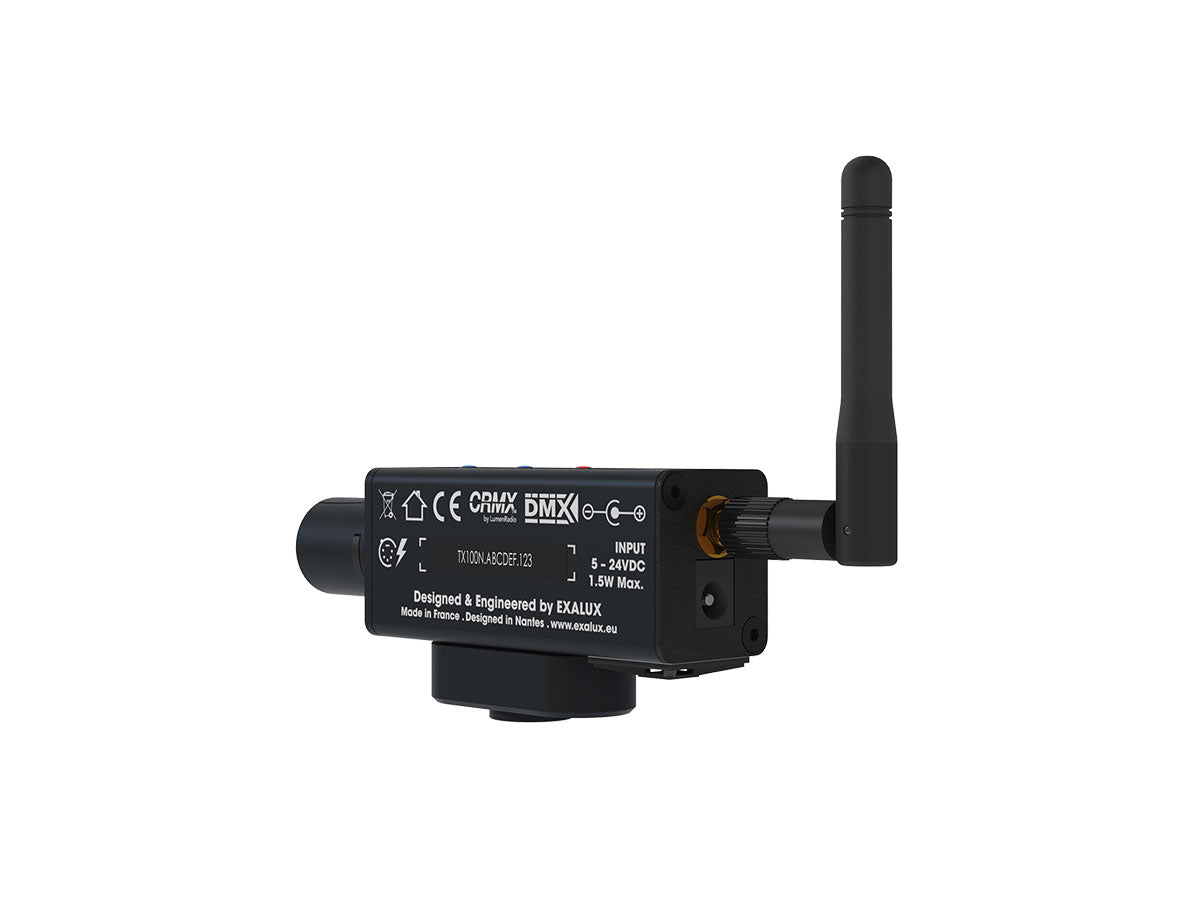

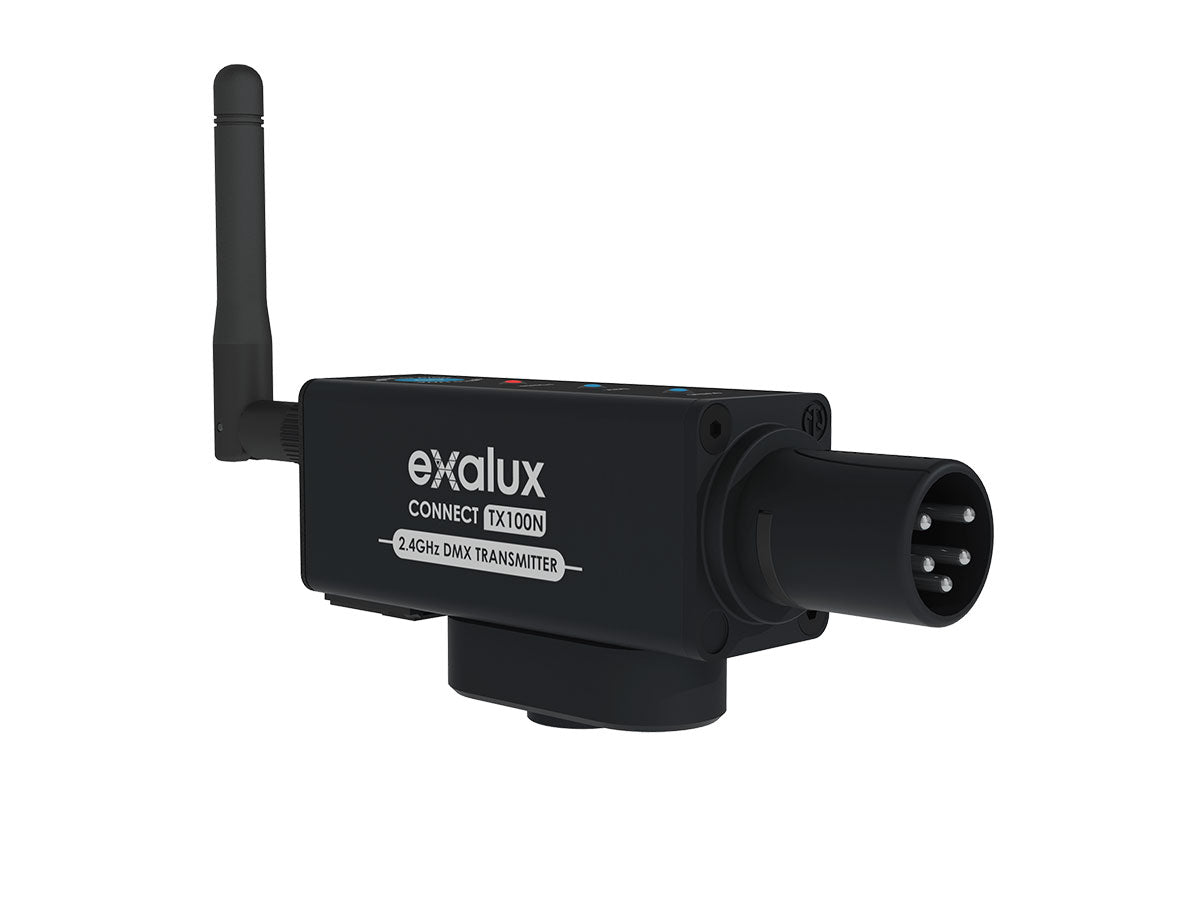

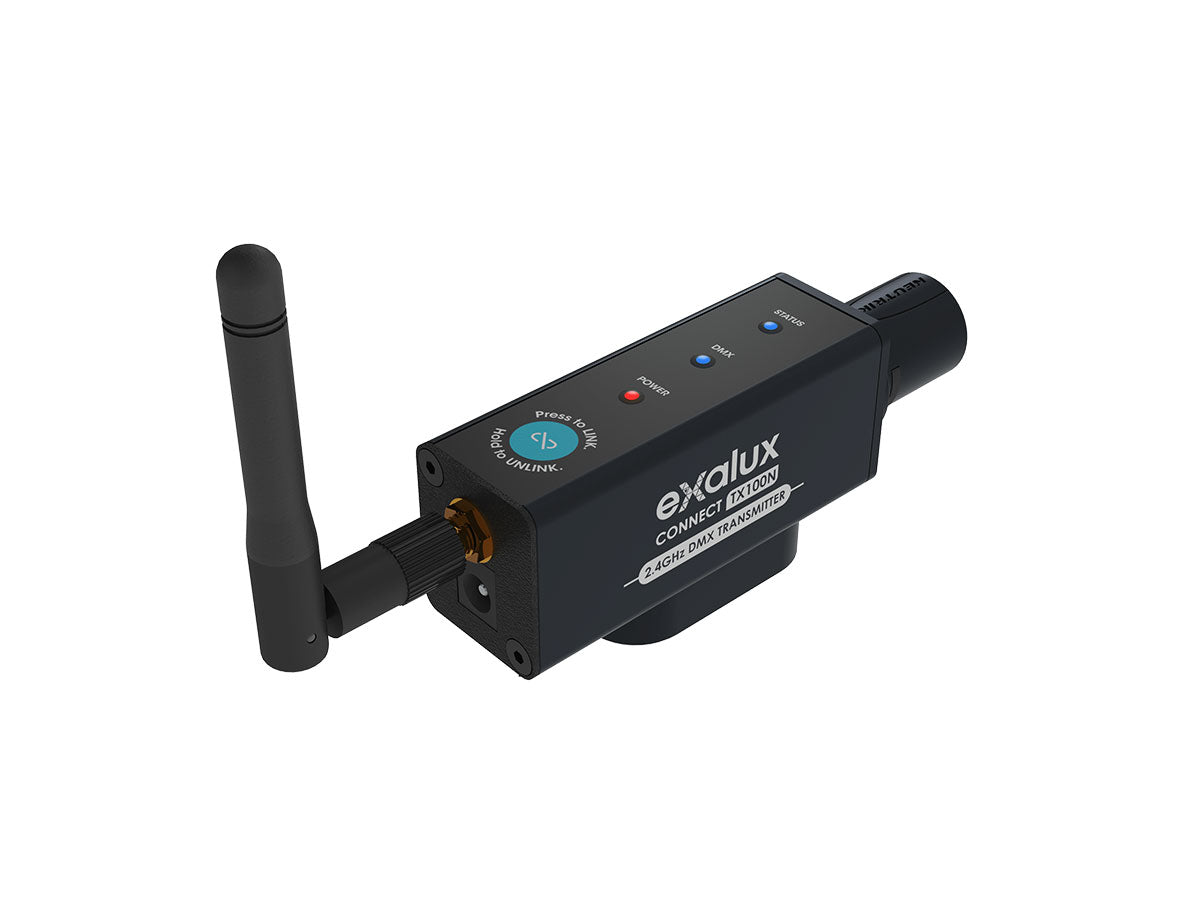

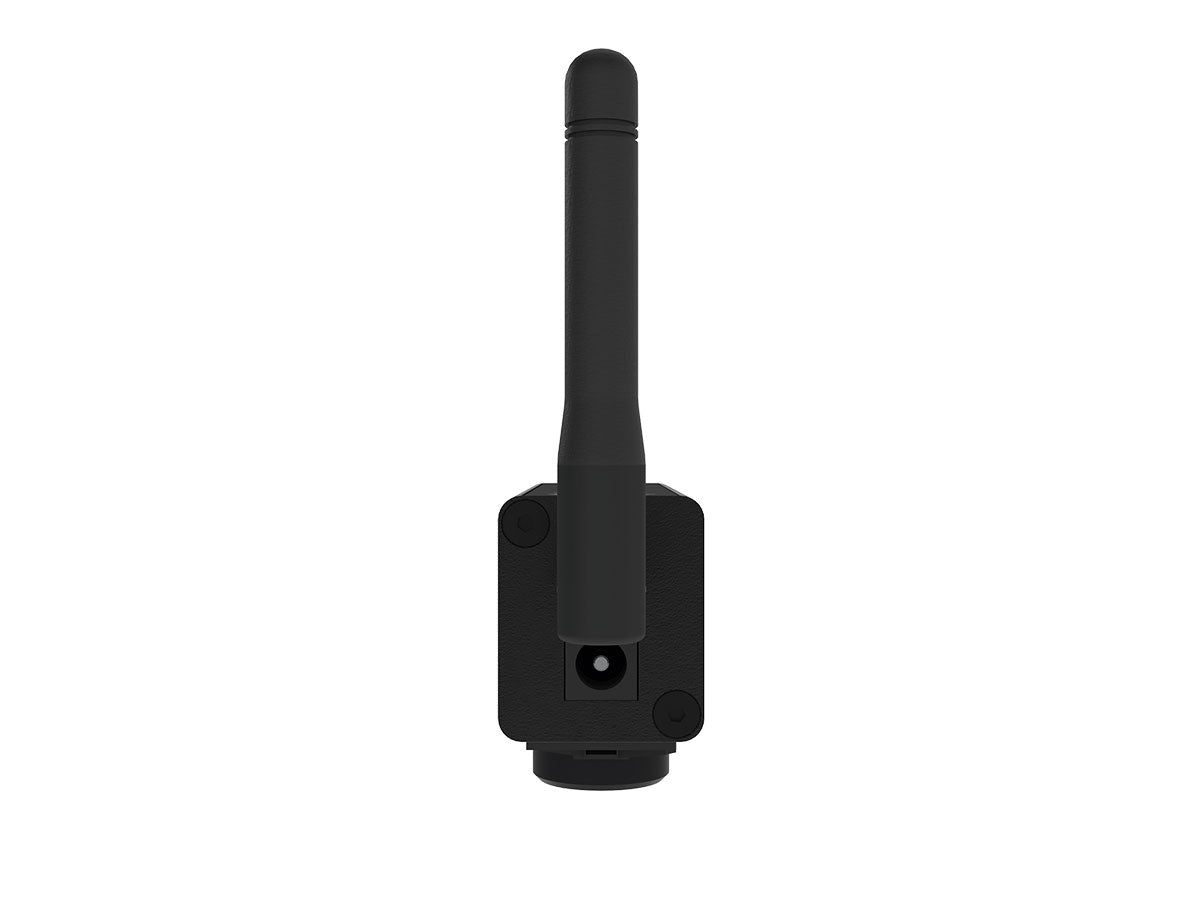

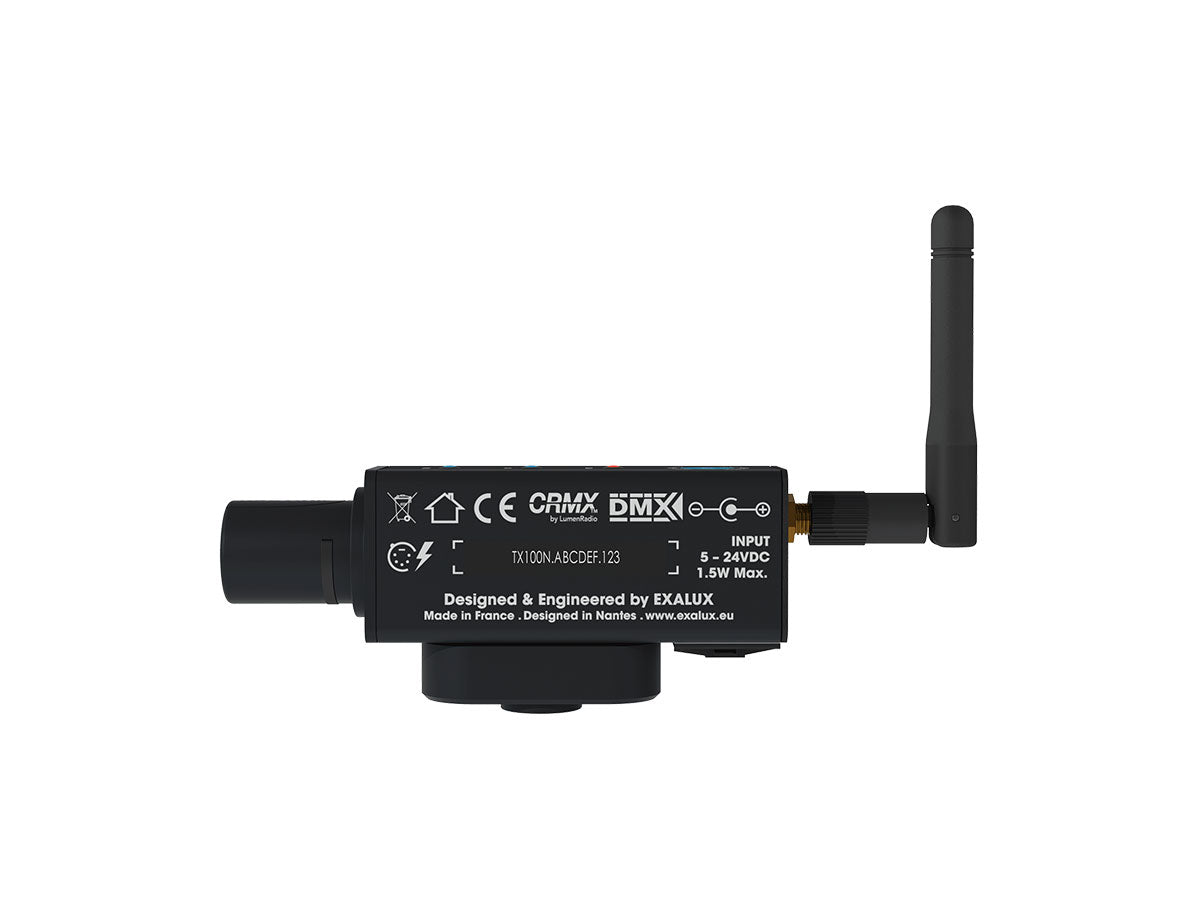

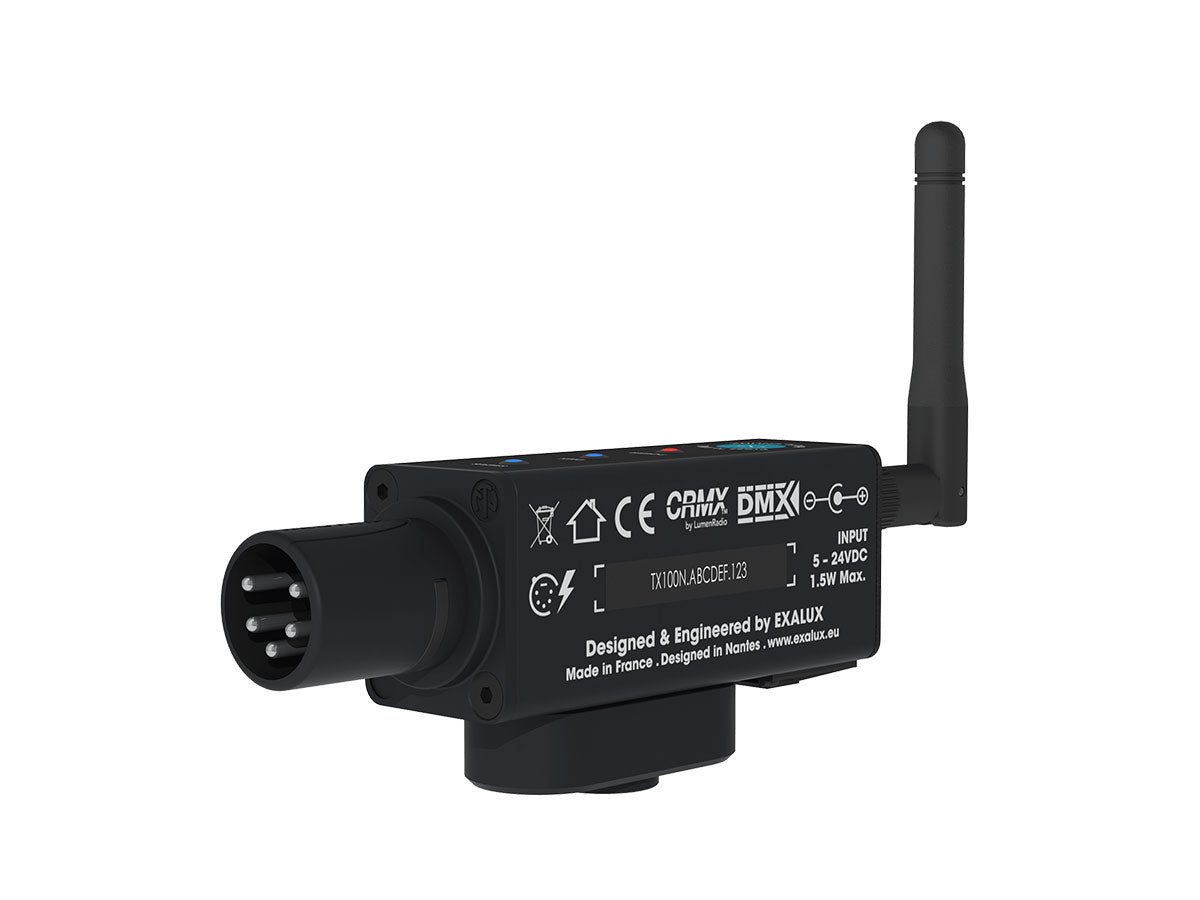

Exalux CONNECT TX100N Basic Kit

Exalux CONNECT TX100N Basic Kit

SKU: EX-CNT.001.005
£399.55 GBP ex VAT
£479.46 GBP inc VAT
ex VAT £399.55 GBP ex VAT
£479.46 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

EXALUX™ CONNECT TX100N is an ultra compact wireless DMX transmitter that can be used in the studios or on location.

CONNECT TX100N features PoD technology which enables the unit to be powered via its XLR connector. The unit is fully compliant with all LumenRadio CRMX™ receivers, such as RX100S and RX200N.

  • Designed for the field - CONNECT TX100N feature unibody enclosures milled from a block of aluminium, allowing them to get a compact and stronger design. The external antenna allows a long range, up to 500m depending on the transmitter and the environment.
  • Powered over DMX - CONNECT TX100N CRMX transmitter is our first PoD-PD compliant system. PoD concept has been designed to ease powering DMX dongles (power & data in the same 5pos DMX cable). POD means less cable and a single power supply for several devices.
  • Wide range power mode - Thanks to its wide supply range (+5 to 24VDC), CONNECT TX100N can be powered through the USB connector of a DMX fixture, a Vlock battery via the D-TAP connector or any external PSU.
  • Universal mounting - CONNECT TX100N unit can be mounted on industry-standard AV/Cinema clamps, tripods and arms thanks to the 3/8 UNC adapter. It’s easy, simple and it will save you time!
  • Removable antenna - The connect TX100N‘s antenna is removable, meaning you can replace it by a different model to better suit your needs.
  • LumenRadio CMRX™ - Based on LumenRadio CRMX™ technology, EXALUX™ CONNECT RX200N brings DMX fidelity without any latency.
Technical Specifications:
Power Connection: 2.0x5.5MM DC jack
Interface: Unlink (switch), Power, Paired, DMX Status(LED)
Power Consumption: 1.5W
Housing / Mounting: Aluminum / M10
IP Rating: IP30
Certifications: CE, RoHS
Weight: 185g
Operating Conditions:
Input Voltage: Min : 4.5VDC | Typ : 5VDC | Max : 26VDC
Storage Temperature: Min : -20°C | Typ : 25°C | Max : +75°C
Operating Temperature: Min : -10°C | Typ : 25°C | Max : +55°C
Radio Interface:
Standard / Technology LumenRadio CRMX™
Frequency 2.402 ~ 2.480 GHz
Antenna Omnidirectional, 2.4GHZ 2.0dBi, SMA
RF Output 20 dBm (100mW)
RF Modulation GFSK
Range 500-1000m (depending on the environment)
DMX Interface:
Protocol DMX512-A
Universe support 1
DMX frame rate 0,8-830Hz
End to end latency < 5ms
DMX Output Neutrik XLR 5 pins Female
  • 1 x CONNECT TX100N UNIT
  • 1 x USB-A/DC-JACK CABLE (0.25M)
  • 1 x D-TAP/DC-JACK CABLE (0,45M)
