Exalux CONNECT RX200N Basic Kit
Exalux CONNECT RX200N Basic Kit
SKU:
EX-CNT.002.001
Regular price
£360.40 GBP ex VAT
£432.48 GBP inc VAT
£432.48 GBP inc VAT
Regular price
ex VAT
Sale price
£360.40 GBP ex VAT
£432.48 GBP inc VAT
Unit price
per
£432.48 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

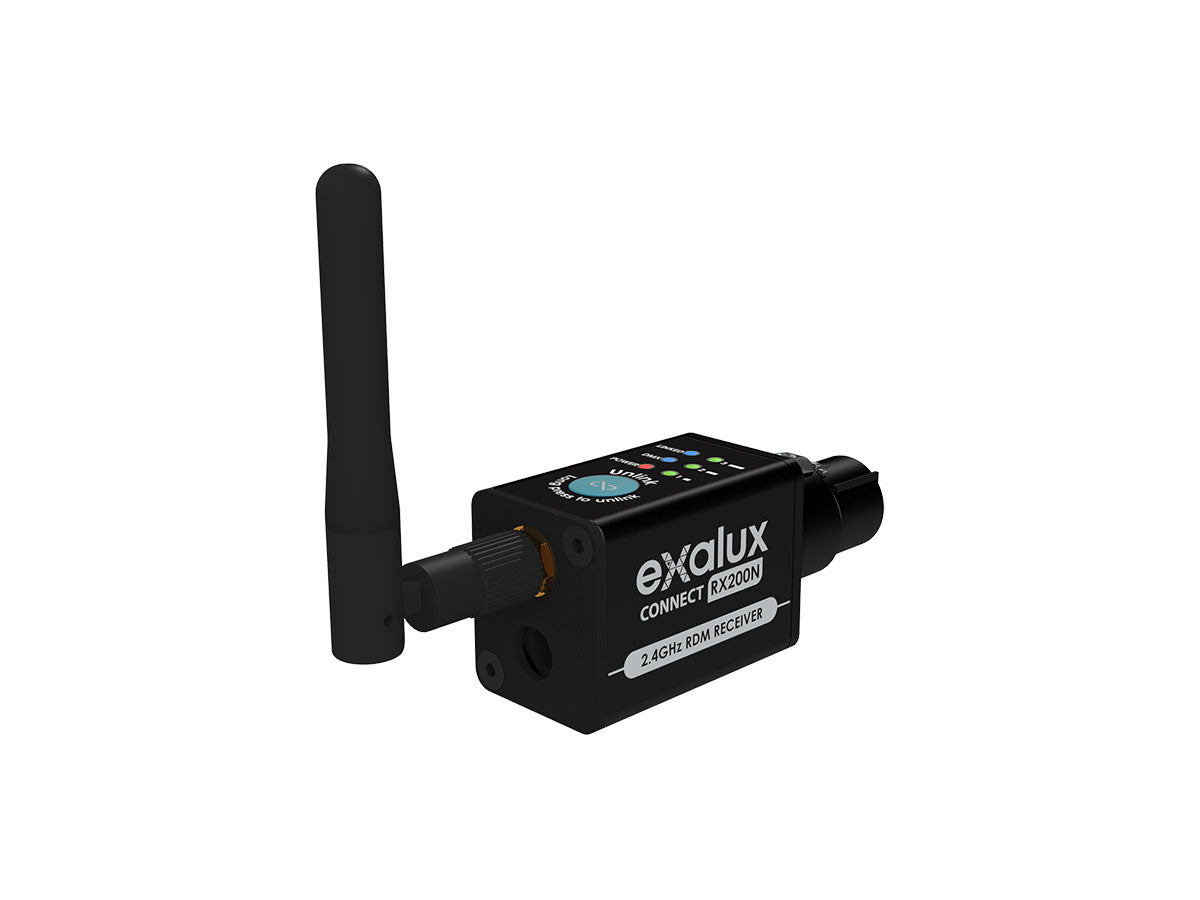

EXALUX™ CONNECT RX200N is an ultra compact wireless RDM/DMX receiver. The unit is RDM and DMX compliant, making it ready for the DMX of the future.
Smaller, Stronger
RX200N features a one-piece housing made from a block of aluminium, allowing it to get a compact and stronger design.
The external antenna allows a long range (up to 500m depending on the transmitter and the environment).
The external antenna allows a long range (up to 500m depending on the transmitter and the environment).
DMX & RDM Compliant
CONNECT RX200N is DMX512 and RDM compliant. It means that it will allow configuration, status monitoring, and management of RDM devices.
Wide Range Power Modes
Thanks to its wide supply range (+5 to 26VDC), CONNECT RX200N can be powered through the USB connector of a DMX fixture, a Vlock battery through the D-TAP connector or any external PSU.
Removable Antenna
The connect RX200N‘s antenna is removable, meaning you can replace it by a different model to better suit your needs.
LumenRadio CRMX™
Based on LumenRadio CRMX™ technology, EXALUX™ CONNECT RX200N brings DMX fidelity without any latency.
- Built-in LumenRadio CRMX™ receiver,
- 1 DMX universe,
- RDM compliant,
- Wide range DC power mode,
- Aluminium unibody enclosures,
- Neutrik™ XLR connectors, industry standard compliant.
| TECHNICAL SPECIFICATIONS | |
| Power Connection: | 2.0x5.5MM DC jack |
| Interface: | Unlink (switch), Power, Paired, DMX, Signal level (LED) |
| Power Consumption: | <0.9W |
| Housing / Mounting: | Aluminium |
| IP Rating: | IP30 |
| Certifications: | CE, RoHS |
| Weight: | 80g |
| OPERATING CONDITIONS | |
| Input Voltage: | Min : 4.5VDC | Typ : 5VDC | Max : 26VDC |
| Storage Temperature: | Min : -20°C | Typ : 25°C | Max : +75°C |
| Operating Temperature: | Min : -10°C | Typ : 25°C | Max : +55°C |
| RADIO INTERFACE | |
| Standard / Technology: | LumenRadio CRMX™ |
| Frequency: | 2.402 ~ 2.480 GHz |
| Antenna: | Omnidirectional, 2.4GHZ 2.0dBi, SMA |
| Receiver Sensitivity: | -93 dBm |
| RF Output: | 20 dBm (100mW) |
| RF Modulation: | GFSK |
| Range: | Up to 300m (depending on the transmitter and the environment) |
| DMX INTERFACE | |
| Protocol: | DMX512-A / RDM ANSI E1.20 |
| Universe Support: | 1 |
| DMX Frame Rate: | 0,8-830Hz |
| End to End Latency: | < 5ms |
| DMX Output: | Neutrik XLR 5 pins Male |
- CONNECT RX200N Unit
- USB-A/DC-JACK Cable
- D-TAP/DC-JACK Cable
