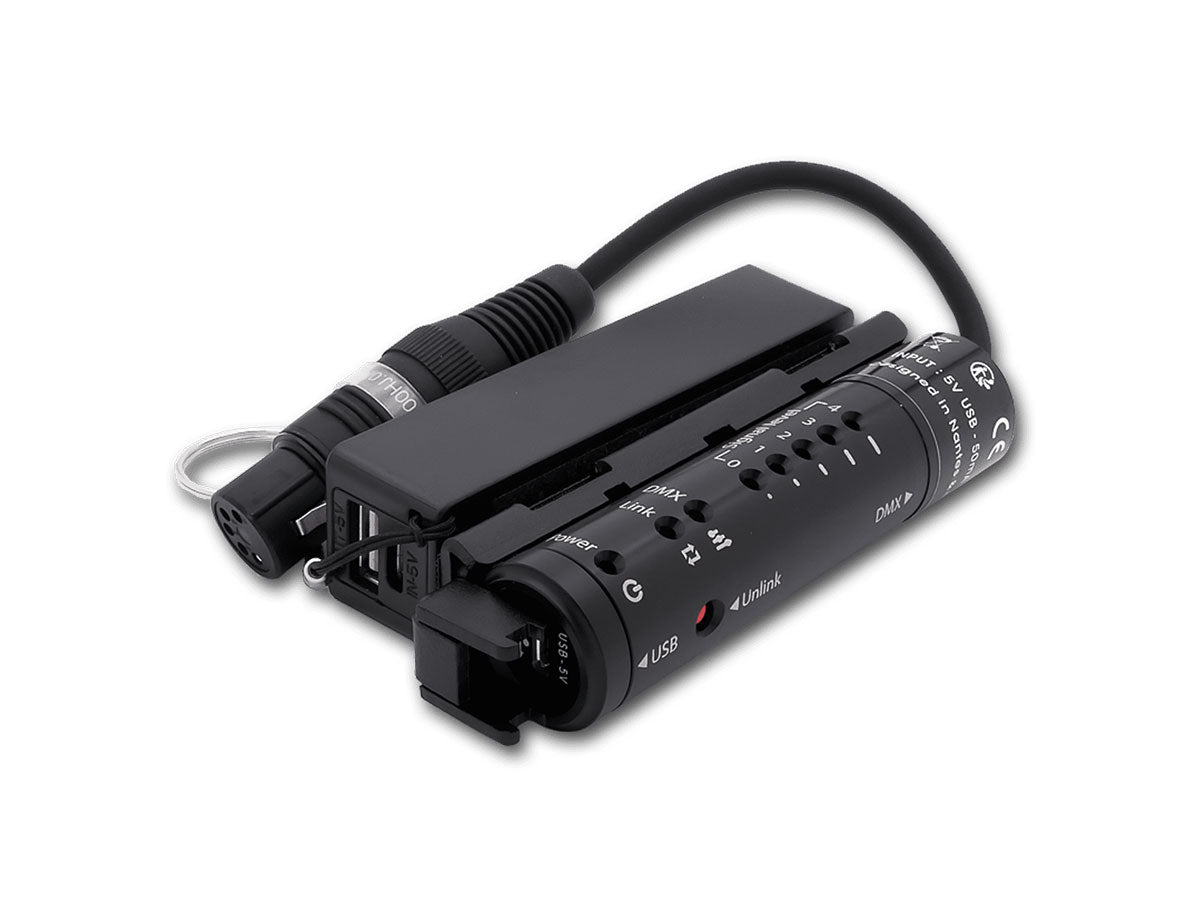

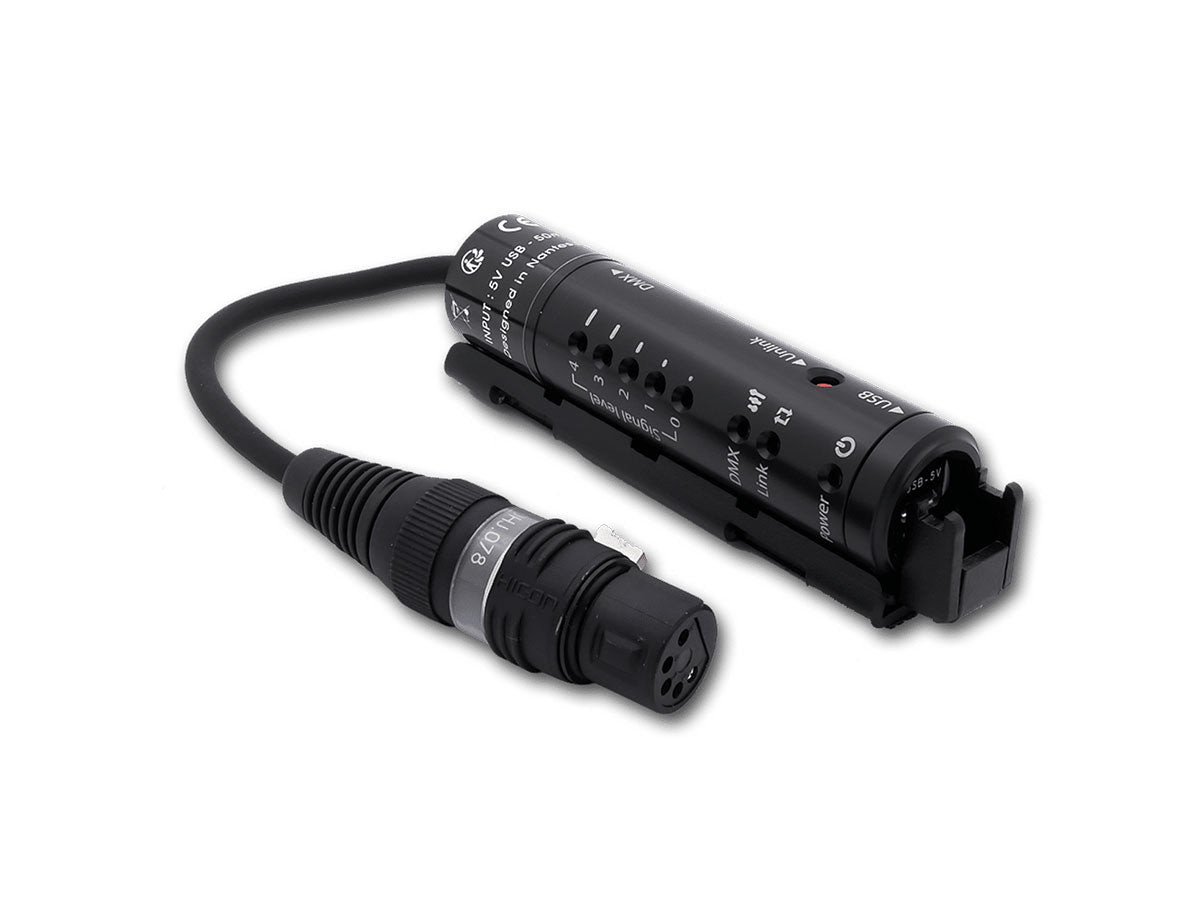

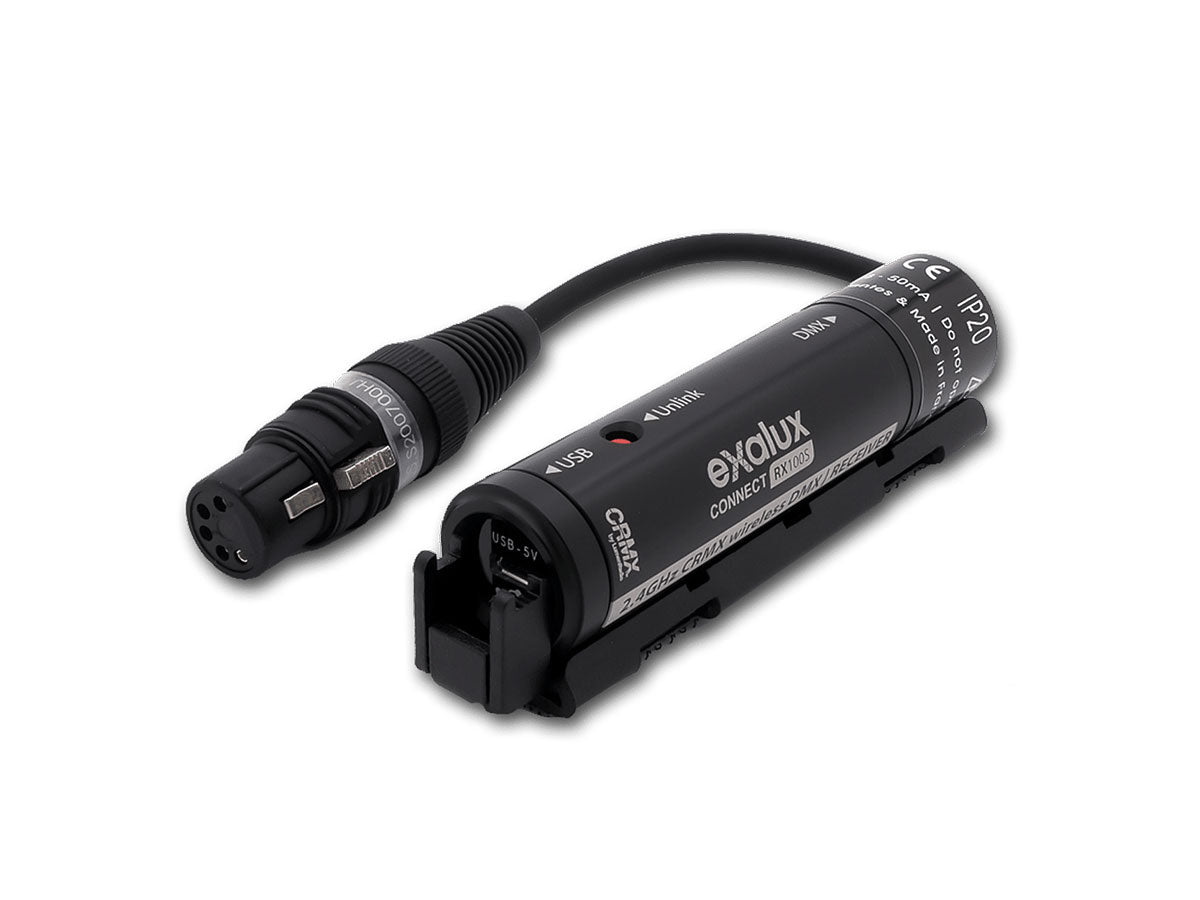

Exalux CONNECT RX100S Basic Kit
Exalux CONNECT RX100S Basic Kit
SKU:
EX-CNT.000.005
Regular price
£298.73 GBP ex VAT
£358.48 GBP inc VAT
£358.48 GBP inc VAT
Regular price
ex VAT
Sale price
£298.73 GBP ex VAT
£358.48 GBP inc VAT
Unit price
per
£358.48 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
EXALUX™ CONNECT RX100S is a compact wireless DMX receiver especially designed to be powered through the USB connectors of a LED panel. RX100s can also run up to 10 hours with the small PowerBank battery.
The unit is compatible with any LED fixtures thanks to the flexible «connector on cable» system.
The unit is compatible with any LED fixtures thanks to the flexible «connector on cable» system.
Wireless DMX in Your Pocket, Freedom to Move
CONNECT RX100S is so small and light that it can be easily hidden in clothes and be forgotten.
With its internal antenna, you can easily use your RX100S without fear of breaking it.
With its internal antenna, you can easily use your RX100S without fear of breaking it.
Truly Universal and Really User-Friendly.
The XLR connector on the cable makes the CONNECT RX100S truly universal.
It adapts to all lighting fixtures on the market regardless of the orientation of their DMX connector.
It adapts to all lighting fixtures on the market regardless of the orientation of their DMX connector.
Several Hours of Connectivity with Just a Tiny Battery
A very small powerbank will be more than enough to power the CONNECT RX100S for more than 10 hours. No need to wait for the unit to be recharged, simply replace it when it is discharged.
Need to run longer? Use a bigger battery!
Need to run longer? Use a bigger battery!
LumenRadio CRMX™
Based on LumenRadio CRMX™ technology, EXALUX™ CONNECT RX100S brings DMX fidelity without any latency.
- Built-in CRMX by LumenRadio receiver,
- 1 DMX universe
- +5VDC power mode,
- USB connector shield,
- Internal antenna,
- Neutrik™ XLR connectors, industry standard compliant.
| TECHNICAL SPECIFICATIONS | |
| Power Connection: | Micro-USB |
| Interface: | Link / Unlink (switch), Power, RF, Paired/ DMX signal, RF Level (LED) |
| Power Consumption: | ~0.6W |
| Housing / Mounting: | Polyoxyméthylène |
| IP Rating: | IP20 |
| Certifications: | CE, RoHS |
| Weight: | 150g |
| OPERATING CONDITIONS | |
| DC Input Voltage: | Min : 4.5VDC | Typ : 5VDC | Max : 5.5VDC |
| Storage Temperature: | Min : -30°C | Typ : 25°C | Max : +80°C |
| Operating Temperature: | Min : -20°C | Typ : 25°C | Max : +70°C |
| RADIO INTERFACE | |
| Standard / Technology: | LumenRadio CRMX™ |
| Frequency: | 2.402 ~ 2.480 GHz |
| Antenna: | Internal, chip on PCB |
| RF Output: | 20 dBm (100mW) |
| RF Modulation: | GFSK |
| Range: | Up to 50m (depending on the transmitter and the environment) |
| DMX INTERFACE | |
| Protocol: | DMX512-A |
| Universe Support: | 1 |
| DMX Frame Rate: | 0,8-830Hz |
| End to End Latency: | < 5ms |
| DMX Output: | Neutrik XLR 5 pins Female |
- CONNECT RX100S Unit
- 2200mAh / 5VDC Powerbank
- USB-A / MICRO-USB CABLE 0.15M
- USB-A MICRO-USB CABLE 0.6M
