Exalux CONNECT+ Full Wireless 1U Kit
Exalux CONNECT+ Full Wireless 1U Kit
SKU:
EX-CNT.003.002
Regular price
£2,211.55 GBP ex VAT
£2,653.86 GBP inc VAT
£2,653.86 GBP inc VAT
Regular price
ex VAT
Sale price
£2,211.55 GBP ex VAT
£2,653.86 GBP inc VAT
Unit price
per
£2,653.86 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
EXALUX™ offers the CONNECT+ Full Wireless DMX 1U kit to demanding gaffers who are looking for a turnkey solution to remotely control LumenRadio CRMX™ compatible lighting fixtures with an iPad.
This kit enables you to manage 1 DMX universe in a full wireless way.

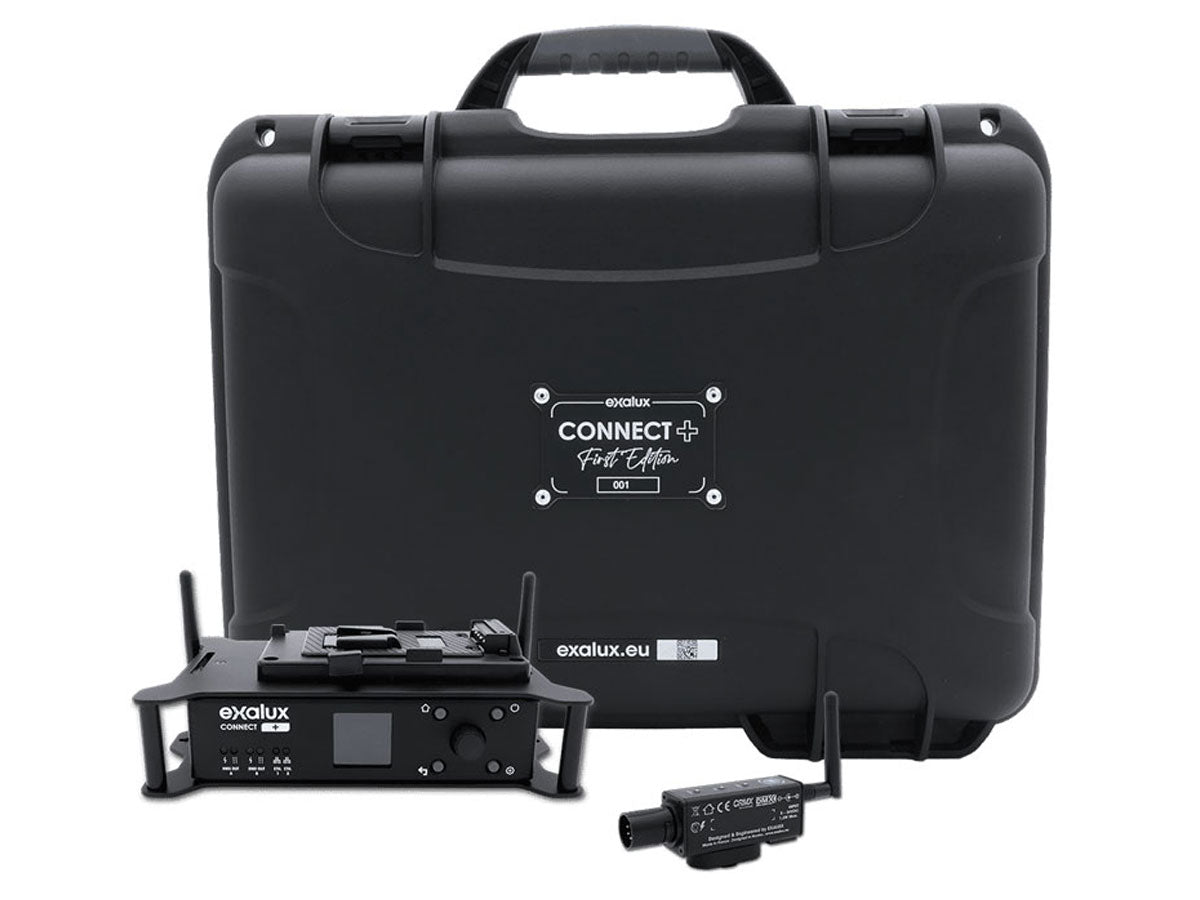

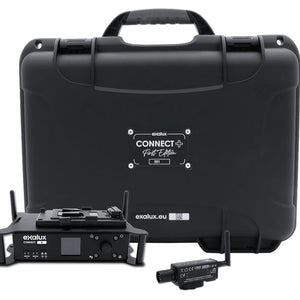

The CONNECT+ Full Wireless DMX 1U gives you full wireless control of all LumenRadio CRMX wireless products from your iPad. It is provided with a robust and waterproof case.
CONNECT+:
- Built-in dual band Wi-Fi MiMo access point,
- Built-in dual universe DMX node,
- Built-in DMX recorder,
- Built-in Ethernet Switch.
TX100N:
- Built-in LumenRadio CRMX™ transmitter,
- 1 DMX universe
- External DC / PoD power mode.
| Exalux CONNECT+ | |
| Technical Specifications: | |
| Power Connection: | 2.1x5.5MM DC jack / V-Lock / PoE (Eth.2) |
| Power Consumption: | 12W max (20W max with extension) |
| Housing / Mounting: | Aluminium, black painting, magnetic rubber feet / M10 |
| IP Rating: | IP20 |
| Certifications: | CE, RoHS |
| Weight: | 890g |
| Wireless Interface: | |
| Standard: | Wi-Fi IEEE 802.11 a/b/g/n |
| Frequency: | Wi-Fi : 2.412 ~ 2.484 GHz (13 ch) Wi-Fi : 5.180 ~ 5.845 GHz (35 ch) |
| Antenna: | Whip hinged antenna, 50Ω, female RP-SMA (x2) |
| RF Output / Sensitivity: | Wi-Fi : 17 dBm |
| Range: | Wi-Fi (2.4GHz) : ~100m Wi-Fi (5GHz) : ~50m |
| DMX Interface: | |
| Protocol: | DMX512-A |
| Universe Support: | 2 (one per output) |
| DMX Frame Rate: | 0,8-830Hz |
| End to End Latency: | < 5ms |
| DMX Outputs: | Neutrik XLR 5 pins Female (2) |
| Power: | |
| DC Jack: | 5~28V DC |
| V-Lock: | 14.4-14.8VDC~26V DC |
| PoE-PD: | 48V DC IEEE 802.3af-2002 Type 1 13W |
| Ethernet Interface: | |
| Standard: | IEEE 802.3 10/100 Mbps |
| Ports: | RJ45 8P/8C (1), Neutrik EtherCON (1) |
| USB Interface: | |
| Standard: | USB 2.0 Hi-Speed |
| Ports: | USB-A Host (1), charging CDP USB-A 0.5A (2), |
| Extension: | +5VDC, USB Host (2), 6-position spring-loaded connector |
| Operating Conditions: | |
| Storage Temperature: | Min: -30°C Max: 80°C |
| Operating Temperature: | Min: -20°C Max: 70°C |
| Exalux TX100N | |
| Technical Specifications: | |
| Power Connection: | 2.0x5.5MM DC jack |
| Interface: | Unlink (switch), Power, Paired, DMX Status(LED) |
| Power Consumption: | 1.5W |
| Housing / Mounting: | Aluminum / M10 |
| IP Rating: | IP30 |
| Certifications: | CE, RoHS |
| Weight: | 185g |
| Operating Conditions: | |
| Input Voltage: | Min : 4.5VDC | Typ : 5VDC | Max : 26VDC |
| Storage Temperature: | Min : -20°C | Typ : 25°C | Max : +75°C |
| Operating Temperature: | Min : -10°C | Typ : 25°C | Max : +55°C |
| Radio Interface: | |
| Standard / Technology | LumenRadio CRMX™ |
| Frequency | 2.402 ~ 2.480 GHz |
| Antenna | Omnidirectional, 2.4GHZ 2.0dBi, SMA |
| RF Output | 20 dBm (100mW) |
| RF Modulation | GFSK |
| Range | 500-1000m (depending on the environment) |
| DMX Interface: | |
| Protocol | DMX512-A |
| Universe support | 1 |
| DMX frame rate | 0,8-830Hz |
| End to end latency | < 5ms |
| DMX Output | Neutrik XLR 5 pins Female |
- 1 Wi-Fi /ArtNet / DMX CONNECT + Wi-Fi to DMX gateway
- 1 TX100N Wireless DMX transmitter
- 1 set of DMX cables
- 1 Wall-plug PSU
