Exalux CONNECT eTX4
Exalux CONNECT eTX4
SKU:
EX-CNT.004.001
Regular price
£1,172.73 GBP ex VAT
£1,407.28 GBP inc VAT
£1,407.28 GBP inc VAT
Regular price
ex VAT
Sale price
£1,172.73 GBP ex VAT
£1,407.28 GBP inc VAT
Unit price
per
£1,407.28 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications

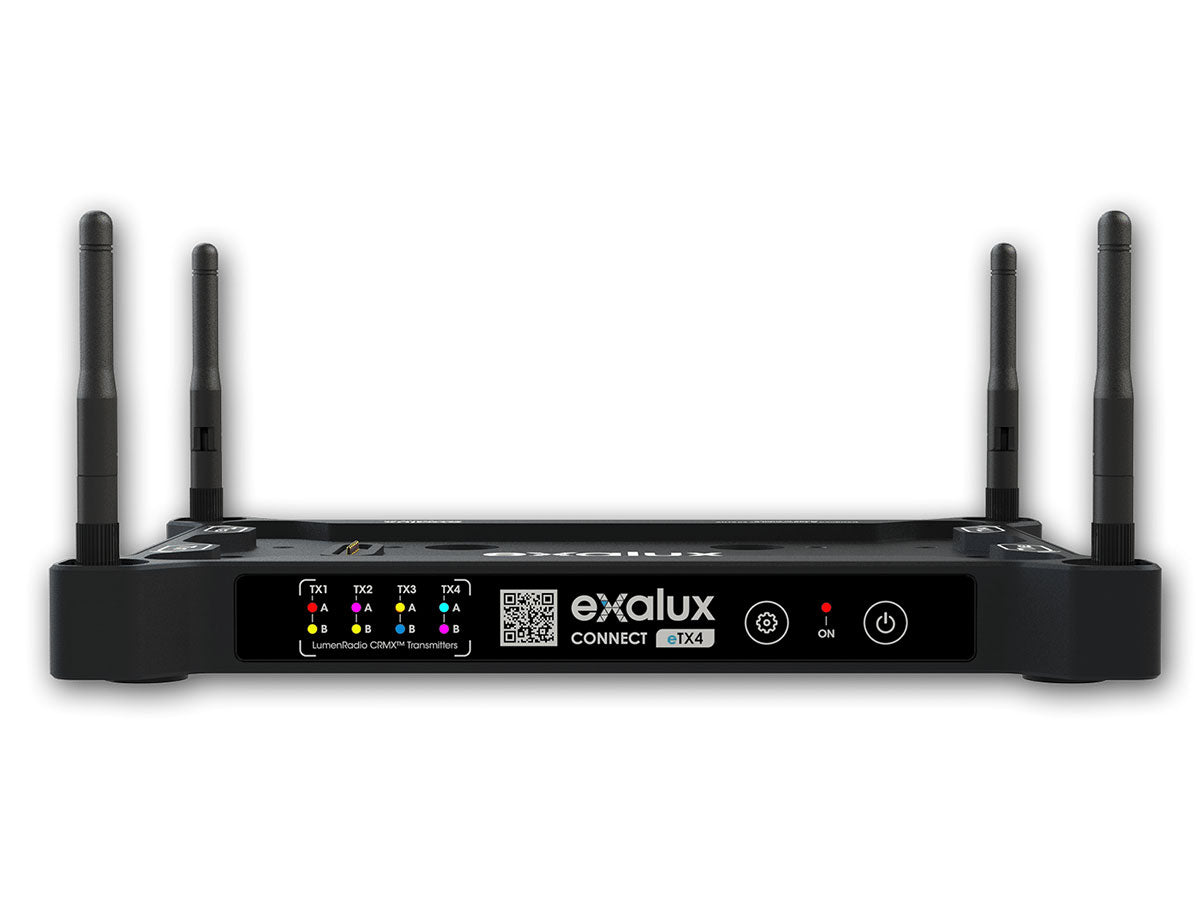

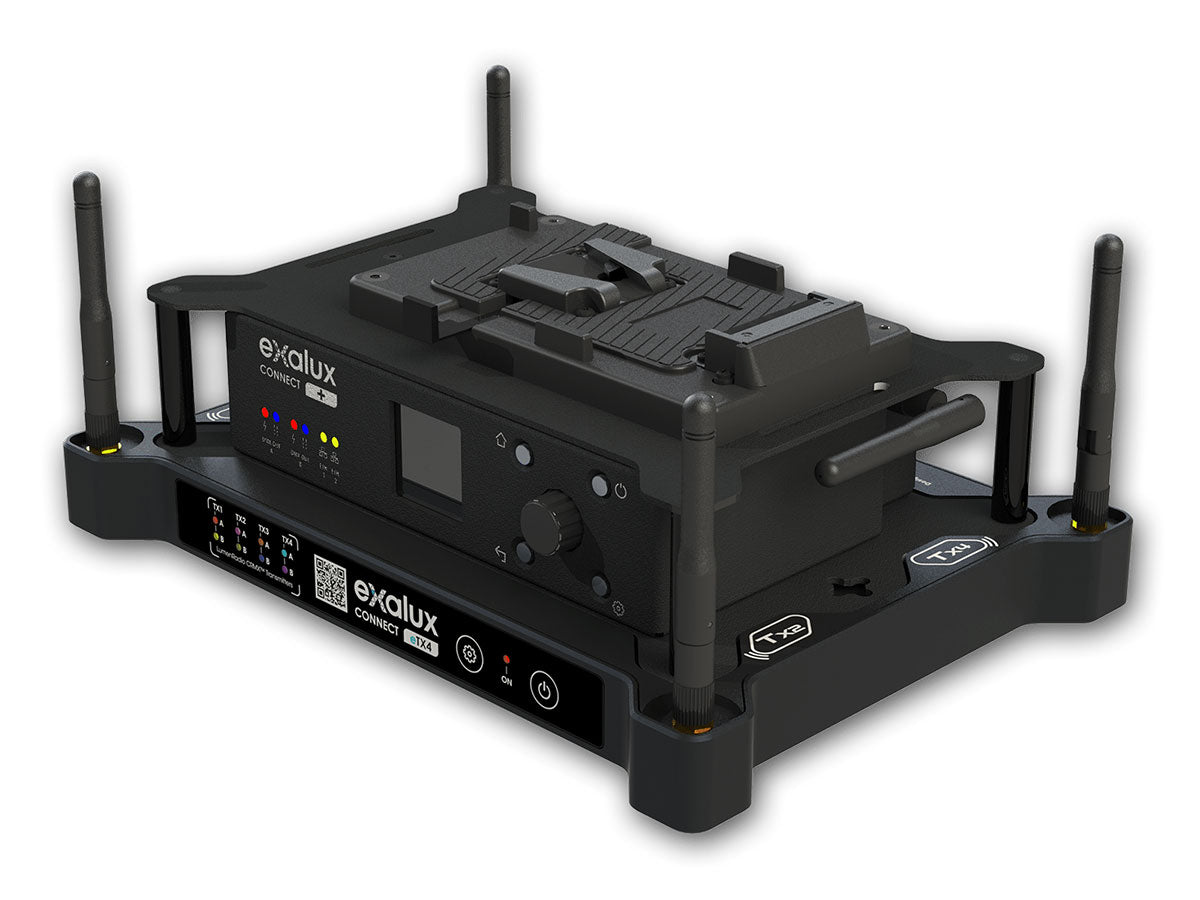

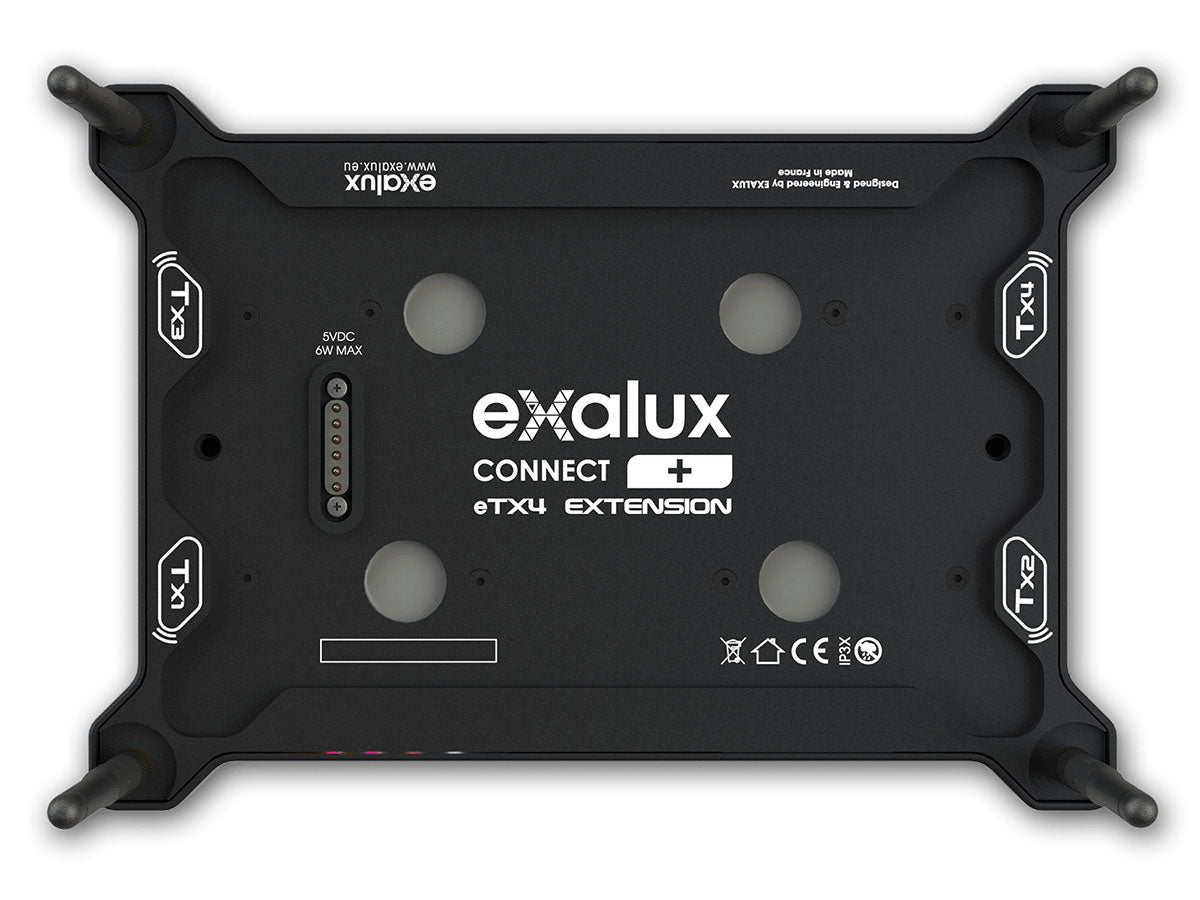

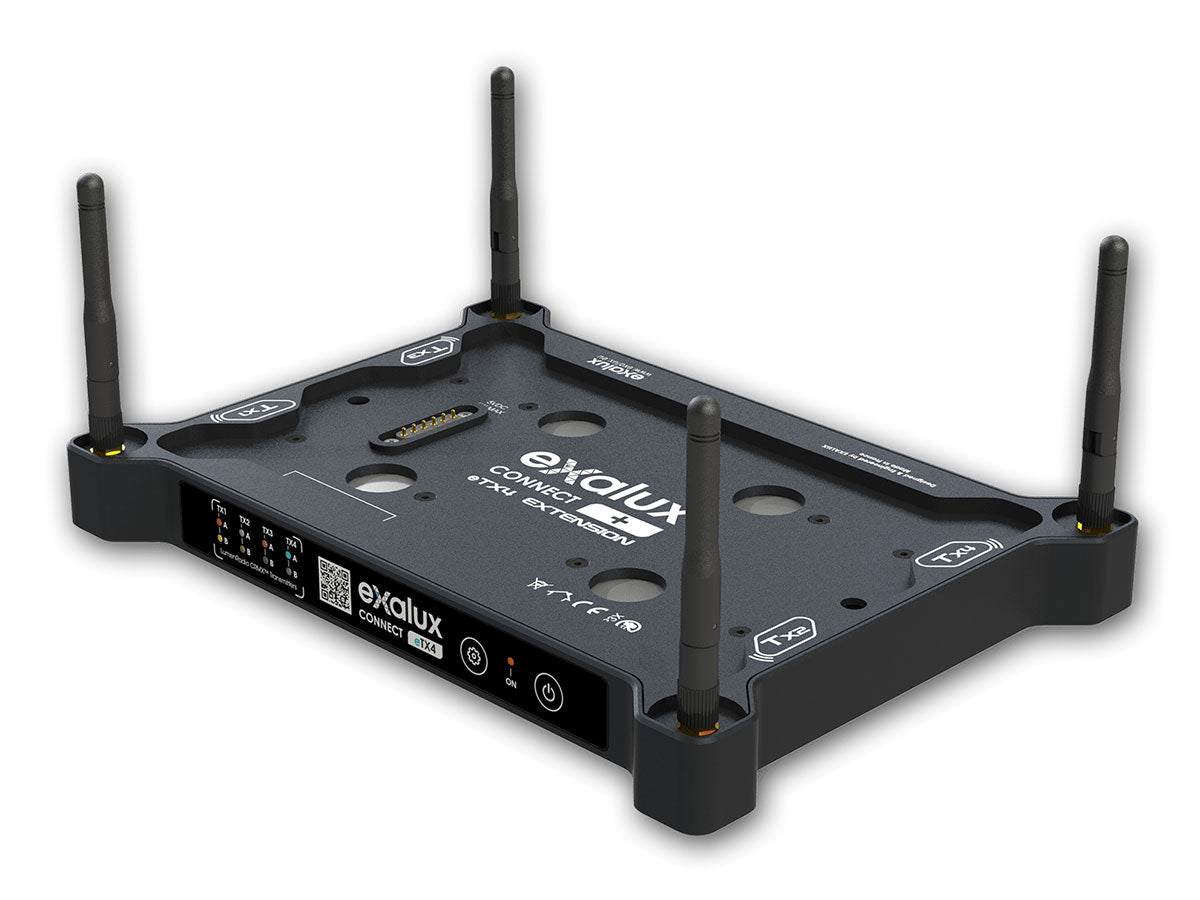

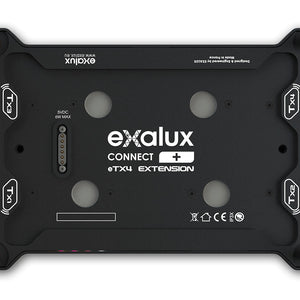

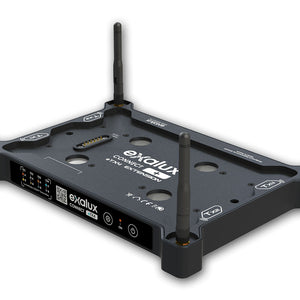

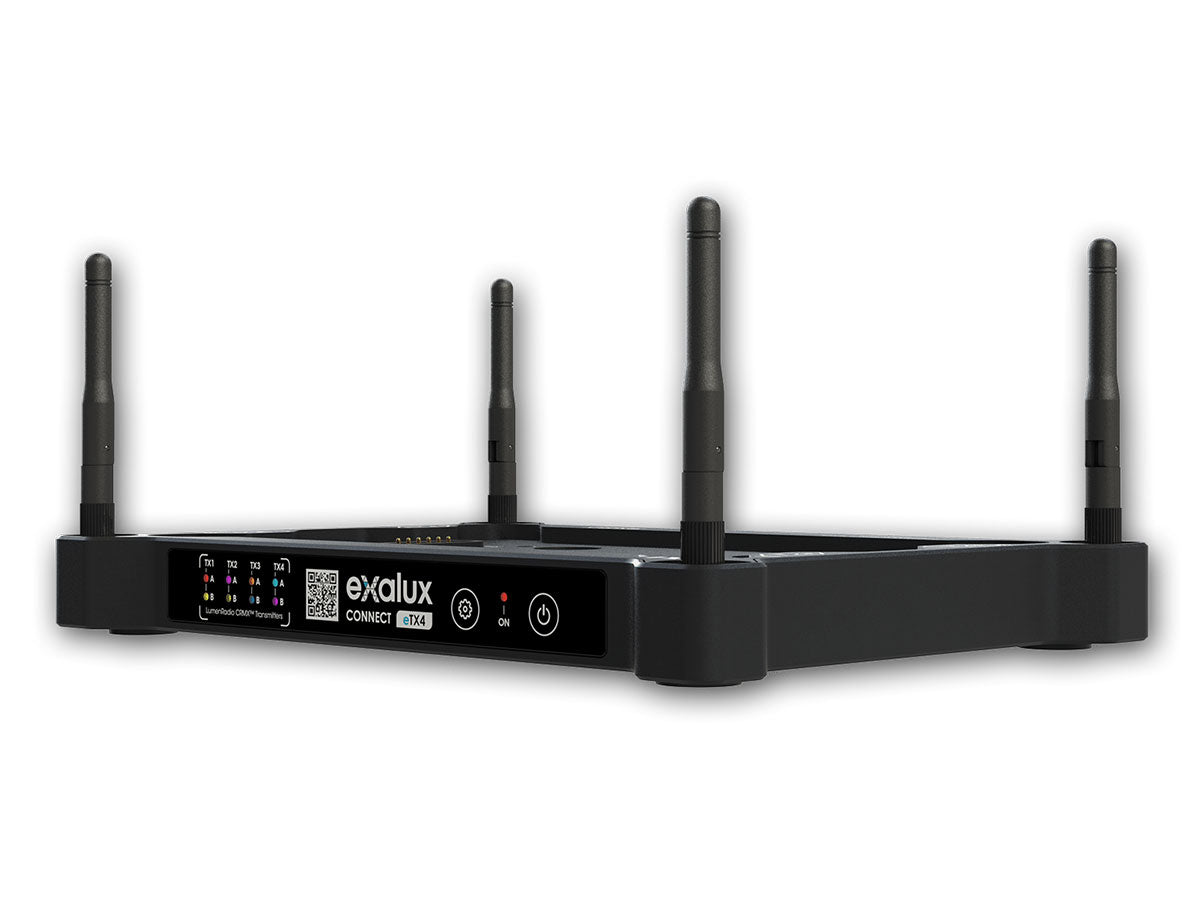

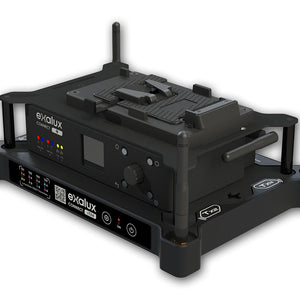

EXALUX™ CONNECT eTX4 is an add-on wireless DMX/RDM transmitter for CONNECT+. It features 4 CRMX/CRMX² transmitters in an ultra compact unit.
- CONNECT+ Add-On Unit
- 4 transceivers / 4 DMX universes
- DMX + RDM compliant
- CRMX, CRMX², W-DMX compliant
- Removable antennas
- User friendly design
- 5/8’’ Spigot mount
| FEATURES | |
| Wireless: | LumenRadio™ TiMoTwo |
| Protocol: | CRMX, CRMX², W-DMX |
| Power: | Powered from CONNECT+SnapLink port |
| Settings: | Settings from CONNECT + control panel |
| Interface: | Membrane switch keypad (Settings / On-Off), RGB LED indicators |
| Others: | Firmware upgrade from CONNECT+USB port |
| TECHNICAL SPECIFICATIONS | |
| Power Connection: | Exalux SnapLink , 2 PoGo Pins (from the CONNECT+ Unit) |
| Interface: | Switch : Settings , Power RGB LED Indicators : Univers colors DMX Status(LED) |
| Power Consumption: | ~6W max |
| Housing / Mounting: | Aluminum / black |
| IP Rating: | IP3X |
| Certifications: | CE, RoHS |
| Weight: | 950g |
| OPERATING CONDITIONS | |
| Input Voltage: | Typ : 5VDC |
| Storage Temperature: | Min : -20°C | Typ : 25°C | Max : +75°C |
| Operating Temperature: | Min : -10°C | Typ : 25°C | Max : +55°C |
| RADIO INTERFACE | |
| Standard / Technology: | LumenRadio™ |
| Protocols: | CRMX, CRMX², W-DMX G3/G4s |
| Frequency: | 2.402 ~ 2.480 GHz |
| Antenna: | Omnidirectional, 2.4GHZ 2.0dBi, SMA |
| RF Output: | 20 dBm (100mW) |
| RF Modulation: | GFSK |
| Range: | 500-1000m (depending on the environment) |
| SNAPLINK INTERFACE | |
| Protocol: | USB2.0 |
| Voltage: | 5VDC |
