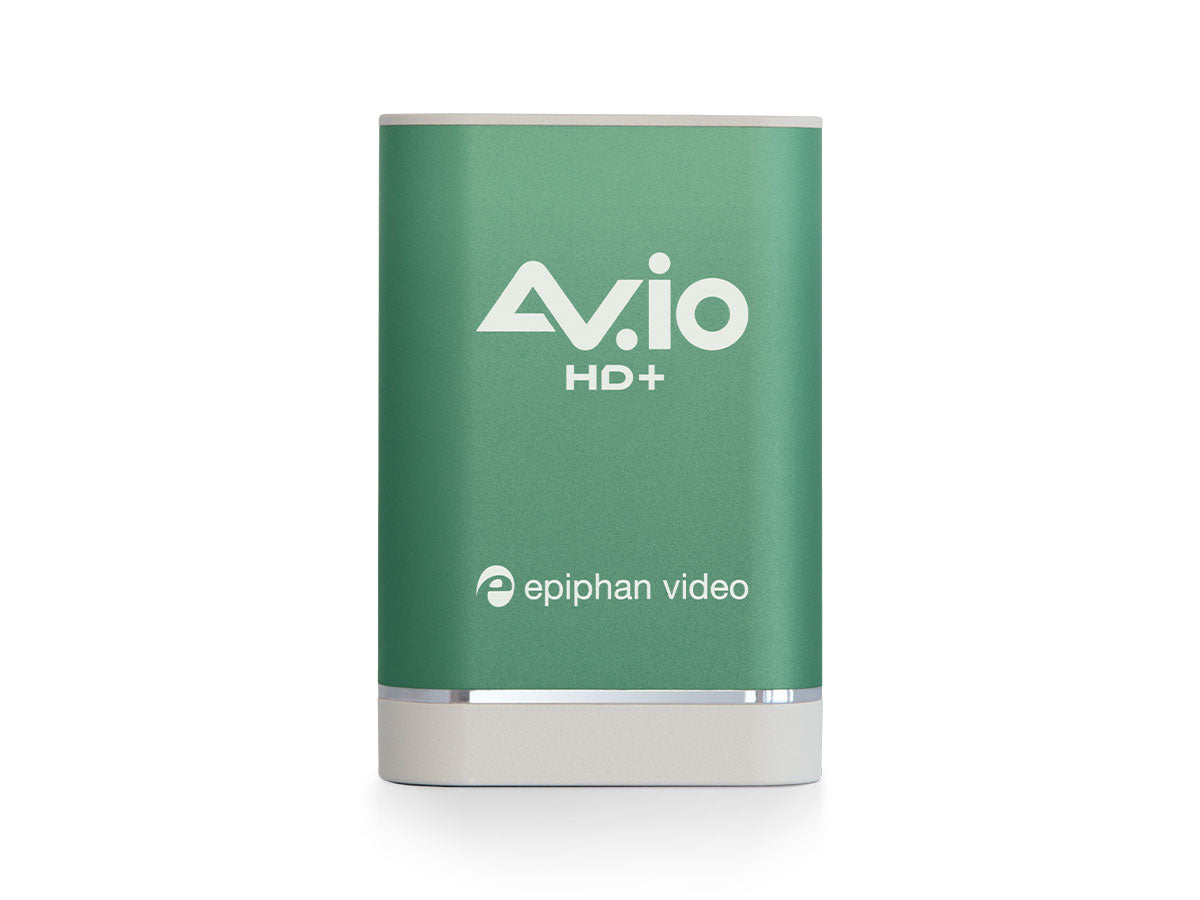

Epiphan AV.io HD+ USB 3.0 Video Grabber

Epiphan AV.io HD+ USB 3.0 Video Grabber

SKU: EPI-ESP1815
£405.17 GBP ex VAT
£486.20 GBP inc VAT
ex VAT £405.17 GBP ex VAT
£486.20 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

HD video capture made easy

Epiphan AV.io HD+™ brings USB plug-and-play convenience to your HDMI sources. You can easily capture 1080p video from any HDMI camera or device with nearly zero latency, bringing in audio through HDMI, the 3.5 mm input, or both. This card is compact and based on tough-as-nails technology that’s even been used in space, so you can confidently carry it wherever there’s video to capture.

Make video capture effortless

With AV.io HD+, capturing video from HDMI and DVI devices on Windows, Mac, or Linux is as easy as using a plug-and-play webcam. Just connect your device to one end of the capture card and your computer to the other, then select your device as a source in your software. That’s all there is to it – no driver installation required.

Size and scale effortlessly

There’s no need to think about video scaling or aspect ratios with this capture card. AV.io HD+ will automatically adjust your image based on the software you’re using, delivering superior video quality even when swapping between sources.

Elevate your favourite apps

You can use AV.io HD+ with any program that accepts USB as a video source. That includes video conferencing apps such as Zoom and Microsoft Teams as well as streaming software like Wirecast and OBS.

Take your capture card with you

AV.io HD+ is light and compact. It’s powered over USB, which means one less adapter to carry around. And with its rugged all-metal exterior and durable connectors, it’ll stand up to repeated, long-term use.

Capture great audio

With high-quality audio capture and more ways to bring audio into your projects, AV.io HD+ ensures your content will sound as great as it looks.

  • Bring in your audio
    Capture audio directly from your HDMI source, or through the 3.5 mm input to capture from a mixer or other external source. You can even bring in audio from both inputs simultaneously.
  • Minimize noise
    Whisper-quiet performance makes AV.io HD+ a silent addition to your workflows, meaning it won’t add noise or distract from the task at hand.

  • HDMI-to-USB capture
  • Capture 1080p video from any HDMI camera
  • Powered over USB
  • High-quality audio capture
  • No driver installation required
Interface: USB 3.0, USB 2.0
OS drivers: UVC and UAC device
Dimensions: 3.54" x 2.36" x 0.91" (90mm x 60mm x 23mm)
Connectors: HDMI, USB 3.0 B-Type connector
Input: HDMI (including audio), DVI, 3.5mm analog (audio)
Input resolution: Up to 1920x1200
Output format: Available resolutions: 320x240, 640x360, 640x480, 720x480, 720x576, 768x576, 800x600, 856x480, 960x540, 1024x576, 1152x864, 1280x1024, 1280x720, 1280x800, 1280x960, 1360x768, 1366x768, 1440x900, 1600x1200, 1600x900, 1680x1050, 1920x1080, 1920x1200
Available frame rates: 5fps to 60fps
Output color space: YUV 4:2:2
Capture latency: Near zero (third-party applications may add to capture delay)
HDMI audio (input): 16-bit and 24-bit PCM encoded audio at 32kHz, 44.1kHz, and 48kHz sampling rates
Audio output: 16-bit 48kHz stereo sampling rates
LED: One LED to indicate status (power, readiness, operation in progress)
Power consumption: < 200 ma
OS support: Windows 7 and up, Mac OS X 10.10 and up, Linus distribution with kernel 3.5.0 or higher
HDCP compliance: Can't capture from video sources protected by HDCP (High-bandwidth Digital Content Protection)
