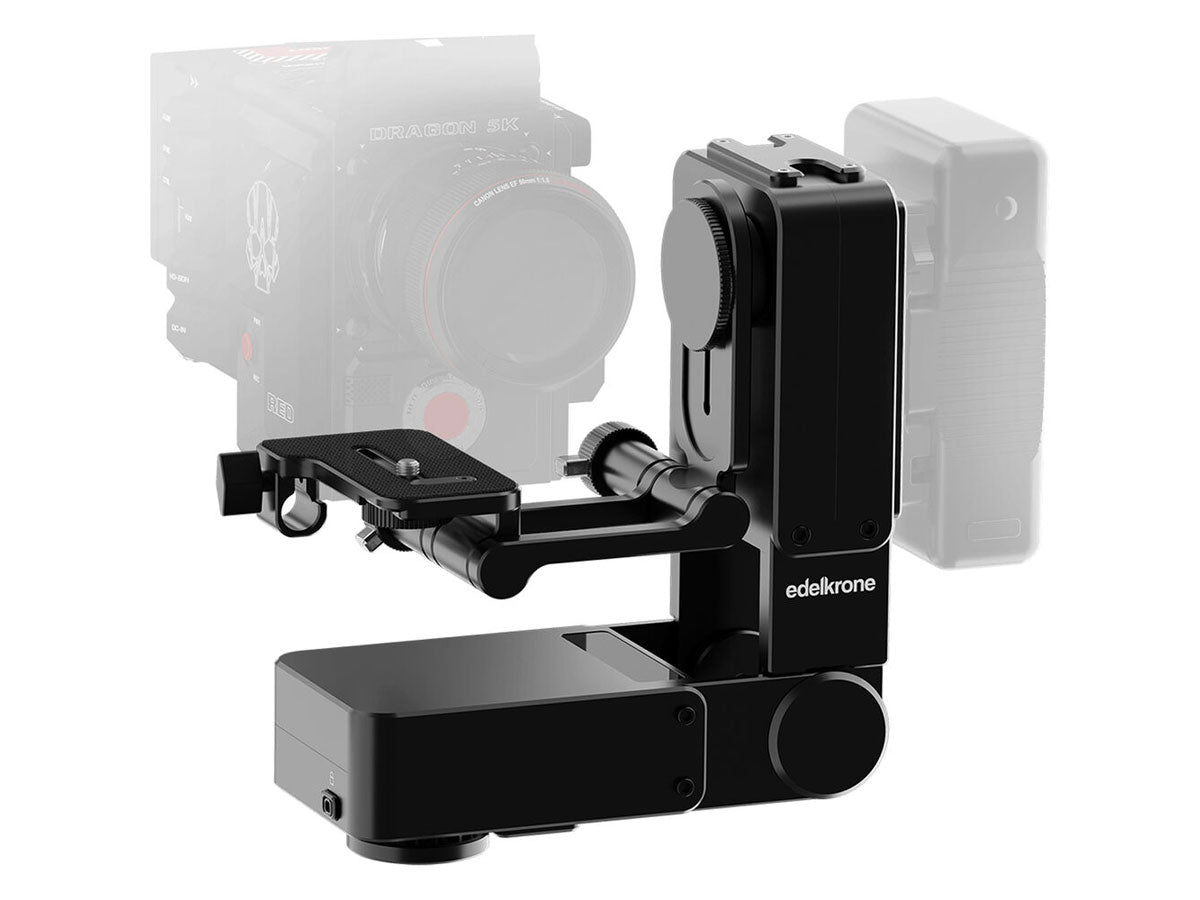

Edelkrone HeadPLUS PRO v3

Edelkrone HeadPLUS PRO v3

SKU: EDE-EDCVX
£1,899.40 GBP ex VAT
£2,279.28 GBP inc VAT
ex VAT £1,899.40 GBP ex VAT
£2,279.28 GBP inc VAT
Sale Sold out
Only 2 left in stock.
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications
  • What's Included
Box Open - HeadPLUS v3
The revolutionary motorized pan & tilt head, with the exclusive point tracking feature and numerous add-ons for even more!
Connects Wirelessly with the Body
When HeadPLUS is combined with an edelkrone Body device (slider, jib or dolly) you can easily program 3, 4 or 5 axis camera motions. You can record never-before-seen, amazing tracking shots, transitional scenes, motion time-lapses and visual effects shots with any combination you choose.
Automatic Point Tracking
With the edelkrone exclusive Point Tracking Feature, you can lock on to any point in 3D space while your camera is moving on edelkrone sliders, jibs or dollies.
With the separate buttons to control the body and head you can trigger any body motion without worrying about the head control. HeadPLUS will act automatically to keep the point fixed in the frame giving you amazing parallax results.
  • Teach a Point Easily - By using your camera, aim on the same point from 2 separate angles and that's it. This is how easy to set a point. The App will guide you step by step. This can be done in a matter of seconds.
  • Head & Body Control Separated - Point Buttons make the HeadPLUS lock on a target point so once you trigger body motion by using any of the position buttons, HeadPLUS will adjust itself in realtime keeping the frame locked on the point.
  • No image processing - While your Slider/Jib/Dolly is in motion, point tracking mode uses realtime inverse kinematic calculations to adjust the pan, tilt and focus of HeadPLUS. This method is unique to edelkrone motion control systems, and since it uses no image processing, it is currently the best performing and most reliable parallax video solution in the market.
Keypose Motion Programming
Keypose mode is the base controlling mode that works with all edelkrone devices and device groups. With this mode, you can save the current pose of the devices in to a single button. By saving several poses on separate keypose buttons you can create smooth transitions between them.
  • Save & recall any pose - After saving a keypose (tap & hold), tap the button again to recall the system back to that pose. By pressing one keypose after another, you can transition your camera from one pose to another smoothly.
  • Loop between poses - You can tap 2 Keyposes at the same time, and initiate a never ending loop between these 2 Keyposes. Perfect for long interview sessions, podcasts, educational videos, etc.
  • Create a pose sequence with ease - Once you have 3 or more Keyposes saved, you can use the sequencer mode to trigger these Keyposes in any order you like. You can set separate transition speeds between each pose, and you can even put this sequence in to a back and forth loop.
Max Load: 20 lb (9 kg)
Mounting Options: 3/8"-16 mounting port on bottom. 1/4"-20 mounting screw on L bracket (also 3/8"-16 mounting screw is included for compatible cameras)
Min. Step Size: 0.022 degree
Max. Speed: 360° in 10 sec
Number of Axes: 2 (Pan & Tilt)
Motor Type: x2 ultra precise step motors with ultra high-res encoders.
Battery Life: Operates for 8 hours with 2 x 4200 mAh NP-F batteries.
Power Input:

Batteries NOT included.

AC/DC adapter included.

Direcly compatible to Sony NP-F batteries.

Optional other battery brackets that can be purchased separately:

V-Mount, Gold Mount, Canon LP-E6.
Shutter Trigger Socket: 2.5 mm (shutter trigger cable sold separately)
Mobile Device Connection: 2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
App Compatibility: iOS 11.0 or later & Android 5.0 or later
Materials: CNC machined aluminum & stainless steel components.
Dimensions: HeadPLUS PRO: 17.04 x 4.05 x 3.07 in (433 x 103 x 78 mm)
L Bracket (folded): 7.51 x 5.70 x 3.14 in (191 x 145 x 80 mm)
Weight: 7.27 lb (3.3 kg) (including the L-Bracketand battery bracket)
  • HeadPLUS PRO
  • L Bracket for cameras up to 20 lb (9 kg)
  • AC/DC Adapter
  • Sony NP-F Battery Brackets (batteries NOT included)
  • Allen keys
