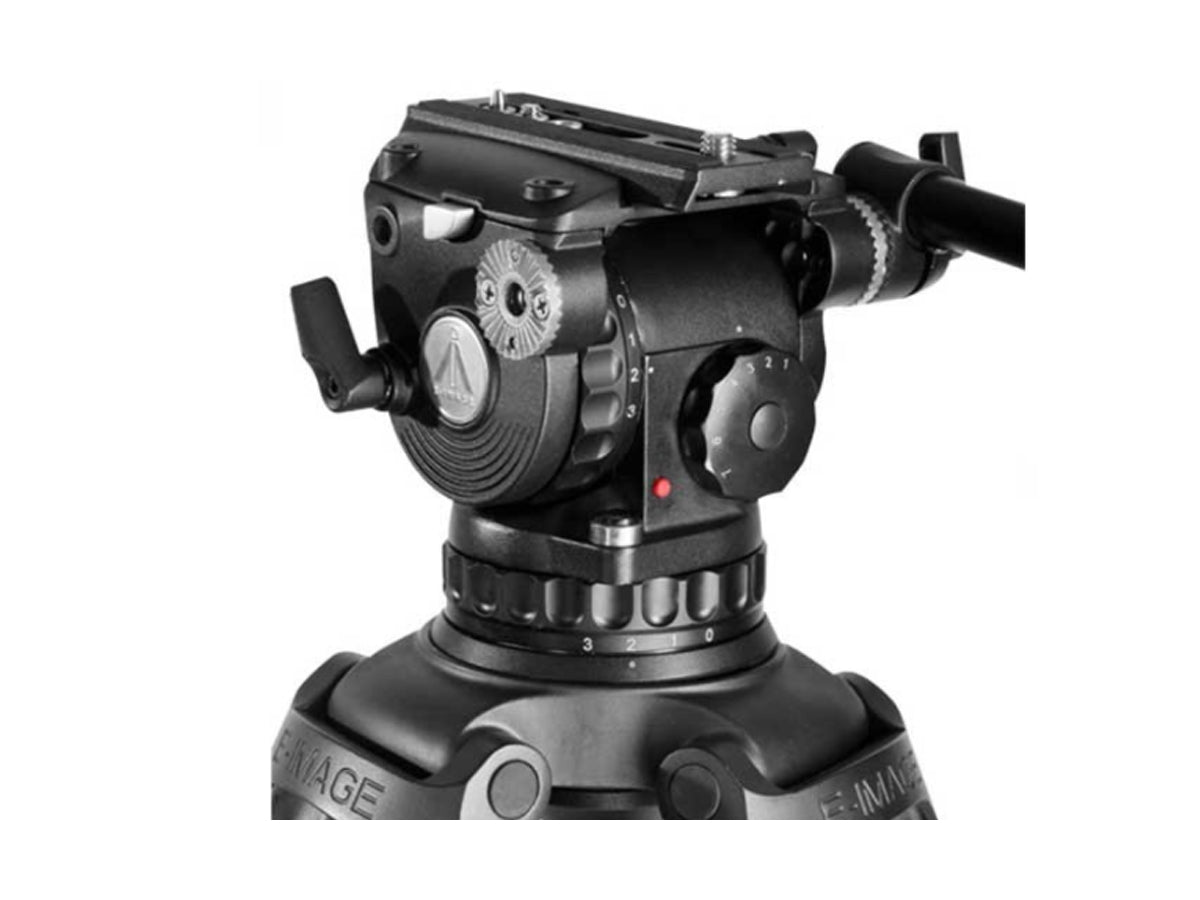

With its 10kg(22lbs) capacity and compact size, the GH10L head is ideal designed for supporting handheld size of DV, DVCAM, HVX and HDV camcorders. It features a sliding balance plate system for attaching the camera to the head. It provides 7 counterbalance settings plus a zero .With three fluid drag grades plus a zero setting on both pan and tilt, you can adjust the fluid head to suit your shooting style or the needs of the shot.
The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items. it has self-illuminated Touch Bubbles for easy leveling in poor light conditions. With standard 100mm bowl, the heads could be equipped with all 100mm bowl size legs.
| Payload | 4-10kg |
|---|---|
| Net Weight | 2.5kg |
| Counterbalance | 1-7 |
| Grades of Pan Drag | 0-3 |
| Grades of Tilt Drag | 0-3 |
| Tilt Range | +90°/-60° |
| Camera Plate | Sliding Plate |
| Slide Length | 83mm |
| Bowl Size | 100mm |
| Temperature Range | -40°/+80° |
| Pan Bar / Number | GB2/1pc |
| Bubble Level / Illuminated Bubble Level | Yes/Yes |
