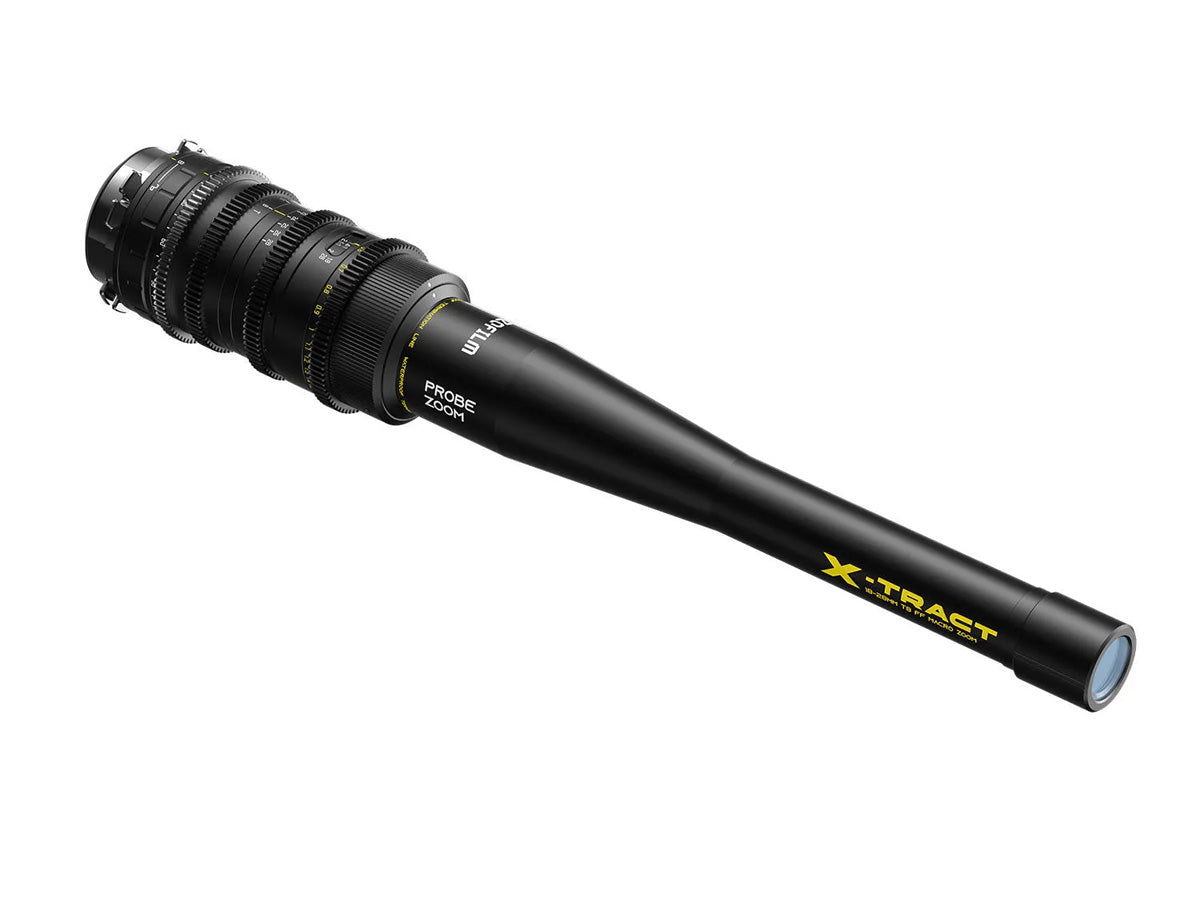

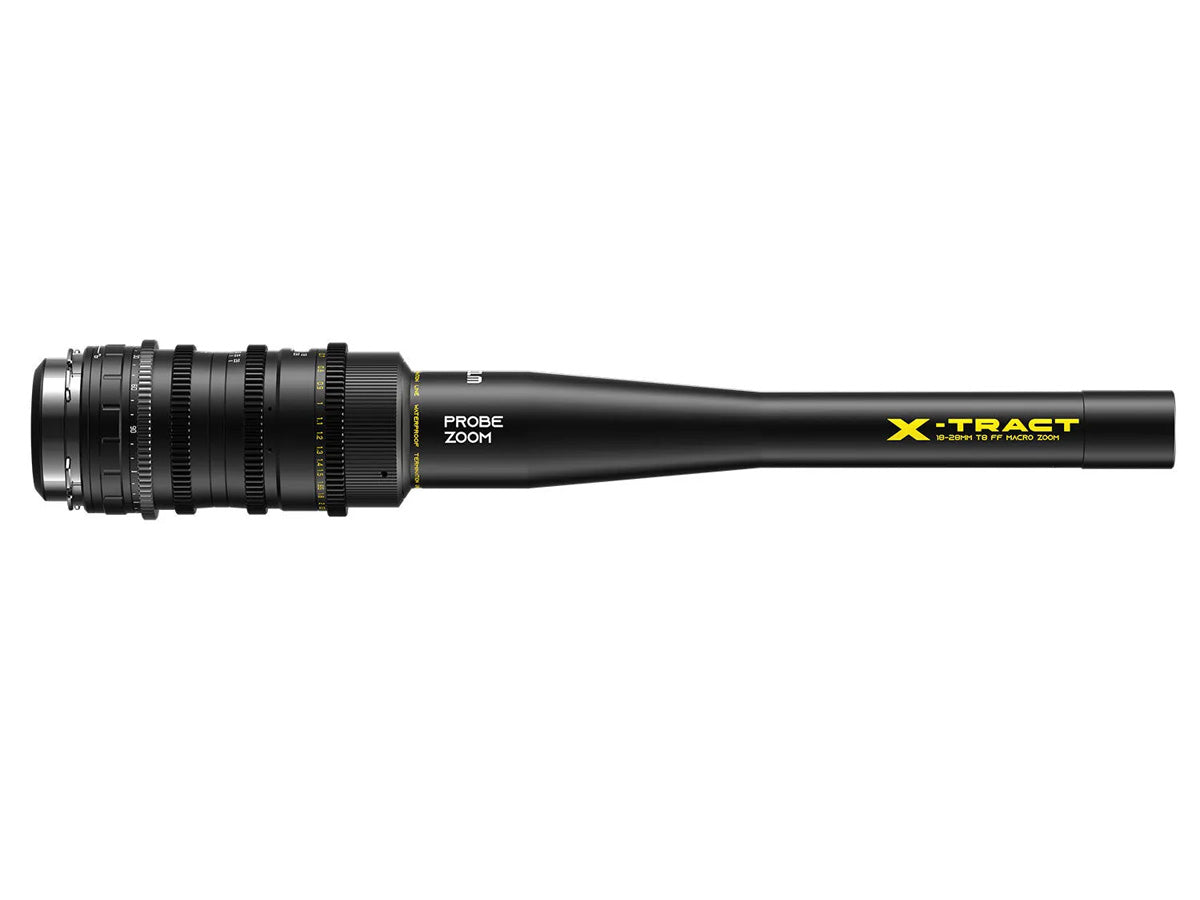

DZOFILM X-Tract 18-28mm T8 Probe Zoom Lens - PL Mount
DZOFILM X-Tract 18-28mm T8 Probe Zoom Lens - PL Mount
SKU:
DZO-X1828A
Regular price
£2,474.00 GBP ex VAT
£2,968.80 GBP inc VAT
£2,968.80 GBP inc VAT
Regular price
ex VAT
Sale price
£2,474.00 GBP ex VAT
£2,968.80 GBP inc VAT
Unit price
per
£2,968.80 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
New form/category of macro shooting - zoom probe (18 - 28mm FF), covering the commonly used focal lengths of advertising/TVC, with a field of view of 100° - 73°, improving shooting flexibility, suppressing glare and vignetting outside the picture, and ensuring picture consistency.
Parfocal design, the focus remains unchanged during zooming, and a similar effect of Zouk's zooming can be achieved.
Image Quality Performance
Constant maximum aperture T8, multi-layer anti-reflection coating, sharp and clear at full aperture.
Movie-level high-resolution image quality, 6 low-dispersion lenses correct color, accurately restore color, suppress breathing effect and vignetting.
Constant maximum aperture T8, multi-layer anti-reflection coating, sharp and clear at full aperture.
Movie-level high-resolution image quality, 6 low-dispersion lenses correct color, accurately restore color, suppress breathing effect and vignetting.
Stability and Durability
Waterproof, dustproof and fogproof (IP57 protection, body waterproof length > 28cm, first lens with water anti-fog film), adaptable to harsh environments and special shooting.
Made of all metal (aerospace-grade aluminum alloy + oxide film, 25um thick), it ensures stability and durability in various complex shooting environments.
Waterproof, dustproof and fogproof (IP57 protection, body waterproof length > 28cm, first lens with water anti-fog film), adaptable to harsh environments and special shooting.
Made of all metal (aerospace-grade aluminum alloy + oxide film, 25um thick), it ensures stability and durability in various complex shooting environments.
Lightweight and Convenient
The weight is only 1000g, the front diameter of the lens is < 30mm, and the passability of shooting in a narrow space is good to avoid blocking light.
The body volume is controlled at about 400mm in length, with a rear center of gravity design to reduce shooting jitter and adapt to a variety of installation forms.
The weight is only 1000g, the front diameter of the lens is < 30mm, and the passability of shooting in a narrow space is good to avoid blocking light.
The body volume is controlled at about 400mm in length, with a rear center of gravity design to reduce shooting jitter and adapt to a variety of installation forms.
Magnification and Focusing Capabilities
Maximum 2.1:1 magnification, the closest focusing working distance is about 6mm.
300° focusing stroke helps to control the focus delicately and accurately, and has been verified by 100,000 high-frequency lifespans.
Maximum 2.1:1 magnification, the closest focusing working distance is about 6mm.
300° focusing stroke helps to control the focus delicately and accurately, and has been verified by 100,000 high-frequency lifespans.
Technical Features of the Lens
7 high-refractive lenses, with a differential distribution of refractive indices of 2 + 5, make the picture more transparent and the color temperature more realistic, improving the yellowing problem of traditional probes.
Full tooth ring M0.8, adapted to the standardized design of the film and television industry.
7 high-refractive lenses, with a differential distribution of refractive indices of 2 + 5, make the picture more transparent and the color temperature more realistic, improving the yellowing problem of traditional probes.
Full tooth ring M0.8, adapted to the standardized design of the film and television industry.
Accessories and Creative Design (BC Features)
Self-developed OY-type support seat, quick-release O-type with 3/8 standard screw hole, Y-type with 1/4 standard screw hole, removable, convenient for adding accessories.
MO.8 stepless rotating ring, 360-degree rotating shooting angle, with rotating scale mark, to achieve 0 displacement full-angle shooting.
Self-developed OY-type support seat, quick-release O-type with 3/8 standard screw hole, Y-type with 1/4 standard screw hole, removable, convenient for adding accessories.
MO.8 stepless rotating ring, 360-degree rotating shooting angle, with rotating scale mark, to achieve 0 displacement full-angle shooting.
Usability Design
From magnification, waterproof line to rotation scale, there are appearance prompts, and the operation is more humane and intuitive.
From magnification, waterproof line to rotation scale, there are appearance prompts, and the operation is more humane and intuitive.
- T8 Aperture
- 18-28mm Zoom Range
- 2.1:1 Magnification
- 0.2m Minimum Focus Distance
- 300° Focus Throw
- Parfocal Design
- IP57 Rating for dustproof and waterproof protection
- Lightweight at 1.09kg
- M0.8 Gear Pitch Compatibility
- Minimal Distortion for clean, sharp images
| Focal Length: | 18-28mm |
| Sensor Coverage: | Full Frame |
| Lens Type: | Direct |
| Mount: | PL |
| Aperture: | T8-T78 |
| Image Circle: | 43.2mm |
| Lens Construction: | 25 Elements in 18 Groups |
| Special Glass: | 7*HRI/6*ED |
| Flange Distance: | PL 52mm |
| Field of View: | 100-73° |
| Close Focus - Sensor Plane: | 473.15mm |
| Close Focus - Lens Front: | 6mm |
| Zoom Ratio: | 1.5x |
| Magnification Factor: | 2.1x |
| Iris Control: | Manual 72.1° |
| Focus Control: | Manual 300° |
| Zoom Control: | Manual 100° |
| Front Diameter: | 29.6mm |
| Length: | 415.15mm |
| Iris Blades: | 10 |
| Gear Pitch: | 0.8 Mod |
| Material: | Aluminium Alloy |
| Weight: | 1089.5g |
| Rear Group Length: | 13.7mm |
| Accessory Specifications: | 3/8 1/4 |
| IP Rating: | IP57 |
| Waterproof: | Up to 28cm |

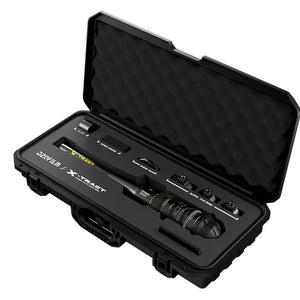

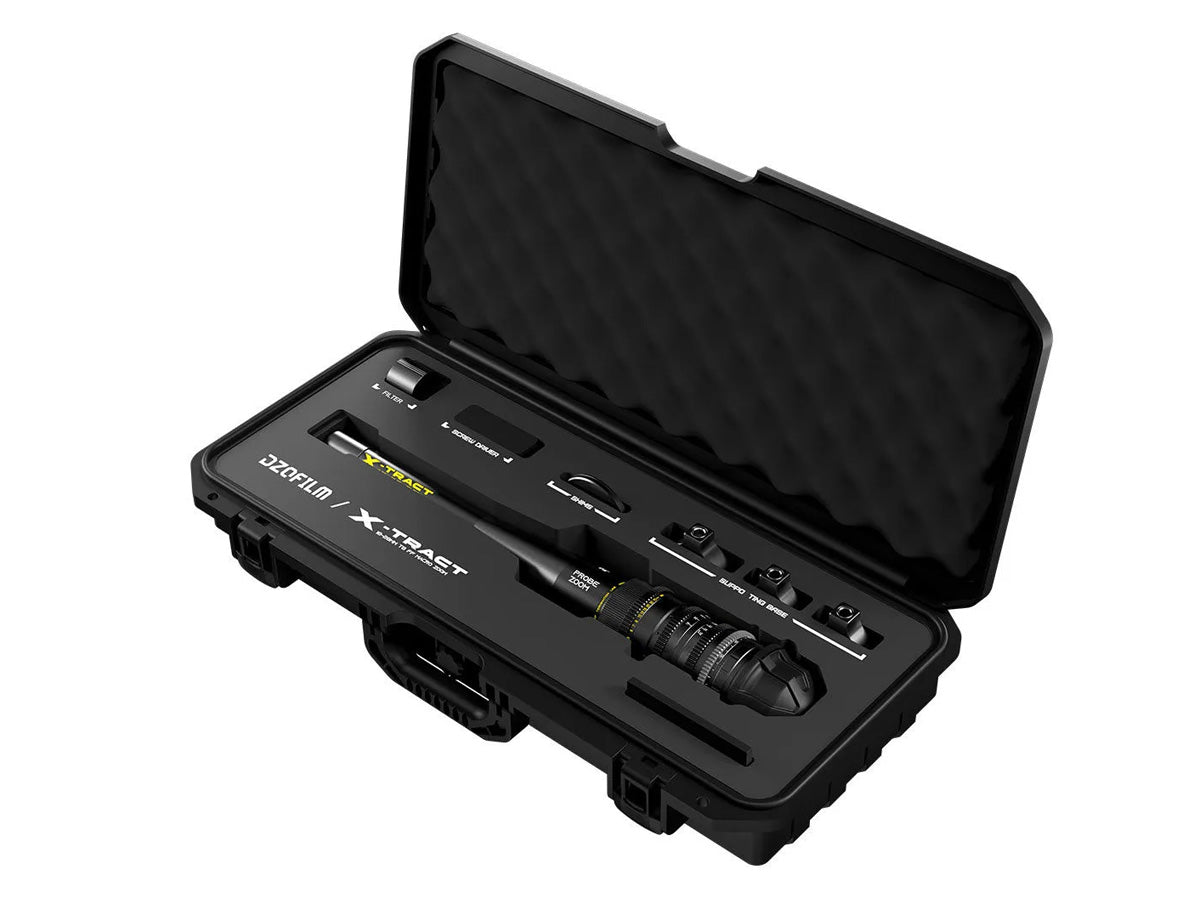

- 1x DZOFILM X-Tract 18-28mm T8 Probe Zoom Lens
