DZOFILM Pictor Zoom 2 Lens Bundle - Black
DZOFILM Pictor Zoom 2 Lens Bundle - Black
SKU:
DZO-7220001B/2B-BUNDLE
Regular price
£2,313.75 GBP ex VAT
£2,776.50 GBP inc VAT
£2,776.50 GBP inc VAT
Regular price
ex VAT
Sale price
£2,313.75 GBP ex VAT
£2,776.50 GBP inc VAT
Unit price
per
£2,776.50 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
DZOFILM Professional Cine Lenses
DZOFILM is devoted to exploring the aesthetic of film and design of optics. Both mechanics and optics are designed to be compact and versatile, allowing users to enjoy the smooth and precise operation and every shooting moment with Pictor Zoom.
Parfocal Design
Center image stays sharp during zooming in or out - no matter from close-up to wide shot or rapidly zooming out to long shot, Thanks to Parfocal design, focus keeps still all the way along.
Minimal Breathing
Thanks to the floating structure, the breathing of Pictor Zoom lenses is negligible during focusing.
Versatile and Ultra compact
At just 1.6kg (3.5 lbs), Pictor Zoom can be easily mounted on crane, jib, tripod, ROV or other moving platforms, and provides safer and more efficient work methods by reducing heavy lifting.
Gentle Sharpness & Vivid Look
From feature film, commercial, to documentary, Pictor Zoom captures crisp details while expressing organic look and cinematic texture.
Dreamatic Bokeh & Esthetic Transition
Soft bokeh generated by 16 blades T2.8 iris. Natural transition from focus to de-focus, conveying ambience and highlighting the subject.
Consistent Design & Higher Efficiency
Highly consistent in colour and mechanical control, satisfies most shooting demands.Efficient control in same ergonomics with standard M0.8 gear pitch. Multiple ways of mounting follow focus, speeds up your shooting.
Interchangeable mount system
PL mount system lens with an extra EF bayonet included in the package.
- Smooth and precise operation
- Gentle Sharpness & Vivid Look
- Soft bokeh generated by 16 blades T2.8 iris
- Natural transition from focus to de-focus
- Minimal Breathing
- Versatile and Ultra compact
- Standard M0.8 Gear Pitch
- 270 deg Focus Rotation Angle
- All-metal Mechanical Parts
| Focal Length | 50-125mm |
| T- stop | T2.8 - T22 |
| Mag. Ratio | ≈2.5X |
| Image Circle | 24.89 mm*18.66 mm（φ31.1 mm）ratio 1.33:1 |
| Flange Distance | 52mm (PL mount) 44.14mm (EF mount) |
| Close Focus Distance | 0.8m/2ft8in. |
| Size | φ95.0*175mm(PL mount） /φ95.0*182.9mm (EF mount） |
| Iris Blades | 16 pcs |
| Gear Pitch | 0.8 M |
| Front Outer Dia | φ95 mm |
| Filter Size | M86*0.75 |
| Weight | ≈1700g |
| Focal Length | 20-55mm |
| T- stop | T2.8 - T22 |
| Mag. Ratio | ≈2.75X |
| Image Circle | 24.89 mm*18.66 mm（φ31.1 mm）ratio 1.33:1 |
| Flange Distance | 52mm(PL mount) 44.14mm(EF mount) |
| Close Focus Distance | 0.6m/2ft |
| Size | φ95.0*164mm(PL mount） φ95.0*171.9mm(EF mount） |
| Iris Blades | 16 pcs |
| Gear Pitch | 0.8 M |
| Front Outer Dia | φ95 mm |
| Filter Size | M86*0.75 |
| Weight | ≈1520g |

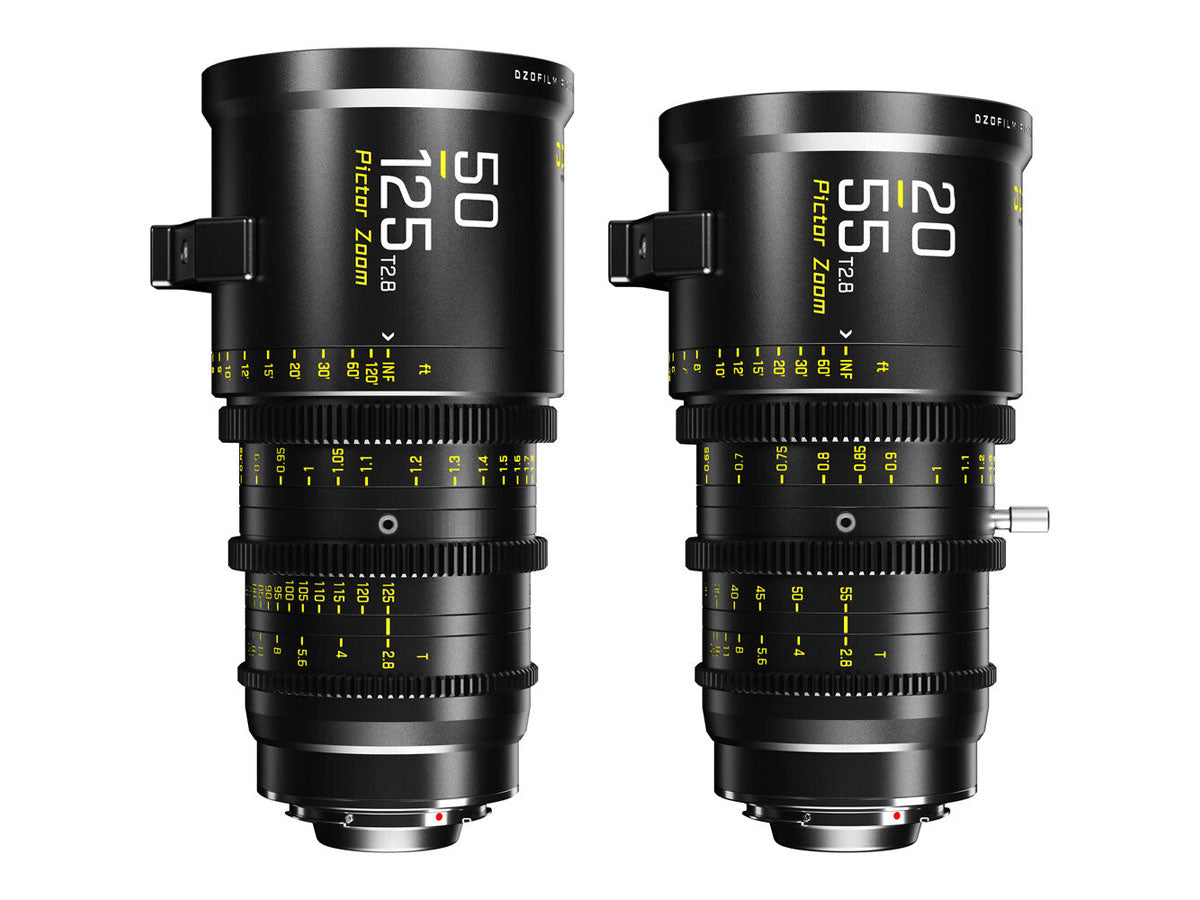

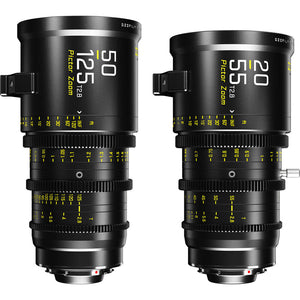

- 1x 50-125 T2.8 Pictor Zoom - PL Mount
- 1x 20-55 T2.8 Pictor Zoom - PL Mount
- 2x EF Bayonet Lens Mount
- 2x Shims
- 2x Lens Support

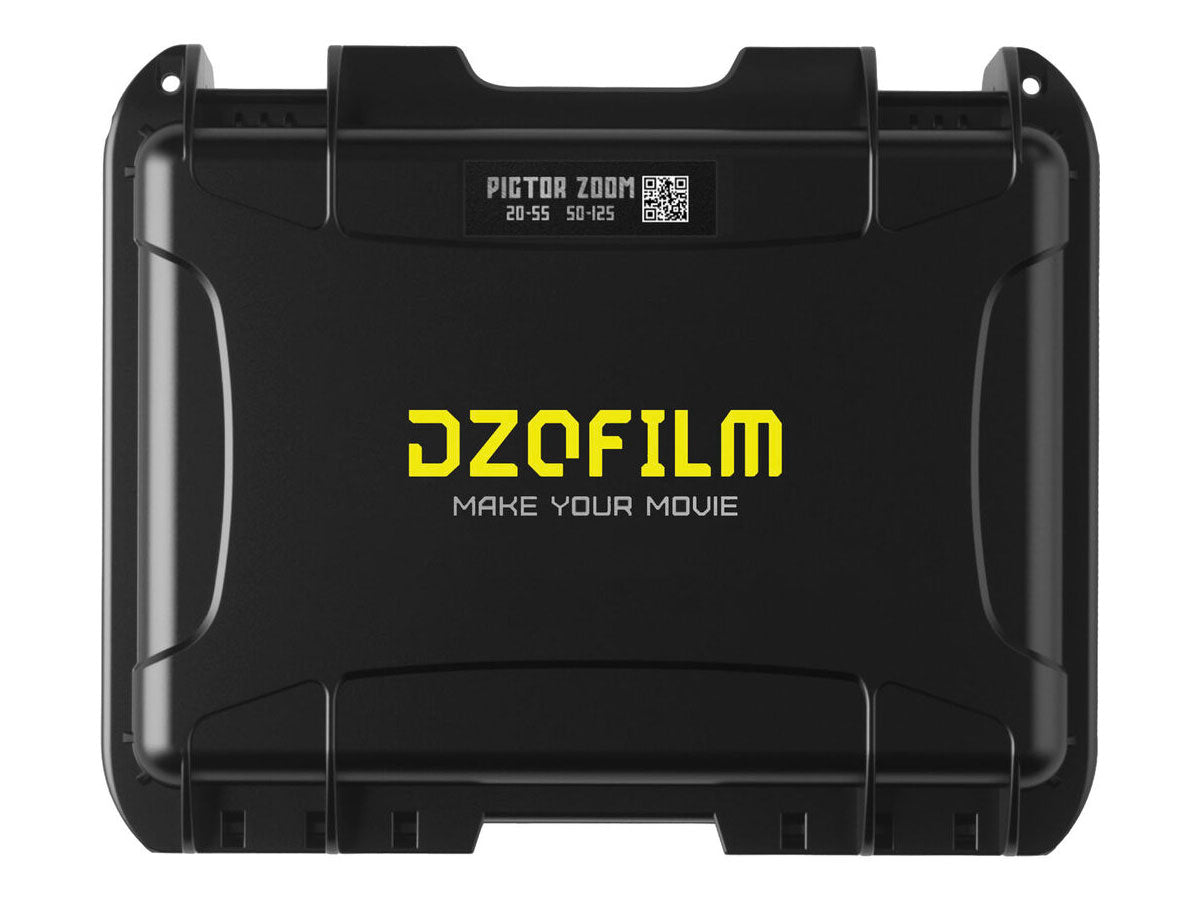

- 1x Safety Case
