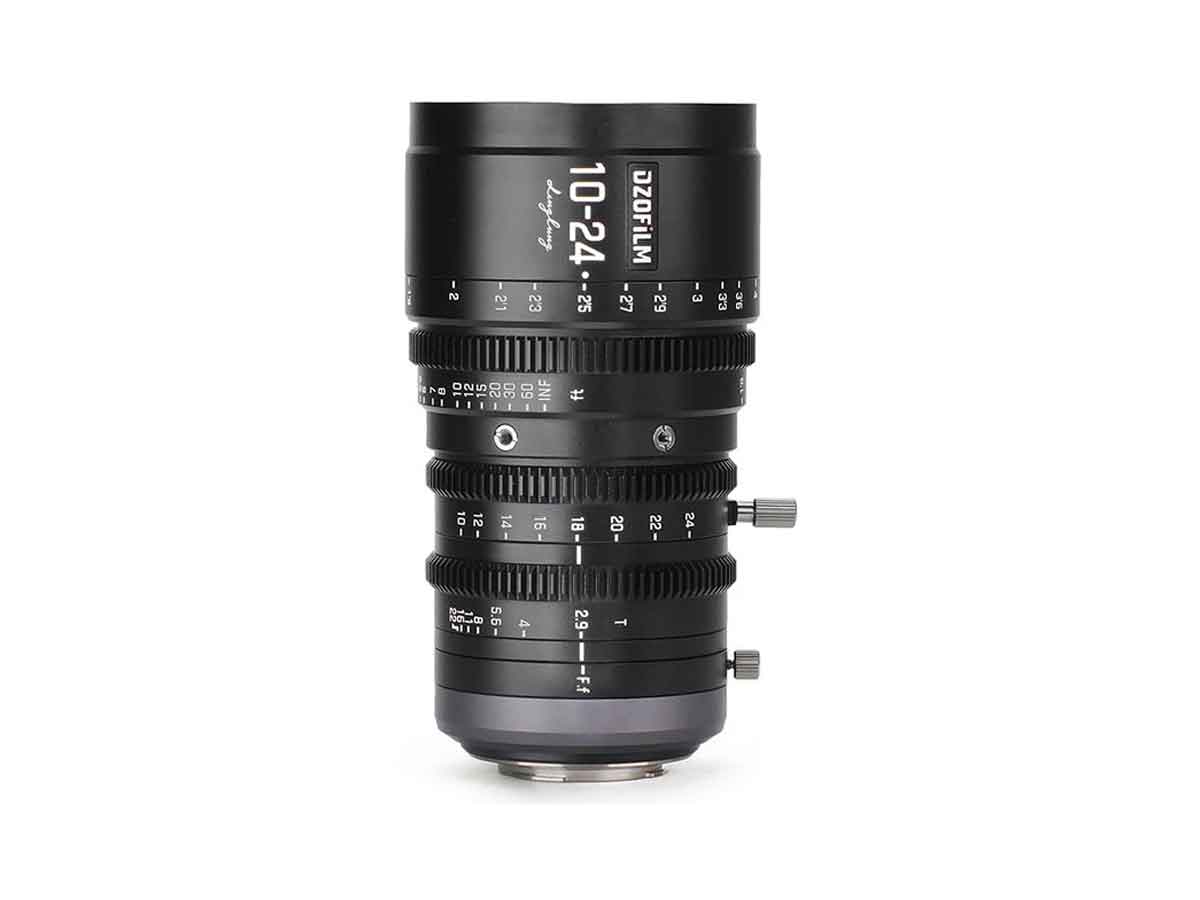

DZOFILM 10-24mm T2.9 Cinema MFT Zoom Lens - Metric
DZOFILM 10-24mm T2.9 Cinema MFT Zoom Lens - Metric
£1,536.00 GBP inc VAT
£1,536.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Specifications
- What's Included
Professional Cinema Lens
Cinematic Proceeding And Precise Mechanism Control
Forming “Muscle Memory” For Professional Filming And Moving To A Upper Step Of Art.
Parfocal Design
Steady Focus Remains The Same Even In Or Out
No Matter From Close-Up To Wide Shot Or Rapidly From Wide To Long Shot Under Parfocal Design, Focus Keeps Unchanged All The Way Allowing You To Spray The Etrtnsl Cteativity Freely.
Minimal Breathing
Near Zero Breathing, Allowing For Decent Expression Through Images
DZOFILM Linglung Provides Users With A High Standard And A Better Experience Of Lens.
Elaborate Optical Design
Smooth and creamy Bokeh with clear layer and natural transition.
12-Pieces blade design, generating elegant and round Bokeh.
Neutral and natural style Obiectively reflect the true color of complexion.
Mechanical & Design Feature
- Two-sided focus scale
- 270° Focusing travel with 26 focus marks
- 100° Zoom rotation angle
- 70° Iris rotation angle
- Fast back flange adjusting mechanics
- Double strengthening mount design
Compatibility:
- BMPCC 4K
- Z CAM E2
- Panasonic
- GH5
- GH5S
- Other MFT Mount Cameras
| Lens Mount | M4/3 Mount |
| Focal Length | 10-24 |
| Zoom Ratio | 2.4X |
| Minimum T-Stop | T2.9 |
| Aperture Range | T2.9-T22 |
| Frame Size | 17.31mm * 12.98mm (21.6mm) aspect ratio 1.33:1 |
| Flange Back (In-Air) | 19.2mm (adjustable by +/- 0.3mm) |
| Minimum Object Distance (From Focal Plane) | 0.5m/1'8" |
| Angle of View | |
| Horizontal | 79.7-40.33 Degrees |
| Vertical | 64.1 -30.8 Degrees |
| Diagonal | 92.5-49.3 Degrees |
| Area Photographed at Close Focus Distance | 10mm: 608mm*456mm 24mm: 268mm*201mm |
| Effective Lens Diameter | |
| Front Element | 57.0mm |
| Rear Element | 25.8mm |
| Aperture Control | Manual (Ring Rotates up to 60 Degrees) |
| Zoom Control | Manual (Ring Rotates up to 100 Degrees) |
| Focus Control | Manual (Ring Rotates up to 270 Degrees) |
| External Dimensions (Diameter*Length) [Approx.] | |
| Weight (Approx.Excluding Lens Cap and Bridge Rods) | 1100g |
| External Diameter at Front of Lens | 80mm |
| Filter Diameter | |
| Gear Pitch (Aperture, Zoom and Focus) | 0.8M |
| Number of Blades | 12 |
- 1x 10-24mm T2.9 Cinema Zoom Lens
- 1x Front Lens Cap
- 1x Rear Lens Cap
- 1x Lens Support Baseplate
