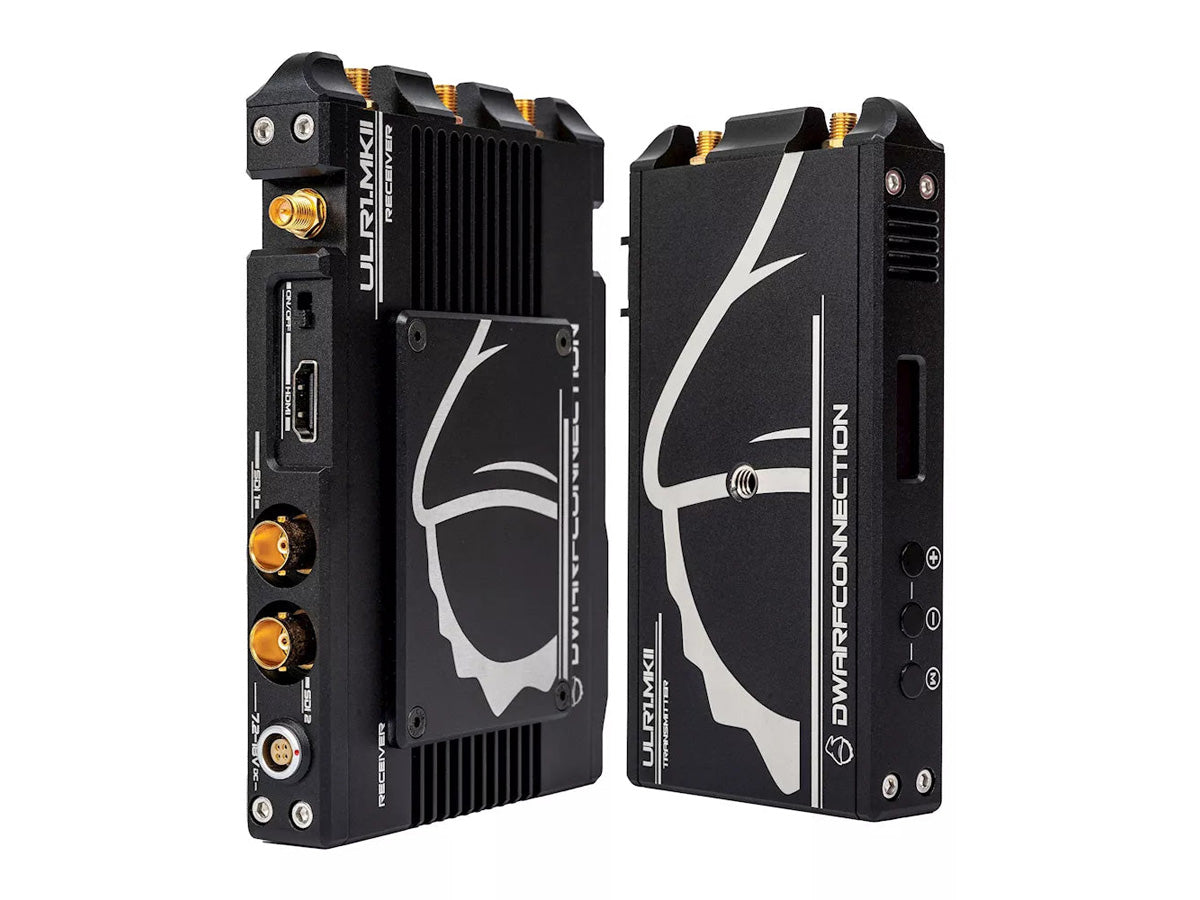

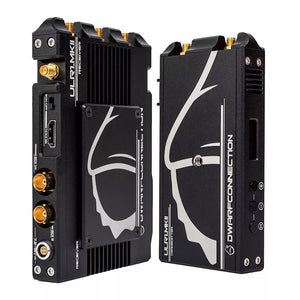

DwarfConnection DC-LINK-ULR1.MKII WHDI Set
DwarfConnection DC-LINK-ULR1.MKII WHDI Set
SKU:
DC-LINK-ULR1.MKII
Regular price
£6,500.00 GBP ex VAT
£7,800.00 GBP inc VAT
£7,800.00 GBP inc VAT
Regular price
ex VAT
Sale price
£6,500.00 GBP ex VAT
£7,800.00 GBP inc VAT
Unit price
per
£7,800.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The ULR1, with its "ultra-long" range of 1200 meters, is the head of the DwarfConnection wireless video systems. If you need stability you can rely on, even at a live event with 20,000 fans, this is the system for you. It is used in some of Europe's largest soccer stadiums and it just works.
It is our goal to provide high-quality wireless connection.
This includes an uncompressed, latency-free video signal as well as stability you can rely on. For this reason, we stick with HD until we can guarantee higher resolutions without compromises and at the frame rates actually required for practical use.
While most manufacturers are moving to WIFI, we stick to WHDI technology and now create the ability to add DC-LINK receivers to an existing non-DFS WHDI system from other brands with our unique Multi Brand Connectivity. This works quite simply: All receivers in the MKII series let you choose from different frequency sets, which allows compatibility with other brands.
Whether you are shooting a Hollywood blockbuster or the financial presentation of a large corporation - sometimes we have to deal with sensitive content that is not inten- ded for everyone’s eyes. For devices that do not require pairing, this has sometimes been a criterion for exclusion. With the MKII series of our DC-LINK systems, we have solved this problem by implementing an Encryption Mode that can be activated easily and still allows a connection with an infinite number of receivers.
The operation of your entire wireless system is now even easier than usual! All receivers react to channel changes of the transmitter and follow automatically.
We call this Master Channel Selection.
All lights go out in Dark Mode. In Encryption Mode all receivers follow the transmitter into and out of Dark Mode.​
"Camera rolling!" - or is it? Even when things get a little chaotic on set, you always know what‘s going on with the new Record Indicator on your OSD.

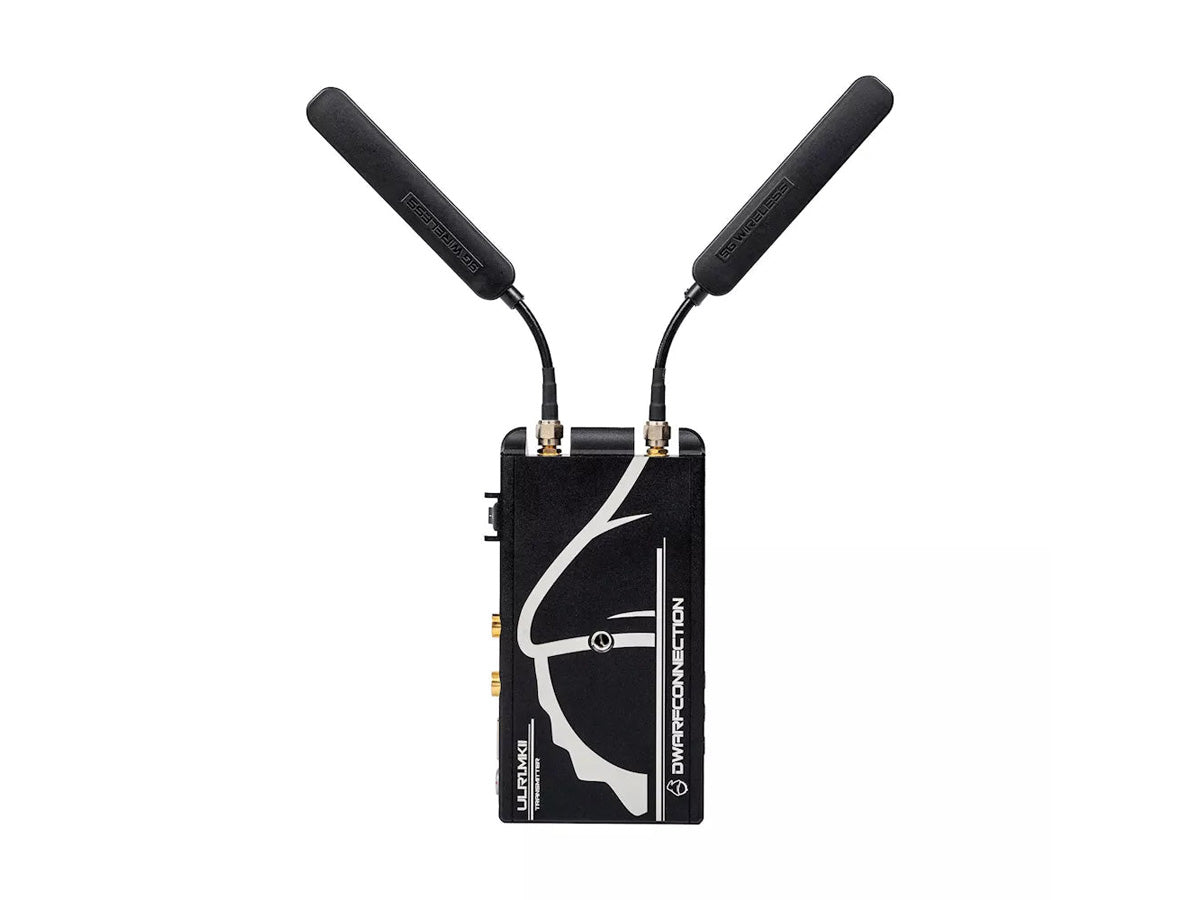

​The significantly more stable Flexible Sword Antennas now come with all MK II devices.

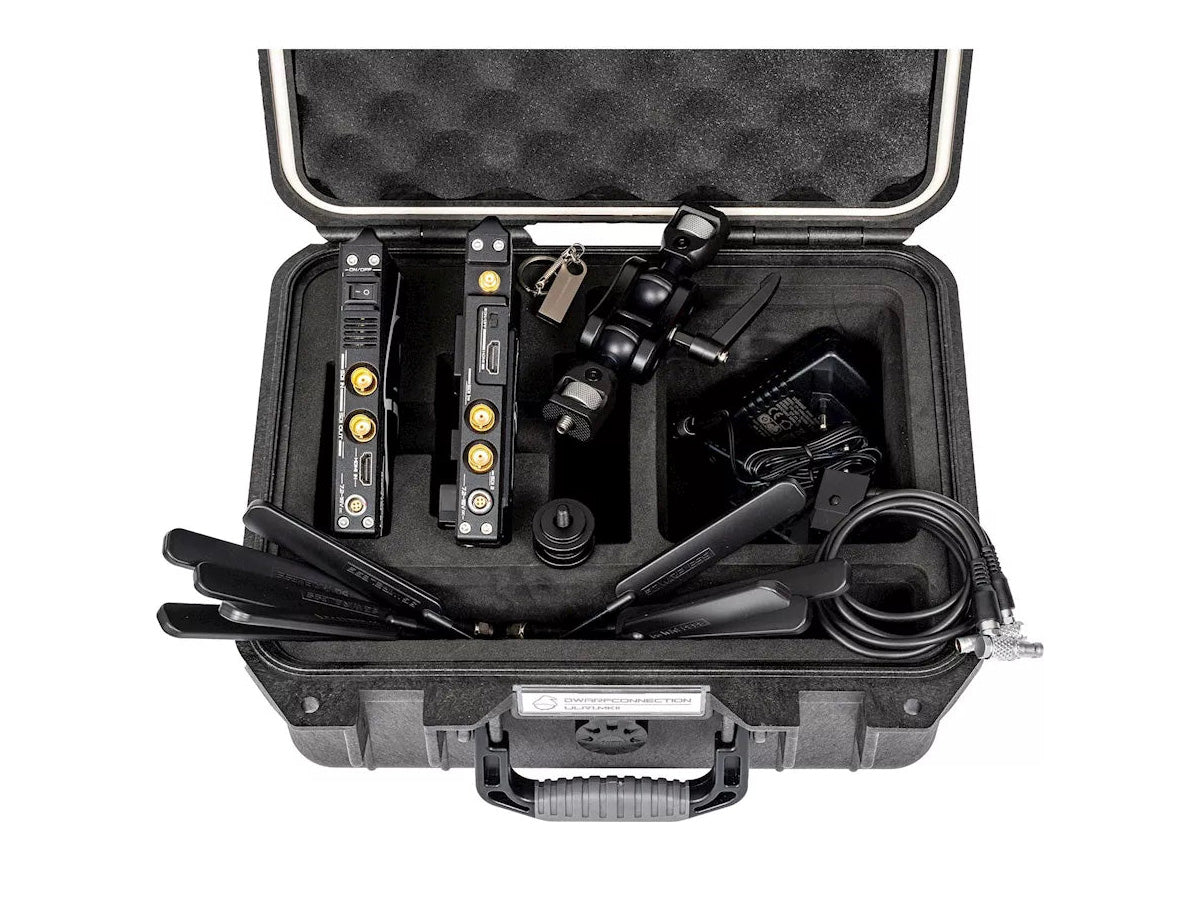

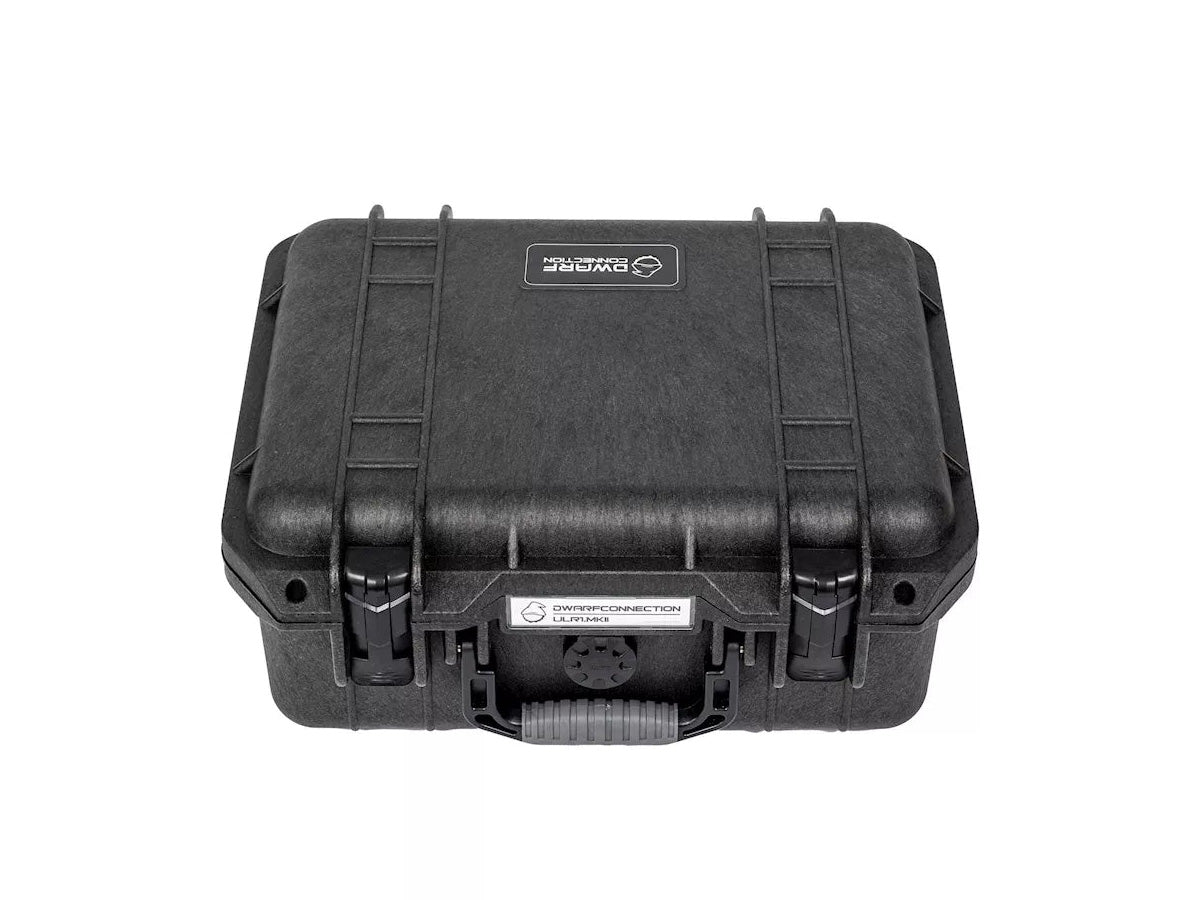

​All sets come in the new case, with space for one transmitter and up to three receivers. Since nothing has changed in the dimensions of the devices, the previous DC-LINK de- vices also fit perfectly into the new case - and vice versa.
We want you to lead a long term relationship with your wireless systems!
That’s why our MKII series of is course compatible with all previous models.
And of course it is Cross Compatible across the whole lineup of DC-LINK systems.
- Wireless video up to 1200m
- Frequency Scanner over HDMI output
- Antenna working status over HDMI output
- Controlable fans
- OSD can be switched off

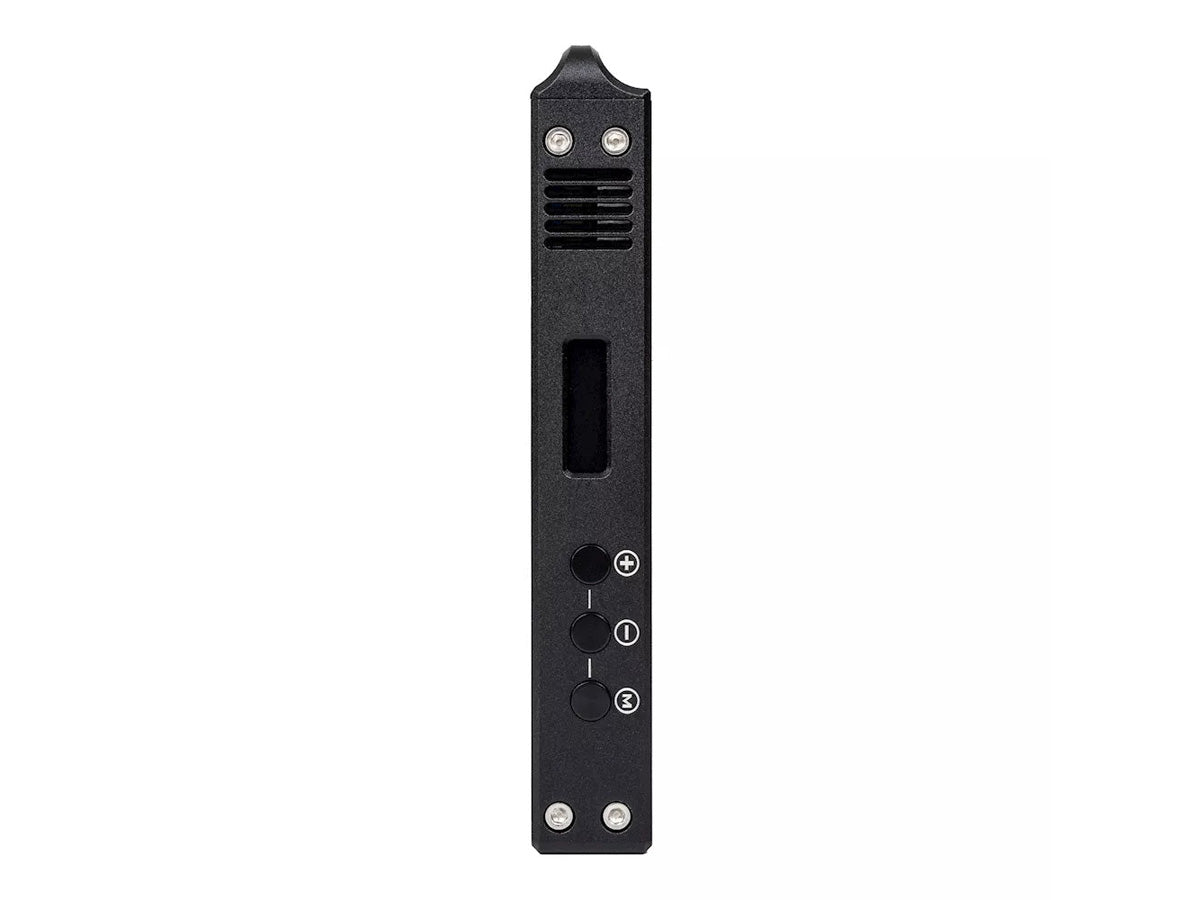

- OLED display on the side
- Supports META data and start-stop function
- Fully compatible with its predecessors LR1 and CLR1
- Uncompressed video up to 1080p60 4:2:2 10-bit on SDI and 4:4:4 on HDMI
- Delay under 1ms
- 3G-SDI & HDMI with integrated cross-converter (HDMI to SDI / SDI to HDMI)
- Works with unlimited wireless receivers
- Manual frequency selection, no pairing required
- Stable connection established by preset channels and no use of DFS
- Operates in license-free 5Ghz-ISM band

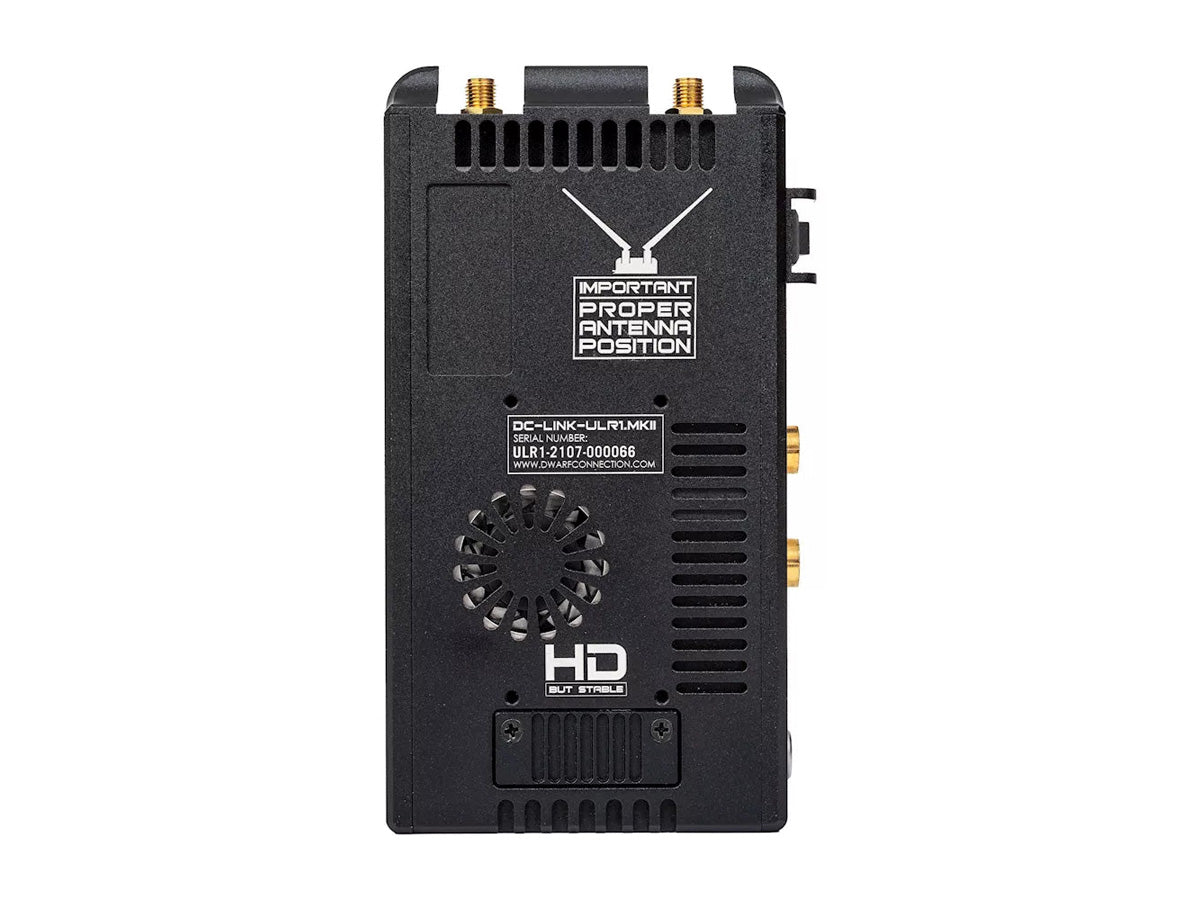

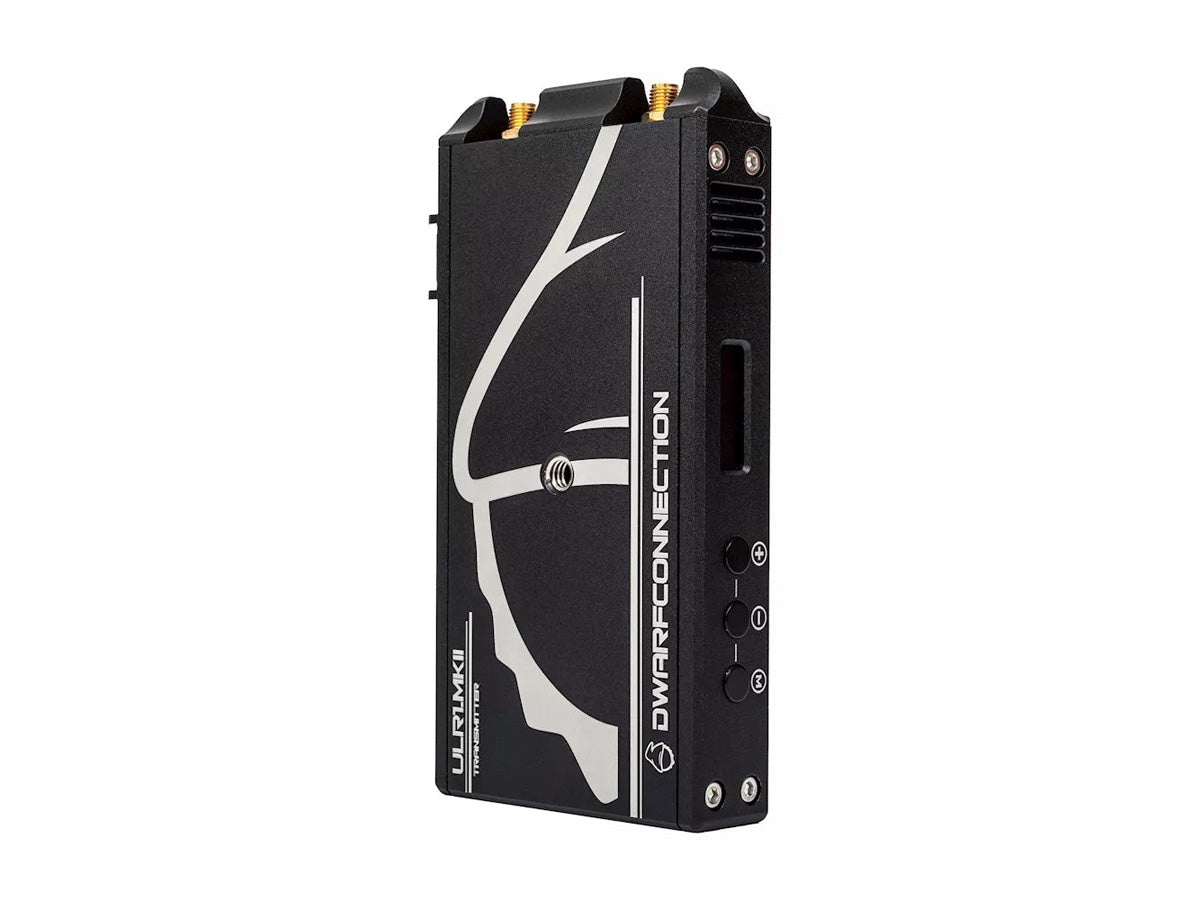

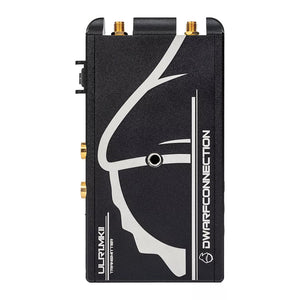

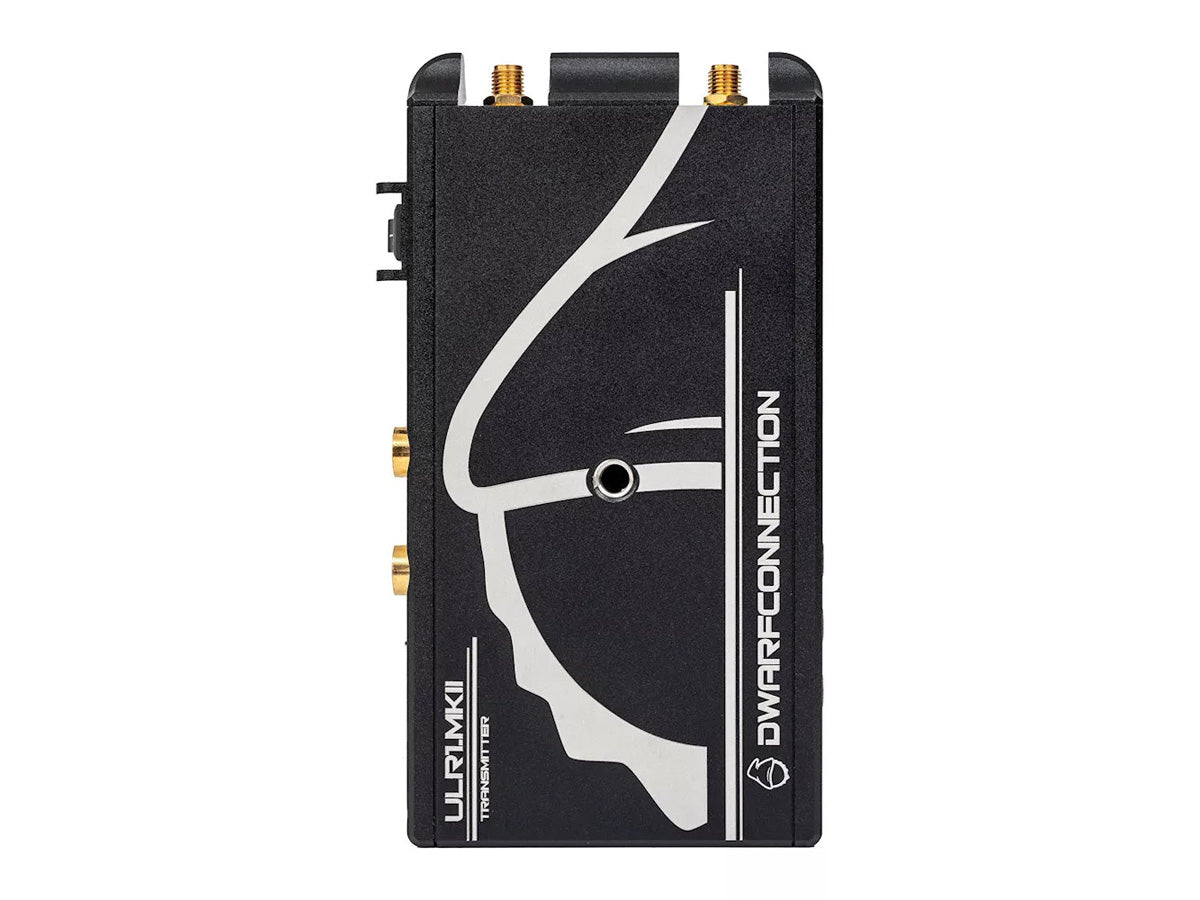

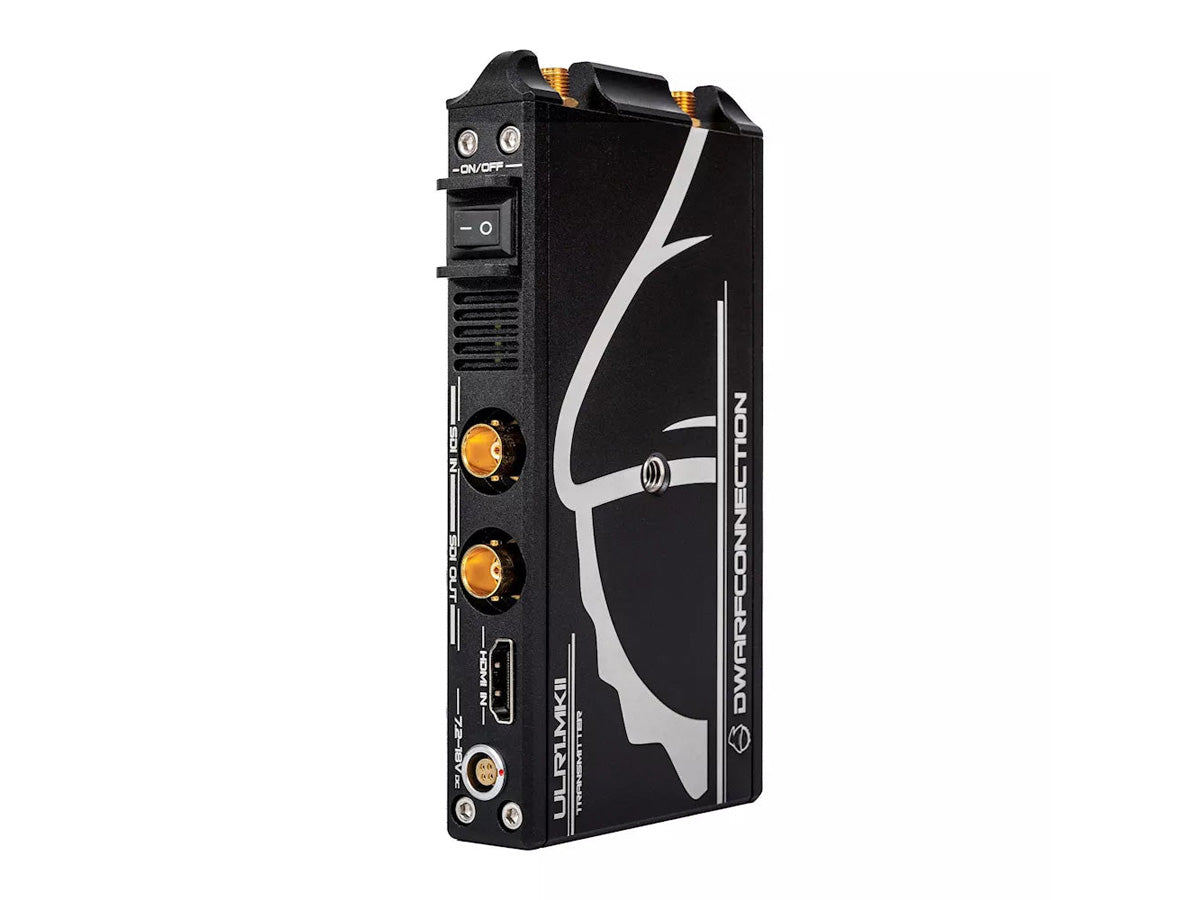

| TRANSMITTER | |
| Connectors: | 143.5 x 74.5 x 21.4mm |
| Battery Mount: | 380g |
| Power Consumption: | 2xSDI & 1xHDMI in, 1xSDI loop out, 1xmini USB |
| Dimensions: | optional NPF |
| Weight: | 8W |

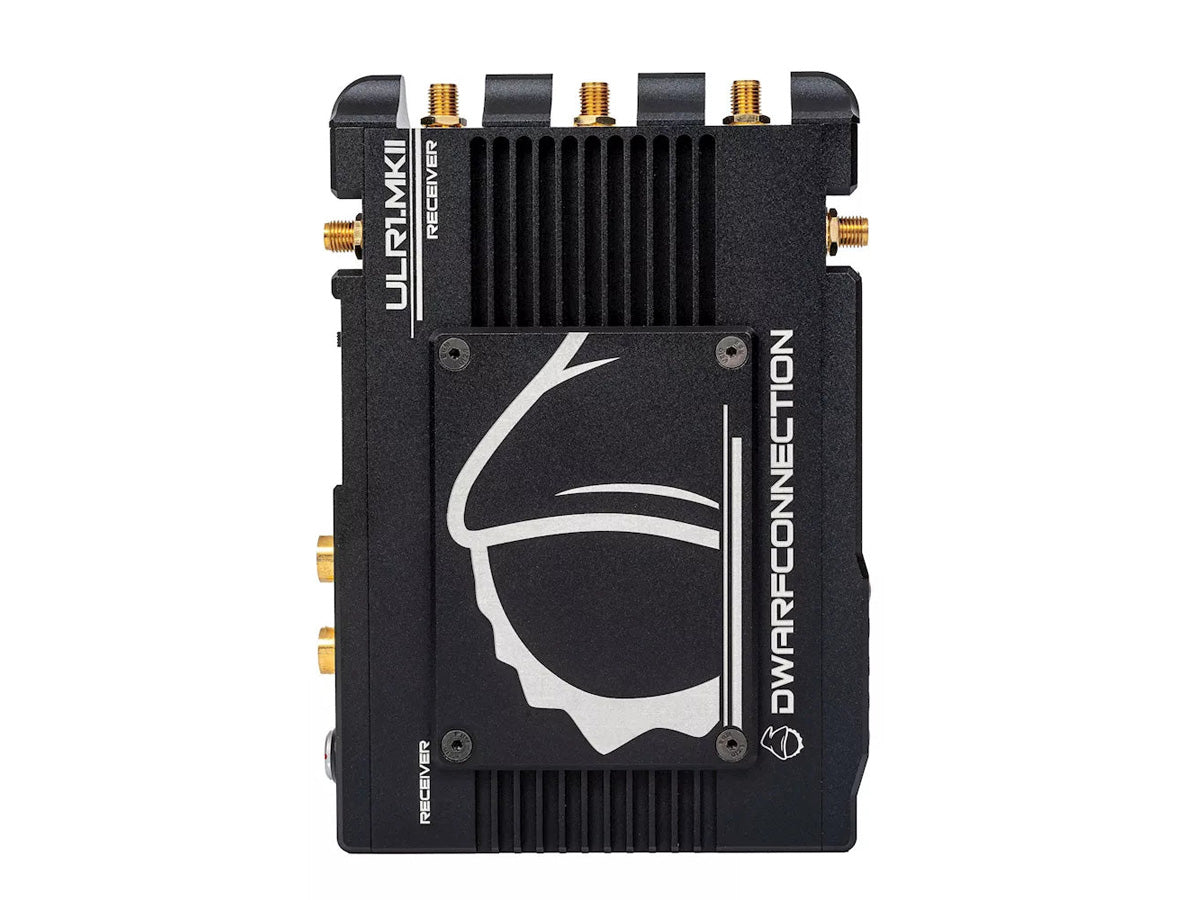

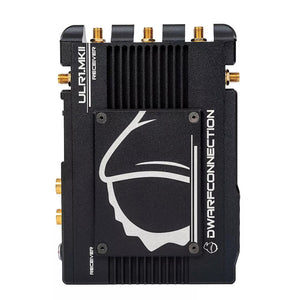

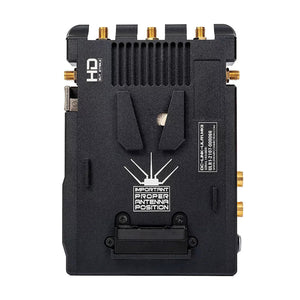

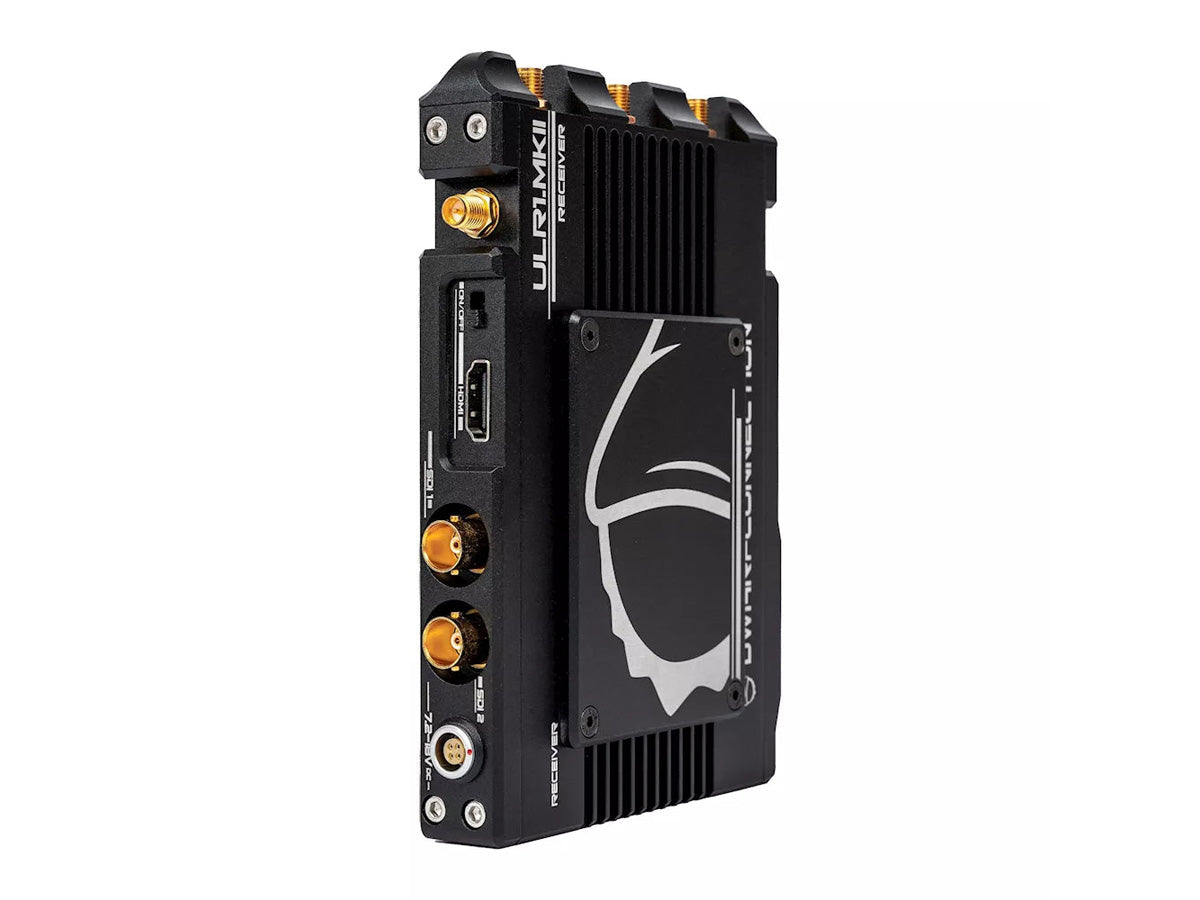

| RECEIVER | |
| Connectors: | 147.8 x 100 x 20mm |
| Battery Mount: | 540g |
| Power Consumption: | 2xSDI & 1xHDMI out, 1xmini USB |

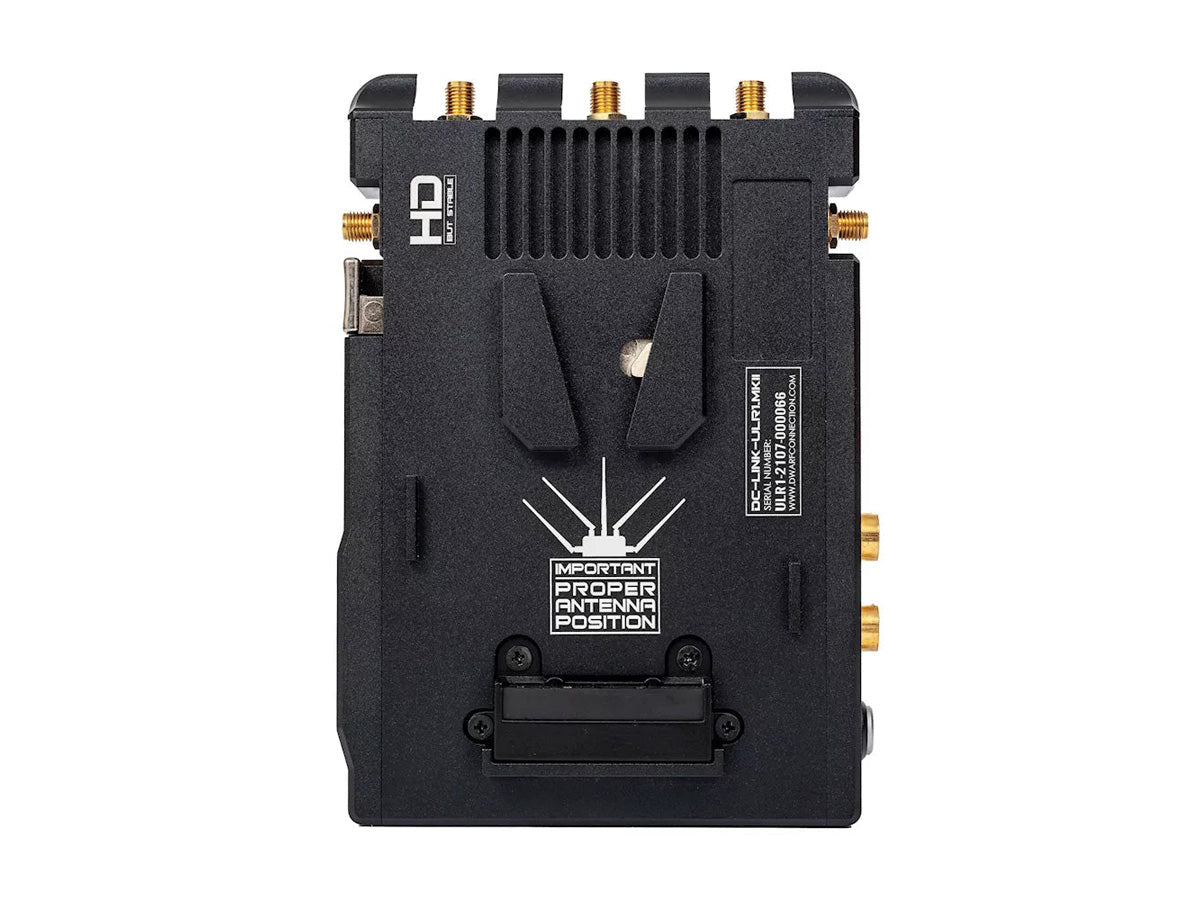

| Dimensions: | V-mount |
| Weight: | 8W |

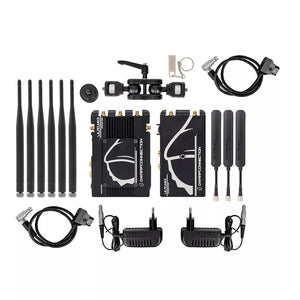

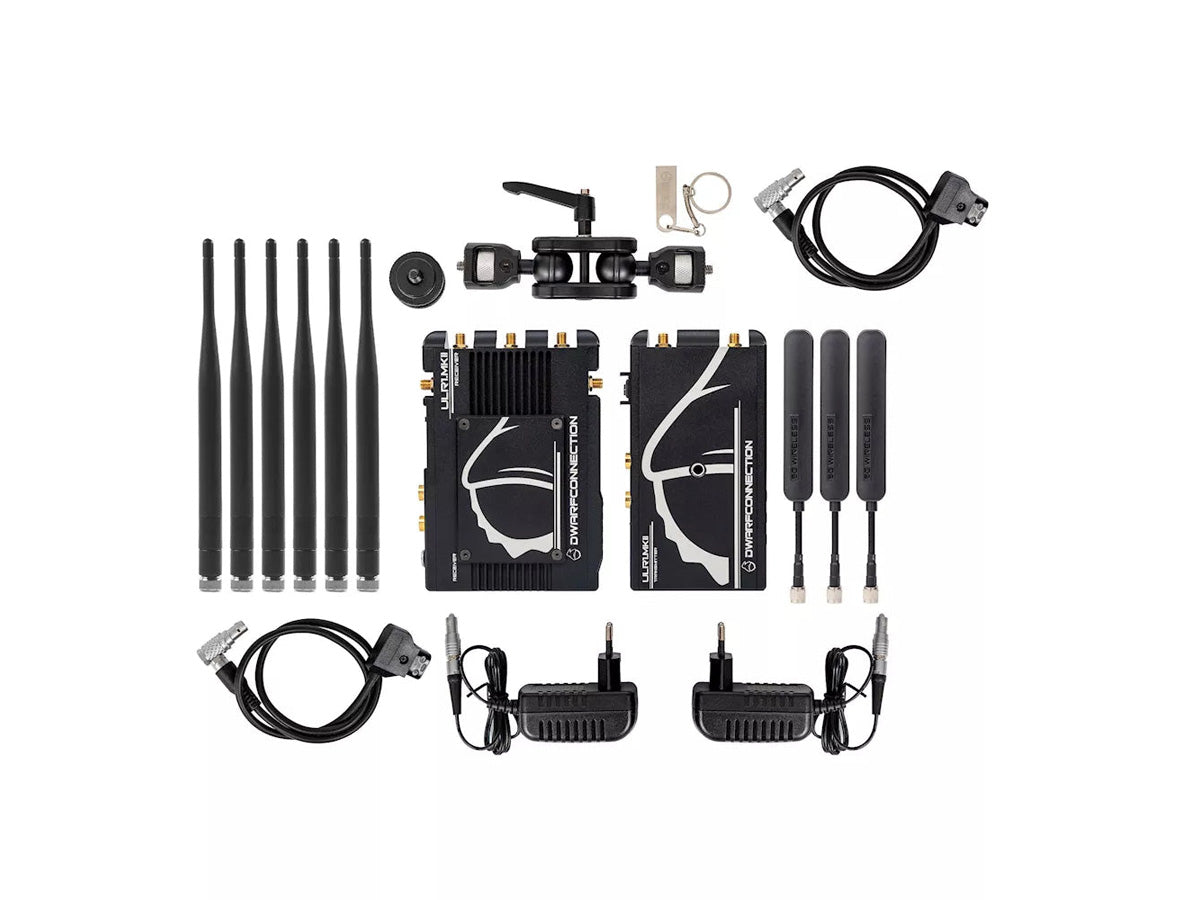

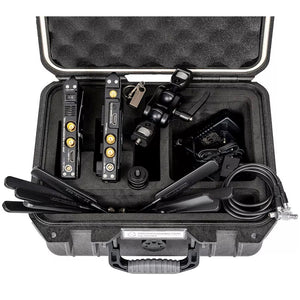

- 1x TX
- 1x RX
- 9x Antenna
- 2x Power Supply
- 2x D-Tap Cable 4pin
- 1x Magic Arm & Hotshoe Mount
- 1x Case
