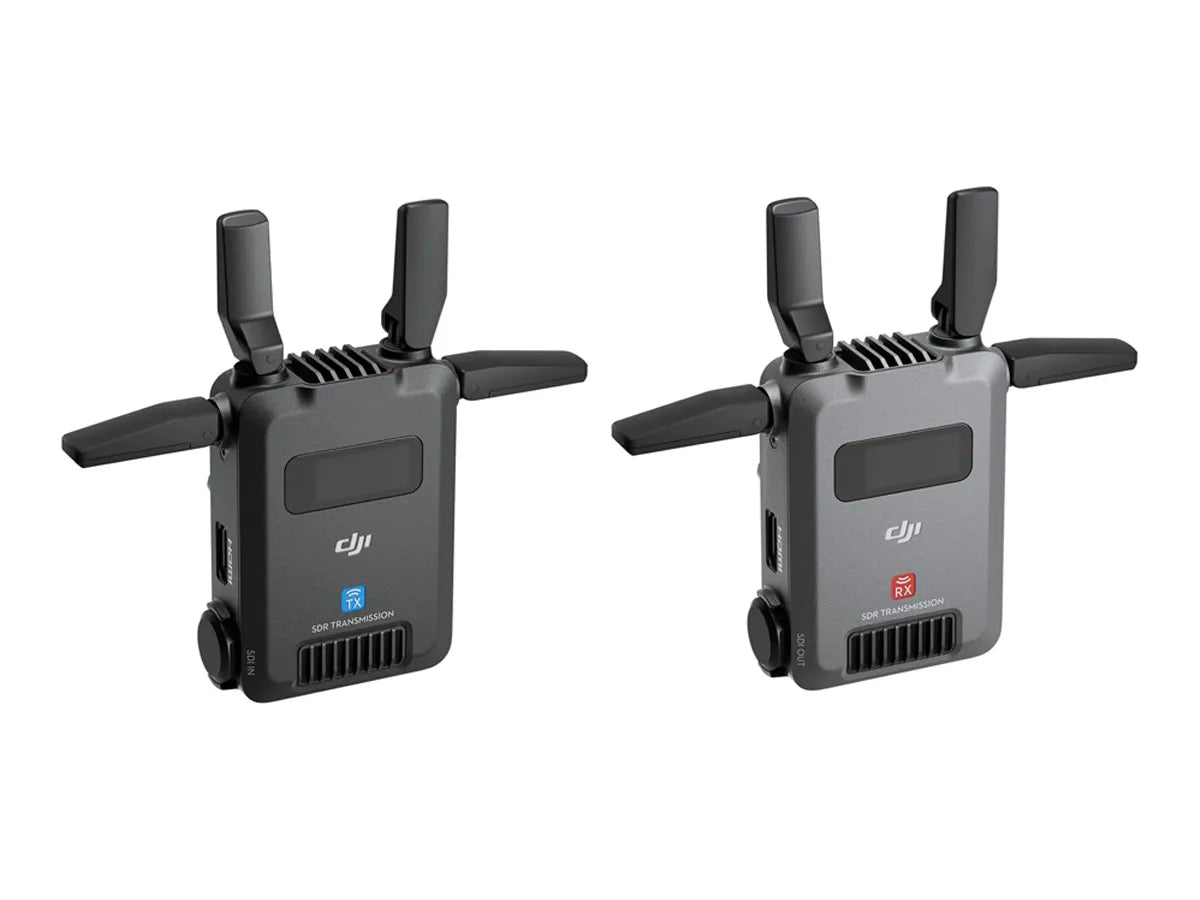

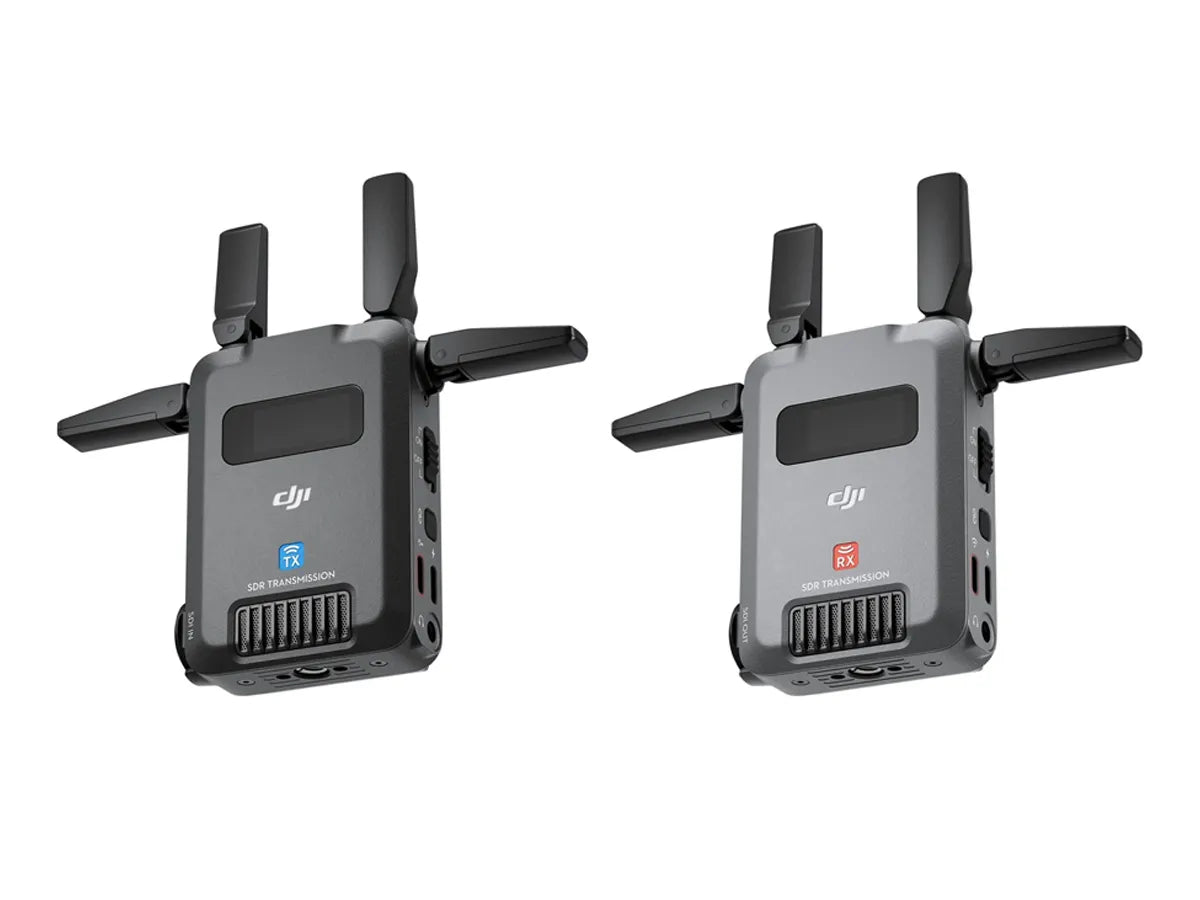

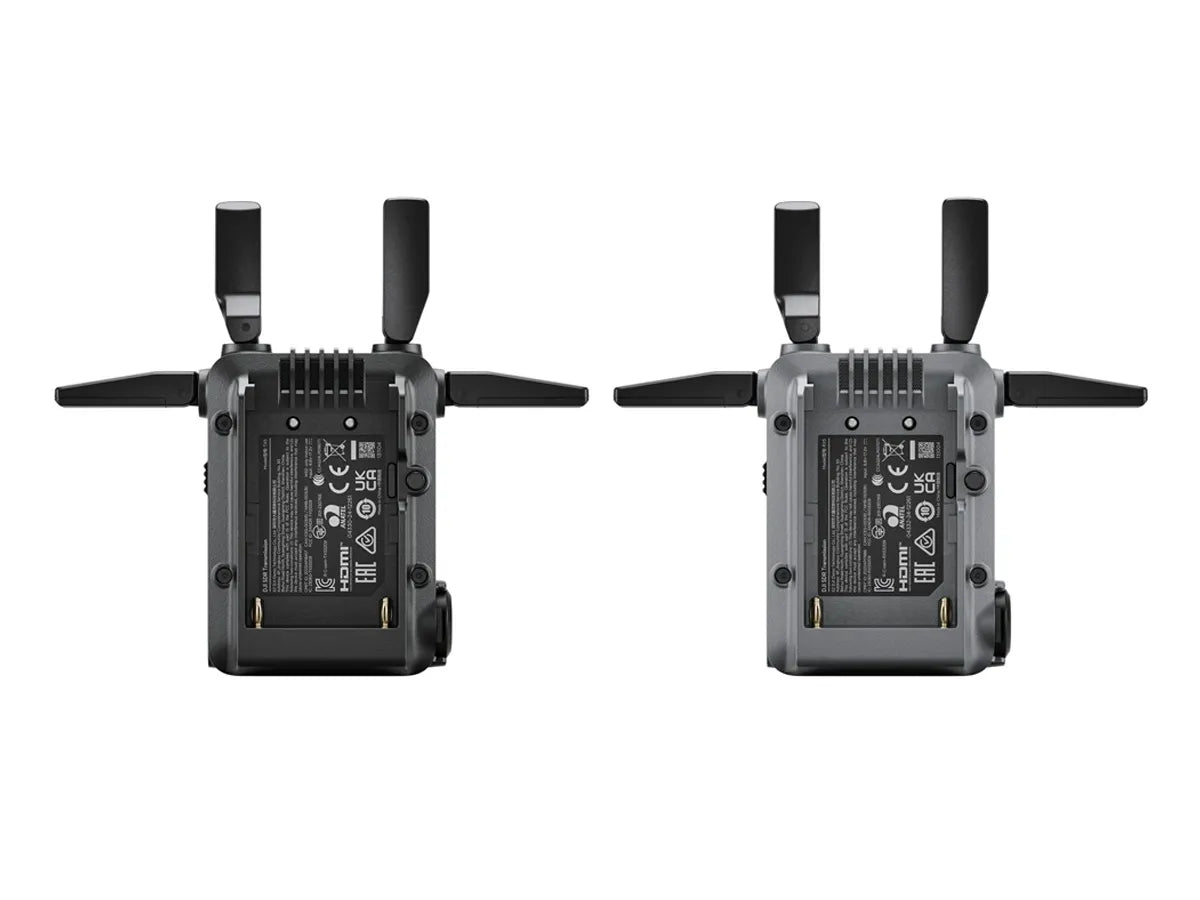

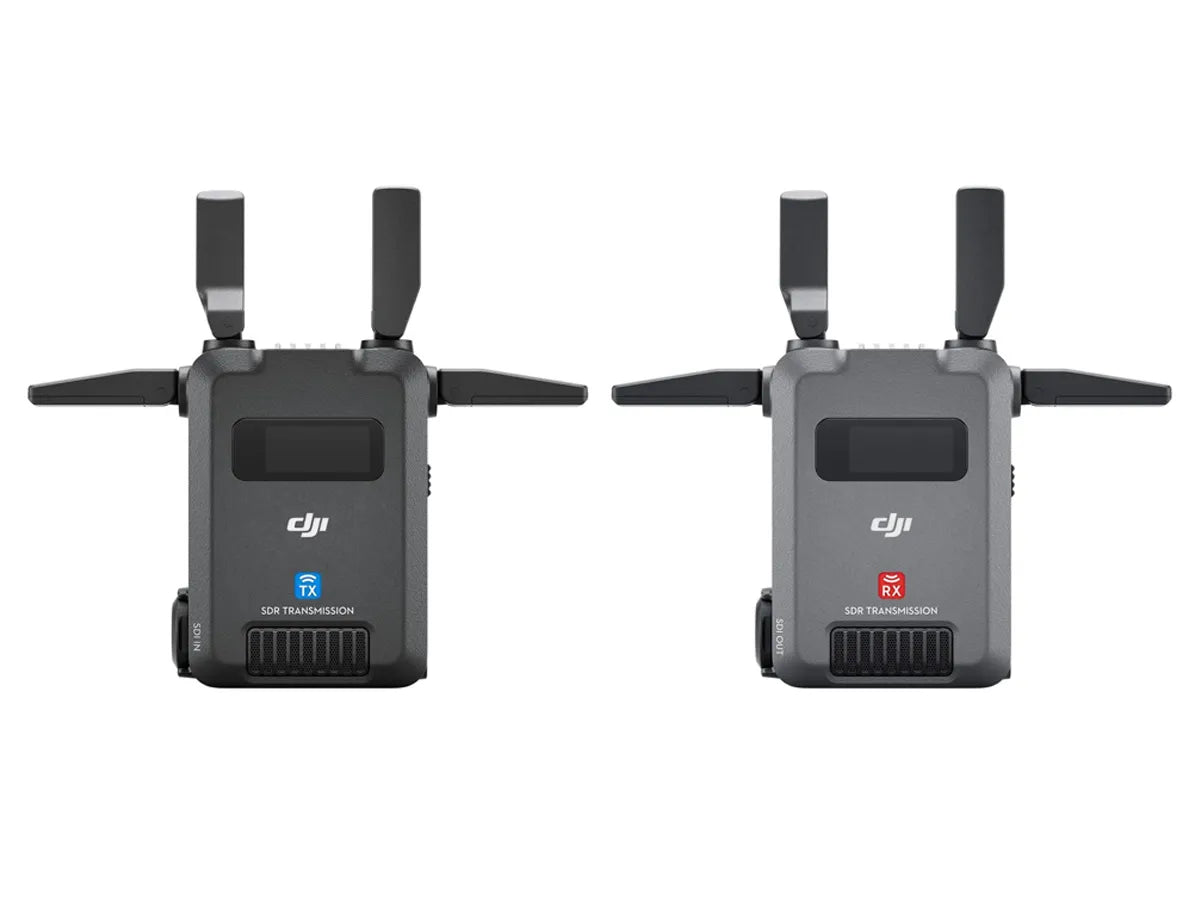

DJI SDR Transmission Combo
DJI SDR Transmission Combo
£519.00 GBP inc VAT
£519.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The DJI SDR Transmission system has been designed to utilise both SDR and Wi-Fi video transmission modes, enabling enhanced stability, interference resistance and penetration capabilities.
Large Transmission range
Reach up to 3km/ 10,000ft transmission range, perfect for when filming over a wide area. Thanks to the DJI SDR Transmitter's superior penetration capabilities, this system meets the demands of on-site live feed monitoring.
High Image Quality
Maintain a high image quality with the support of 1080p/60fps live feed, at a high bitrate of up to 30 Mbps.
Auto frequency Hopping
The DJI SDR Transmission will automatically switch to the optimal channel, hopping across 2.4 GHz, 5.8 GHz and DFS frequency bands. This seamless change helps to maintain a strong connection without compromising the quality of the feed.
Unlimited Number Of Receivers
The SDR Transmitter can connect to an unlimited number of receivers in broadcast mode, perfect for working across multiple collaborators on one large project.
Supports Mainstream Cinema Cameras
This transmission system supports metadata transmission from mainstream cinema cameras like ARRI and REd via SDI, allowing you to have access to detailed shooting information in real time.
One-On-One Communication
Created with seamless communication and clear transmission in mind, the transmitter and receiver can support one-on-one real-time communication.
Compact, Lightweight, Portable
The DJI SDR Transmission system has been designed to be compact, lightweight and portable, with the transmitter or receiver weighing only approximately 145g and has foldable antennas for easy storage.
Multiple Ports
The DJI SDR Transmitter has been designed with multiple ports to allow for easy connection, including a 3.5mm stereo jack, HDMI Input port, SDI Input port and 2 USB-C ports. One USB-C port is dedicated to USB-C power and gimbal communication while the second is dedicated to USB-C firmware updates. The transmitter can allow you to have a direct connection to smartphones or tablets over Wi-Fi.
Multiple Monitoring Methods
The SDR Transmission can output three SDR signals and two Wi-Fi signals simultaneously, while the receiver can output to monitors via an SDI/HDMI connection or use a USB-C cable to connect to a smartphone or tablet.
Compatible with the DJI Ronin App
The DJI SDR Transmission system is compatible with DJI Ronin, connect your transmitter in broadcast mode to seamlessly switch between camera indexes within the app. The app itself supports local recording which can be reviewed on the playback page and also features mainstream monitoring assistance tools like LUT, peaking, waveform and false colour.
In-app Camera Control
PTP control over cameras is supported by the DJI SDR transmission, allowing you to display and monitor multiple camera settings including adjusting aperture, shutter, ISO and shutter tricker. This system also supports CEC control for Sony cameras.
- SDR Transmission
- Stable & Anti-Interference
- Strong Penetration
- Extended Transmission Distance
- High Bitrate
- High Image quality
- Unlimited Number of Receiver
| TRANSMITTER | |
| Weight: | Approx. 145 g (including antennas) |
| Dimensions: | 86.5 x 64 x 32mm |
| Ports: | SDI Input Port HDMI Input Port 3.5mm Stereo Jack USB-C Firmware Update Port USB-C Power and Gimbal Communication Port |
| Operating Frequency: | SDR Operating Frequency Non-DFS Frequency Band: 2.4000-2.4835 GHz 5.725-5.850 GHz DFS Frequency Band: 5.470-5.725 GHz 5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used. Wi-Fi Operating Frequency 2.4000-2.4835 GHz 5.150-5.250 GHz |
| Transmitter Power (EIRP): | SDR: 2.4000-2.4835 GHz: < 30 dBm (FCC) < 20 dBm (SRRC/CE/MIC) 5.470-5.725 GHz: < 30 dBm (FCC) < 23 dBm (CE/MIC) 5.725-5.850 GHz: < 30 dBm (FCC) < 14 dBm (CE) ＜30 dBm (SRRC) Wi-Fi: 2.4000-2.4835 GHz: < 26 dBm (FCC) < 20 dBm (SRRC/CE/MIC) 5.150-5.250 GHz: < 26 dBm (FCC) < 23 dBm (SRRC/CE/MIC) |
| Wi-Fi Protocol: | 802.11b/a/g/n/ac/ax Supports 2×2 MIMO Wi-Fi |
| Max Bandwidth: | SDR: 20 MHz Wi-Fi: 20 MHz |
| Max Bitrate: | SDR: 20 Mbps* Wi-Fi: 8 Mbps *Measured in Control mode, with Broadcast mode turned off. |
| Power Consumption: | 8.2 W Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply. |
| Power Supply: | USB-C Power Supply Type 1: 9 V, 2 A (PD protocol) USB-C Power Supply Type 2: 6.8-17.2 V DC NP-F Battery Power Supply Voltage: 6.8-8.4 V |
| Input Video Format: | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps 1080i: 50/50.94/60fps (1080i is not available in Broadcast mode). 720p: 50/59.94/60fps |
| Input Audio Format: | SDI embedded, HDMI embedded |
| Video Transmission System: | SDR + Wi-Fi |
| Video Transmission Latency: | SDR: 80 ms* (including camera and screen display latency) 35 ms* (excluding camera and screen display latency) Wi-Fi: 110 ms** *Measured when shooting 1080p/60fps video with Broadcast mode turned off. **Measured when shooting 1080p/60fps video. |
| Video Coding Format: | H.264 |
| Max Transmission Distance: | SDR: 3 km (FCC)* 2 km (CE/SRRC/MIC)* Wi-Fi: 200 m *Measured in Control mode, with Broadcast mode turned off. |
| Operating Temperature: | -10° to 40° C (14° to 104° F) |
| RECEIVER | |
| Weight: | Approx. 145 g (including antennas) |
| Dimensions: | 86.5 x 64 x 32mm |
| Ports: | SDI Output Port HDMI Output Port 3.5mm Stereo Jack USB-C Firmware Update and Video Output Port USB-C Power Port |
| Operating Frequency: | SDR Operating Frequency Non-DFS Frequency Band: 2.4000-2.4835 GHz 5.725-5.850 GHz 5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. |
| Transmitter Power (EIRP): | SDR: 2.4000-2.4835 GHz: < 30 dBm (FCC) < 20 dBm (SRRC/CE/MIC) 5.725-5.850 GHz: < 30 dBm (FCC) < 14 dBm (CE) < 23 dBm (SRRC) |
| Max Bandwidth: | 20 MHz |
| Max Bitrate: | 20 Mbps Measured in Control mode, with Broadcast mode turned off. |
| Power Consumption: | 8.3 W Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply. |
| Power Supply: | USB-C Power Supply Type 1: 9 V, 2 A (PD protocol) USB-C Power Supply Type 2: 6.8-17.2 V DC NP-F Battery Power Supply Voltage: 6.8-8.4V |
| Output Video Format: | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps 1080i: 50/50.94/60fps (1080i is not available in Broadcast mode). 720p: 50/59.94/60fps |
| Output Audio Format: | PCM |
| Video Transmission System: | SDR |
| Video Transmission Latency: | 80 ms (including camera and screen display latency) 35 ms (excluding camera and screen display latency) Measured when shooting 1080p/60fps video with Broadcast mode turned off. |
| Video Coding Format: | H.264 |
| Max Transmission Distance: | 3 km (FCC) 2 km (CE/SRRC/MIC) Measured in Control mode, with Broadcast mode turned off. |
| Operating Temperature: | -10° to 40° C (14° to 104° F) |

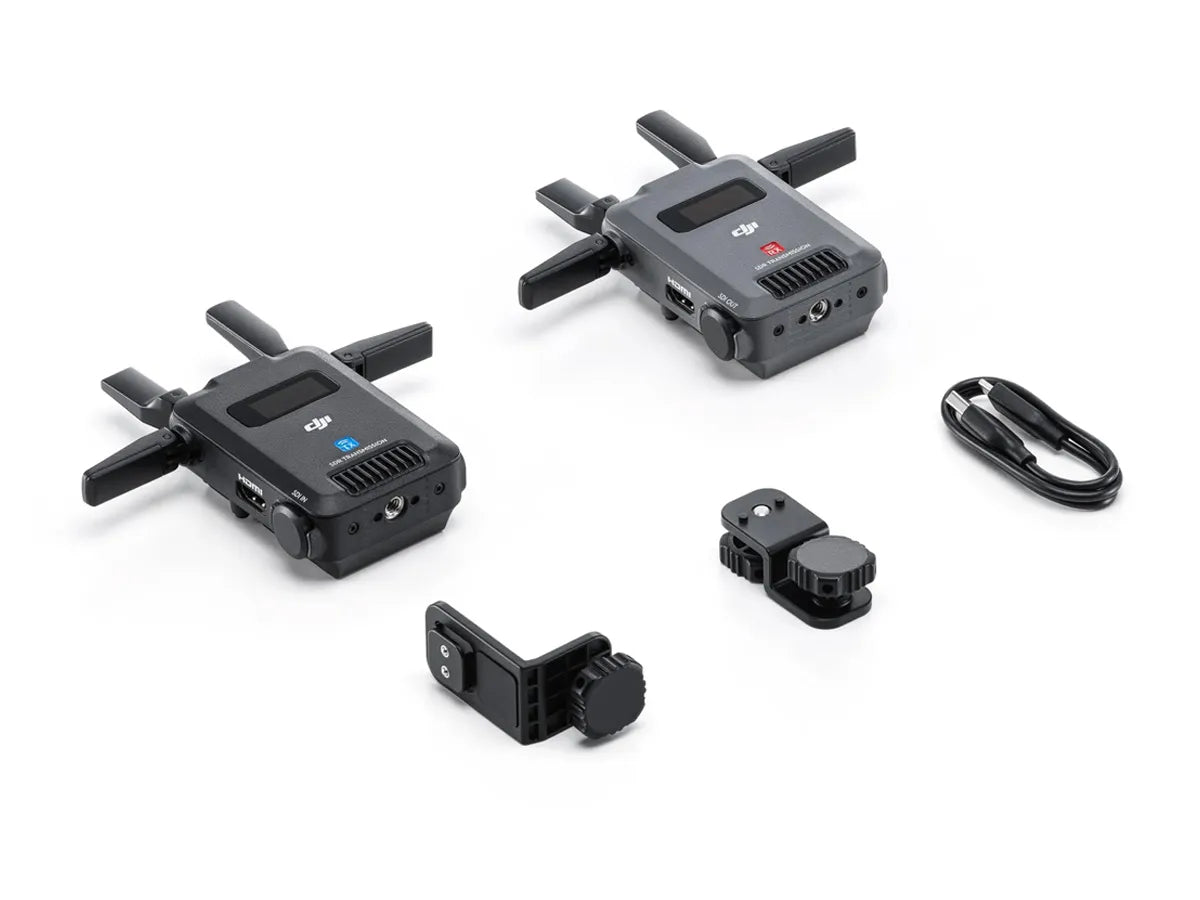

- 1x DJI SDR Transmission Transmitter (TX)
- 1x DJI SDR Transmission Receiver (RX)
- 1x USB-A to USB-C Cable (43 cm)
- 1x TX Camera Mounting Adapter Plate
- 1x TX Gimbal Mounting Adapter Plate
