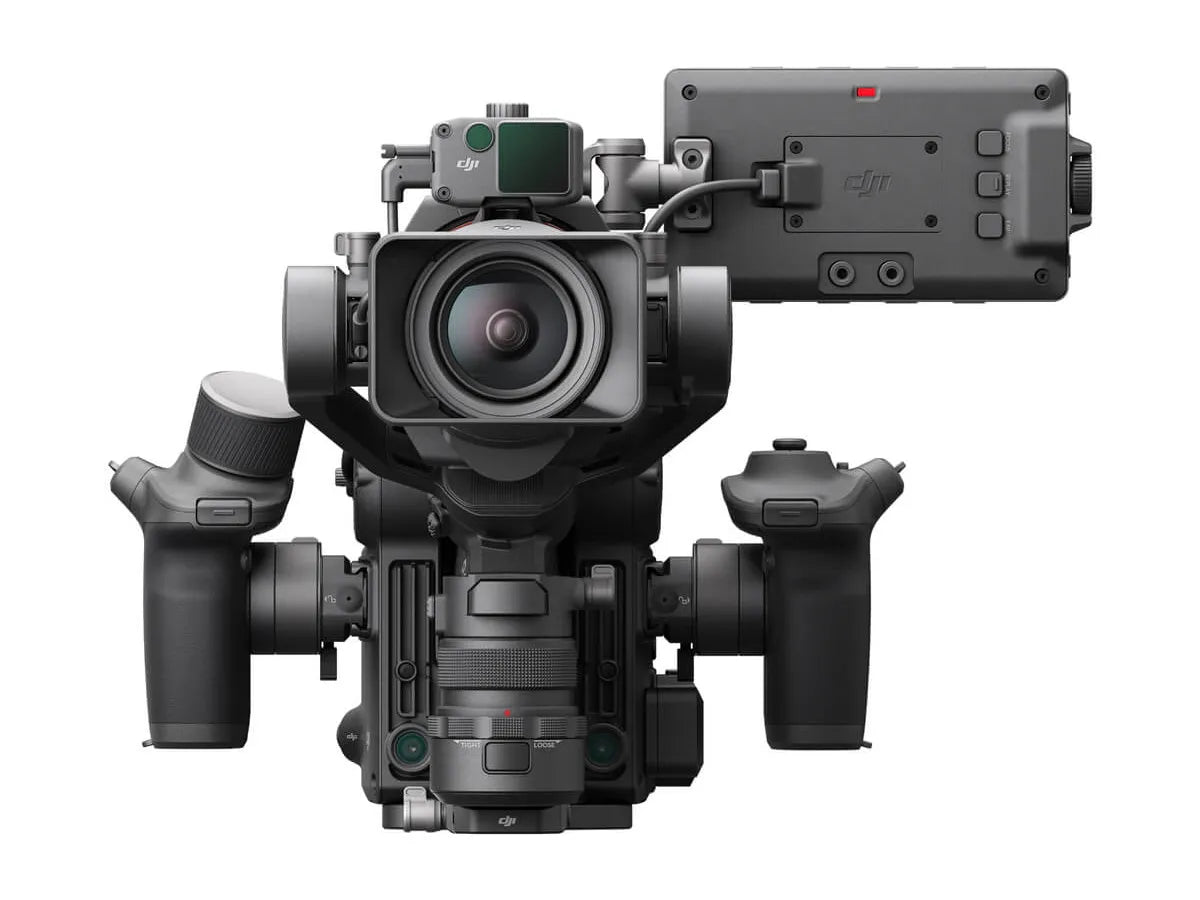

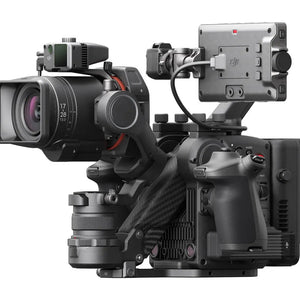

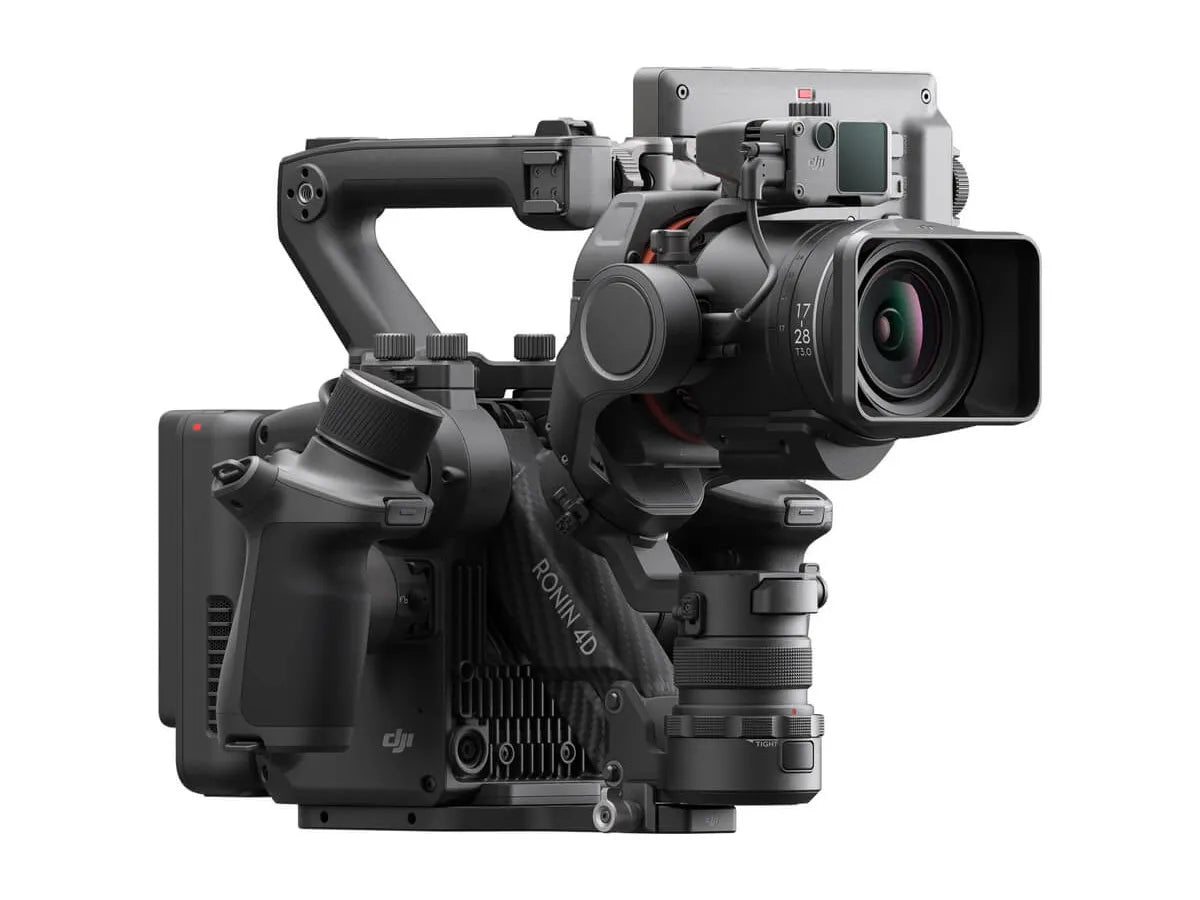

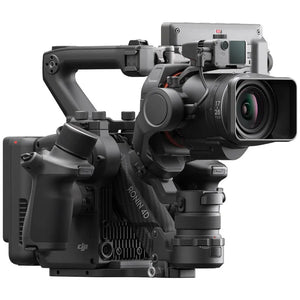

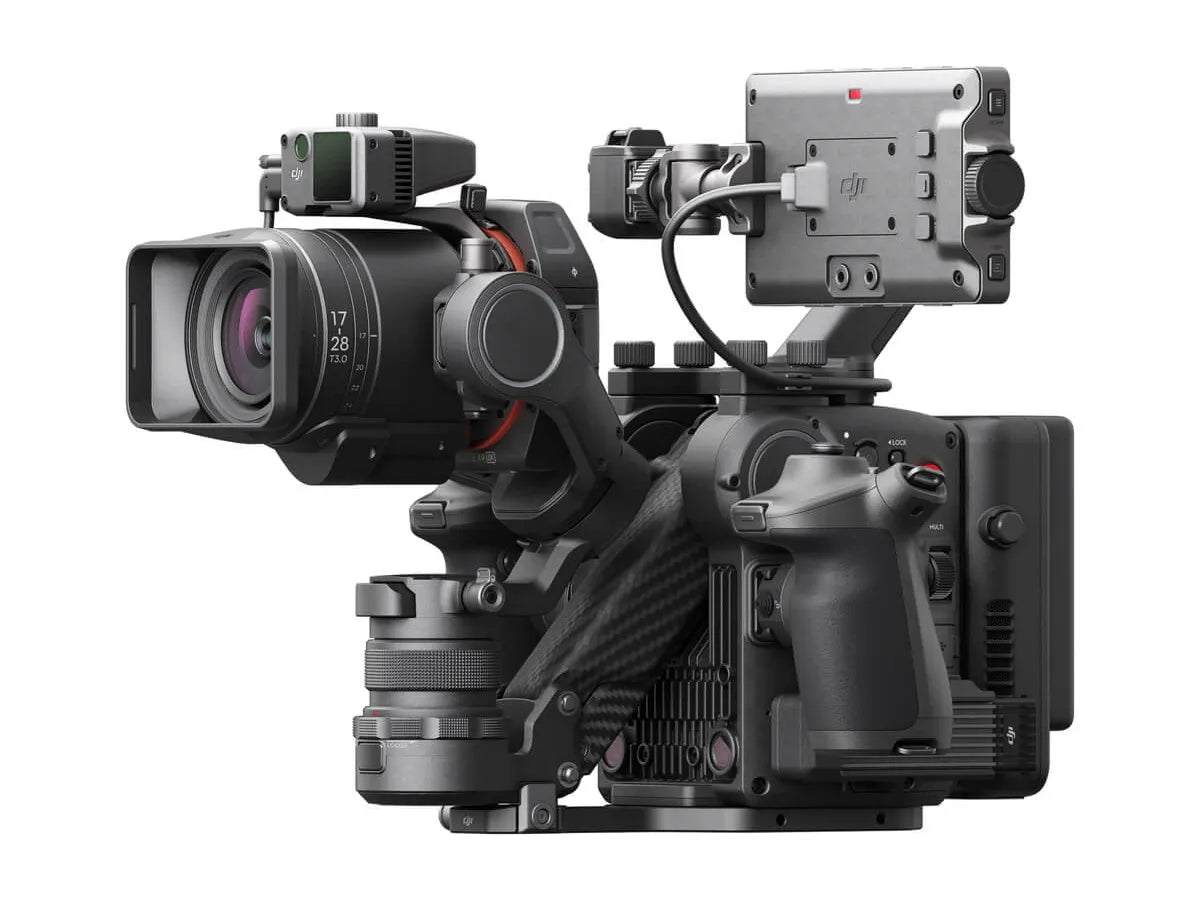

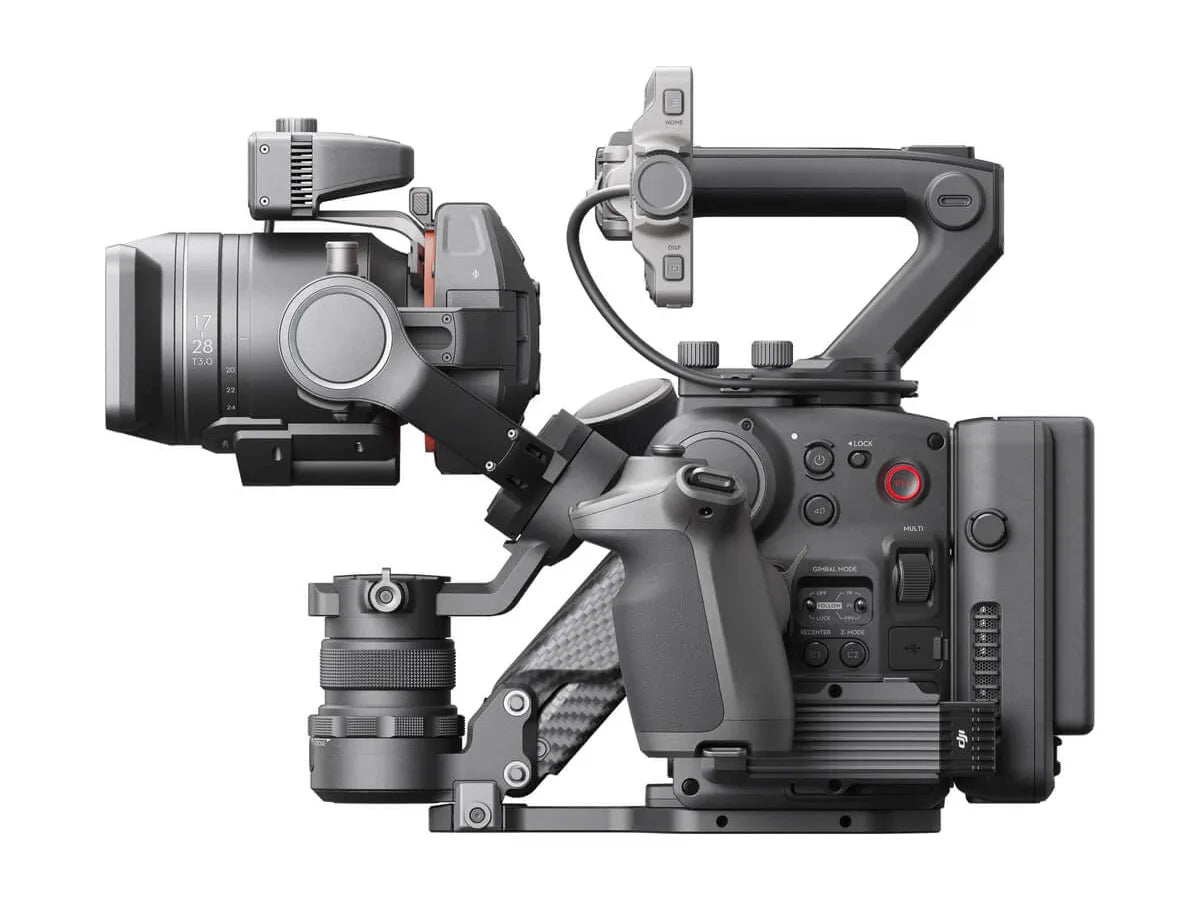

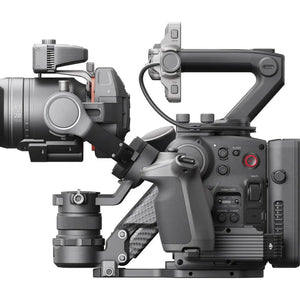

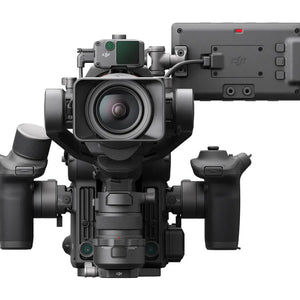

DJI Ronin 4D 8K Combo
DJI Ronin 4D 8K Combo
SKU:
DJI-CP.RN.00000351
Regular price
£7,207.50 GBP ex VAT
£8,649.00 GBP inc VAT
£8,649.00 GBP inc VAT
Regular price
ex VAT
Sale price
£7,207.50 GBP ex VAT
£8,649.00 GBP inc VAT
Unit price
per
£8,649.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included
The Future Is Rolling.
With DJI Ronin 4D, DJI's most advanced technologies have been integrated into one cutting-edge and comprehensive cinematography solution, which offers groundbreaking flexibility to solo cinematographers and unlimited possibilities for coordinated shooting. This powerful, next-generation cinema camera was designed and built to be the future of filmmaking.
The Future Is All in One
Integrated and Modular: Both Realised in One Camera. DJI Ronin 4D offers a completely unique design. Crafted with carbon fiber and aluminium magnesium, its solid body integrates the imaging, stabilisation, and focusing systems, as well as wireless transmission and control. This avoids time-consuming setup and enables quicker shooting. Users can now enjoy compact convenience along with the expansive possibilities from modular accessories.
-
Main Body
-
Zenmuse X9 Gimbal Camera
-
Top Handle
-
High-Bright Main Monitor
-
Hand Grips
-
TB50 Battery Compartment
-
TB50 Intelligent Battery
-
LiDAR Range Finder
Cinematic Imaging System: Designed for Pros
Processing Power. Ronin 4D is equipped with Zenmuse X9, DJI’s flagship full-frame camera. It also features DJI’s latest image processing system, CineCore 3.0. This system uses DJI’s proprietary chip to provide advanced processor architecture, offering extremely high-performance computing power in a cinema camera today. CineCore 3.0 allows Ronin 4D to support internal recording of Apple ProRes RAW, ProRes 422 HQ, and H.264 video. It also supports up to 8K/75fps and 4K/120fps video recording, delivering multiple options for professional-level creation.
With 14+ stops of dynamic range, Zenmuse X9 delivers natural transitions of highlights and shadows in complex lighting conditions such as backlit scenes and direct sunlight. These traditionally difficult scenes can now be captured easily and with confidence.
Colour Science
Colour Science
With the DJI Cinema Colour System (DCCS) and robust computing power provided by CineCore 3.0, Zenmuse X9 is able to give images a cinematic look by retaining authentic and accurate colours. It also supports the industry-standard ACES workflow for effortless compatibility with the colour tones of other cinema cameras.
Built-In 9-Stop ND Filters
X9 has 9-stop built-in high-quality ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to an internal motorised system. These filters were also designed to match and compliment the colour science of Ronin 4D.
DL Lenses
X9’s standard DL mount supports three compact full-frame prime lenses. The housings are made of lightweight, monocoque carbon fiber, so each lens weighs just about 180 g. More DJI lenses will be available in the future.
Interchangeable Mounts
X9 supports interchangeable lens mounts, including DJI’s proprietary DL mount as well as third-party mounts like Leica M. Ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic lenses that are compatible with traditional cinema cameras also work on X9, providing flexible lens options.
Wireless Control
Wireless Control
Whether you’re using manual or autofocus lenses, dedicated modules mounted to X9 can achieve wireless lens control and even autofocusing.
4-Axis Stabilization System: Steady in Every Way
DJI Ronin 4D adds a Z-axis to the traditional 3-axis gimbal, which effectively decreases vertical camera shake and offers stabilisation performance on par with a dolly. The four axes work together with a downward ToF sensor, forward and downward dual-visual sensors, a built-in IMU and barometer, and an advanced new algorithm to bring the overall stabilisation to a whole new level.
4-Axis Stabilization System: Steady in Every Way
DJI Ronin 4D adds a Z-axis to the traditional 3-axis gimbal, which effectively decreases vertical camera shake and offers stabilisation performance on par with a dolly. The four axes work together with a downward ToF sensor, forward and downward dual-visual sensors, a built-in IMU and barometer, and an advanced new algorithm to bring the overall stabilisation to a whole new level.
When this compact body combines with its powerful stabilisation capabilities, complex camera movements that used to be very costly to achieve are now easily attainable.
-
Running Shots
-
Staircase Shots
-
Close-Up Sliding Shots
-
Confined-Space Shots
-
Z-Axis On | Z-Axis Off
Integrated Gimbal Camera
Ronin 4D integrates the imaging and stabilisation systems while keeping only the sensor and necessary optical components in the gimbal camera. The tilt axis of the gimbal uses dual symmetric motors, whereas both the pan axis and the roll axis are designed with an additional stiffness buffer.
The compact and portable gimbal system allows shooting to begin without the need for tedious manual balancing. This also delivers stable footage, even with lenses that have a shifting center of gravity during use.
With a highly integrated body and robust motor force, Ronin 4D offers the best stabilising and tracking performance of the entire Ronin Series so far at an incredibly light weight. Additionally, it can switch to Sport mode with the press of a button, allowing the gimbal to react quickly to the cinematographer's movements.
It also supports wireless gimbal control and versatile mounting configurations for varied shooting scenarios.
It also supports wireless gimbal control and versatile mounting configurations for varied shooting scenarios.
ActiveTrack Pro
DJI’s proprietary computer vision, deep learning technology, and the robust computing power of CineCore 3.0 combine in ActiveTrack Pro, which enables cinema-standard tracking shots, even in just one take. This technology also allows subjects to be tracked from longer distances and features composition adjustment with continuous autofocusing to keep subjects in focus during tracking shots.
LiDAR Focusing System: Unparalleled Accuracy
LiDAR Waveform. DJI Ronin 4D makes manual focusing easier than ever. The visualised focus assistance technology displays the ranging points on the main and remote monitors in a simplified top-down view. This provides an innovative and intuitive LiDAR Waveform to locate focus points quickly and allow focus adjustments with extreme precision. Even operators with little or no experience can become adept at manual focusing quickly.
LiDAR Range Measurement
LiDAR Focusing System: Unparalleled Accuracy
LiDAR Waveform. DJI Ronin 4D makes manual focusing easier than ever. The visualised focus assistance technology displays the ranging points on the main and remote monitors in a simplified top-down view. This provides an innovative and intuitive LiDAR Waveform to locate focus points quickly and allow focus adjustments with extreme precision. Even operators with little or no experience can become adept at manual focusing quickly.
LiDAR Range Measurement
The LiDAR Range Finder can cast up to 43,200 ranging points within a 10-meter detection range. Compared with phase detection autofocus (PDAF), Ronin 4D’s LiDAR Focusing System can focus faster, without compromising the image quality or relying on the surface texture of the subject. This is especially useful in low-light environments and results in exceptional focusing capabilities compared to other cinema cameras.
Autofocus
With the new LiDAR Focusing System, Ronin 4D is able to maintain focus even when there is severe motion blur caused by subjects moving quickly. With the focus motor mounted, autofocus is available even on manual lenses. Continuous autofocusing on subjects can be enabled together with ActiveTrack Pro, making it especially convenient for solo operators.
Automated Manual Focus
Automated Manual Focus (AMF) mode gives you the accuracy and flexibility of manual focus with the convenience of autofocus. The focus wheel will rotate in sync as the focus point changes, but cinematographers can take manual control at any point. The focus wheel on the right hand grip even features dynamic damping with electromagnetic technology. This gives cinematographers a physical sense of focus changes, providing a more intuitive and modern focusing experience that is unrivaled in the industry today.
Wireless Transmission & Control System – Versatile Beyond Imagination
Ronin 4D uses the all-new DJI O3 Pro Video Transmission technology, which offers a 20,000-foot transmission range that would be unimaginable on traditional solutions. In addition to 2.4GHz and 5.8GHz, it supports the DFS frequency band and an AES 256-bit encryption algorithm that can output a 1080p/60fps FHD feed to multiple remote monitors simultaneously with significantly enhanced security, stability, and anti-interference capability.
Wireless Transmission & Control System – Versatile Beyond Imagination
Ronin 4D uses the all-new DJI O3 Pro Video Transmission technology, which offers a 20,000-foot transmission range that would be unimaginable on traditional solutions. In addition to 2.4GHz and 5.8GHz, it supports the DFS frequency band and an AES 256-bit encryption algorithm that can output a 1080p/60fps FHD feed to multiple remote monitors simultaneously with significantly enhanced security, stability, and anti-interference capability.
DJI's proprietary chip powers the imaging system, video transmitter, video receiver, and remote monitor of Ronin 4D. Together, these components form a streamlined wireless transmission system, with every link explicitly optimised to provide end-to-end ultra-low transmission latency.
Integrated Design
The 4D Video Transmitter can be directly mounted onto Ronin 4D and powered by the battery of the main body. With a built-in wireless video receiver, the High-Bright Remote Monitor has a 7-inch, 1,500-nit high-bright, wide colour gamut touchscreen display that can output both HDMI and SDI signals through the expansion module. Its compact and lightweight body provides optimum portability and efficient setup so users can start shooting immediately.
Coordinated Shooting
The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds. Two transmission modes are available. The first is Broadcast mode, which sets no limit on the number of receivers and is suitable for monitoring with large crews. The second is Control mode, which supports the coordinated operation of two receivers.
The High-Bright Remote Monitor can connect to the Hand Grips of Ronin 4D, DJI Master Wheels, DJI Force Pro, or the new DJI Three-Channel Follow Focus. This enables remote control of focus and gimbal movements with high precision, starting and stopping of recording, and camera setting adjustments to meet the highest standards of coordinated shooting on sets. In addition, the built-in gyro sensor turns the monitor into a remote motion controller for the gimbal of Ronin 4D.
Mirror Control Mode
Mirror Control Mode gives the High-Bright Remote Monitor an identical control interface as the main monitor, including all advanced features such as source material playback, video specification and gimbal settings, which can now be remotely adjusted even when Ronin 4D is mounted to expansion platforms such as a jib, cable cam, or vehicle mount.
Independent Recording and Playback
The High-Bright Remote Monitor has a built-in microSD card slot that supports independent recording of video at up to 1080p/60fps. When several remote monitors are used in conjunction, each monitor can play back material separately without interfering with other monitors.
It's All in the Details: Outperforms in Every Way
Monitoring
Monitoring
-
High-Bright Main Monitor: The 5.5-inch 1000-nit adjustable screen can be mounted to various points on the main body.
-
Exposure Assistance: Exposure waveform, false colour, and zebra.
-
Focus Assistance: LiDAR waveform, peaking (aperture and colour peaking), and focus magnification (2x and 4x).
-
Tools Overlay: Customisable frame guides, safe zone, and center marker.
-
Colour Preview: Supports customisable LUT input.
-
Multi-link independent monitoring: video recording, main monitor, main body HDMI, and remote monitor feeds can load independent LUTs.
Storage
Ronin 4D has a built-in CFexpress Type-B slot along with a USB 3.1 Type-C expansion port for recording directly to an external media disk. It also offers internal recording of the highest-specification videos with DJI PROSSD 1TB, which can be directly connected to a computer via USB-C cable to access media without a traditional SSD reader. These storage choices provide solutions for high cost-effectiveness and to those who want an unrivaled combination of performance and stability.
Sound Recording
Ronin 4D is equipped with built-in microphones that support dual-channel 24-bit audio recording. It also provides 3.5mm jacks and XLR microphone ports for more audio input solutions.
Battery Life
Just like Ronin 2 and Inspire 2, DJI Ronin 4D uses TB50 Intelligent Batteries, which offer up to 2.5 hours of shooting time and can be fully charged in just 1.5 hours. Auto-heating is also supported to enable reliable functionality in severely cold conditions.
| GENERAL | |
| Main Body Dimensions (length×width×height) | 235×115×160 mm |
| Overall Dimensions (length×width×height) | 309×290×277mm |
| Gimbal Weight | Approx. 1.04 kg |
| Main Body Weight | Approx. 1.45 kg |
| Overall Weight | Approx. 4.67 kg (after installing all modules in the combo, excluding lens and storage card) |
| Max Operating Time | Approx. 150 minutes |
| Intelligent Features | ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| CAMERA | |
| Sensor Size | 35mm full-frame CMOS image sensor |
| Base Lens Mount | DX Mount, and support for other mount units |
| Supported Lens Mounts | DL mount (included), L mount, M mount, E mount (third-party), PL mount (third-party) DJI DL 18mm F2.8 ASPH DJI DL 24mm F2.8 LS ASPH DJI DL 35mm F2.8 LS ASPH DJI DL 50mm F2.8 LS ASPH DJI DL PZ 17-28mm T3.0 ASPH Lens |
| Dynamic Range | 14+ stops |
| White Balance | Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB |
| Gamma | D-Log, Rec.709, HLG |
| EI Range | X9-8K: EI 200 to EI 6400 With Dynamic Range Expansion off: Dual native ISO 320/1600 With Dynamic Range Expansion on: Dual native ISO 800/4000 X9-6K: EI 200-12800, dual native ISO 800/5000 |
| Shutter Speed | Electronic Rolling Shutter 1/24s-1/8000s |
| ND | Built-in 9-stop |
| ND Filters | Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7) Autofocus, Manual Focus, Automated Manual Focus |
| Supported File System | exFAT |
| Recording Format | Apple ProRes RAW HQ/Apple ProRes RAW Apple ProRes 4444 XQ Apple ProRes 422 HQ/Apple ProRes 422 Apple ProRes 422 LT H.264 (4:2:0 10-bit) |
| Storage Media | DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD DJI PROSSD 1TB Recording Format |
| Built-in Mic | Built-in 2-ch stereo |
| Audio Format | LPCM 2-ch, 24-bit 48kHz |
| GIMBAL | |
| Mechanical Range | Pan: ±330° Tilt -75° to 175° Roll -90° to 230° Z-Axis Range approx 130mm |
| Controllable Range | Pan: ±285° Tilt: -55° to +155° Roll: ±35° |
| Max Control Speed (°/s) | DJI Master Wheels or DJI Force Pro Tilt 360°/s Roll 360°/s Pan 360°/s Ronin 4D Hand Grips Tilt 120°/s Roll 120°/s Pan 120°/s |
| Maximum Z-Axis Payload | 2000 g (including 1040 g gimbal) |
| Angular Vibration Range | ±0.01° |
| LiDAR RANGE | |
| Weight | 88 g |
| Dimensions (length×width×height) | 71×47×34 mm |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| LiDAR Range Measurement Precision | 0.3-1m (±1%) 1-10m (±1.5%） |
| FOV | 30cm to 3m @>18% reflectivity 60° (horizontal) × 45° (vertical) 30cm to 10m @>18% reflectivity 60° (horizontal) × 7° (vertical) |
| Safety Rating | Class 1 (IEC 60825-1:2014) (safe for human eyes) |
| Operating Environment | Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.) DO NOT use in environments with dense fog or aim it at or through glass surfaces. |
| Laser Wavelength | 940 nm |
| Single Pulse Width | Two kinds of pulses emit in circulation: 5ns and 33.4ns. |
| Max Laser Power | 6 W |
| MAIN MONITOR | |
| Screen Size | 5.5 inches (diagonal) |
| Resolution | 1920×1080 |
| Refresh Rate | 60 Hz |
| Max Brightness | 1000 cd/m² |
| Screen | Rotational LCD touchscreen |
| BATTERY | |
| Battery Type | TB50 Intelligent Battery |
| Capacity | 4280 mAh |
| Energy | 97.58 Wh |
| Voltage | 22.8 V |
| Max Charging Voltage | 26.1 V |
| Max Charging Power | 180 W |
| Charging Temperature Range | 5° to 40° C (41° to 104° F) |
| Charging Time | Approx. 1.5 hours (with standard 86W power adapter) |
| DJI O3 PRO VIDEO TRANSMISSION | |
| Max Transmission Distance | 20,000 ft (approx. 6km, FCC-compliant) |
| Max Transmission Resolution and Frame Rate | 1920×1080 @60fps |
| Minimum End-to-End Latency | 100 ms or 68 ms |
| Wireless Frequency | Non DFS frequency band 2.400-2.483 GHz 5.150-5.250 GHz 5.725-5.850 GHz DFS Frequency Band 5.250-5.350 GHz 5.470-5.600 GHz 5.650-5.725 GHz |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz:33 dBm (FCC); <20 dBm (SRRC/CE/MIC) 5.150-5.250 GHz 23 dBm (FCC/SRRC/MIC) 5.250-5.350 GHz: <30 dBm (FCC); <23 dBm (SRRC/MIC) 5.470-5.600 GHz, 5.650-5.725 GHz: 30 dBm (FCC); <23 dBm (CE/MIC) 5.725-5.850 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE) |
| Max Bandwidth | 40 MHz |
| Max Bitrate | 50 Mbps |
| INTERFACE | |
| Main Body | 3.5mm TRS Stereo Input Jack ×1 (supports mic, plug-in power mic, and line inputs) 3.5mm Stereo Output Jack ×1 USB3.1 Type-C Data Port ×1 6-pin 1B DC-IN (DC 12-30 V) ×1 Battery Mount Power Port (female) ×1 4D Expansion Plate Data Port (female) ×1 High-Bright Main Monitor Port ×1 Hand Grips Port ×2 Top Handle Port ×1 HDMI Type-A Video Output Port ×1 |
| X9 Gimbal | LiDAR Range Finder/ Focus Motor Port × 2 |
| TB50 Battery Mount | Battery Mount Power Port (male) × 1 TB50 Battery Port × 1 |
| 4K VIDEO TRANSMITTER | |
| Dimensions | 89×21×137 mm |
| 4D Video Transmitter Port | 4D Expansion Plate Data Port (male) ×1 SMA Antenna Connector ×4 USB 3.1 Type-C Data Port ×1 Battery Mount Power Port (female) ×1 Battery Mount Power Port (male) ×1 |
| REMOTE MONITOR | |
| Dimensions | 216×58×166 mm (includes monitor cage) |
| Screen Size | 7 inches (diagonal) |
| Max Brightness | 1500 cd/m² |
| Screen Resolution | 1920×1200 |
| Refresh Rate | 60 Hz |
| Max Battery Life | Approx. 2 hours |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Power System | DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter) |
| Remote Monitor Port | 3.5mm Stereo Jack ×1 microSD Card Slot ×1 HDMI Type-A Video Input Port ×1 Remote Monitor Expansion Plate High-Speed Port (female) ×1 Remote Monitor Accessory Expansion Port ×1 USB 3.1 Type-C Data Port ×1 |
| Remote Monitor Expansion Port | Remote Monitor Expansion High-Speed Port (male) ×1 HDMI 1.4 Type-A Video Output Port ×1 6-pin 1B DC-IN (DC 6.8-17.6 V) ×1 3G-SDI (Level A) BNC Video Output Port ×1 |
| FLEX | |
| Extension Cable Length | 2 m |
| Weight | Approx. 725 g (including Ronin 4D Hand Grip Adapter and Hand Grips Adapter Cable) |
| Supported Accessories | Ronin 4D Hand Grips, High-Bright Main Monitor, LiDAR Range Finder, Zenmuse X9 Focus Motor |
| DL PZ 17-28MM T3.0 ASPH LENS | |
| Imager Size | Full frame (36×24 mm) |
| Focal Length | 17-28 mm |
| MOD (From Object to Image Plane) | 17 mm: 0.19 m 28 mm: 0.26 m |
| Aperture Range | T3.0 to T22 |
| Filter Diameter | Φ 67 mm |
| Elements/Groups | 13/11 |
| External Dimensions (zoom motor excluded) | Φ 78 mm (max) × L 100.1 mm (to mount, hood excluded) Φ 78 mm (max) × L 117.2 mm (to mount, hood included) |
| Lens Mount | DL mount |
| Weight (lens hood included) | Approx. 520 g |
| Operating Temperature | -10° to 55° C (14° to 131° F) |
| Storage Temperature | 10° to 35° C (50° to 95° F) |
| Storage Humidity | 45%-75% |

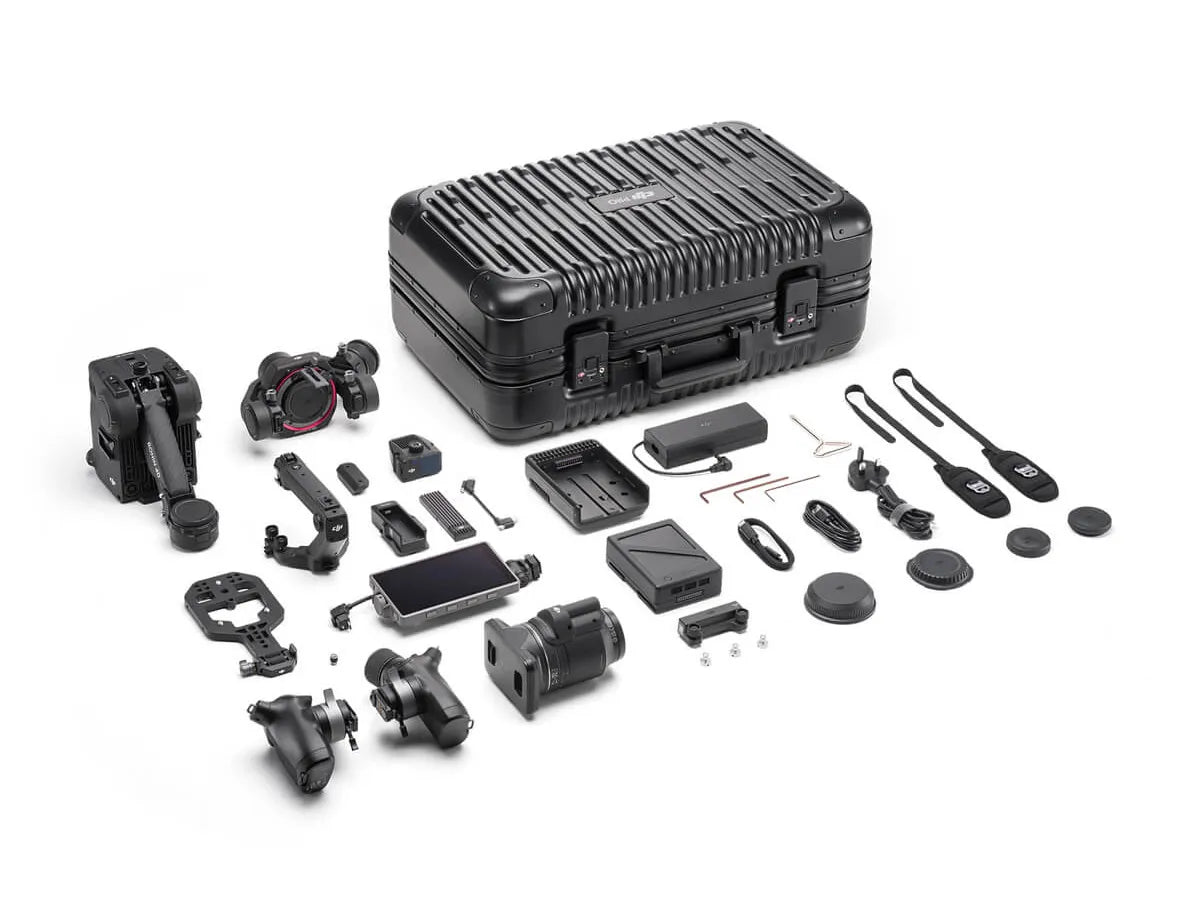

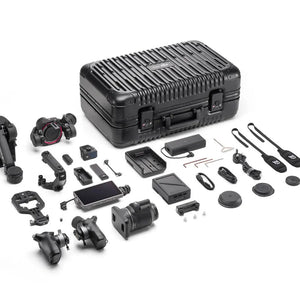

- 1x Ronin 4D Main Body
- 1x Zenmuse X9-8K Gimbal Camera
- 1x DJI DL PZ 17-28mm T3.0 ASPH Lens
- 1x USB-C to USB-C High-Speed Data Cable
- 1x PROSSD 1TB
- 1x PROSSD Mount
- 1x DL Mount
- 1x DL Mount Body Cap
- 1x DX Mount Body Cap
- 1x DX Mount Lens Cap
- 1x X9 Gimbal Base Cap
- 1x Ronin 4D Gimbal Base Cap
- 1x Left Hand Grip
- 1x Right Hand Grip
- 1x Hand Grip Extended Control Stick
- 1x Top Handle
- 1x Left Hand Grip Strap
- 1x Right Hand Grip Strap
- 1x High-Bright Main Monitor
- 1x TB50 Battery Mount
- 1x TB50 Intelligent Battery
- 1x LiDAR Range Finder
- 1x LiDAR Range Finder/Focus Motor Cable
- 1x Power Adapter
- 1x AC Power Cable (UK)
- 1x TB50 Charging Adapter
- 1x Base Plate
- 1x USB-A to USB-C Data Cable
- 1x Ronin 4D Carrying Case
- 1x Flat Head Screwdriver
- 1x 3mm Ball-End Hex Key
- 1x 2.5mm Ball-End Hex Key
- 1x 1.5mm Ball-End Hex Key
- 3x 10mm 1/4"-20 Screw
- 1x X9 Counterweight (106g)
- 1x DJI Ronin 4D RAW License Key
