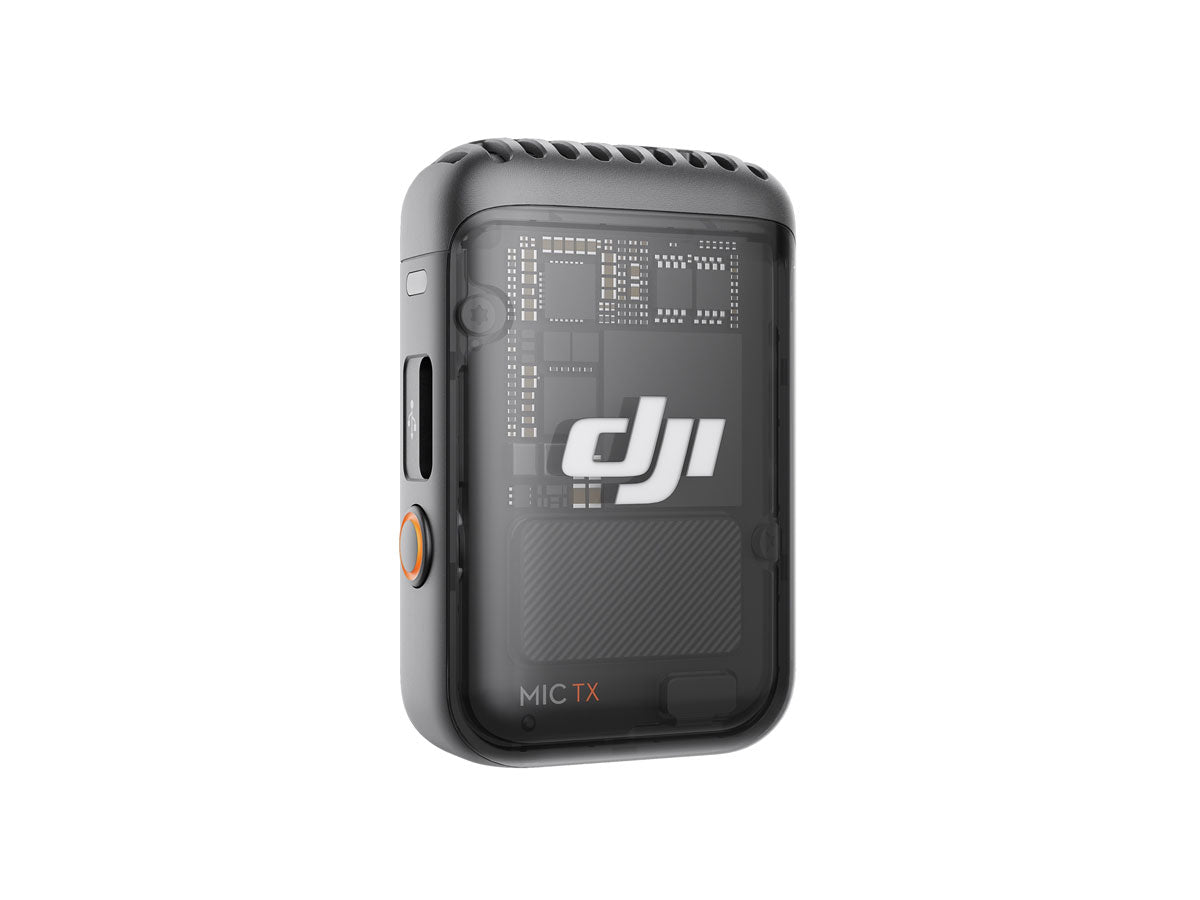

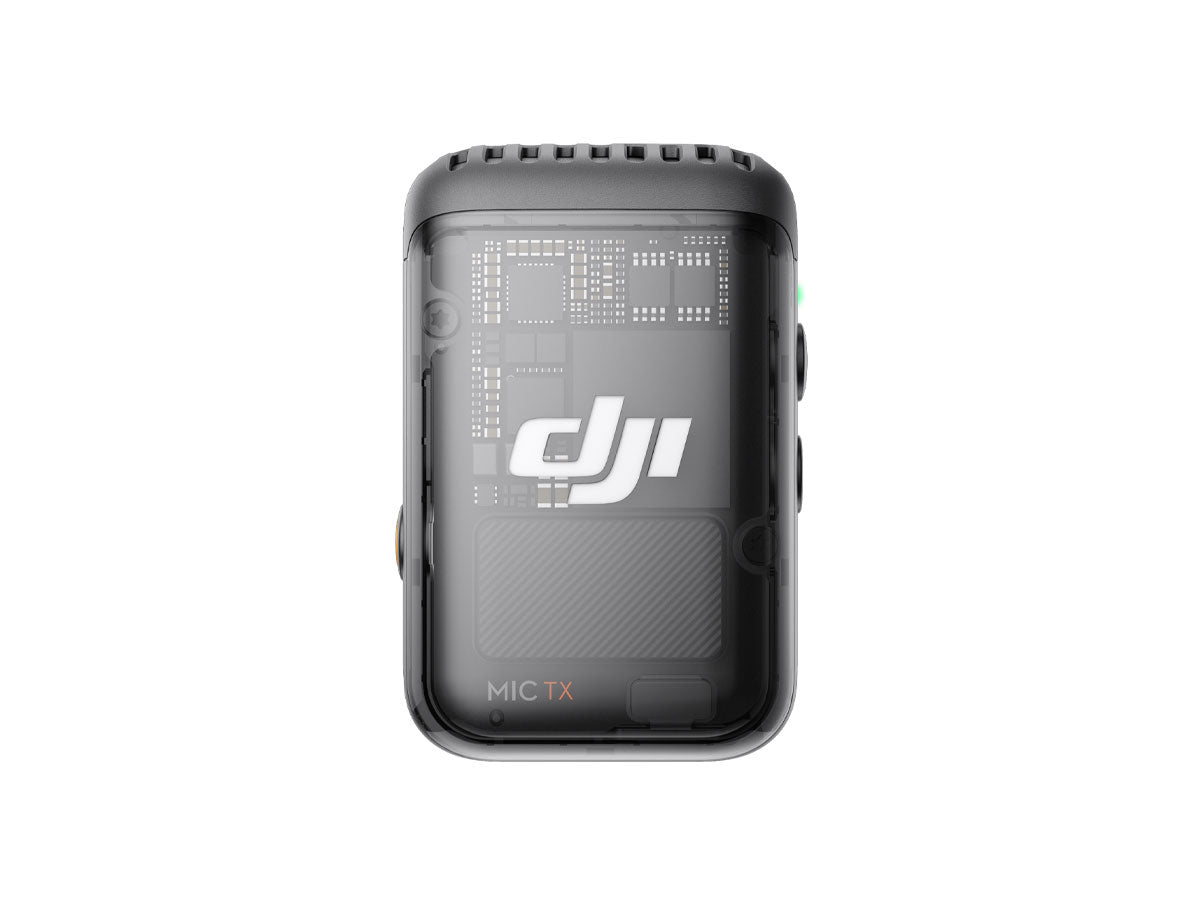

| DJI MIC 2 TRANSMITTER | |
| Model: | DMT02 |
| Dimensions: | 46.06 x 30.96 x 21.83 mm (L×W×H) |
| Weight: | 28 g |
| Wireless Mode: | GFSK 1 Mbps and 2 Mbps |
| Equivalent Isotropic Radiated Power: | <20 dBm |
| Wireless Mode Operating Frequency: | 2.400-2.4835 GHz |
| Bluetooth Protocol: | BR/EDR |
| Bluetooth Operating Frequency: | 2.400-2.4835 GHz |
| Bluetooth Transmitter Power (EIRP): | <20 dBm |
| Battery Type: | Li-ion |
| Battery Capacity: | 360 mAh |
| Battery Energy: | 1.39 Wh |
| Battery Voltage: | 3.87 V |
| Charging Temperature: | 5° to 45° C (41° to 113° F) |
| Operating Temperature: | -10° to 45° C (14° to 113° F) |
| Charging Time: | 70 mins |
| Operating Time: | 6 hours Tested when both TXs are connected to the RX without recording backup clips internally, and the RX is connected to a camera via Camera Audio Cable (3.5mm TRS). |

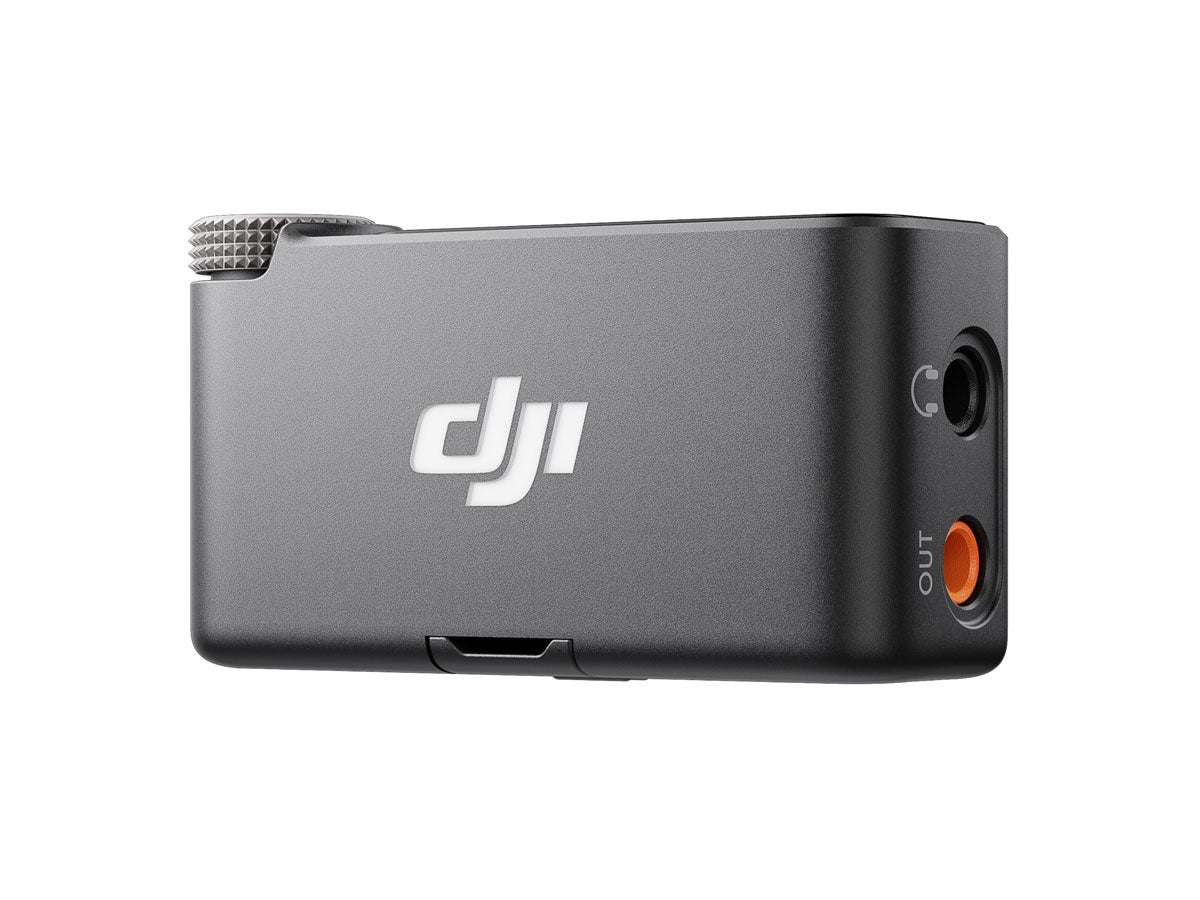

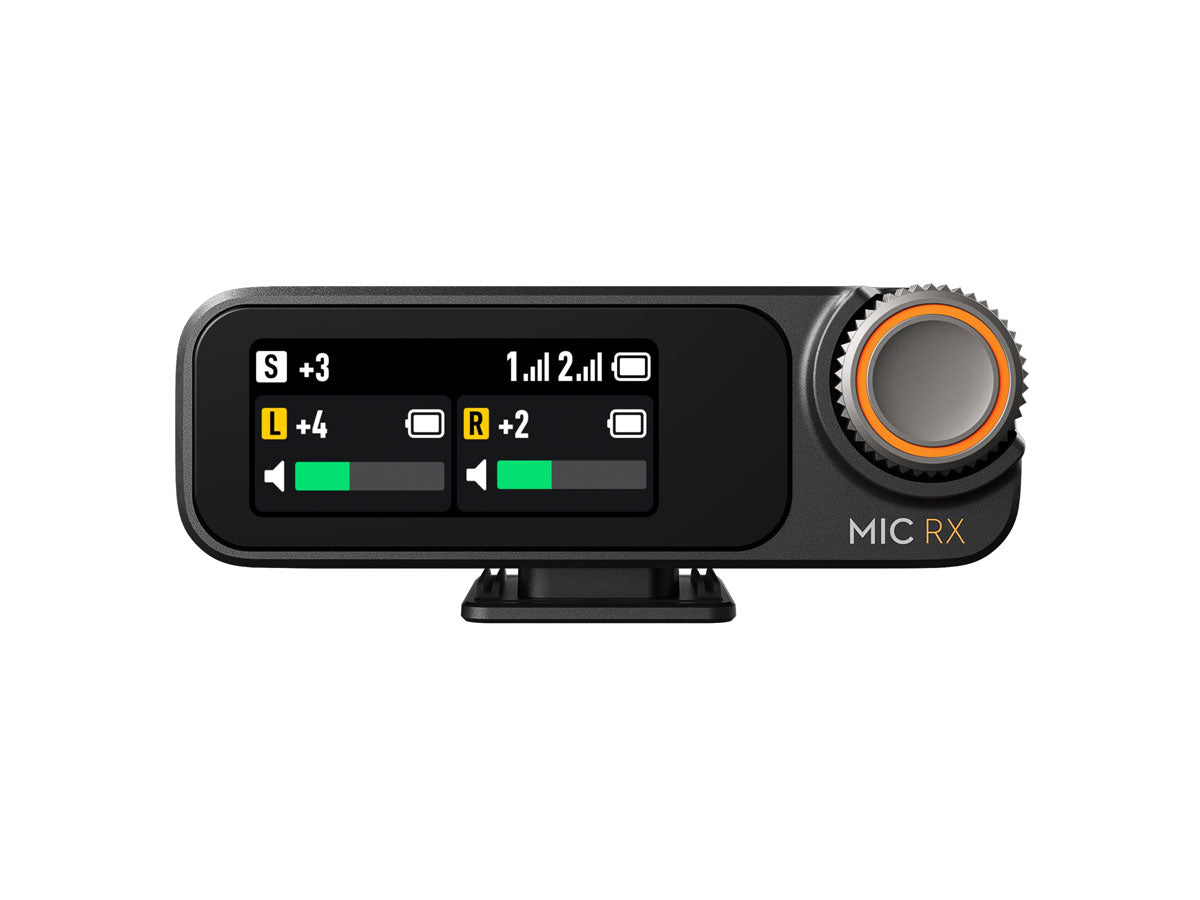

| DJI MIC 2 RECEIVER | |
| Model: | DMR02 |
| Dimensions: | 54.20 x 28.36 x 22.49 mm (L×W×H) |
| Weight: | 28 g |
| Wireless Mode: | GFSK 1 Mbps and 2Mbps |
| Equivalent Isotropic Radiated Power (EIRP): | <20 dBm |
| Operating Frequency: | 2.400-2.4835 GHz |
| Battery Type: | Li-ion |
| Battery Capacity: | 360 mAh |
| Battery Energy: | 1.39 Wh |
| Battery Voltage: | 3.87 V |
| Charging Temperature: | 5° to 45° C (41° to 113° F) |
| Operating Temperature: | -10° to 45° C (14° to 113° F) |
| Charging Time: | 70 mins |
| Operating Time: | 6 hours Tested when both TXs are connected to the RX without recording backup clips internally, and the RX is connected to a camera via Camera Audio Cable (3.5mm TRS). |
| GENERAL | |
| Polar Pattern: | Omnidirectional |
| Frequency Response: | Low Cut Off: 50 Hz - 20 kHz Low Cut On: 100 Hz - 20 kHz |
| Max Sound Pressure Level (SPL) | 120 dB SPL |
| Max Input Level (3.5mm): | -6 dBV (THD < 0.1%) |
| Equivalent Noise: | 21 dBA |
| Monitor Interface Output Power: | Max Output 12 mW@1 kHz, 32 Ω |
| Max Transmission Distance: | 250 m (FCC) 160 m (CE) Measured in an unobstructed outdoor environment free of interference. |
