DJI Focus Pro All-In-One Combo
DJI Focus Pro All-In-One Combo
SKU:
DJI-CP.RN.00000403.02
Regular price
£1,207.50 GBP ex VAT
£1,449.00 GBP inc VAT
£1,449.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,207.50 GBP ex VAT
£1,449.00 GBP inc VAT
Unit price
per
£1,449.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included
DJI Focus Pro, DJI's first independent Automated Manual Focus (AMF) lens control system,provides cinematographers with a robust and comprehensive focus solution, ushering in anew era of human-machine collaborative focus control.
For the first time, DJI introduces a LiDAR focus system as an independent product, allowing an extensive user base to experience the freedom of creative focusing possibilities.
All-New Grip, All-Around Capability
The newly designed DJI Focus Pro Grip features a 2.5-hour system power supply, intuitive screen operations, auto-calibration and data storage for 15 lenses, Bluetooth start/stop recording, and handheld shooting capabilities, offering an exceptional LiDAR focusing experience, even without a Ronin stabilizer.
Advanced Autofocus, A Leap Ahead Further and Wider Focusing
LiDAR human-subject focus distance is now extended to 20 meters, approximately three times that of the previous generation, effortlessly handling shooting with telephoto lenses. A super-wide focus FOV of 70° easily accommodates edge compositions and close-up shots, significantly enhancing creative freedom.
More Accurate and Stable Focusing
The upgraded LiDAR now boasts 76,800 ranging points, a leap of 77% over the previous generation, sharpening human-subject edge detection while effectively reducing focushunting. In addition, with a LiDAR refreshrate of 30 Hz, focus reliably locks on even when the subject is moving quickly.
Flexible Combinations for Diverse Scenarios
Focus Pro consists of four major modules: LiDAR, Motor, Grip, and Hand Unit.Cinematographers can flexibly combine these modules based on different shooting demands.
Solo cinematographers can utilize LiDAR autofocus to significantly improve shooting efficiency, ensuring standout creative results. Collaborative teams can bring depth to their visual storytelling through precise focus control with the Hand Unit. Focus Pro boasts robust capabilities, accommodating a diverse array of shooting scenarios and genres.
With the groundbreaking AMF mode applied for the first time in both the Hand Unit and the Grip, DJI Focus Pro sets a new standard for human-machine collaboration in focus control, catering toa diverse range of creative demands.
Focus You Can Feel
In AMF mode, as the autofocus operates, the front dial on the Grip (or the focus knob on theHand Unit) rotates simultaneously. This allows cinematographers to both visually observe thefocus status on the monitor and to intuitively perceive the autofocus logic through tactile feedback from their fingertips, enabling prompt decisions on when to manually intervene.
Millisecond-Level Switching between Manual and Auto
Focus control is always at your fingertips. In AMF mode, manual focus control can beengaged and disengaged in milliseconds. This not only captures the operator's intent with enhanced precision, ensuring coherent visual storytelling, but also significantly boosts on-set efficiency by reducing disruptions due to focus mode changes.
Dynamic Focus, Best of Both Worlds
The innovative AMF feature enables limitless creative possibilities. In AMF mode, the LiDAR,together with human intervention, yields a focus experience that's as elegant and dynamic asit is efficient and convenient. It is a seamless hybrid experience that combines the power andreliability of technology with the intuition and creativity of human operators. Rotate the dial to achieve AMF focus transition, ideal for narrative scenes.

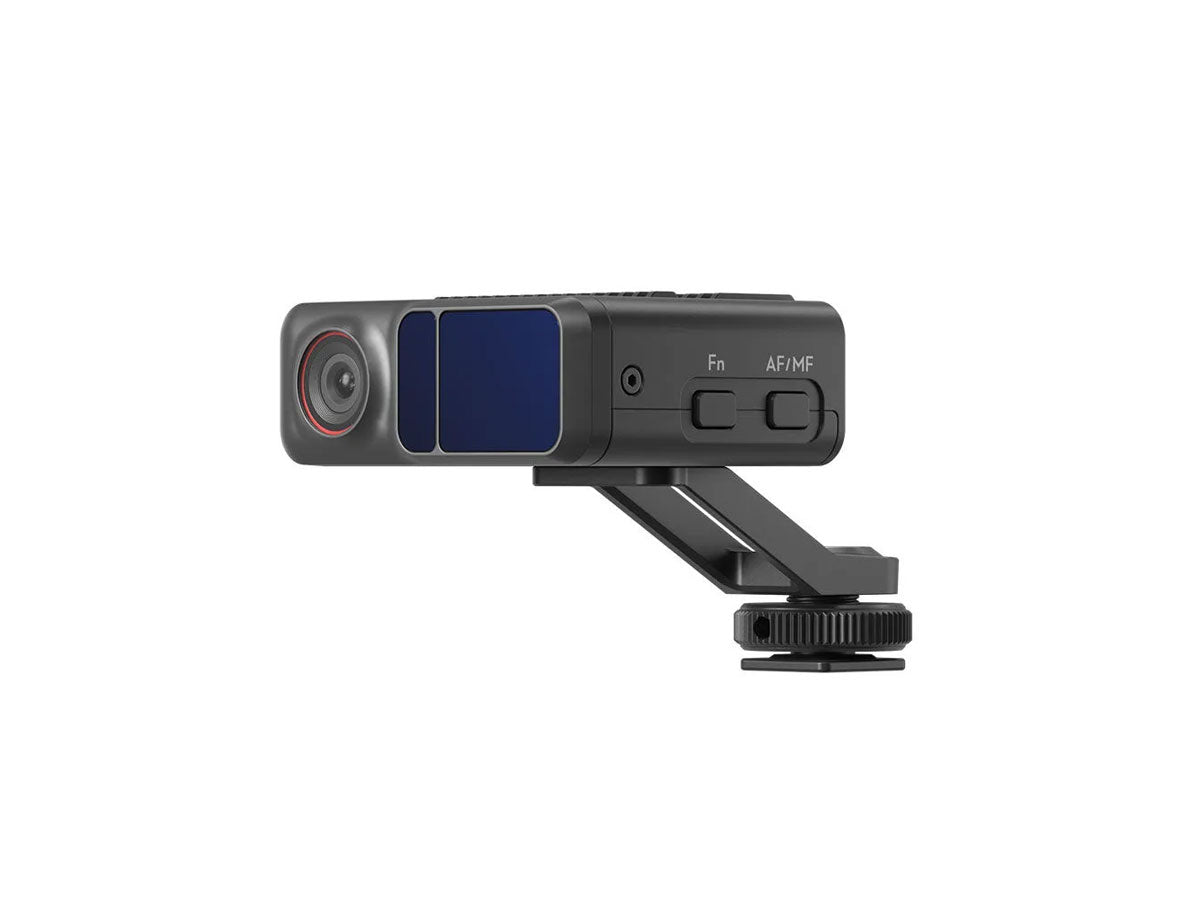

| LIDAR | |
| Accessory Port: | Cold Shoe 1/4"-20 Threaded Hole USB-C Firmware Update Port (Power/USB) USB-C Data Port (Power/CVBS/CAN) |
| Image Sensor: | Resolution: 1920×1440 FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal) Frame Rate: 30fps Equivalent Focal Length: 30 mm |
| ToF Sensor: | Ranging Points: 76,800 Sensing Range: 0.5-20 m FOV: Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal) Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal) Frame Rate: 30fps Equivalent Focal Length: 30 mm (wide-angle mode) Ranging Accuracy: ±1% to 3% (affected by the distance) |
| Machine Learning: | Tracking Subject: Can recognize up to five subjects at the same time, and choose one to follow Smart Object Identification: Human, vehicle Focus Area: Flex Spot (activate focus lock by framing the subject and pressing the trigger; supports autofocus only, not ActiveTrack); Wide (when subject-locked on human, supports both autofocus and ActiveTrack*; when subject-locked on vehicle, supports autofocus only, not ActiveTrack) *ActiveTrack is available only when used in conjunction with DJI RS 4 Pro or DJI RS 3 Pro. |
| Electrical Properties: | Power Consumption: Average approx. 6.3 W, max 6.8 W Input Voltage: 6.6-17.2 V |
| Operating Temperature: | -20° to 45° C (-4° to 113° F) |
| Mechanical Properties: | Main Body Dimensions: Approx. 68×25×57 mm (L×W×H) Weight: Approx. 140 g (0.31 lbs) |
| Mounting Method & Position: | Can be mounted directly via cold shoe or using the 1/4" threaded hole It is recommended to mount the DJI Focus Pro LiDAR close to the camera's optical axis. |

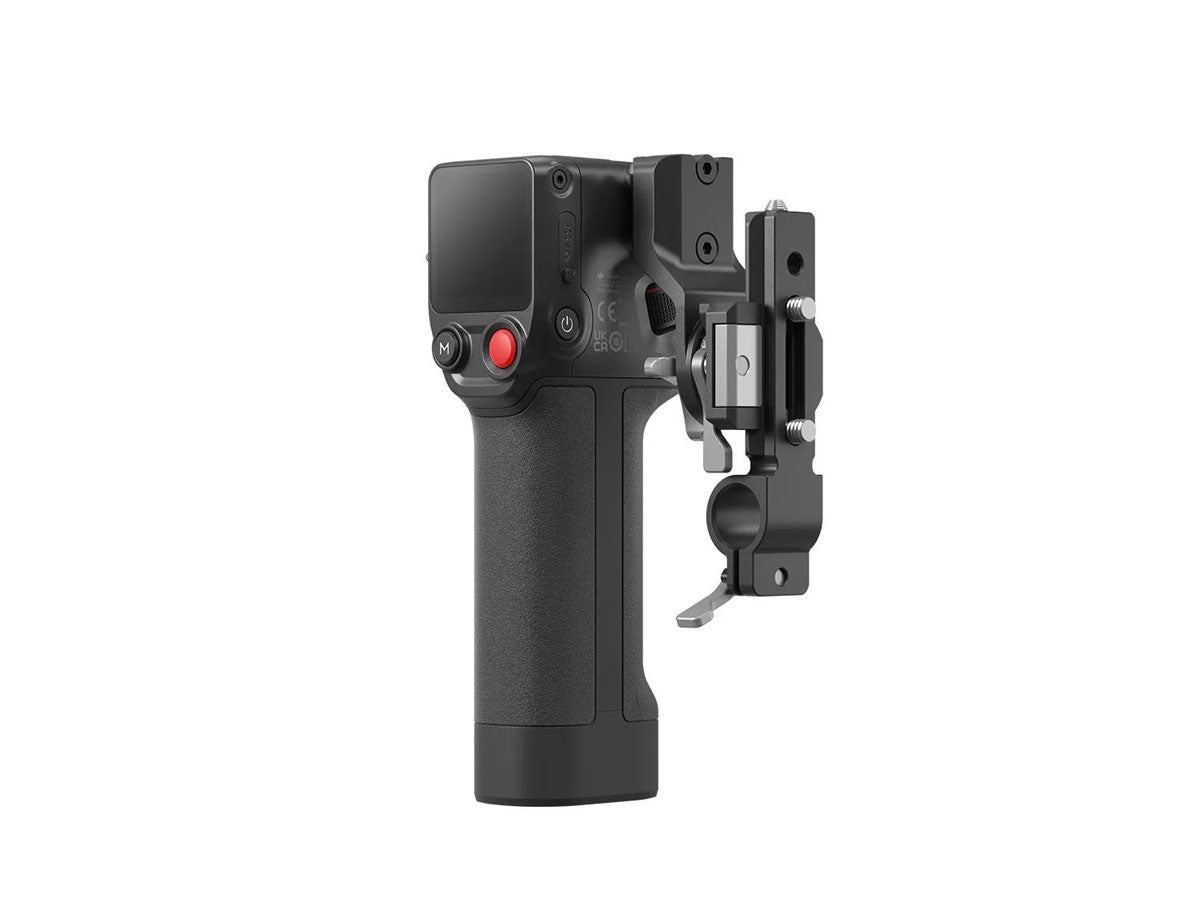

| GRIP | |
| Operating Frequency: | 2.400-2.4835 GHz |
| Bluetooth Transmitter Power: | < 8 dBm |
| Mechanical Properties: | Main Body Dimensions: Approx. 59×73×162 mm (L×W×H) Main Body Weight: Approx. 482 g (1.06 lbs) |
| Mounting Method: | Flexible mounting on either left or right side of the cage via NATO port |
| Screen: | 1.8-inch full-color touchscreen |
| Port: | USB-C Port (DJI Focus Pro LiDAR) USB-C Port (DJI Focus Pro Motor) USB-C Port (Camera Control Port) USB-C Port (Battery Charging Port) |
| Operating Time: | Approx. 2.5 hours Measured in a 25° C (77° F) environment while simultaneously powering the grip screen, LiDAR, and a focus motor, with AF continuously on, and paired with a manual lens. |
| Charging Power: | Supports 18W PD fast charging |
| Battery Model: | BHX711-3000-7.2V |
| Power Supply Voltage: | 6.6-8.4 V |
| Operating Temperature: | -20° to 45° C (-4° to 113° F) |

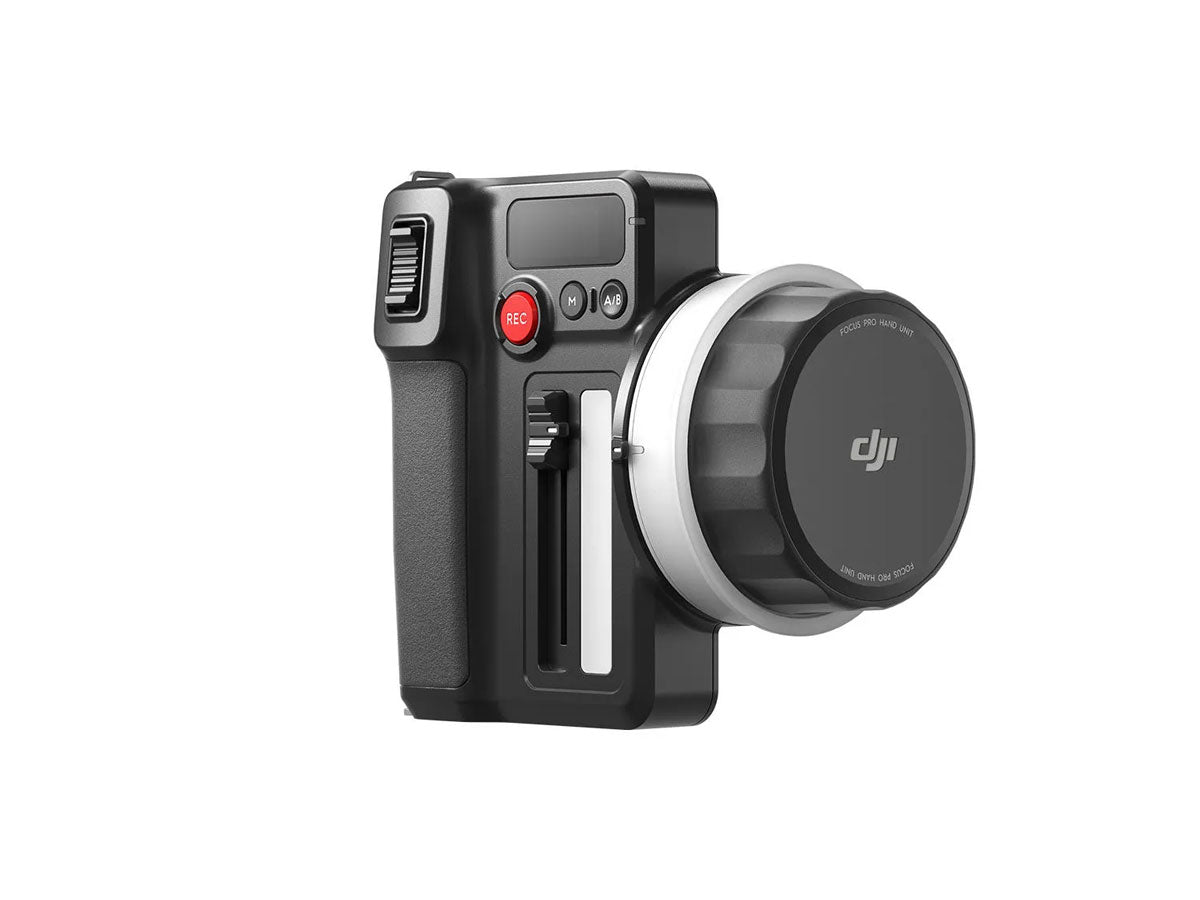

| HAND UNIT | |
| Operating Frequency: | 2.400-2.4835 GHz |
| Bluetooth Transmitter Power: | < 8 dBm |
| 2.4GHz Transmitter Power (EIRP): | < 20 dBm (CE/SRRC/MIC) < 26 dBm (FCC) |
| 2.4GHz Transmission Distance: | 160 m* 100 m** *Measured under FCC standard in an unobstructed environment free of interference. **Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference. |
| Mechanical Properties: | Dimensions: Approx. 128×87×87 mm (L×W×H) Weight: Approx. 555 g (1.22 lbs) (without battery) |
| Battery: | Model: NP-F550 Input: 6.3-8.4 V Dimensions: 71×38.6×21.1 mm (L×W×H) |
| Screen: | 1.09-inch full-color touchscreen |
| Static Power Consumption: | 0.83 W |
| Operating Temperature: | -20° to 45° C (-4° to 113° F) (excluding battery temperature) |

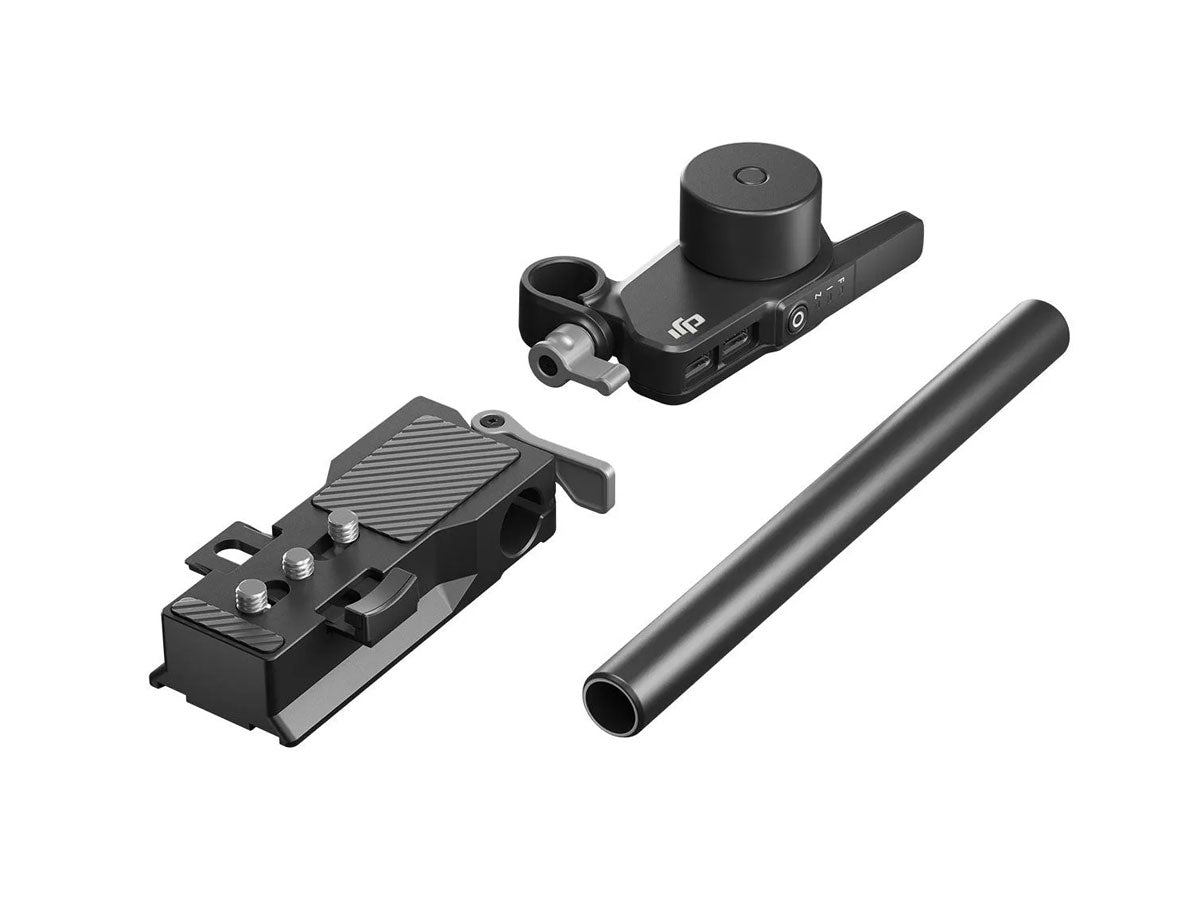

| MOTOR | |
| 2.4GHz Transmitter Power (EIRP): | < 20 dBm (CE/SRRC/MIC) < 26 dBm (FCC) |
| 2.4GHz Transmission Distance: | 160 m* 100 m** *Measured under FCC standard in an unobstructed environment free of interference. **Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference. |
| Mechanical Properties: | Dimensions: Approx. 100×61×34 mm (L×W×H) Weight: Approx. 123 g (0.27 lbs) Rod Diameter: 15 mm Output Gear Teeth: 30 Output Gear Module: 0.8 |
| Performance: | Max Torque: 0.6 N·m (8 V) Max Speed: 300 rpm (8 V) |
| Power Supply Voltage: | 6.6-17.2 V |
| Stall Current: | 2 A, 8 V |
| Free Current: | 60 mA, 8 V |
| Operating Temperature: | -20° to 45° C (-4° to 113° F) |
| Output Voltage: | 6.6-17.2 V |

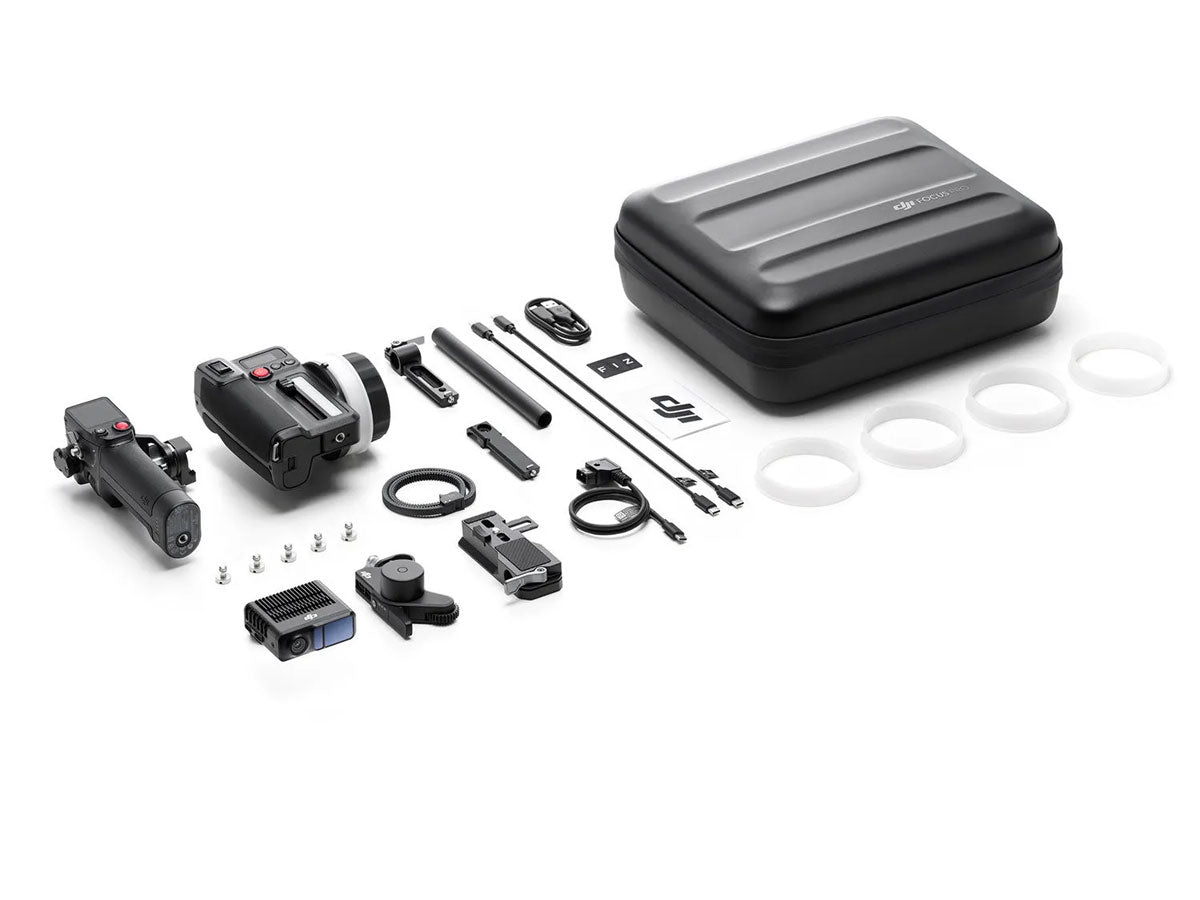

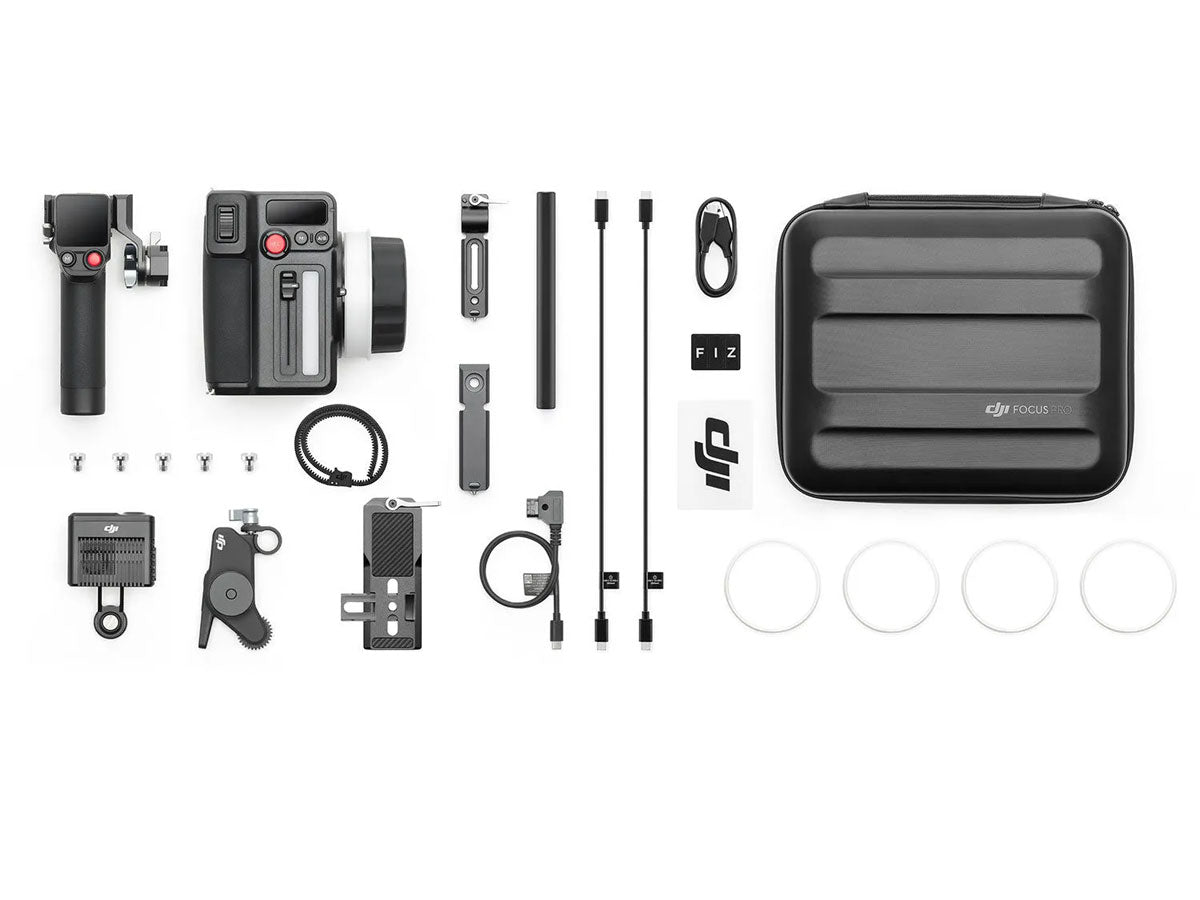

- DJI Focus Pro LiDAR
- DJI Focus Pro Grip
- DJI Focus Pro Motor
- DJI Focus Pro Hand Unit
- DJI Focus Pro Carrying Case
