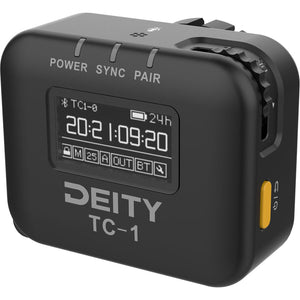

Deity TC-1
The TC-1 takes the best parts of timecode box units from the past and brings them all together into a timecode generator built for the future. We developed it to fit into your workflow, no matter how you work. You can wirelessly jam it from your phone or even wirelessly sync it from other boxes using our proprietary 8 channel 2.4G radio ecosystem. You can also hardwire jam it or use it to internally generate timecode and jam other devices.
Long Range Wireless Control
Using the Sidus Audio app you can control to 20x TC-1 wireless timecode generator boxes from 250ft away. The TC-1 has 600% more Bluetooth control range than Bluetooth timecode boxes from leading competitors.
The TC-1 also features a secondary RF chip for syncing TC-1 to TC-1 devices from a range of 30ft.
Timecode Makes Post Easier
With more devices than ever now supporting SMPTE timecode, syncing footage and audio in post has never been so easy or quick. With the TC-1 and other items (like the BP-TRX and the TC-SL1) you can use the workflow methods used by studio feature films.
Frame Accurate Timecode
The TC-1 timecode box features a TXCO with an accuracy of ±0.5ppm. And thru firmware optimization, your footage will sync perfectly when you go to edit with less than 1 frame of drift in a 72-hour period.
Locking Timecode Port
We talked to members of the sound mixing community and made sure we answered your concerns. The TC-1's timecode port is a locking 3.5mm TRS connector. Never worry about your timecode cables becoming unplugged during a shoot.
Supported Deity Timecode Cables:
• Deity C13 - Locking 3.5mm to 5-Pin Right Angle Camera Timecode Cable
• Deity C14 - Locking 3.5mm to 5-Pin LEMO® Timecode Cable
• Deity C15 - Locking 3.5mm to BNC Timecode Cable
Versatile Mounting Options

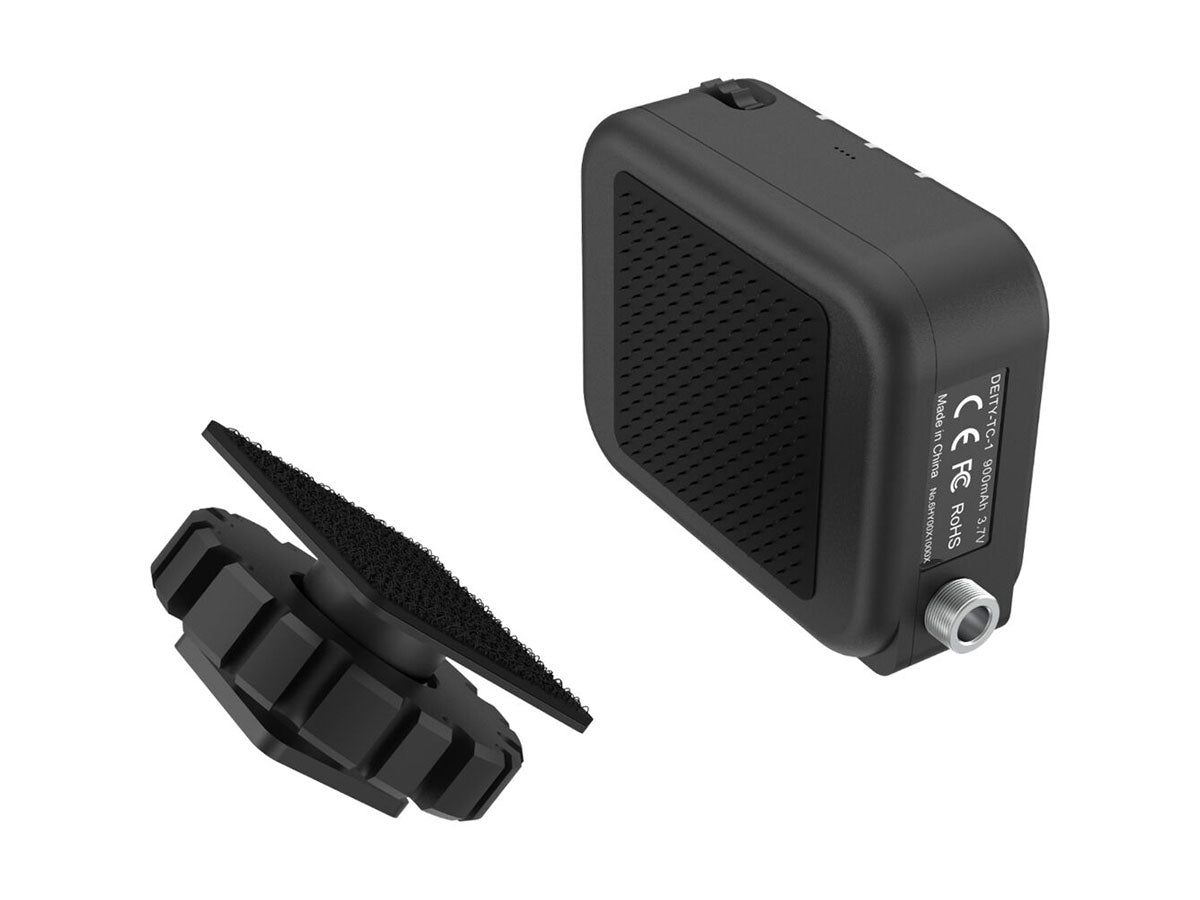

Professionals will enjoy the integrated hook-n-loop pad on the back of the TC-1. Indie filmmakers will appreciate the included cold shoe soft-loop mount. And everyone will love coming up with convenient new ways to mount the TC-1 timecode box using the 1/4" or 3/8" threaded mount under the cold shoe mount

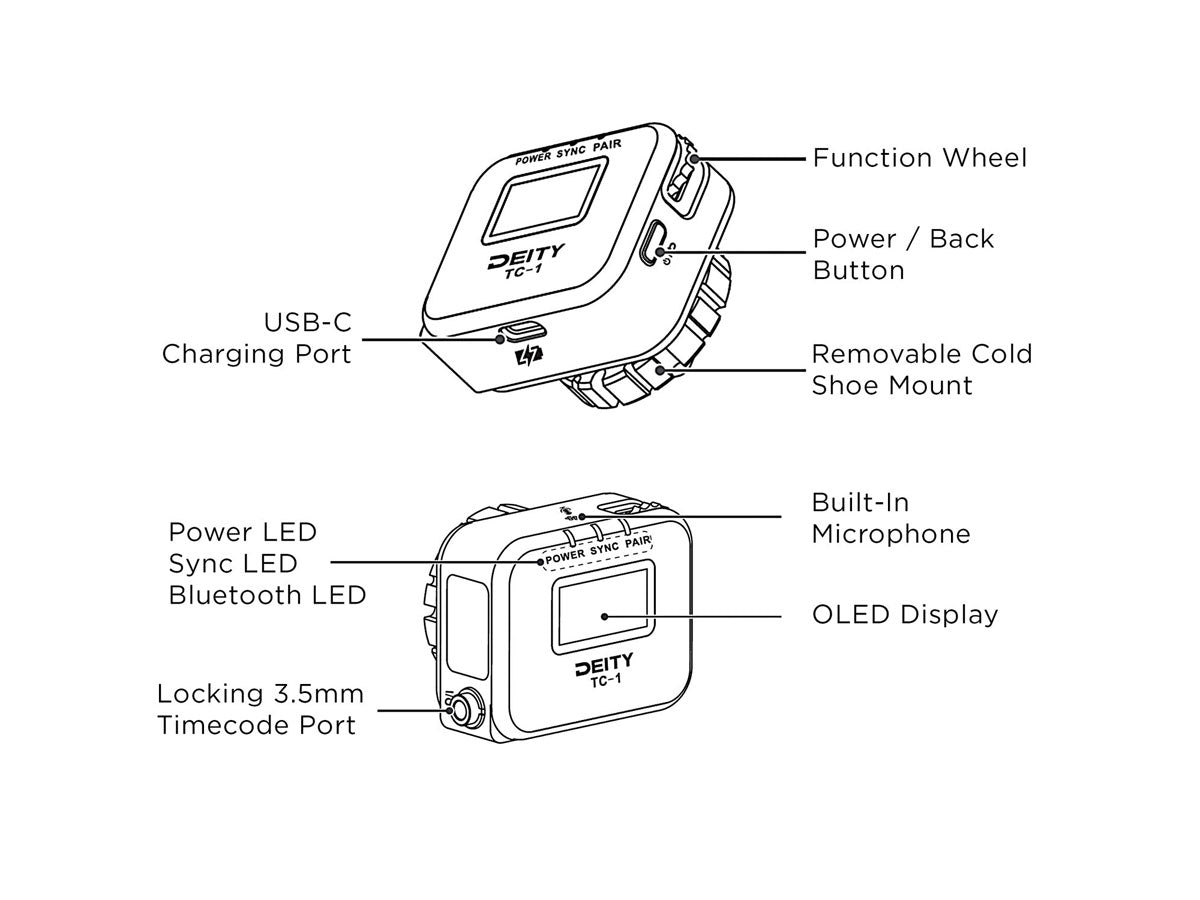

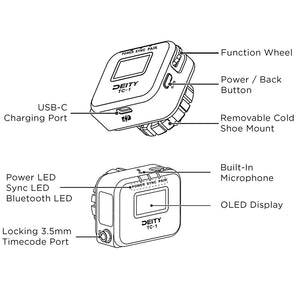

- Locking 3.5mm Timecode Port
- Bluetooth 5.0: Max Range 250FT
- 2.4G Radio; Max Range
- Works with the Sidus Audio mobile app
- Supports all SMPTE Timecode Formats
- Timecode Accuracy 0.5ppm
- 1 Frame Drift Every 72 Hours

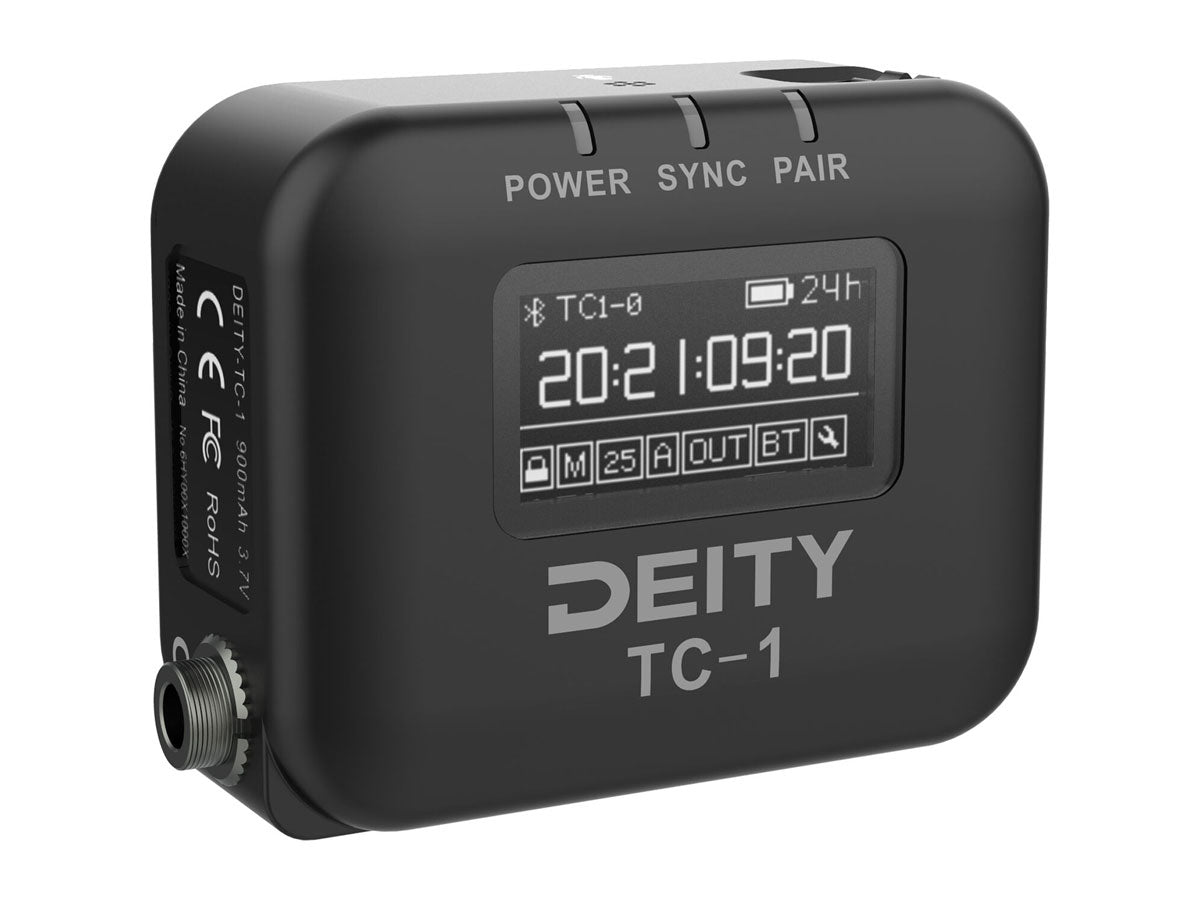

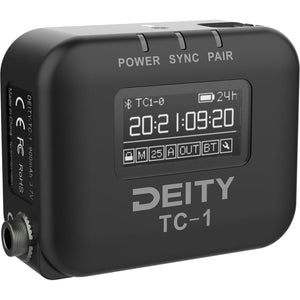

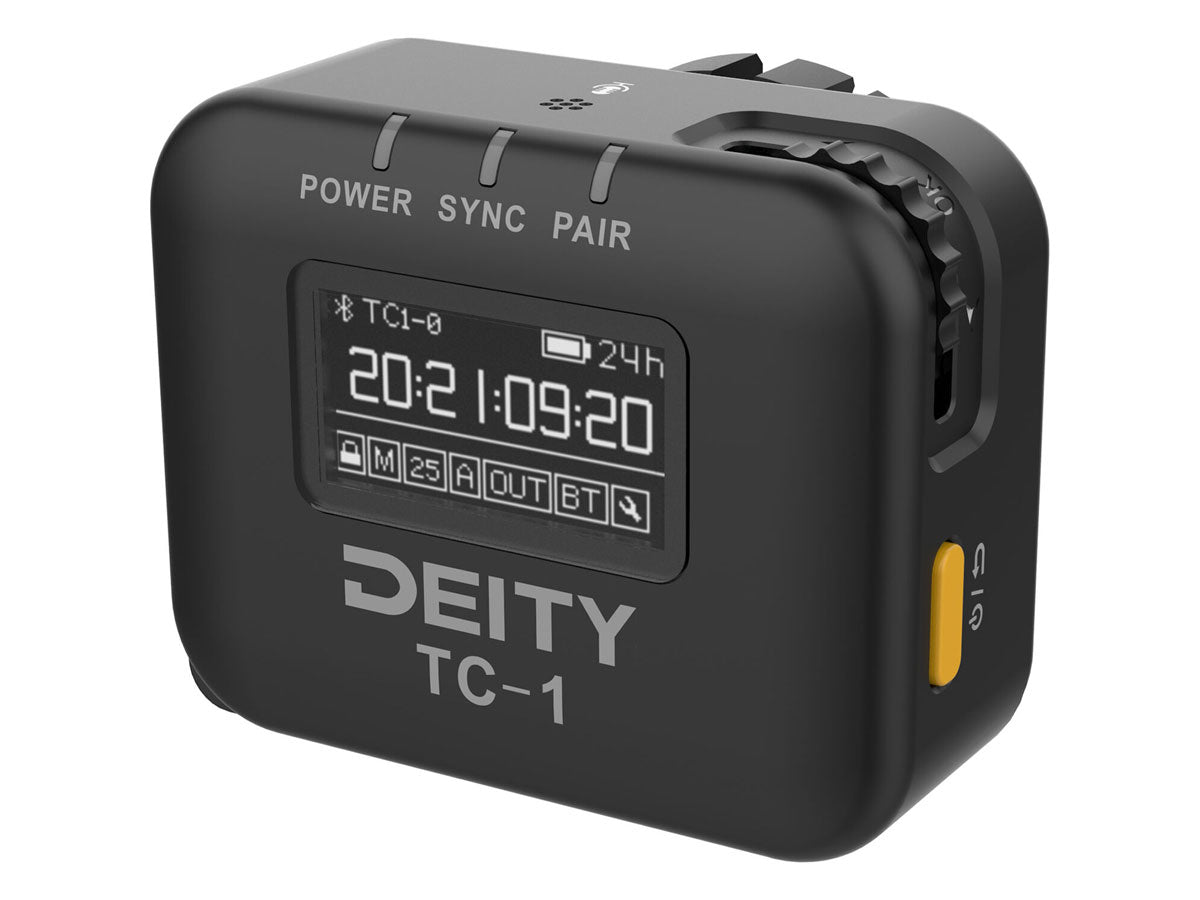

- Showcases a 1” OLED Display
- On-board Controls and Menu
- USB-C Charging; 2 Hours to Fully Charge, Up to 28 Hours Battery Life
- LED Status Lights Indicate Power, TC Sync, and Wireless Pairing
- Includes Hook-N-Loop and DSLR Cold Shoe Mount
| Timecode | SMPTE |
| Wireless Type | 2.4G RF / Bluetooth® 5.0 |
| Wireless Range | ≤ 30ft - 2.4G RF ≤ 250ft - BT 5.1LE |
| Wireless RF Channels | 8 |
| Drift | < 1 Frame/24Hrs |
| Frame Rates | 23.98, 24, 25, 29,97,29.97DF, 30 |
| Timecode Input /Output | Locking 3.5mm TRS |
| Audio Track | Built-In Omni Microphone |
| Panel Type | OLED |
| Size | 1" |
| Touchscreen | No |
| USB | 1 x USB Type-C Female Input |
| Bluetooth | 5.0 |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Battery Capacity | 950 mAh |
| Recharge Time | 2 Hours |
| Maximum Battery Life | 28 Hours |
| Operating Temperature | -4 to 113°F / -20 to 45°C |
| Mounting | 1 x Shoe Mount 1 x Hook-and-Loop |
| Color | Black |
| Dimensions | 2.1 x 1.6 x 0.9" / 53.4 x 40 x 21.8 mm |
| Weight | 1.4 oz / 41 g |

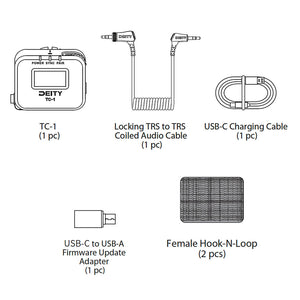

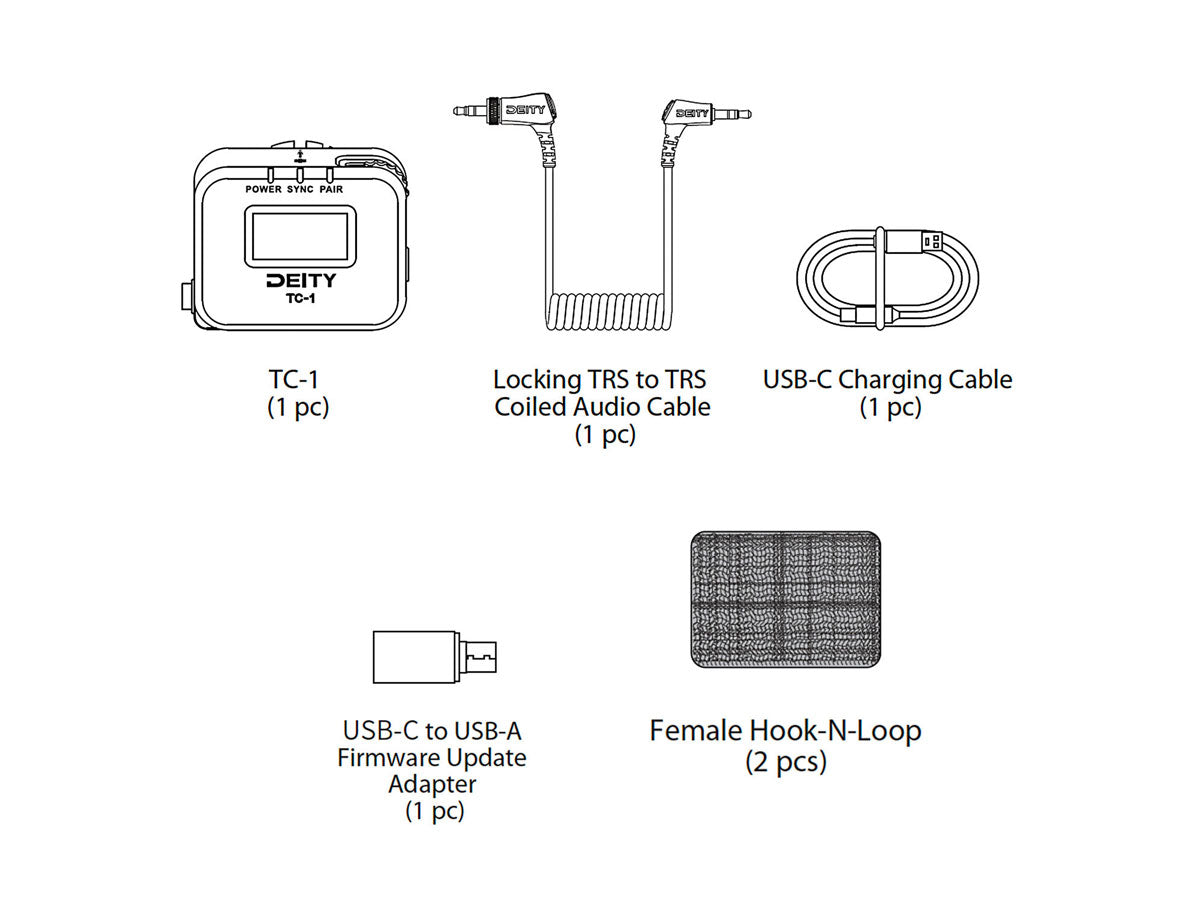

- 1x Deity TC-1 Timecode Device
- 1x Locking TRS to TRS Cable
- 1x USB Type-A to USB-C cable
- 1x Cold Shoe Mount
