Dedolight Mobile 4.1 Bi Colour System (90V-264V)

Dedolight Mobile 4.1 Bi Colour System (90V-264V)

SKU: DED-SYS-DLED4-BI
£1,315.89 GBP ex VAT
£1,579.07 GBP inc VAT
ex VAT £1,315.89 GBP ex VAT
£1,579.07 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

State-of-the-art LED light source in bicolor.

Bicolor version allows a continuous change from daylight to tungsten.

Separate dimming adjusts the intensity with no color change. Focuses like a true dedolight from wide 60° to extremely narrow 4° Clean beam – no stray light, lets you put the light exactly where you want it without causing any extra unwanted shadows. Works with all dedolight light shaping accessories and aspheric wide angle attachments (85° max. and still controllable focus) including DP1.1, DP2.1 and DP3.1 imagers which are similar to the well known dedolight projection attachments but with new dual condenser optics for higher transmission and perfect light distribution.

  • 7,050 Lux @ 3.0' / 5,600K - Spot
  • Variable 3,200K - 5,600K
  • 60 - 4 Degree Beam (1:20)
  • 85 - 54 Degrees with W/A Attachment
  • Accepts Projection Attachments
  • 5/8" Mount

Light Source     LED
Rating     Not specified by manufacturer
Color Range     3,200 - 5,600K
Focus Range     60 - 4.0° (1:20), 85 - 54° with optional wide angle aspheric attachment
Focus control: 1 complete turn
Mount     5/8" (16 mm)
Operating Position     Any
Tilt Function     Permanent friction

Photometrics     5,600K
At 3.0' (1.0 m) Footcandle/Lux
Flood: 109 / 1,170
Medium: 217 / 2,340
Spot: 655 / 7,050
At 9.0' (2.75 m)
Flood: 12 / 130
Medium: 24 / 260
Spot: 73 / 783
At 15' (4.5 m)
Flood: 4.3 / 47
Medium: 9.0 / 94
Spot: 26 / 282
3,200K
At 3.0' (1.0 m) Footcandle/Lux
Flood: 71 / 760.5
Medium: 141 / 1,521
Spot: 425.7 / 4582.5
At 9.0' (2.75 m)
Flood: 7.8 / 84.5
Medium: 15.6 / 169
Spot: 47.5 / 509
At 15' (4.5 m)
Flood: 2.8 / 30.5
Medium: 5.8 / 61
Spot: 17 / 183

Operating Voltage     100 - 260VAC 50/60Hz via separate DT4.0-1BI or DT4.0-1BI-DMX
10.2 - 18VDC via DT4.0-1BI-BAT power supply
Power Consumption     47W (via optional) AC power supply
Dimming     Yes, 100 - 20%
Safety     Protection Class III, SELV
No UV radiation
Cooling     Passive (no fan)
Dimensions     Head in flood mode with folded yoke: 6.37 x 4.29 x 3.94" (16.2 x 11 x 10 cm)
Head in spot mode with folded yoke: 7.87 x 4.29 x 3.94" (20 x 11 x 10 cm)
Height with yoke extended: 7.24" (184 mm) Built-in accessory holder: 3.0" (7.6 cm) diameter
Weight     3.0 lb (1.36 kg)

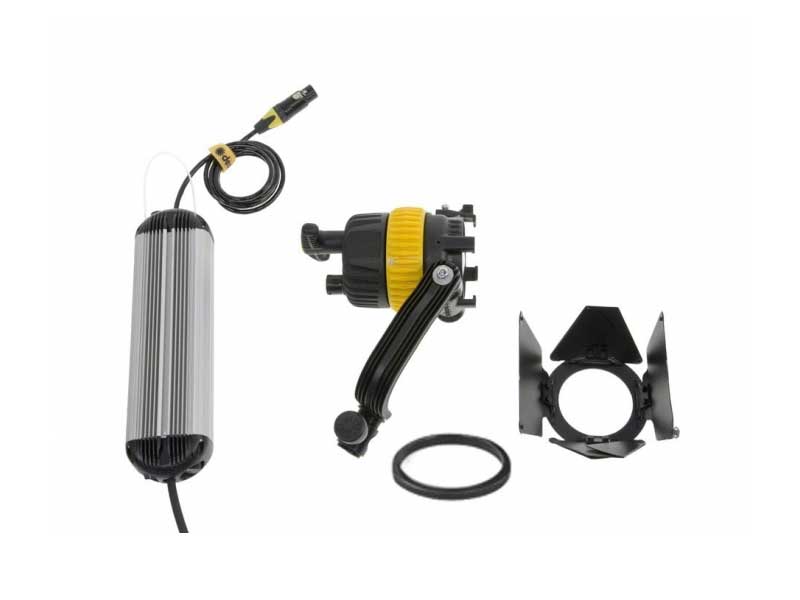

Light head DLED4.0-D, bi-colour, mobile version
Power Supply for DLED4.1-BI (90V-264V)
Standard Barndoor (eight leaves)
