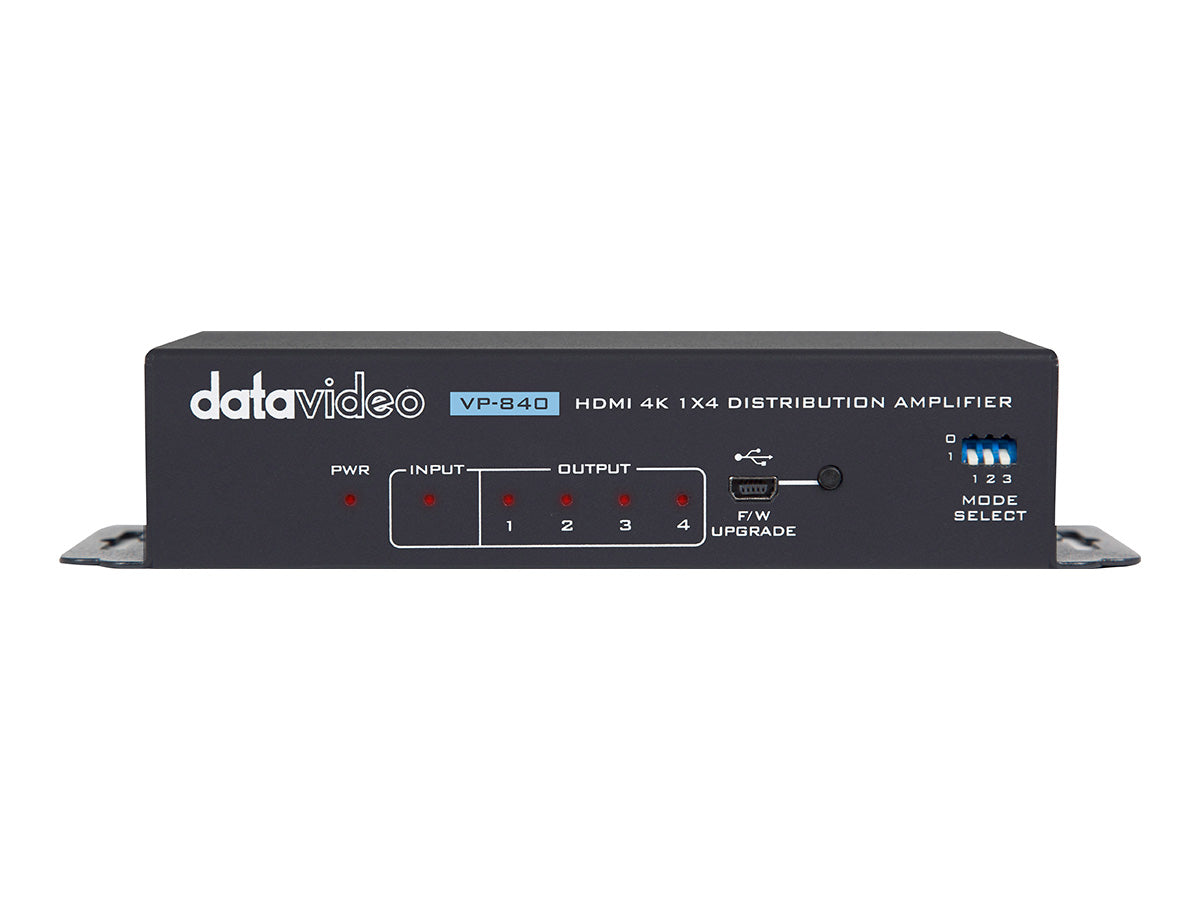

Datavideo VP-840 4K HDMI Distribution Amplifier 1x4

Datavideo VP-840 4K HDMI Distribution Amplifier 1x4

SKU: DATA-VP840
Regular price £179.10 GBP ex VAT
£214.92 GBP inc VAT
Regular price ex VAT Sale price £179.10 GBP ex VAT
£214.92 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
The VP-840 is a 1x4 HDMI Distribution Amplifier with the capability to repeat HDMI source to 4 displays simultaneously. VP-840 supports data rates up to 18Gbps and resolutions of 4K2K@60Hz.
The VP-840 features EDID (Extended Display Identification Data) management providing multiple EDID options for various resolutions between all devices, ensuring the HDMI source reliably outputs the correct content for the display.

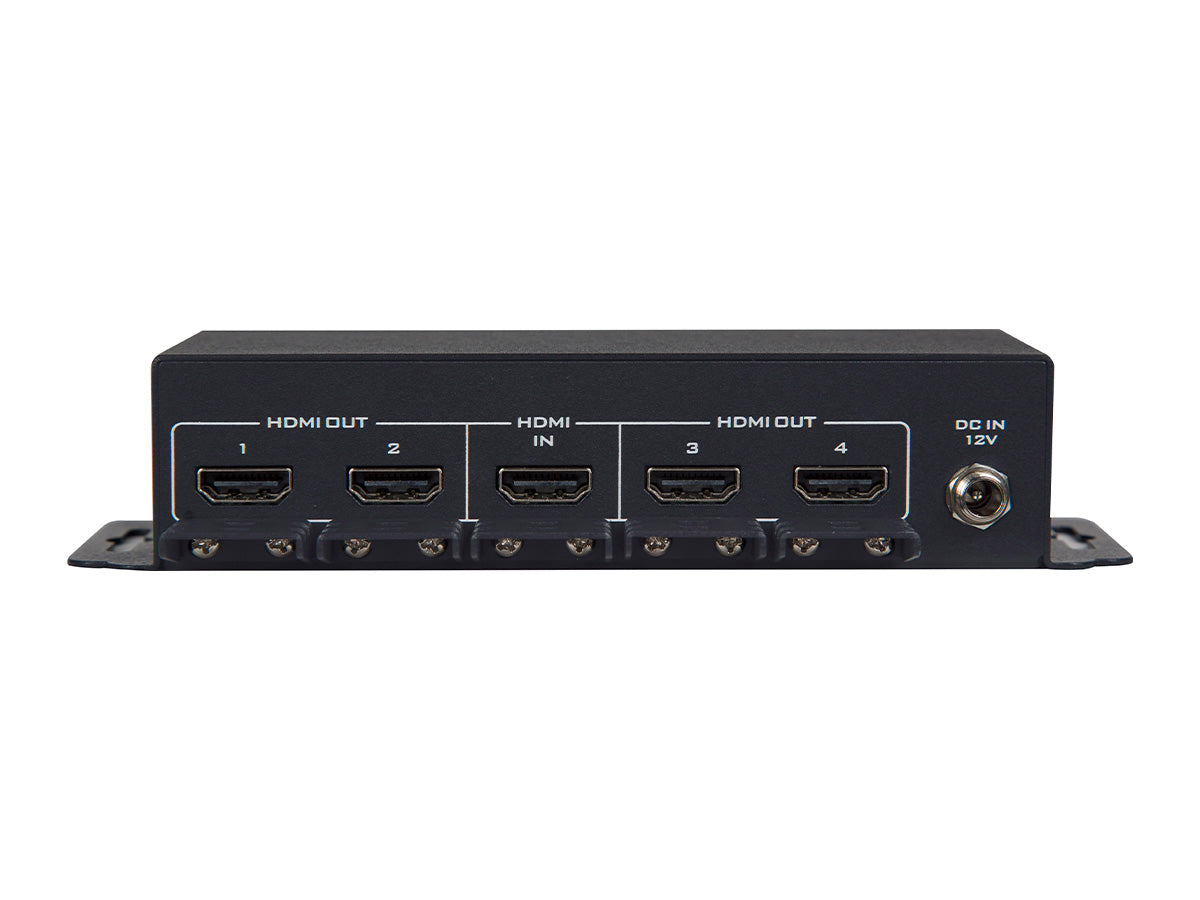

1 x HDMI Input and 4x HDMI Outputs
Supports 4K2K@60 4:4:4 8bits and High Dynamic Range, which is 4K2K@60 4:2:0 10bits.

Support Video Auto Downscale
Video bandwidth18 Gbps and HDMI 2.0a compliant, HDCP 2.2 and 1.4 compliant.

Supports Deep Color & 3D
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio.

Front Panel LED Indicators
Supports default EDID and EDID learning from the display.
  • 1x4 4K HDMI Distribution Amplifier
  • Supports 4K2K@60 4:4:4 8bits
  • Supports High Dynamic Range, which is 4K2K@60 4:2:0 10bits
  • Video bandwidth: 18 Gbps
  • Wide frequency range: 25MHz~600MHz
  • HDMI 2.0a compliant, HDCP 2.2 and 1.4 compliant
  • Supports Deep Color & 3D
  • Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
  • Supports default EDID and EDID learning from display
  • Front panel LED indicators
Model Number:
VP-840
Video Input / Output:
Input: 1 x HDMI
Output: 4 x HDMI
Video Format:
HDMI Supported Resolutions
4096x2160p60/59.94/50
4096x2160p30/29.97/25/24/23.98
3840x2160p60/59.94/50
3840x2160p30/29.97/25/24/23.98
1080p60/59.94/50,
1080p30/29.97/25/24/23.98
1080i60/59.94/50, , 720p60/59.94/50
480p, 576p, 480i, 576i

PC Supported Resolutions
640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, , 1280x768@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@ 60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1680x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz
Video Standard:
----
Video Processing:
HDR 4K2K@60 4:2:0 10bits
4K2K 60Hz YCbCr4:4:4 8bit/YCbCr4:2:0 10bit
4K2K 30Hz YCbCr4:4:4 8bit
Video Bandwidth:
Single-link 600MHz (18Gbps)
Audio Format:
DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
Power:
12V / 6W
Dimensions:
174 x 63 x 35 mm
Weight:
0.35 kg
Operating Temperature Range:
0~40 °C
  • 1 x VP-840
  • 1 x AD Switch DC 12V
