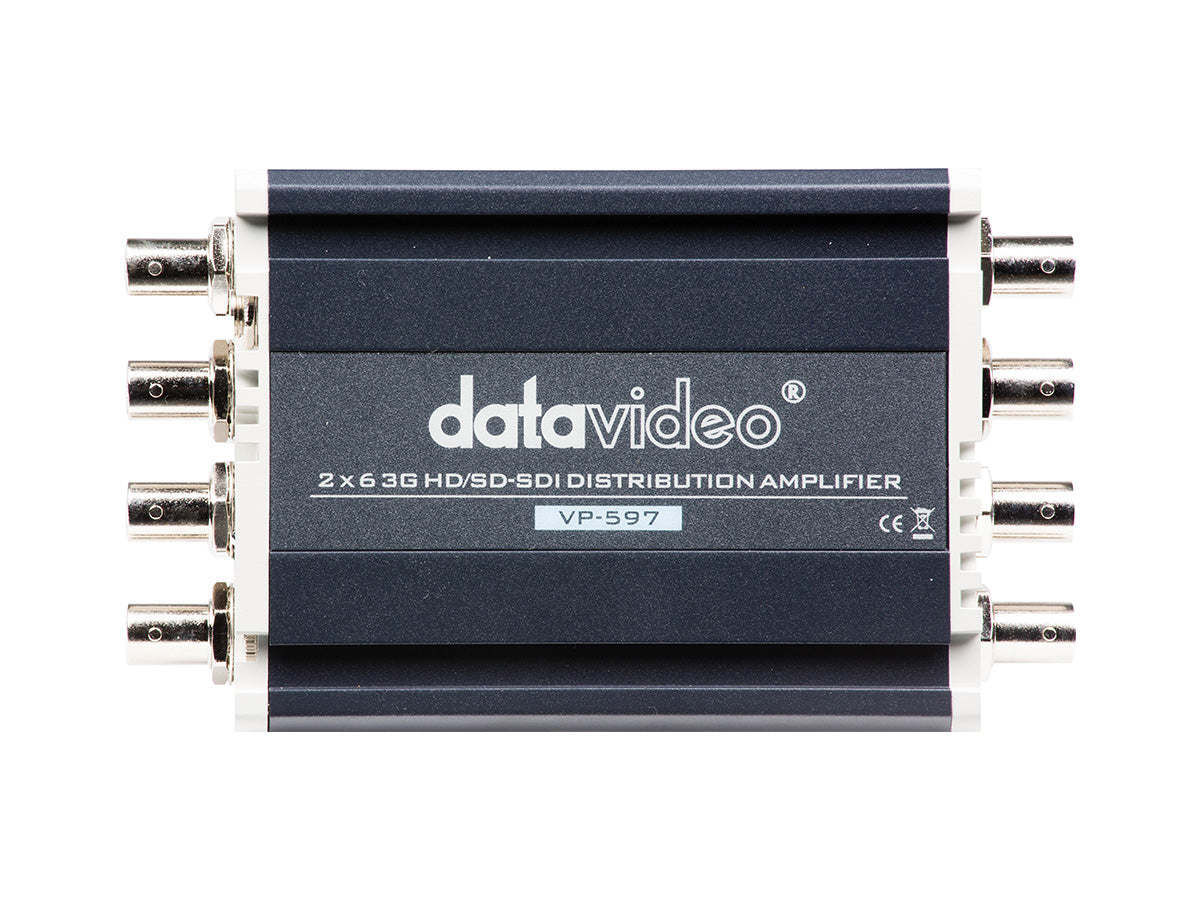

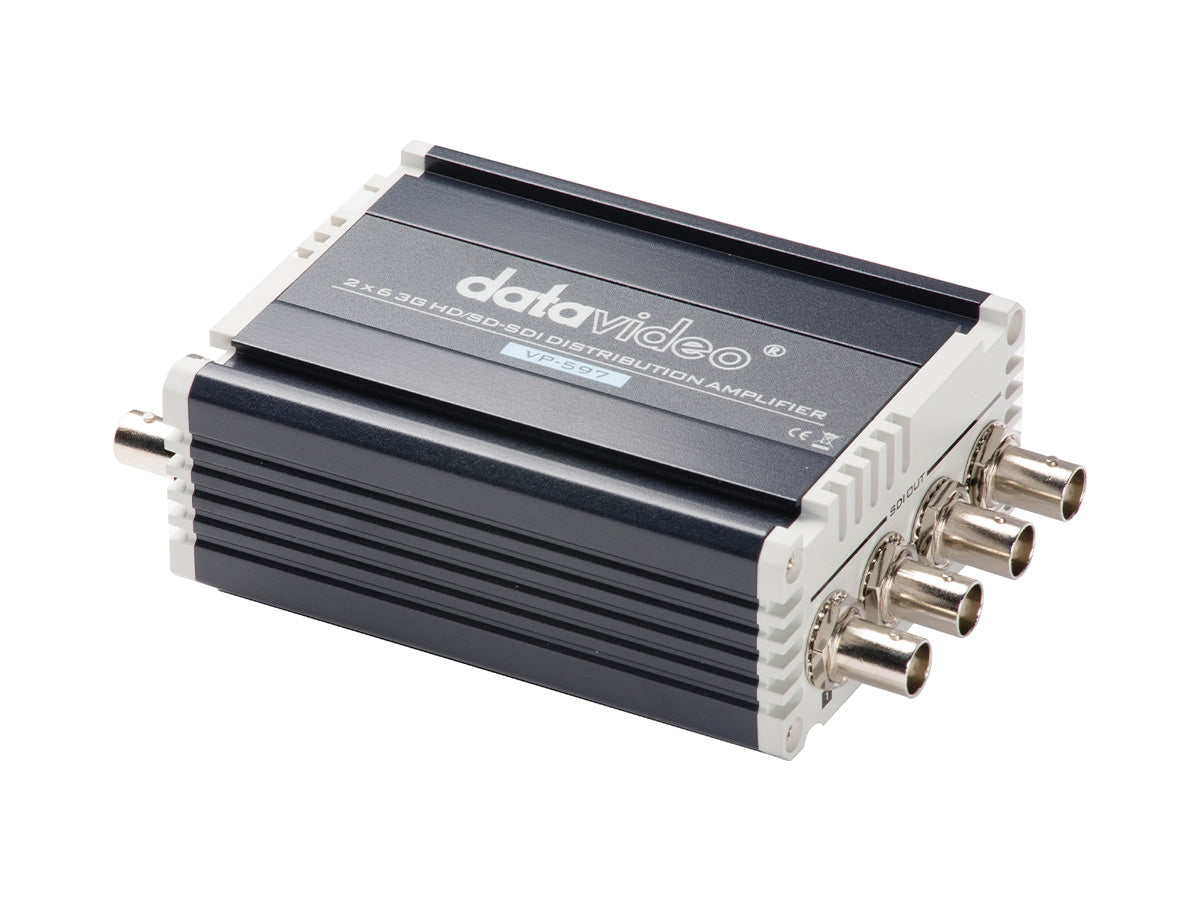

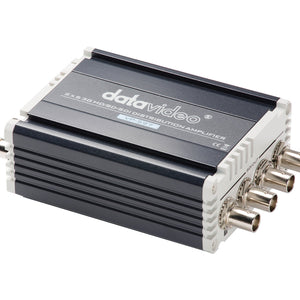

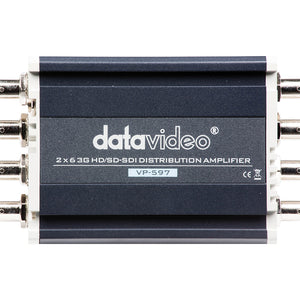

Datavideo VP-597 2x6 3G HD/SD-SDI Distribution Amplifier

Datavideo VP-597 2x6 3G HD/SD-SDI Distribution Amplifier

SKU: DATA-VP597
Regular price £273.60 GBP ex VAT
£328.32 GBP inc VAT
Regular price ex VAT Sale price £273.60 GBP ex VAT
£328.32 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
Datavideo VP-597 is a six output SDI distribution amplifier with A/B inputs switching control (non-locked). It supports 3G/HD/SD SDI video with embedded Audio and re-clock design for long distance transmission. Two source inputs can be controlled by an A/B panel switch or thru GPI remote control interface.

Supports Embedded Audio SDI
VP-597 is ideal for simple A/B source switching to multiple HD displays or it can be used as a backup 3G/HD/SD SDI input sources switcher for live events.

Two Input Video Can Be Controlled by A/B Switch or GPI Remote
Datavideo VP-597 is a six output SDI distribution amplifier with A/B inputs switching control (non-locked)
  • 2 x 3G/HD/SD-SDI inputs
  • 6 x 3G/HD/SD-SDI distribution outputs with re-clock
  • Supports embedded Audio SDI
  • Two input video sources can be controlled by A/B switch or GPI remote (non-locked)
  • DC-12V
Model Number: VP-597

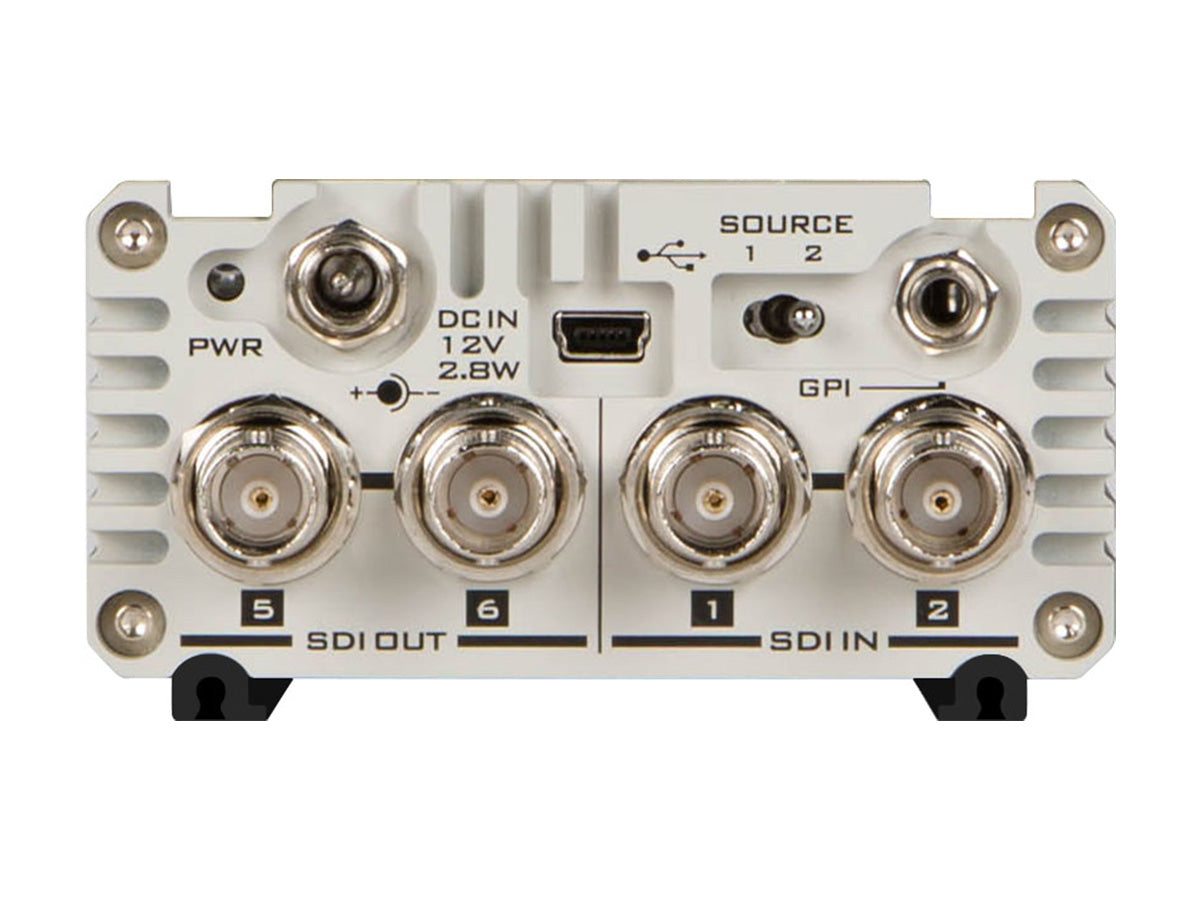

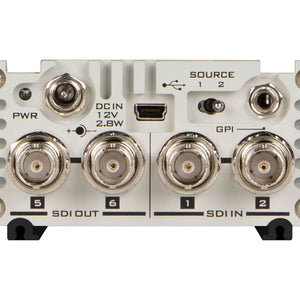

Video Input / Output: Input: 2 x BNC

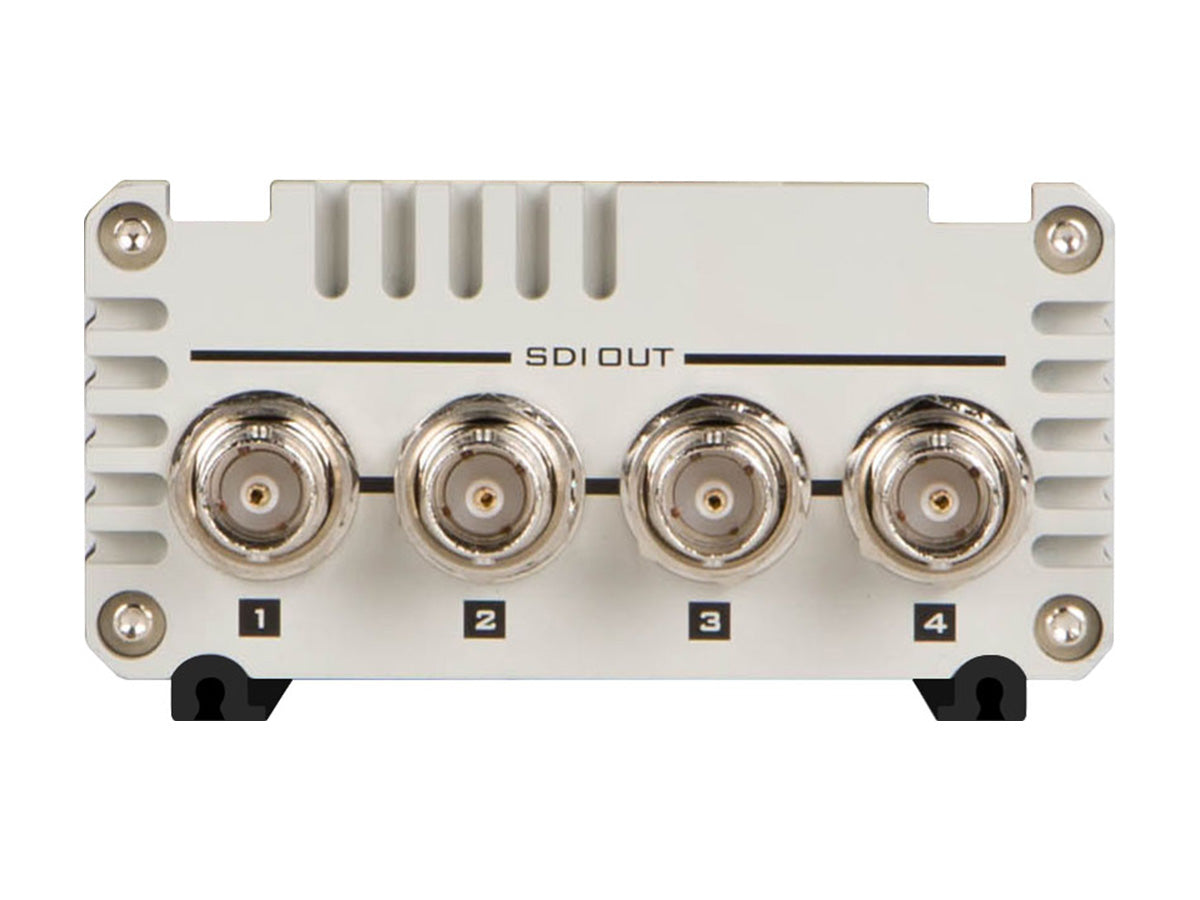

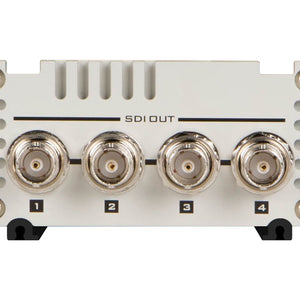

Output: 6 x BNC
Video Format: 1080p 60/59.94/50/29.97/23.98
1080i 60/59.94/50
720p 60/59.94/50
525i, 625i
Video Standard: ----
Video Processing: ----
Video Bandwidth: ----
Audio Format: Support SDI embedded audio
Up to 8 channels, 48KHz, PCM audio
Power: 12V / 2.8W
Dimensions: 127 x 85 x 45 mm
Weight: 0.5 kg
Operating Temperature Range: 0~40 °C
  • 1 x VP-597
  • 1 x AD Switch 12V 500mA
  • 1 x 3.5Φ GPI Cable Stereo
