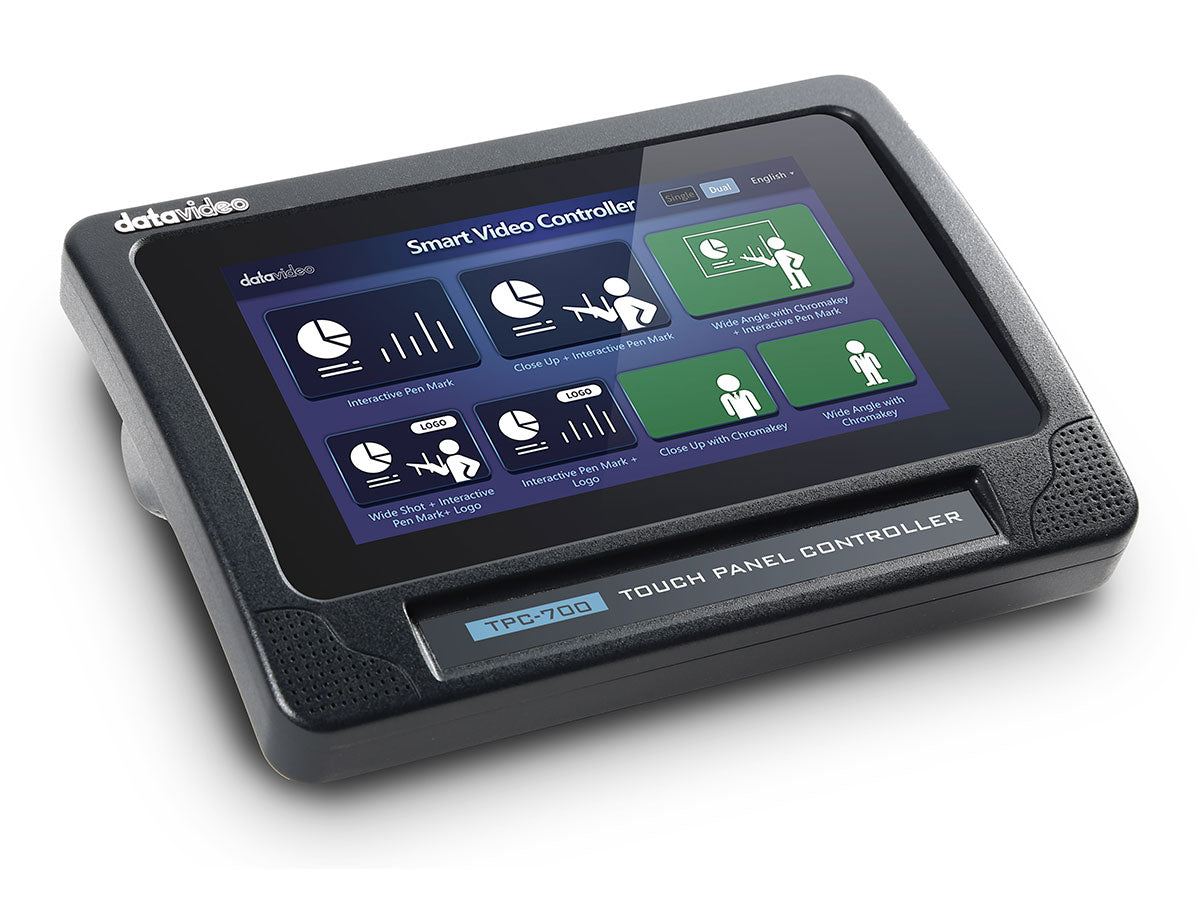

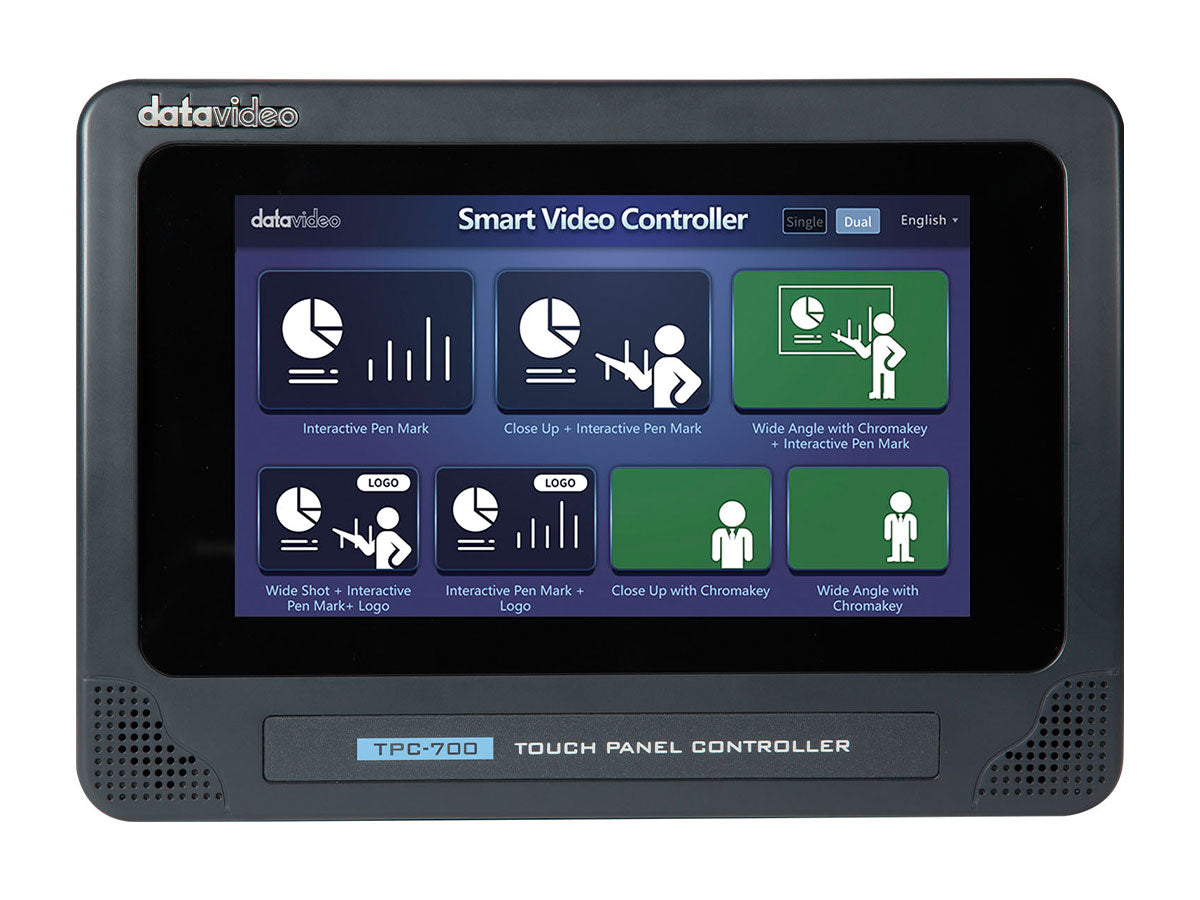

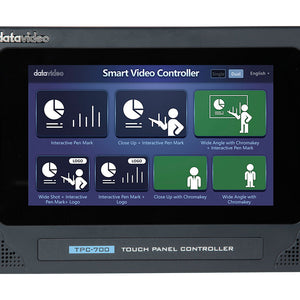

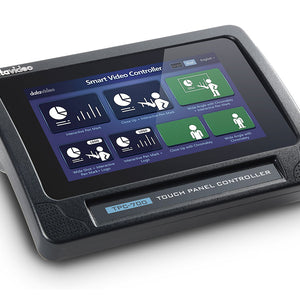

Datavideo TPC-700 Touch Panel Controller

Datavideo TPC-700 Touch Panel Controller

SKU: DATA-TPC700
£727.20 GBP ex VAT
£872.64 GBP inc VAT
ex VAT £727.20 GBP ex VAT
£872.64 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
TPC-700 Touch Panel Controller
The best assistant for all 3200 switchers, VGB-2000 presentation system DVK-400 4K Chromakeyer and TVS-2000A Virtual Studio System. The SE-3200, VGB-2000 and TVS-2000A Apps that are installed on the TPC-700 contain presets of common operation functions.

Touch Panel Design
Just tap on the screen to easily select different presets.

Customize Your Favorite Keys
Each button can be customized to your liking.

Setting up a 3200 switcher has never been this easy
Multi-camera Virtual Studio switching, AUX output, Crosspoint, Flex Source, and PIP assignment can be done by TPC-700.

Compact Design
Easy to transport to your live production show on the go. Quick connection. Simple installation.

Easy Switch, Record and Live Stream
Datavideo TPC-700/TPC-700P is the best assistant for TVS-2000A Virtual Studio System. The TVS-2000A App that are installed on the TPC-700/TPC-700P contain presets of common operation functions. The interface is easy to use and can be controlled with a few finger taps on the 7-inch touchscreen to easily select different presets – multi- camera Virtual Studio switching, downstream key, and virtual studio presets. The Easy to live stream and record your virtual production show on the go.

Easy Change Virtual Studio
Datavideo TPC-700/TPC-700P allow user to install 4 virtual studios in the App. Just tap your desired virtual scene mode directly from the TPC-700/TPC- 700P for recalling the corresponding virtual scene.

Compact and Easy Installation
The TPC-700/ TPC-700P are compact designed. User can apply a D-sub 9 pin to RJ-45 cable and a 9-pin female/female RS422 cable to connect TPC-700 and TVS-2000A system. Quick connection. Simple installation. The TPC-700P supports PoE power supply feature.

Easy Access of Switching Datavideo TVS-2000A Virtual Studio System by TPC-700 Touch Panel Controller
The Datavideo TPC-700 Touch Panel Controller provides easy access to control TVS-2000A Virtual Studio System. The App installed on the TPC-700 contains presets of standard operation functions. Users can easily switch different camera angles, start recording, live streaming, and overlay the title by applying TPC-700.

Switch Virtual Background Just One-Touch Needed
Using the professional intelligent touch interactive control panel TPC-700 in the DVK-400 together, it can be triggered by button to display AR objects. One operator can complete various mode by one TPC-700.
Independent and fast touch operation panel, you can preset the presentation effect of the button, without the need for complex professional technology. It's efficient and professional for chromakey video production.
  • The best assistant for all 3200 switchers, and VGB-2000 presentation system
  • The SE-3200 and VGB-2000 Apps that are installed on the TPC-700 contain presets of common operation functions
  • Just tap on the screen to easily select different presets
  • Each button can be customized to your liking
  • Multi-camera Virtual Studio switching, AUX output, Crosspoint, Flex Source, and PIP assignment can be done by TPC-700
  • Easy to transport to your live production show on the go. Quick connection. Simple installation.
  • 7” touch screen
Model Number: TPC-700
Touch Screen: 7” capacitive touch screen
Touch Screen Resolution: 800 x 480
Firmware Upgrade: Via USB 2.0
Control: RS-232 (RJ-45)
Power: DC 12V
Power Over Ethernet (PoE): ---
Power Consumption: 10W
Dimension: 220x152x79mm
Weight: 0.85KG
Operating Temperature Range: 0~40 °C
  • 1 x TPC-700 Main Unit
  • 1 x DC 12V Power Adaptor
  • 1 x D-Sub 9Pin to RJ-45 Cable
