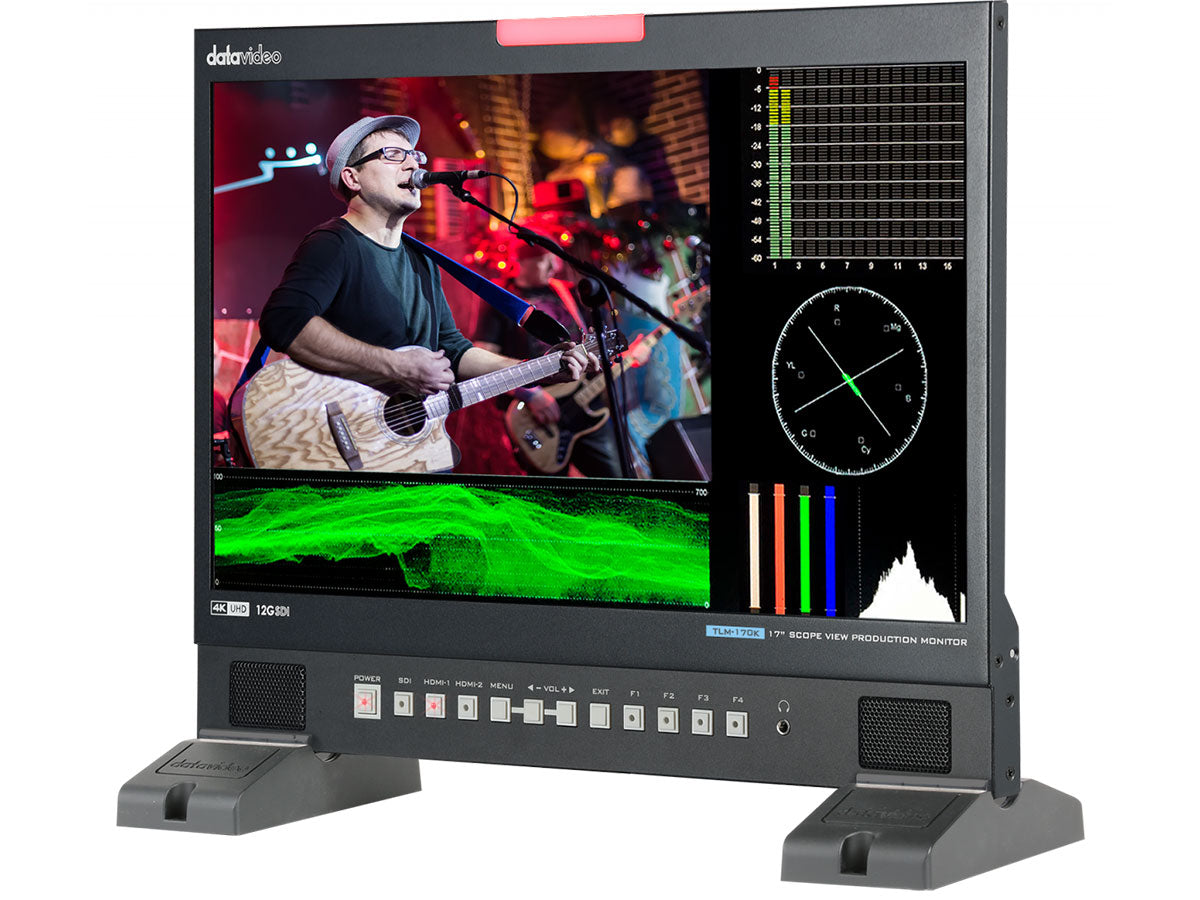

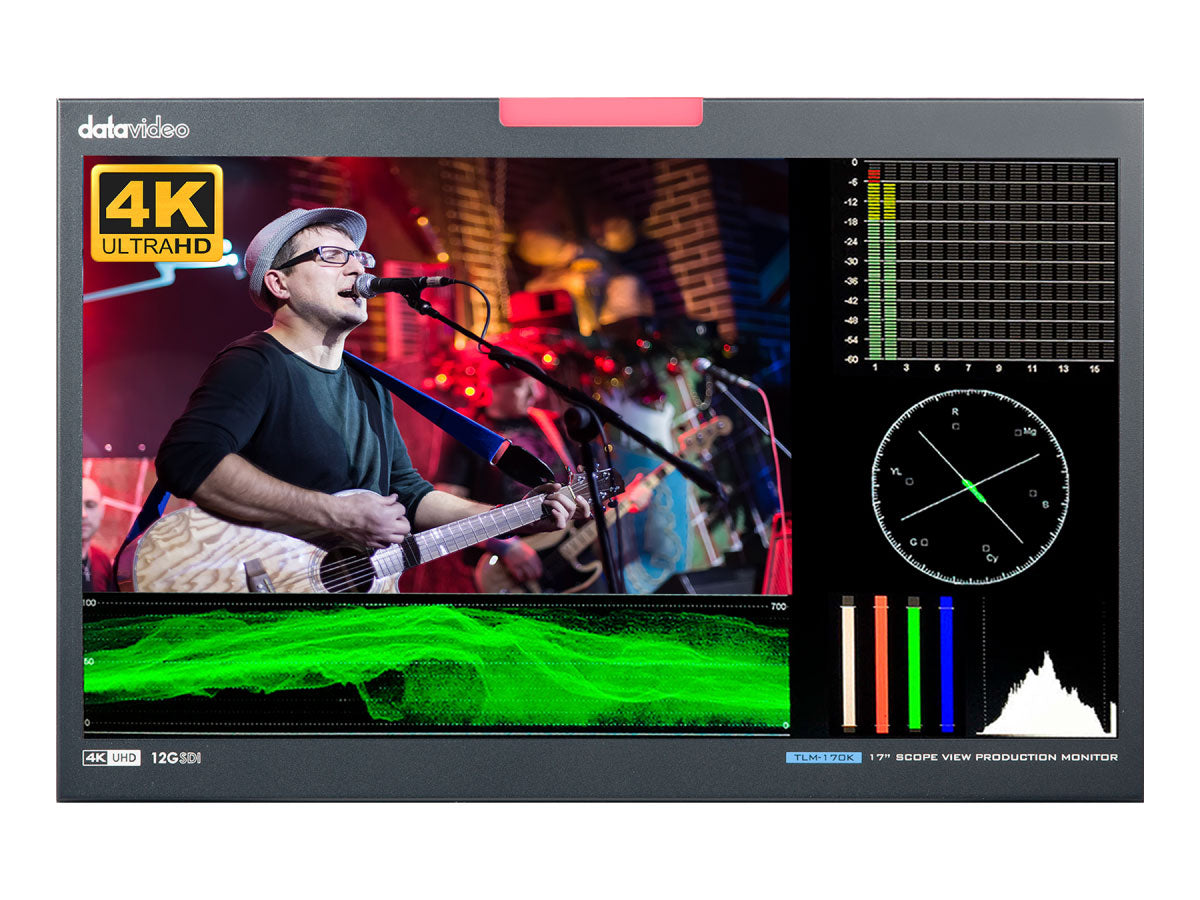

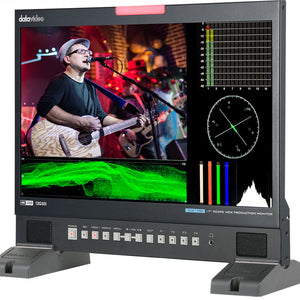

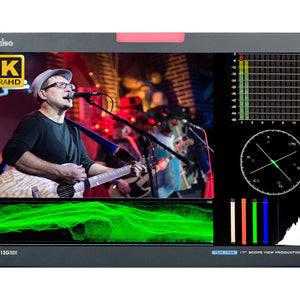

Datavideo TLM-170K 17-inch ScopeView Production Monitor
Datavideo TLM-170K 17-inch ScopeView Production Monitor
SKU:
DATA-TLM170K
Regular price
£2,341.80 GBP ex VAT
£2,810.16 GBP inc VAT
£2,810.16 GBP inc VAT
Regular price
ex VAT
Sale price
£2,341.80 GBP ex VAT
£2,810.16 GBP inc VAT
Unit price
per
£2,810.16 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The TLM-170K is a desktop 17-inch 4K UHD LCD monitor which comes with an UHD 3840 x 2160px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 1000:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.
The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false colour, histogram, peaking, zoom, screen markers, image flip, and more. It also supports HDR for HLG and SMPTE 2084, and the presets of colour space include Rec 709 and DCI P3. The TLM-170K series are ideal for broadcast and live production applications.
Spectacular 4K Resolution High Brightness and Contrast
The TLM-170K series apply superior Ultra HD 3840 x 2160px IPS panel. The high brightness and high contrast panel provides 8 million pixels resolution which is four times the details than Full HD panel.
- 17-inch ScopeView Production Monitor
- Supports DCI P3 colour space 4K/60p and UHD 4K/60p video input and output

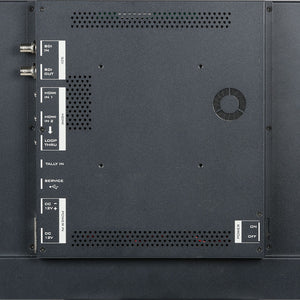

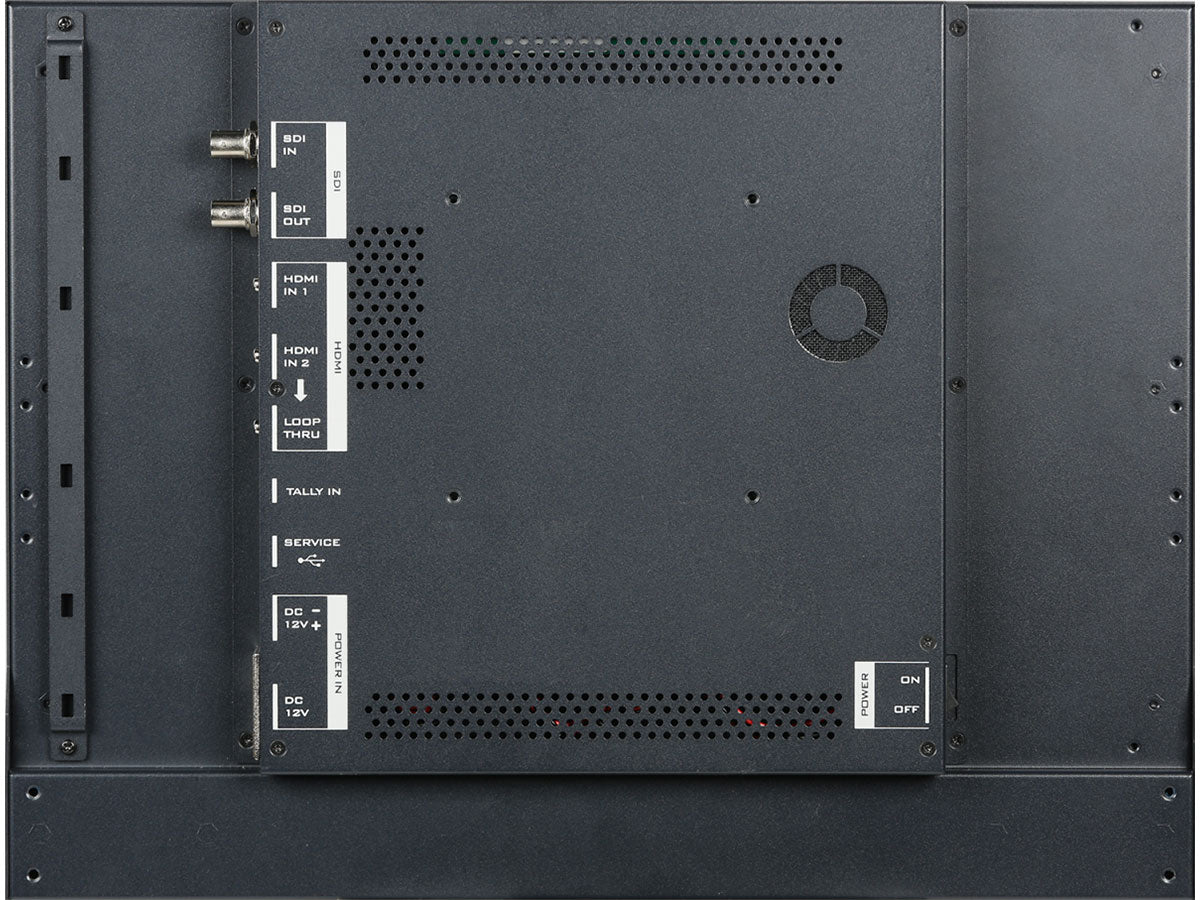

- Supports Multiple Input and Output Configurations
- 1x 12G-SDI, 2x HDMI (HDMI 2.0) inputs
- 1x 12G-SDI loop-through, 1x HDMI (HDMI 2.0) loop-through
- Supports column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more
- Tally light included. Best use for live production
| Model Number | TLM-170K |
| Screen | 17.3" LED Backlit |
| Chassis | Tabletop |
| Resolution | 3840 × 2160 |
| Viewing Angle | (H) +89/-89° (V) +89/-89° |
| Luminance/Contrast | 300cd/m² 1000:1 |
| Video Inputs | 1 x 12G SDI 2 x HDMI (2.0) |
| Loop Through | 1 x 12G SDI 1 x HDMI (2.0) |
| Supported Input Resolutions | SDI: 4096x2160p (23.98/24/25/29.97/30/50/59.94/60) 3840x2160p (23.98/24/25/29.97/30/50/59.94/60) 4096x2160Psf (23.98/24/25/29.97/30) 3840x2160Psf (23.98/24/25/29.97/30) 1920x1080p (23.98/24/25/29.97/30/50/59.94/60) 1920x1080i (50/59.94/60) 1920x1080Psf (23.98/24/25/29.97/30) 1280×720p (23.98/24/25/29.97/30/50/59.94/60) 525i, 625i HDMI: 4096x2160p (23.98/24/25/29.97/30/50/59.94/60) 3840x2160p (23.98/24/25/29.97/30/50/59.94/60) 1920x1080p (23.98/24/25/29.97/30/50/59.94/60) 1920x1080i (50/59.94/60) 1280×720p (23.98/24/25/29.97/30/50/59.94/60) 720 x480i (NTSC), 720 x576i (PAL) 640 x800, 800 x600, 1024 x768, 1280 x800 |
| Aspect Ratio | 16:9, 4:3 |
| Aspect Marker | YES |
| Safty Marker | YES |
| Tally LED | Live (Red) Cued (Green) |
| Audio In/Out | Input: Embedded Audio (48KHz sampling) Output: Analog stereo (Phone Jack) Speaker x 2 (3W) |
| Special Features | waveform, vector scope, Focus Peaking, False Color, Exposure (Zebras), Histogram, HDR / SDR, Time Code, Audio Vector, Camera Log, Gamma, Marker, Pixel to Pixel, Zoom, H/V Delay, DSLR, Freeze, Image Flip, Check Field, Level Meter, Color Bar, Color Calibration. |
| Dimension (WxHxD) | 403 x 305 x 37 mm |
| Weight | 5.2kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V, 40.1W |
- 1 x TLM-170K product
- 1 x AD Switch DC 12V
- 1 x Monitor Stand
- 2 x Velcro
