Datavideo TLM-102 Dual 10inch Monitor

Datavideo TLM-102 Dual 10inch Monitor

SKU: DATA-TLM102
£1,099.80 GBP ex VAT
£1,319.76 GBP inc VAT
ex VAT £1,099.80 GBP ex VAT
£1,319.76 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

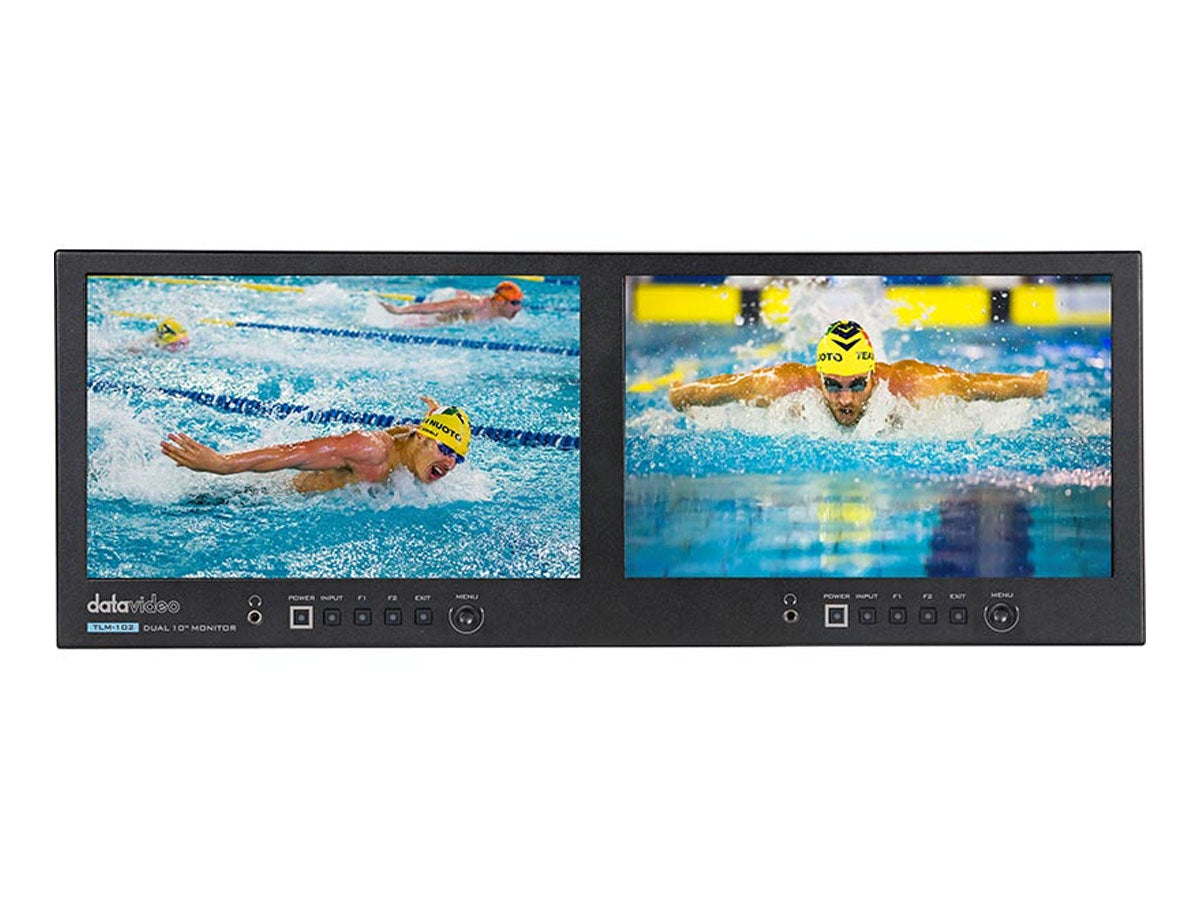

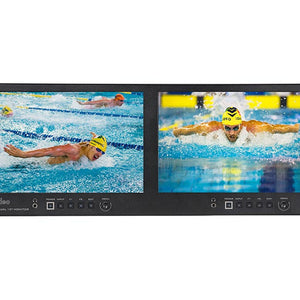

The Datavideo TLM-102 Dual 10” monitor is a 4RU Rack mount dual monitor which is designed for the broadcast quality monitoring application. Datavideo TLM-102’s 4RU rack design, SDI and HDMI inputs and outputs and different mounting methods make it the best solution for various applications such as live vans, on-site monitoring and video wall. The TLM-102 brings high quality and user friendly viewing experience for users via its excellent display quality and advanced auxiliary functions.

  • Dual 10” Monitor with 1280*800 IPS Panel Resolution.
  • Dual Monitor with 4RU Rack Mount.
  • Support 3G-SDI video input with loop-through output.
  • Support HDMI video input with loop-through output.
  • Support OSD menu for various functions including Column (YRGB peak), time code, waveform, vector scope, audio level meter, peaking, zoom, pix to pix, underscan, check field, etc.
  • Support SDI & HDMI Cross Conversion.
  • Individual adjustment of Brightness, Contrast, Color Saturation and LED Backlight Level for each monitor.
  • Colour temperature menu option has 4 modes ( 6500K, 7500K,9300K and user defined)
  • Support front panel headphone jack.
  • Support 15 pin Tally input interface.
  • Support User-definable function buttons F1 and F2
  • Screen: 10.1" LCD
  • Chassis: 4RU Rack Mount
  • Resolution: 1280 x 800
  • Viewing Angle: (H) 170° | (V) 170°
  • Luminance/Contrast: 300 cd/m² | 800:1

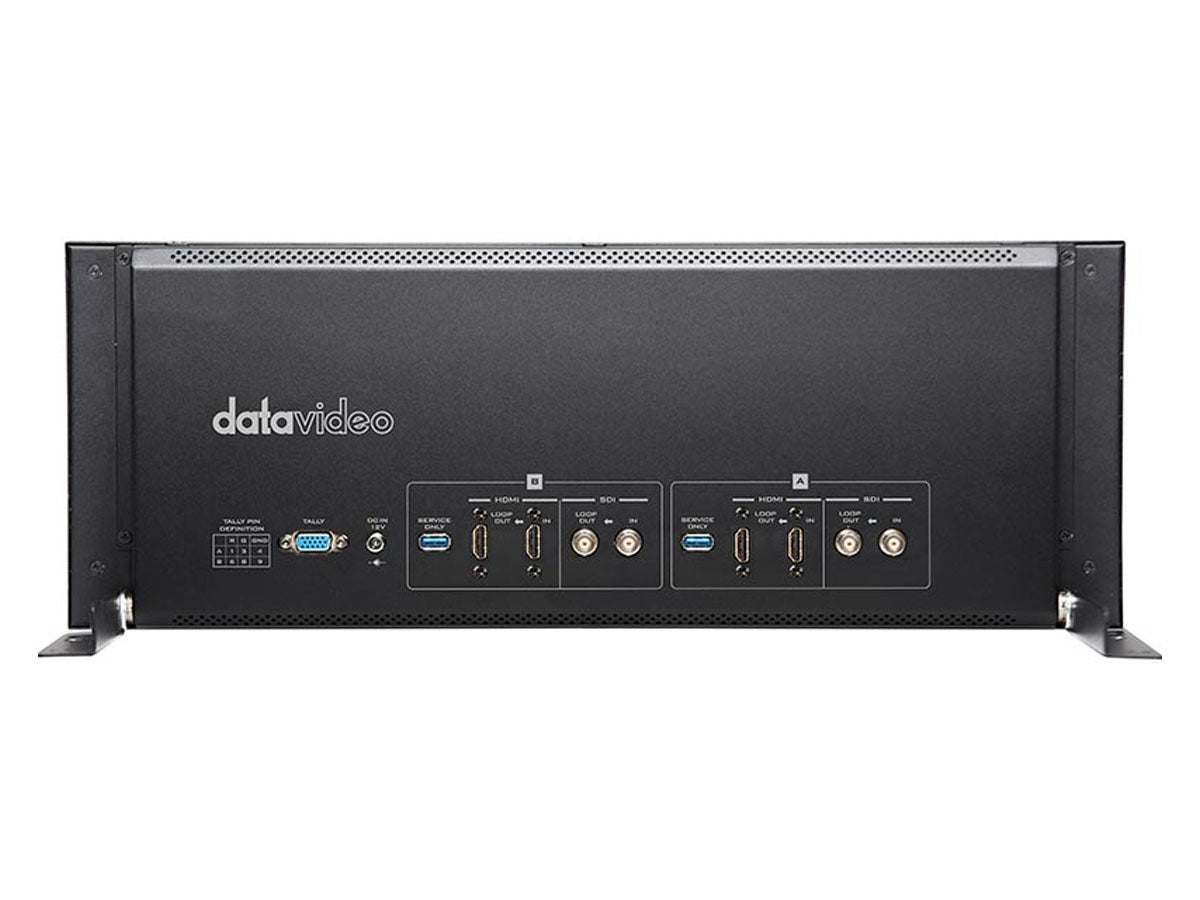

  • Video Inputs: 1x 3G/HD/SD-SDI | 1x HDMI
  • Loop Through: 1x 3G/HD/SD-SDI | 1x HDMI
  • Supported Input Resolutions: 1080p (23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (23.98/24/25/29.97/30/50/59.94/60Hz), 480i (NTSC), 576i (PAL)
  • Aspect Ratio: 16:9, 4:3
  • Tally LED: Live (Red) | Cued (Green)
  • Audio In/Out: Embedded Audio on SDI and HDMI | Headphone Jack
  • Special Features: Time Code, Waveform, Vector Scope & Audio Level Meter, Peaking, Zoom, Pix to Pix, Underscan, SDI, HDMI Cross Conversion
  • Power: DC 12V, 26 watts
