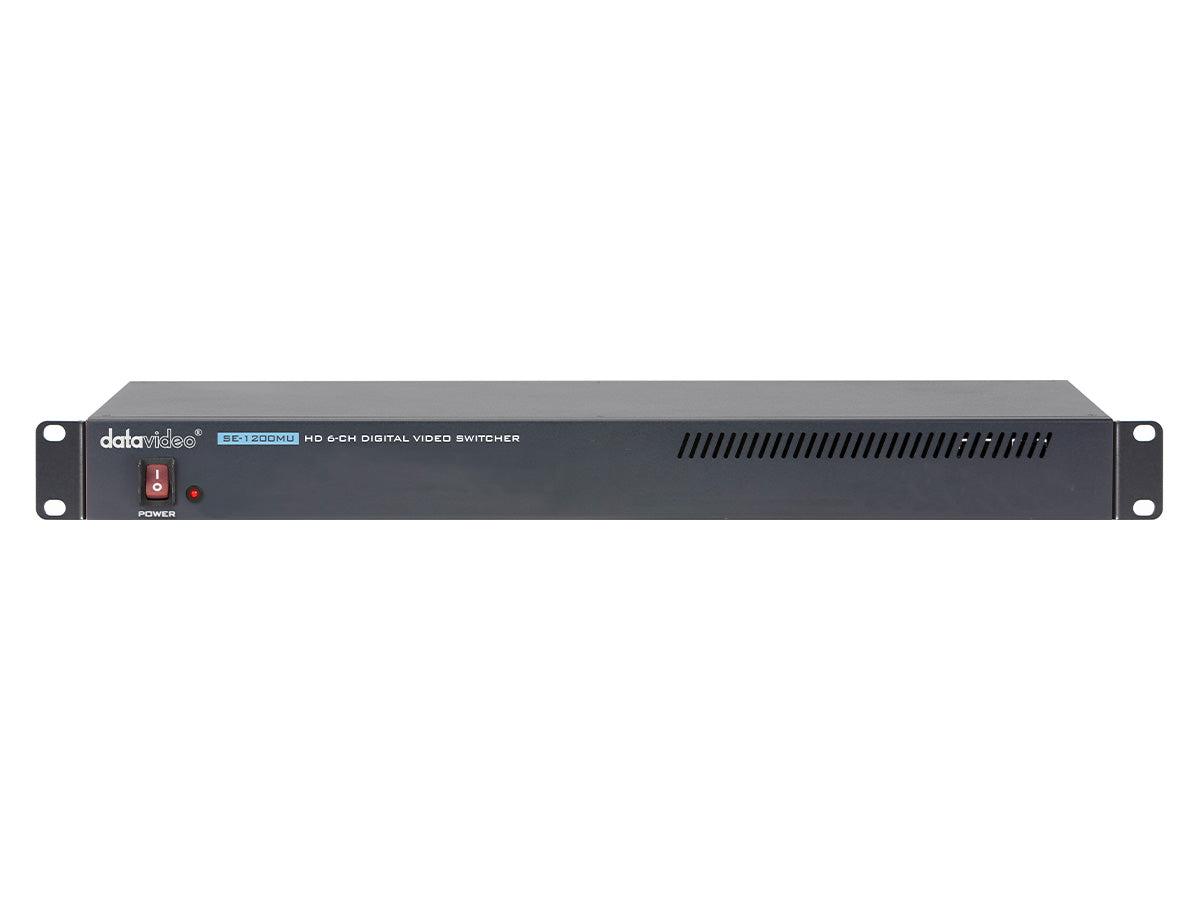

Datavideo SE-1200MU 6 Input Rackmount HD Mixer
Datavideo SE-1200MU 6 Input Rackmount HD Mixer
£1,489.32 GBP inc VAT
£1,489.32 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly.
SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.

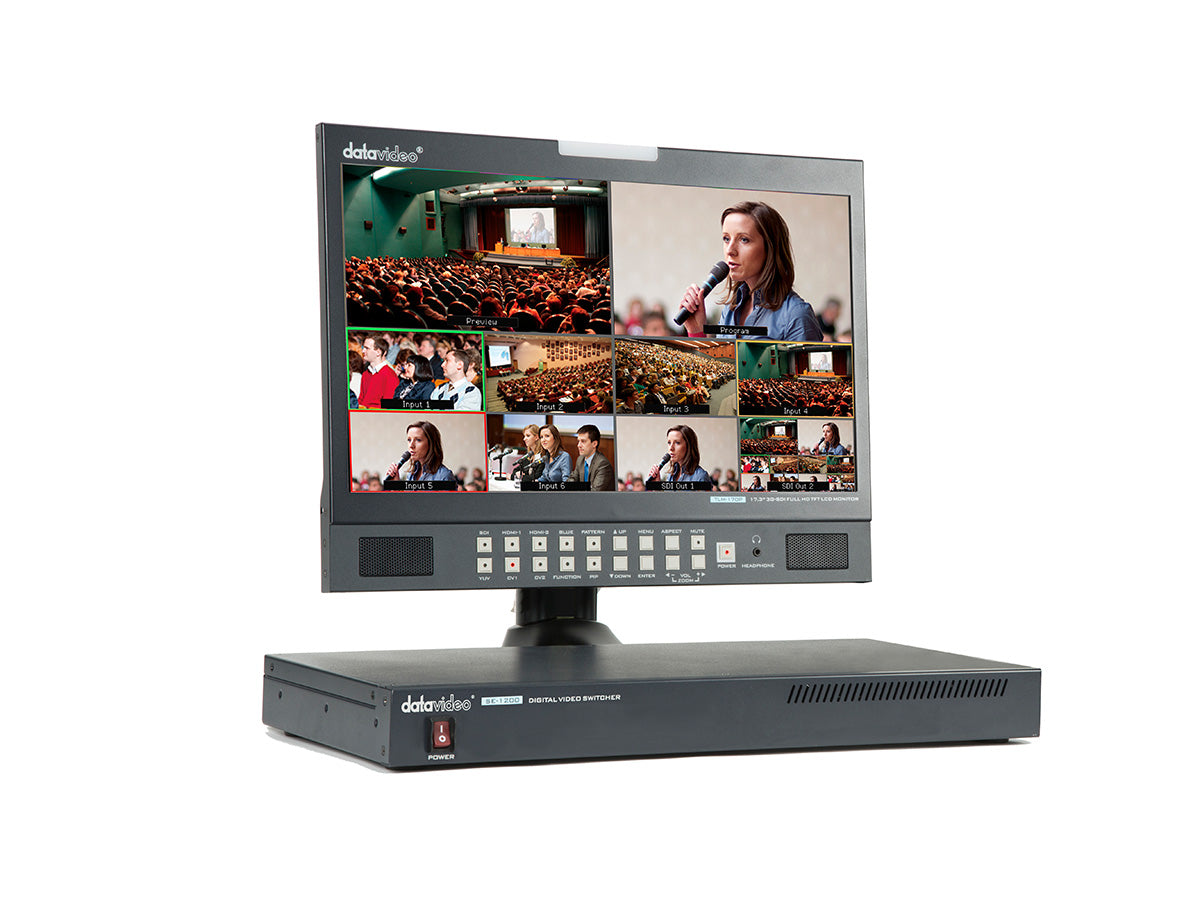

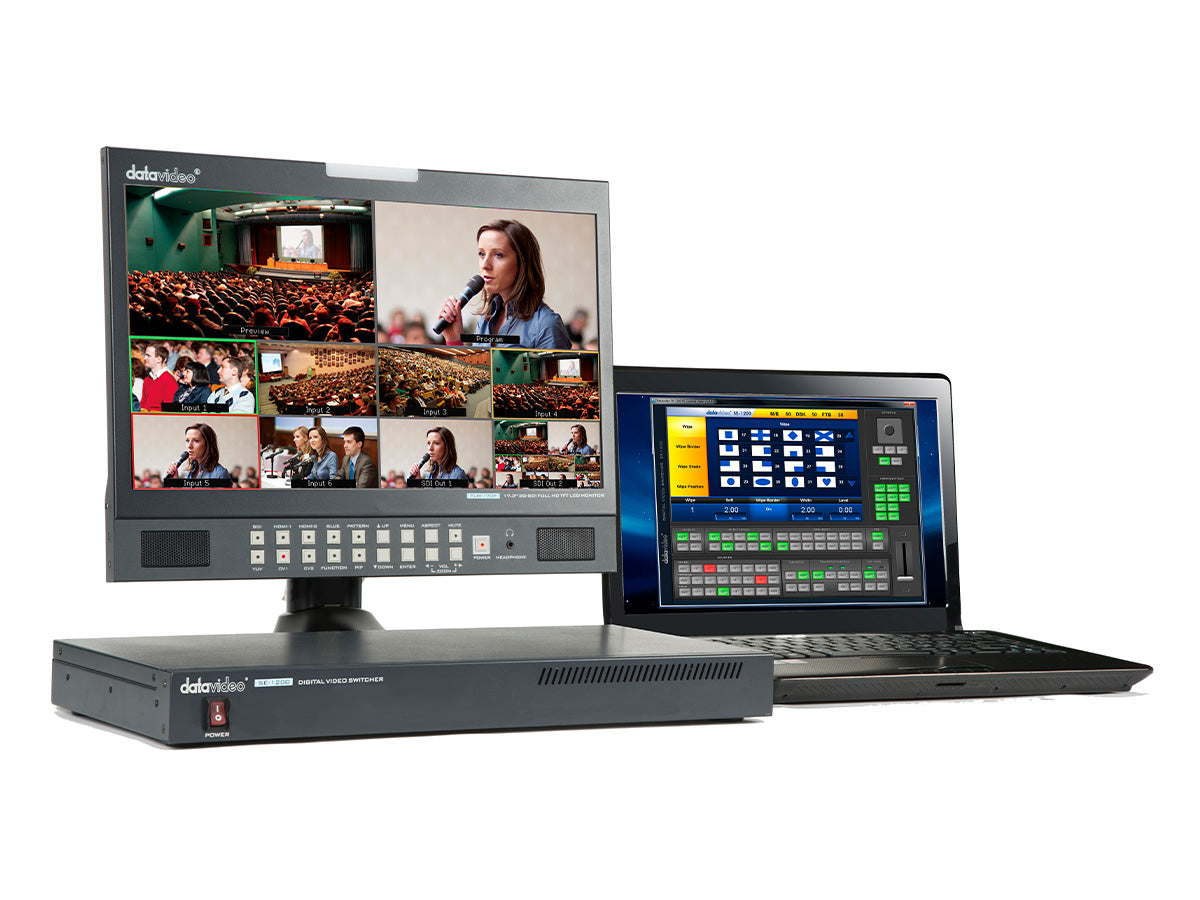

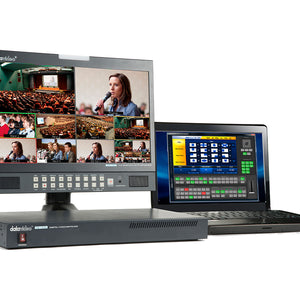

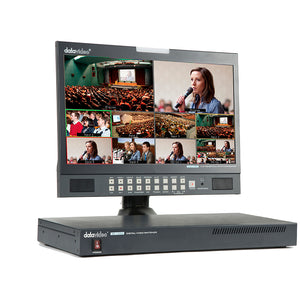

SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC and Android tablet / iPad / Mac with the included SE-1200 software control panel.

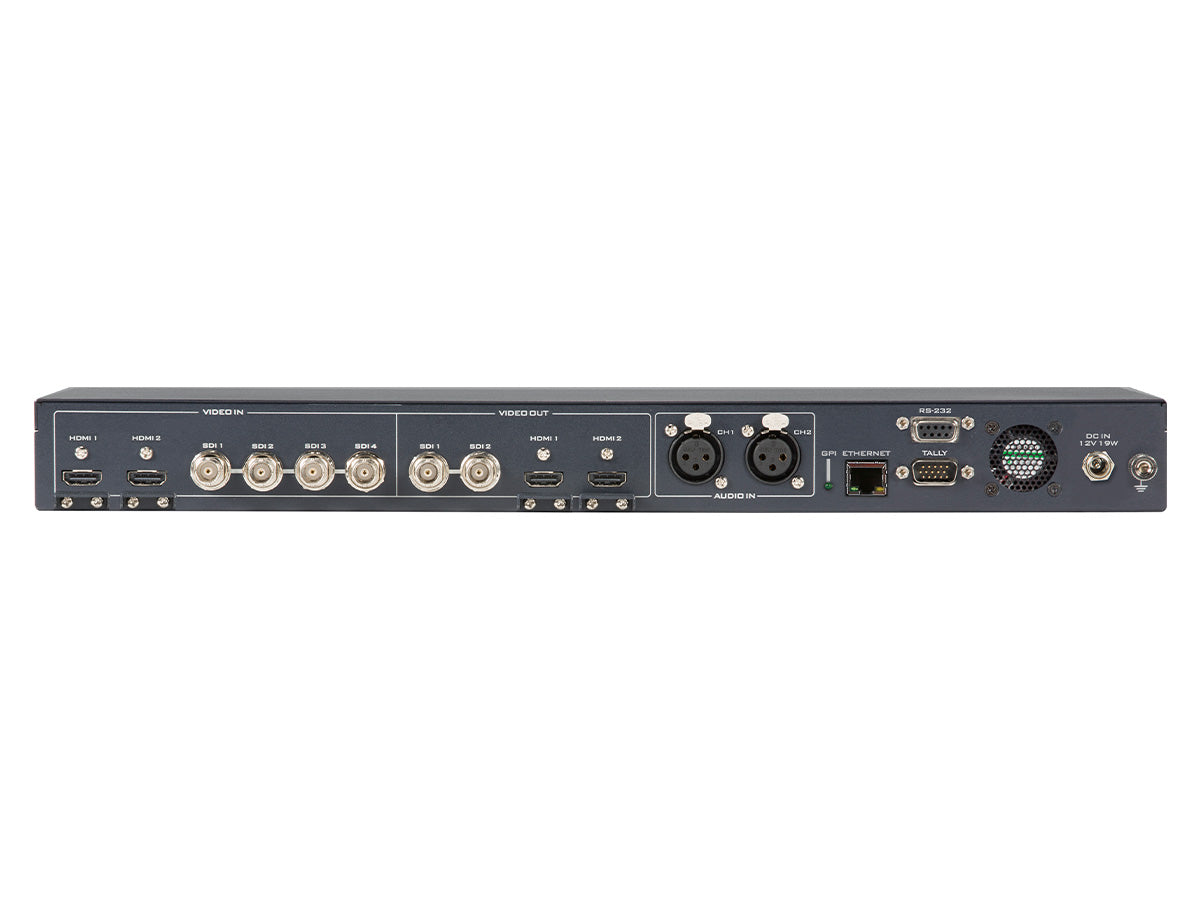

SE-1200MU includes four SDI and two HDMI inputs with embedded audio and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations.
Two assignable SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.
Users have the option to link a laptop to the switcher unit via USB, for a fast, secure connection. This gives plug and play control over all the functions of the mixer, with no need to configure the computer's IP or network settings.
- 6 video inputs (SDI x 4 + HDMI x 2)
- Frame Sync on each input
- Flexible Mix/Effects Processor with
- 2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
- 2 DSK, supporting Linear & Luma Key Modes
- 1 PIP (assignable to any of the 4 keyers
- Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
- Wipe, Mix & Cut Transitions
- Full M/E Preview function
- Any Input (1-6) can be used as a Frame store (Stills Store): Upto 24 images stored on SD Card
- Assignable Outputs
- Each SDI output can be switched in the Menu as:
- PROGRAM (w/ DSK)
- Clean PROGRAM (w/o DSK)
- Clean PREVIEW (w/o DSK)
- MULTISCREEN
- Input 1-6
- Each SDI output can be switched in the Menu as:
- XPT (Cross Point Assignment)
- PC control
- Control Switcher via USB / Laptop keyboard
- Control with optional RMC-260
- Remote streaming of Multi view out using built-in Motion JPEG Streaming processor
- Tally output
- GPI output
- 1U rack mount
| Model Number: | SE-1200MU |
| Video Standard: | HD |
| Video Format: | 1080i 50/59.94/60Hz 720p 50/59.94/60Hz |
| Video Processing: | SDI: 4:2:2 HDMI: YUV 4:2:2 10 bit, RGB 4:4:4 |
| Input Routable / Crosspoint: | All 6, repeatable |
| Video Input: | 4x HD-SDI 2x HDMI (RGB/YUV, 1080i/1080p/720p) |
| Mix HD & SD Source: | ---- |
| Computer Graphic Interface: | 2 via HDMI |
| Video Output: | 2x HD-SDI 2x HDMI assignable: PGM(w/DSK 1&2), PGM(w/DSK 1), PGM Clean, PVW(w/o DSK), multi-view, Input 1-6 |
| Down-Converted Output: | ---- |
| Built-In Multi-View Monitoring Out: | HDMI & SDI assignable, Ethernet (MJPEG) |
| Analogue Audio Input: | 2x Balanced XLR |
| Analogue Audio Output: | ---- |
| Digital Embedded Audio Support: | Input 2 channels, Output 2 channels |
| Audio Delay Calibration: | ---- |
| A+V Switching: | Yes |
| Chromakey: | 2 |
| Title Creator: | ---- |
| USK: | 2x Keyer support Chromakey/ Linear/ Luma Key |
| DSK: | 2x DSK support Lumakey/ Linear key (Key / Fill) |
| Picture In Picture: | 1 |
| Logo Insertion: | ---- |
| Still Store: | 500 |
| Effects: | FTB, Cut, 32 Wipe with border |
| Transition Preview: | Full transitions preview |
| Sync / Reference In/Out: | Built-in Genlock (internal) |
| Tally Output: | 1x D-sub 15pin, dual color |
| PC Remote Control: | Ethernet (free Window software) RS-422/ RS-232 |
| Built-In Audio Mixer: | ---- |
| Special Features: | Motion JPEG Multi-view streaming (120 memory preset, BGD Transition on/off option) Free Virtual Set and Stinger transition included |
| Chassis: | 1RU rack-mount mainframe |
| Dimensions: | 440 x 215 x 49 mm |
| Weight: | 1.5 kg |
| Power: | DC 12V, 19W |
| Operating Temperature Range: | 0~40 °C |
- 1 x SE-1200MU
- 1 x AD Switch DC 12V
- 1 x Utility CD w/ CD Bag
