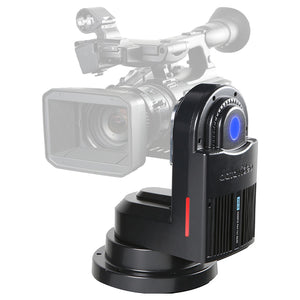

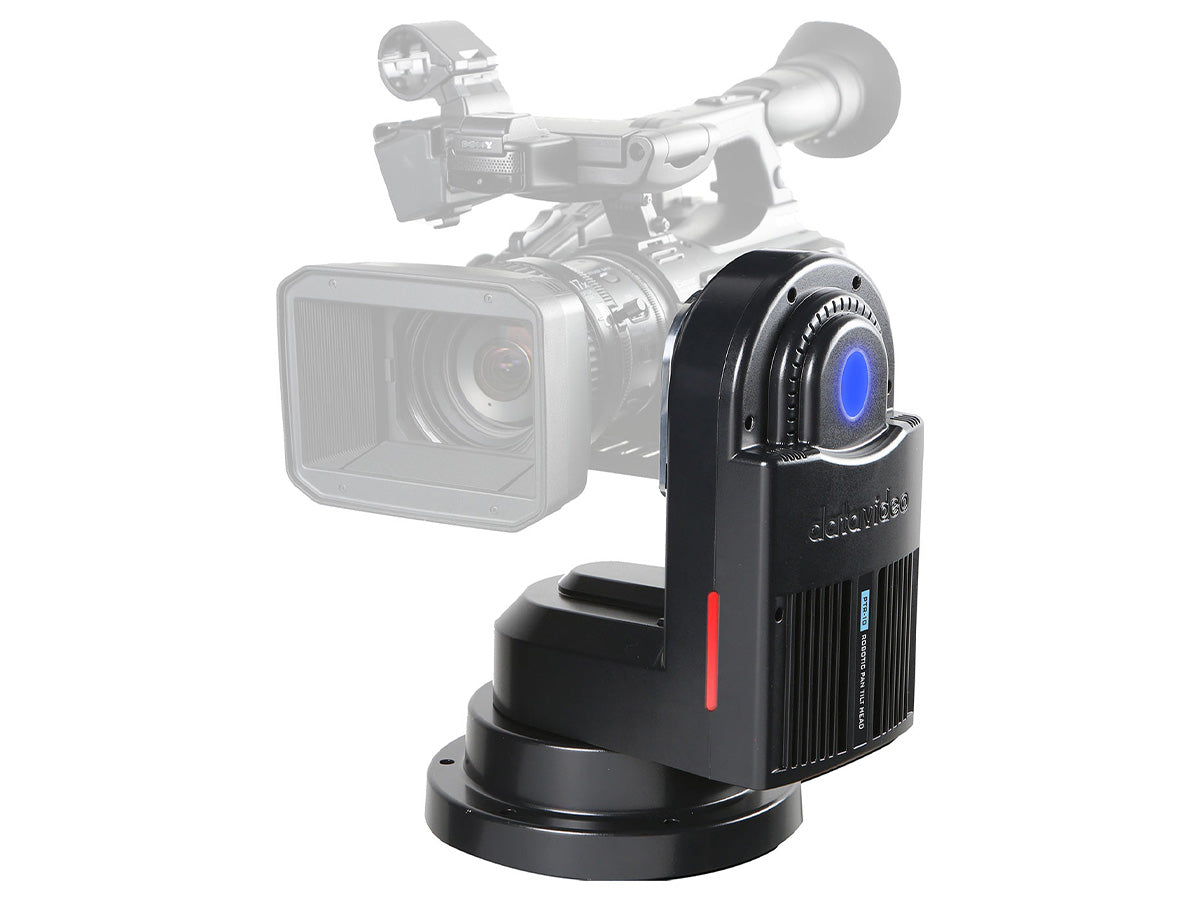

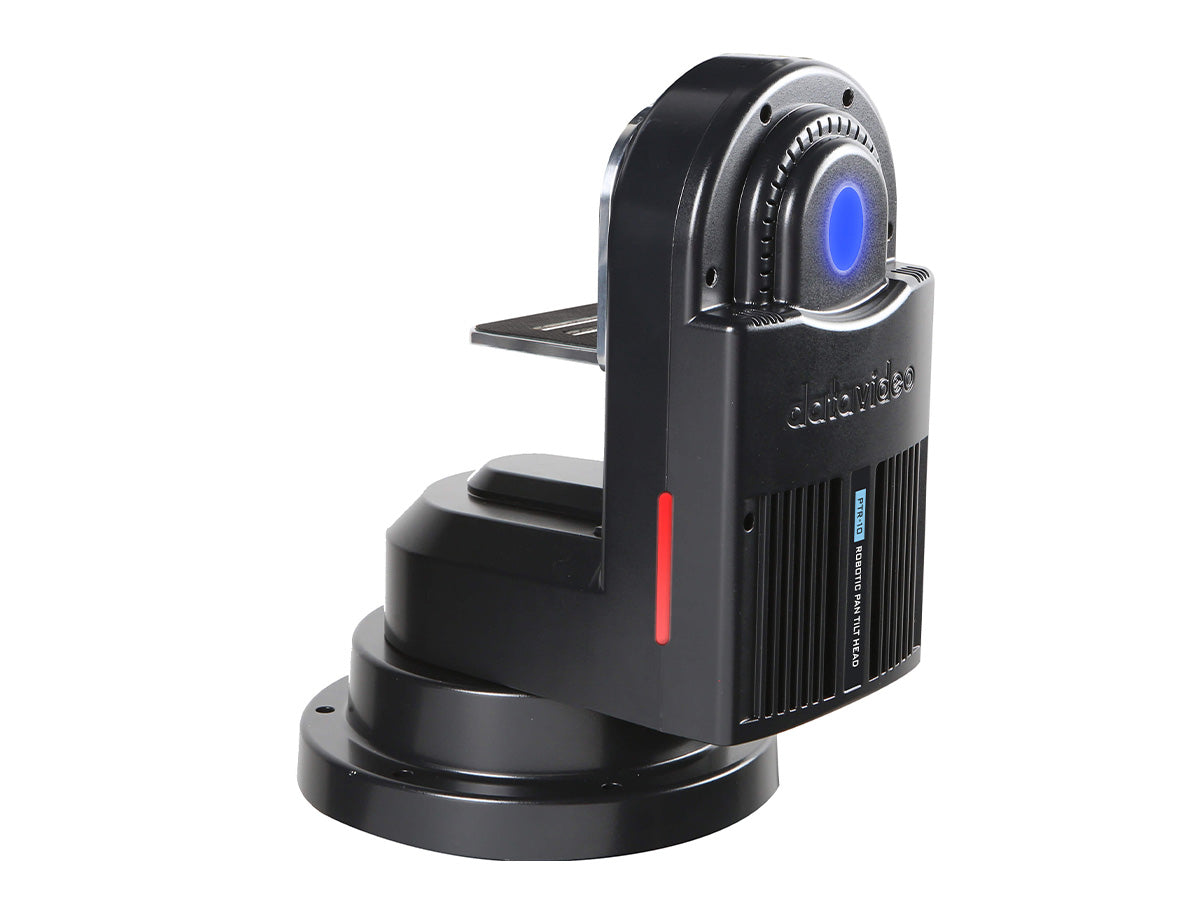

Datavideo PTR-10 Robotic Pan Tilt Head
Datavideo PTR-10 Robotic Pan Tilt Head
SKU:
DATA-PTR-10MKII
Regular price
£1,819.80 GBP ex VAT
£2,183.76 GBP inc VAT
£2,183.76 GBP inc VAT
Regular price
ex VAT
Sale price
£1,819.80 GBP ex VAT
£2,183.76 GBP inc VAT
Unit price
per
£2,183.76 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The PTR-10 is a robotic pan-tilt head designed to turn any block camera into a PTZ camera.
Using the idea of Datavideo PTC series of cameras, PTR-10 can provide accurate Pan Tilt position information for users to track the movement. While combining the tracking information with TVS-2000A, it could bring up a lot of possibilities to use other cameras to do tracking in the virtual studio.
With a weight of 3.8kg, it can be placed on a tripod or mounted on the wall/ceiling.
PTR-10 can be controlled by IR controllers, VISCA protocol controller, RMC-180 camera controller, RMC-280 TVS controller and also compatible with serial, Ethernet, DVIP.
- Robotic Pan Tilt Head
- 340° Pan range, 90° tilt range
- Supports both SDI and HDMI input/output
- Especially designed for block cameras with power supported
- Tally light built-in, great for Live events
- Controlled by IR controller, VISCA protocol controller, RMC-180 camera controller, RMC-280 TVS controller and also compatible with serial, Ethernet (DVIP)
- Sharing the same technology with Datavideo PTZ cameras, making it possible to do tracking with TVS-2000A
- 12~18V input, power both the Robotic Head and also the Camera
- DVIP / RS-422 control
| Model Number: | PTR-10 MARK II |
| Video Interface: | HDMI x 1 SDI x 1 |
| Video Output: | 2160p 29.97/25 1080p 59.94/50 1080i 59.94/50 720p 59.94/50 |
| Control Unit: | RMC-180 RMC-300A RMC-300C ShowCast 100 VISCA Protocol Controller IP Control IR remote |
| Genlock: | --- |
| Timecode: | --- |
| Panning / Tilting Range: | Pan: 340° Tilt: ±45° |
| Panning / Tilting Speed: | Pan: 0.12~15° /Sec Tilt: 0.06~10° /Sec |
| Preset: | Pan/Tilt position 50 |
| Control Distance: | 1,200M by RS422 100M by DVIP |
| Control Protocol: | Sony VISCA DVIP |
| Control Input: | RS-422 DVIP |
| Maximum Load: | 4 KG Max |
| Control Output: | RS-232 RS-422 BX-Lens LanC |
| Power Requirements: | DC 12V~ 18V, 3A (Without Camera) DC 12V~ 18V, 5A (With Camera) |
| Power Supply: | DC 12/10/8.4/7.4V, 24W Max |
| Operating Temperature Range: | 0~40 C° |
| Operating Humidity Range: | 10~80% |
| Storage Temperature Range: | -10~60C° |
| Storage Humidity Range: | 5~80% |
| Weight: | 3.4 kg |
| Dimensions: | 230 x 190 x 300 mm |
- 1 x PTR-10
