Datavideo PTC-145 HD Tracking PTZ Camera
Datavideo PTC-145 HD Tracking PTZ Camera
SKU:
DATA-PTC-145
Regular price
£1,079.10 GBP ex VAT
£1,294.92 GBP inc VAT
£1,294.92 GBP inc VAT
Regular price
ex VAT
Sale price
£1,079.10 GBP ex VAT
£1,294.92 GBP inc VAT
Unit price
per
£1,294.92 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Stunning Full HD Resolution with Auto Tracking
Introducing the PTC-145, a versatile PTZ camera designed for enhanced visual experiences. The 1/2.8” CMOS sensor delivers outstanding image quality with 20x optical zoom and 8x digital zoom.
Offering HDMI, 3G-SDI, and streaming outputs, it connects to various devices with ease. Equipped with line-in and 3.5mm microphone inputs for exceptional audio quality.
This camera features one-click AI Tracking, enabling smooth camera movements without a dedicated operator. Simultaneous streaming to two platforms is effortless.
Available in stylish dark blue or white options, it complements indoor design preferences. Elevate your visual excellence with the PTC-145 camera.
20x Optical Zoom, 8x Digital Zoom
The PTC-145's 20x optical zoom and 8x digital zoom allows you to mount it near or far and still get great, sharp shots.
Advanced 3D Noise Reduction Function
The PTC-145 supports advanced digital noise reduction technology, which enables it to capture clear and smooth images even in less-than-perfect lighting conditions. This remarkable feature ensures that your footage remains crisp and vibrant, regardless of the lighting challenges you may encounter.
Quick Access to Camera’s Auto Tracking
You will be granted direct access to Auto Tracking via various external controllers such as the supplied RMC-1AT PTZ remote controller and RMC-300A DVIP controller, PTC View Assist App, and the TPC-700, etc. You can choose a suitable controller according to your needs.
In addition to camera controllers, you can also easily enable Auto Tracking on smart switchers, including iCAST mini, KMU-200/300, SHOWCAST 100, etc.
Custom Auto Object Tracking
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, thus avoiding interferences such as desks, people coming and going, large objects, etc.
Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt, and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems such as jerky movements or unexpected halts.
Talent Position: Center / Left Side / Right Side
The positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.
Quick Selection of Full Body / Half Body / Close-up
All of the PTC-145 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.
S-Shaped Speed Curve
The S-Shaped Speed Curve, inspired by the smooth acceleration and deceleration of a lift, is a pivotal feature that enhances the camera lens movement. Much like the elevator ride that starts and stops seamlessly, the PTC-145 camera ensures your video captures maintain uninterrupted fluidity.
This innovative technology eliminates any jerky movements that might be discernible to the naked eye, resulting in professional-quality, visually pleasing content. The S-Shaped Speed Curve is your assurance that the camera's pan, tilt, and zoom functions will operate with precision and grace, delivering an unparalleled visual experience for your audience. Experience the future of camera movement with the PTC-145.
Simply Enable Auto Tracking with Your IR Remote Control
The RMC-1AT PTZ Controller is all you need; it allows you to use a remote control to set and control all four cameras and save the four presets.
Wide 60° Field of View
The PTC-145 offers an expansive 60° Field of View, effortlessly capturing all scenes within its frame. This generous field of view ensures that it can encompass and record all the pertinent moments in the given area, delivering comprehensive visual coverage.
H.264/H.265 Video Compression for Streaming
With built-in streaming encoder, the PTC-145 can encode up to 2 simultaneous streams to any cloud service.
Multiple Network Protocol
Support RTSP, RTMPS, SRT, ONVIF, Multicast protocols, easy to stream directly to your desired CDN streaming platform.
Compliant with the ONVIF Profile S Standard
The PTC-145 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.
Power Over Ethernet
The PTC-145 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-145.
FREE PTZ View Assist APP
Control up to four cameras with your Wireless Touch Screen. It can monitor the live streaming video from PTC-145 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus, and IRIS.
- HD Tracking PTZ Camera
- Stunning Full HD Resolution with Auto Tracking
- 20x Optical Zoom, 8x Digital Zoom
- Advanced 3D Noise Reduction Function
- Custom Auto Object Tracking
- Smart PTZ Speed Adaptation
- Wide 60° Field of View
- H.264/H.265 Video Compression for Streaming
- Power over Ethernet
- Remote Control and Preview by Web User Interface
- RMC-1AT PTZ Controller included
| Model Number: | PTC-145 |
| Video Format / Resolution: | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
| Image Sensor: | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels (Approx.): | 2.07 Mega pixels |
| S/N Ratio: | ≥50dB |
| Min. Illumination: | 0.5 Lux @ (F1.8, AGC ON) |
| Electronic Shutter: | 1/30s ~ 1/10000s |
| Zoom Ratio: | 20x Optical Zoom, 8x Digital Zoom |
| Gamma Control: | N/A |
| Iris Control: | Auto / Manual |
| Digital Noise Reductions: | 3D |
| On-Screen Display (OSD): | English, Simplified Chinese |
| White Balance: | Auto, Indoor, Outdoor, Manual, One Push |
| AGC / Gain Control: | Yes |
| HDR / WDR: | N/A |
| Mirror / Flip Image: | Yes |
| Focus Mode: | Auto / Manual |
| Panning / Tilting Range: | Pan: 340° Tilt: +90° to -30° |
| Panning / Tilting Speed: | Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
| Preset: | 255 Positions |
| Focal Length: | f = 5.05mm (wide) to 91.49 mm (tele) F1.8(Wide) ～ F2.9(Tele) |
| Field of View (Horizontal, Wide): | 60° |
| Image Compensation: | Backlight Compensation |

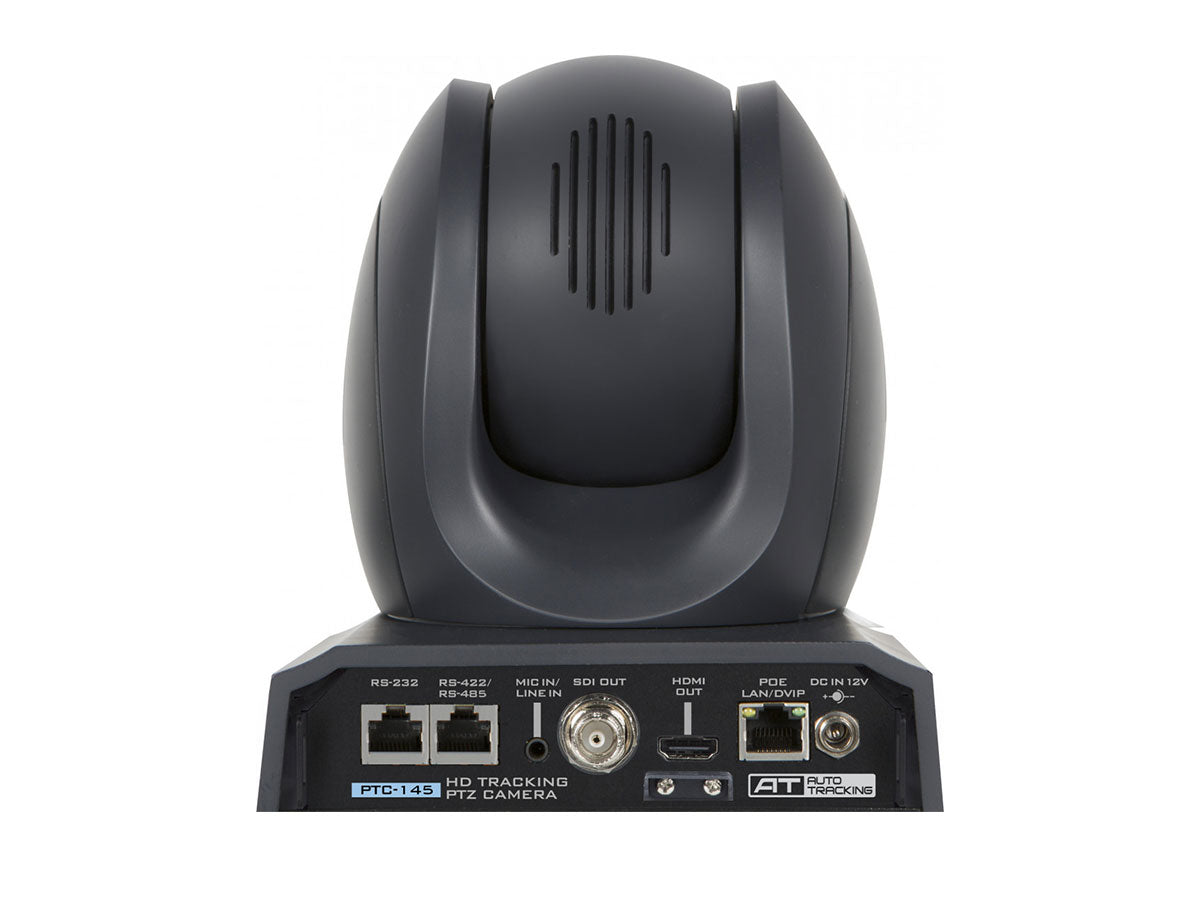

| Video Output: | HDMI x 1 3G-SDI x 1 RJ-45 PoE x1 |
| Audio Input: | 3.5mm Line in |
| Tally LED: | Dual color (Red, Green) |
| Lens Filter: | M52.0 x 0.75 Thread with UV Protection |
| Control Protocol: | Pelco-D, Peldo-P, VISCA, VISCA over IP, DVIP, ONVIF |
| Remote Control Interface: | IR Web GUI RS-422 /RS-232/RS-485 (RJ45) |
| Video Compression Format: | H.264/H.265/MJPEG |
| Audio Compression Format: | AAC, G711 |
| Audio Bitrate: | 96Kbps, 128Kbps, 256Kbps |
| HD IP Interface: | 10/100/1000M (RJ45) |
| Streaming Protocols: | RTSP, RTMP(S), ONVIF, SRT(caller & listener), Multicast |
| First Stream Supported Resolution: | 1920x1080 1280x720 1024x576 960x540 640x480 640x360 |
| Second Stream Supported Resolution: | 720x480 640x480 640x360 320x240 |
| Video Bitrate: | 32Kbps ~ 50Mbps (Single Stream) |
| Video Bitrate Mode: | VBR, CBR |
| Encoding Frame Rate: | 50Hz: 1-50fps 60Hz: 1-60fps |
| PoE: | IEEE 802.3af |
| F/W Update: | Via Web UI |
| IR Control: | Yes |
| Camera Control Unit: | RMC-180 series/ RMC-300 series/ PTZ View Assist APP |
| Tripod Mount: | 1/4-20 UNC |
| Optional Accessories: | WM-1/ WM-10/ WM-11 |
| Colour: | Dark Blue/White |
| Dimensions: | 156 x 184 x 186 mm |
| Weight: | 1.6 kg |
| Operating Temperature Range: | 0~40 °C |
| Power: | DC 12V |
- 1x PTC-145 Unit
- 1x IR remote controller
- 1x Ceiling mount bracket-A
- 1x Ceiling mount bracket -B
- 6x Ceiling mount bracket screw M3*4mm
- 1x DC 12V Power Adaptor
- 1x Power Cord
- 1x Safety cable
