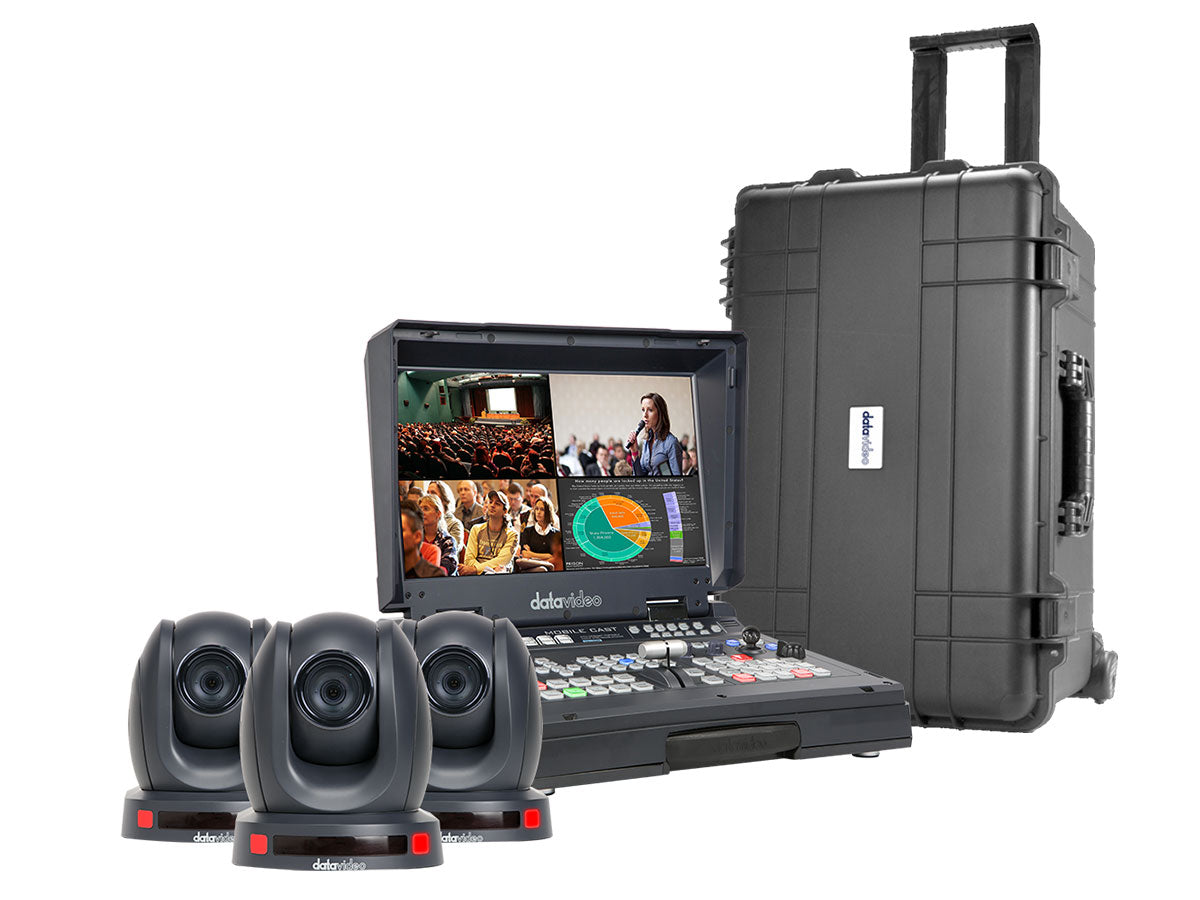

Datavideo Portable Streaming Bundle (1x HS-1600T, 3x PTC-140T and a Sturdy Rolling Case)
Datavideo Portable Streaming Bundle (1x HS-1600T, 3x PTC-140T and a Sturdy Rolling Case)
SKU:
DATA-BDL1601
Regular price
£9,365.00 GBP ex VAT
£11,238.00 GBP inc VAT
£11,238.00 GBP inc VAT
Regular price
ex VAT
Sale price
£9,365.00 GBP ex VAT
£11,238.00 GBP inc VAT
Unit price
per
£11,238.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Experience Seamless Live Production with the BDL-1601 Bundle
Unlock the power of professional-grade live production with Datavideo's BDL-1601 bundle.
BDL-1601 is a complete production ready bundle with three cameras. The beating heart of this bundle is the HS-1600T Mark II, our MobileCast workstation with built in streaming and recording. Three PTC-140T's are included and are perfect for any small to medium sized production. HC-800 is the carrying solution for this bundle, with room for three cameras, extra space for cables* and the HS-1600T power supply. Whether you're a content creator, event organizer, or educator, this bundle is your gateway to seamless, captivating live productions.
*Cables are situation specific and therefore not included. Datavideo recommends using high quality CAT6 cables up to 75 meters.
BDL-1601 includes:
-
1 X HS-1600T MARK II HDBaseT MobileCast
-
3 X PTC-140T HDBaseT PTZ Cameras
-
1 X HC-800 Protective Case
HS-1600T Mark II: The Heartbeat of Live Production
At the core of the BDL-1601 bundle lies the HS-1600T Mark II. This versatile video switcher is an all-in-one live dual video production and streaming solution designed with a single operator in mind. This HDBaseT switcher is designed using single Cat6 cable to provide power, video, camera control and tally lamp, in a compact and portable footprint. Designed to work with the PTC-140T and/or PTC-150TL PTZ cameras.
The HS-1600T Mark II empowers you to create immersive productions that leave a lasting impact on your audience.
PTC-140T: Precision Pan/Tilt Cameras
Introducing the PTC-140T Pan/Tilt cameras - the game-changers for your live productions. With 20x optical zoom and 10x digital zoom, these cameras capture every detail, ensuring that your content stands out. Powered by HDBaseT, the single wire concept transforms the way you set up your production. Simplify your workflow and reduce clutter with a single cable that handles video, control data, and power, all while delivering a stunning 1080P output.
HC-800: Streamlined and Portable
The HC-800 case is the perfect companion to your live production setup. Compact yet robust, it houses your entire live production station, making setup and transportation a breeze.
-
Heavy duty case made from super strong polypropylene.
-
Shock proof, vibration proof, dust proof and rust proof.
-
Sealed for moisture protection.
-
Handy pull-out handle and wheels for easy transporting.
-
Laser cut foam inlay that precisely fits three PTC-140T cameras including cables and the HS-1600T power supply.
- HS-1600T, three PTC-140T's and a sturdy rolling case for transport
- Kit Includes:
- 1x HS-1600T MARK II HDBaseT MobileCast
- 3x PTC-140T HDBaseT PTZ Cameras
- 1x HC-800 Protective Case
| HS-1600T MARK II | |
| Video Standard: | HD & SD |
| Video Format: | 1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz 576i/p 50Hz 480i/p 59.94Hz |
| Input Routable / Crosspoint: | ---- |
| Video Input: | 3 x HDBaseT 1 x HDMI |
| Computer Graphic Interface: | 1 via HDMI |
| Down-Converted Output: | Yes |
| Video Output: | 3x HDMI PGM 1x HDBaseT PGM 1x STREAM (RJ-45) |
| Analogue Audio Input: | 2x Balanced XLR 1x Stereo RCA (L/R) De-embedded Digital Audio |
| Analogue Audio Output: | 1x Stereo headphone |
| Digital Embedded Audio Support: | Input 2 channels, Output 2 channels |
| Audio Delay Calibration: | ---- |
| A+V Switching: | ---- |
| USK: | 1x USK support Lumakey |
| DSK: | ---- |
| Picture in Picture: | 1 |
| Logo Insertion: | ---- |
| Title Creator: | ---- |
| Built-In Audio Mixer: | Yes, 4 channels |
| Built-In Monitor Display: | 17.3” HD TFT LED backlit, 1920x1080 pix |
| Built-In Intercom & Tally: | ---- |
| Streaming: | H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps |
| Streaming Audio Encode: | AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit |
| Streaming Protocol: | TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP/RTMPS (Publish) HLS SRT |
| Streaming control: | Web browser UI for configuration and control Socket commands |
| Recording File System: | FAT, exFAT, NTFS |
| Recording File Format: | MP4 |
| Streaming & Recording Setting Control: | Web UI for system configuration and control |
| Special Features: | Built-in camera controller |
| Dimensions: | 455 x 355 x 134 mm |
| Weight: | 17.2 Lbs (7.8 kg), Reinforce Plastic Case |
| Power: | DC 48V, 4.16A |
| Operating Temperature Range: | 0~40 °C |
| PTC-140T | |
| Video Format / Resolution: | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
| Image Sensor: | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels: | 2.07 Mega pixels |
| S/N Ratio: | >55dB |
| Min. Illumination: | 0.5Lux (F1.8, AGC ON) |
| Electronic Shutter: | Auto / Manual |
| Zoom Ratio: | 20x Optical Zoom, 10x Digital Zoom |
| Gamma Control: | Off / Normal |
| Iris Control: | Auto / Manual |
| Digital Noise Reductions: | Yes |
| On-Screen Display (OSD): | English/Simplified Chinese/Traditional Chinese |
| White Balance: | Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
| AGC / Gain Control: | Auto / Manual |
| Mirror / Flip Image: | Yes |
| Focus Mode: | Auto / Manual |
| Panning / Tilting Range: | Pan: 340° , Tilt: +90° to -30° |
| Panning / Tilting Speed: | Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
| Preset: | 255 Position |
| Focal Length: | f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5 |
| Field of View (Horizontal, Wide): | Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
| Image Compensation: | Backlight Compensation |
| Video Output: | HDBaseT (PoE) x1 RJ-45 x1 |
| Audio Input: | 3.5mm Line in |
| Tally LED: | Dual color (Red, Green) |
| Lens Filter: | M52.0 x 0.75 Thread with UV Protection |
| Control Protocol: | VISCA, Pelco-D, Pelco-P, DVIP |
| Remote Control Interface: | IR Web GUI RS-422 DVIP HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m |
| Video Compression Format: | H.264, H.265, Dual stream output |
| Audio Compression Format: | AAC/MP3/G.711A Audio compression |
| Audio Bitrate: | 96Kbps, 128Kbps, 256Kbps |
| HD IP Interface: | 100M IP port(100BASE-TX); Support DVIP |
| Streaming Protocols: | RTSP, RTMP(S), Onvif, Multicast, SRT |
| First Stream Supported Resolution: | ---- |
| Second Streamin Supported Resolution: | ---- |
| Video Bitrate: | ---- |
| Video Bitrate Mode: | ---- |
| Encoding Frame Rate: | ---- |
| POE: | ---- |
| F/W Update: | Ethernet |
| IR Control: | Yes |
| Camera Control Unit: | HS-1500T/HS-1600T series/RMC-180 series/RMC-300 series/PTZ View Assist APP |
| Tripod Mount: | 1/4-20 UNC |
| Optional Accessories: | WM-1/ WM-10/ WM-11 |
| Colour: | Dark Blue/White |
| Dimensions: | 156 x 184 x 186mm |
| Weight: | 1.6 kg |
| Operating Temperature Range: | 0~40 °C |
| Power: | DC 12V 12W |
- 1x HS-1600T MARK II HDBaseT MobileCast
- 3x PTC-140T HDBaseT PTZ Cameras
- 1x HC-800 Protective Case
