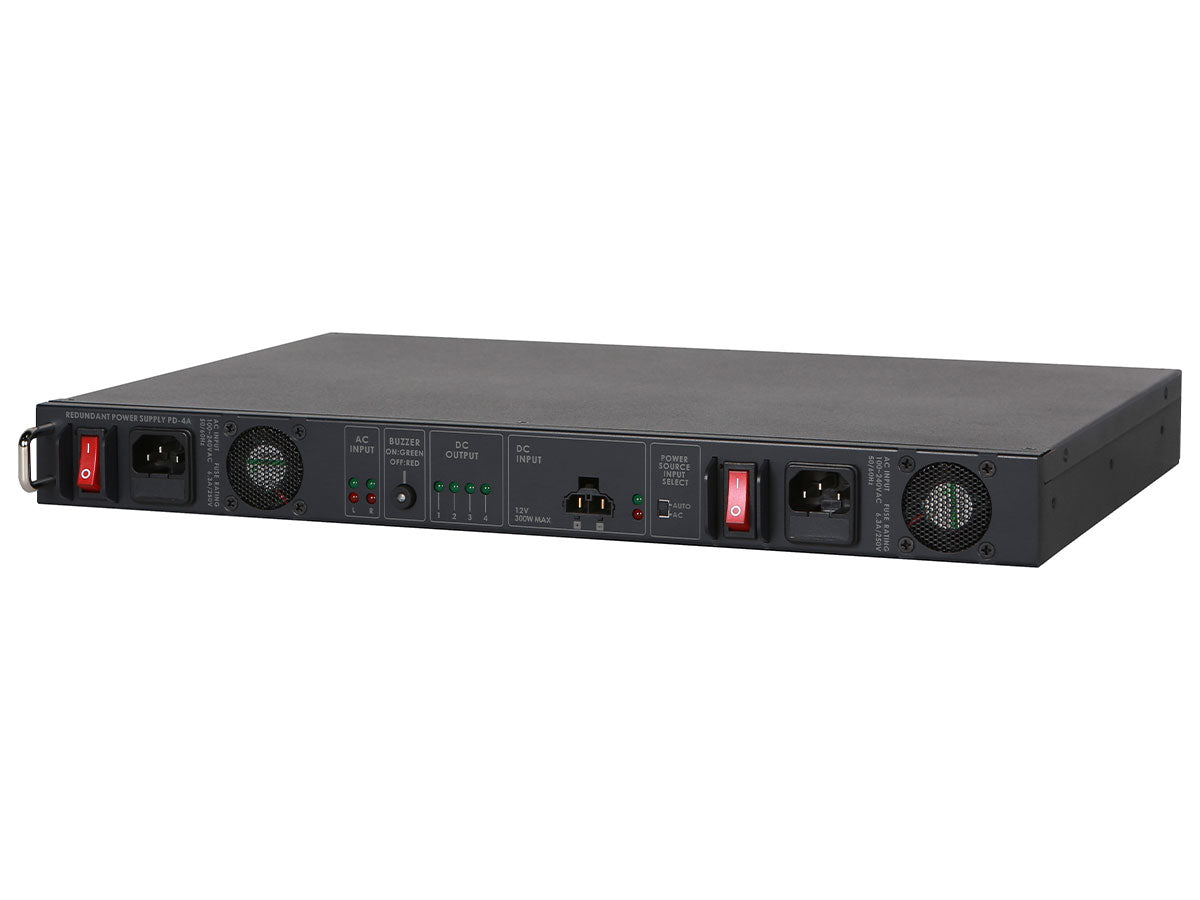

PD-4A 1U Redundant Power Distribution System is designed to provide a steady power supply for studio equipment, such as the video switcher, monitors, recorders and intercom system.
It Features auto-switchable inputs of AC 110V/220, a UPS interface and DC 12V ports.
PD-2 has 4 12V/3A terminals, Two 12V/5A Terminals two 12V/10A terminals (Shared) and XLR DC outputs. IT provides up to 400 Watts.
- Ideal for any installed or Mobile Studio

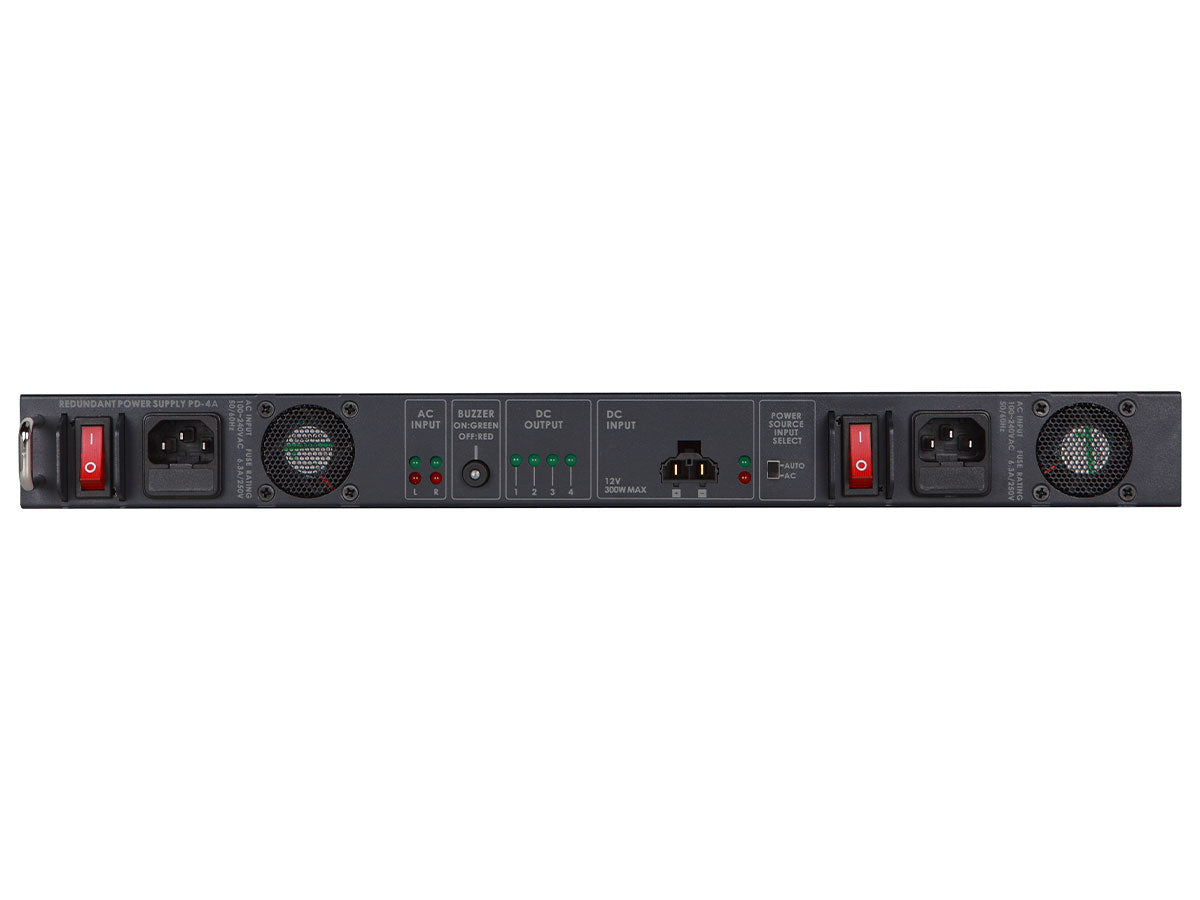

- Input Connections
- - AC: 100-240V AC Max 6.3A, 50Hz or 60Hz (2x AC Input w/ Power Switch)
- - DC: 12V 300W

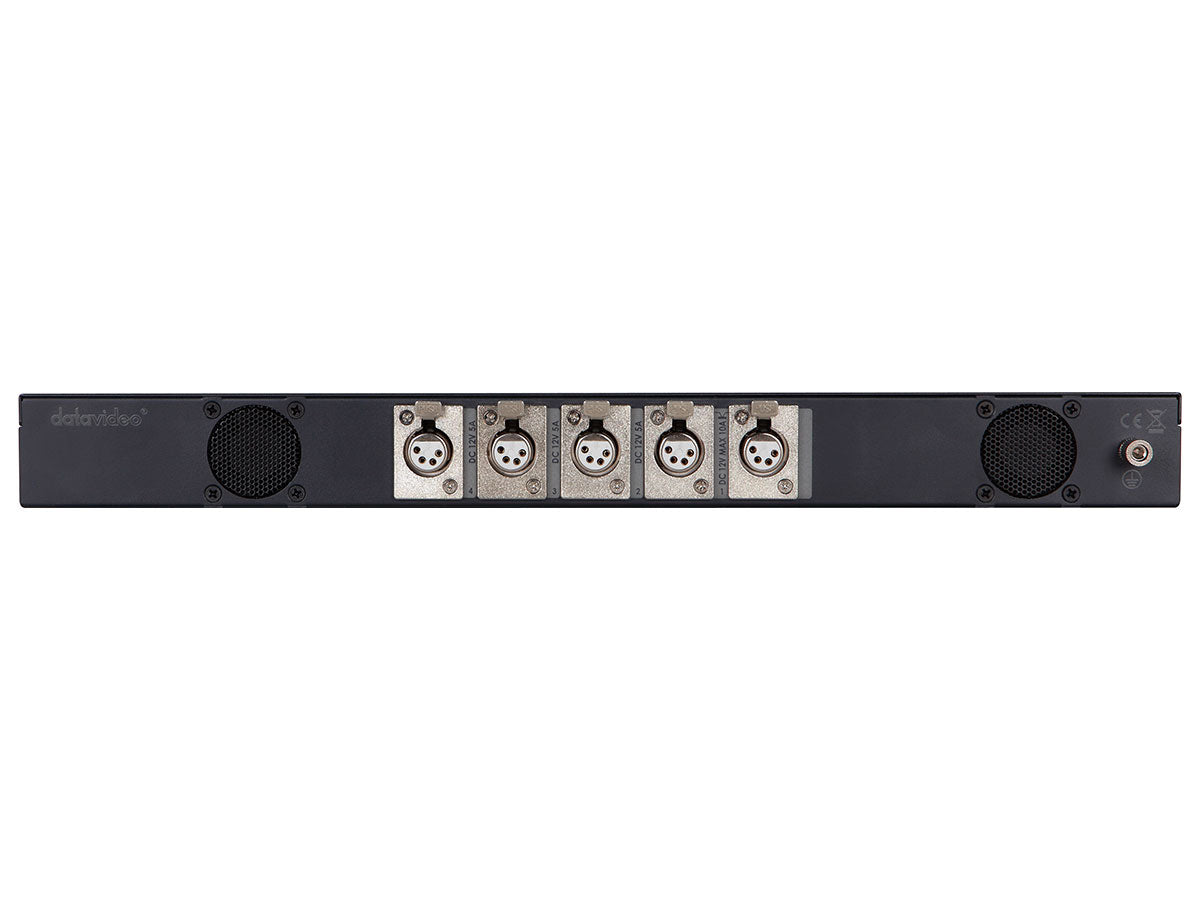

- Output Connections
- - x3 12v 5A XLR DC Female
- - x2 12v 10A XLR DC Female
- Redundant Power - With two AC power supplies, the PD-4 will still supply energy to your devices, even if one power source fails.
- Built-in time delay power-on control to initiate each DC output termal in sequence
- 19" 1U rack size
| Model Number: | PD-4A |
| AC Input: | 100~240 VAC (50Hz or 60Hz) AC input outlet: Two AC inputs & Two Power Switches |
| DC Backup Input: | One DC 12V/25A supports non-regulated DC 12V output |
| DC Output: | 5 12V±5%, 5A XLR DC Female Jack x3 12V±5%, 10A XLR DC Female Jack x1 (share of two XLR DC Jack) |
| Max. Power Rating: | 360W |
| DC Overload: | DC overload protection, auto-recovery fuses on each DC output terminal |
| AC Overload: | Non-recovery fuse on the AC input outlet |
| LED Indicator: | Green LED: Unit under working condition Red twinkle: AC Input failed 1~4 XLR DC outputs LED indicator |
| Power Source Input: | Selectable of Auto/AC input switch |
| Dimensions (LxWxH): | 484 x 300 x 49 mm |
| Weight: | 6.1 kg |
| Power: | AC 100-240 VAC DC 12V 300W |
| Operating Temperature Range: | 0~40 °C |
- 1 x PD-4A product
- 1 x AC CORD
