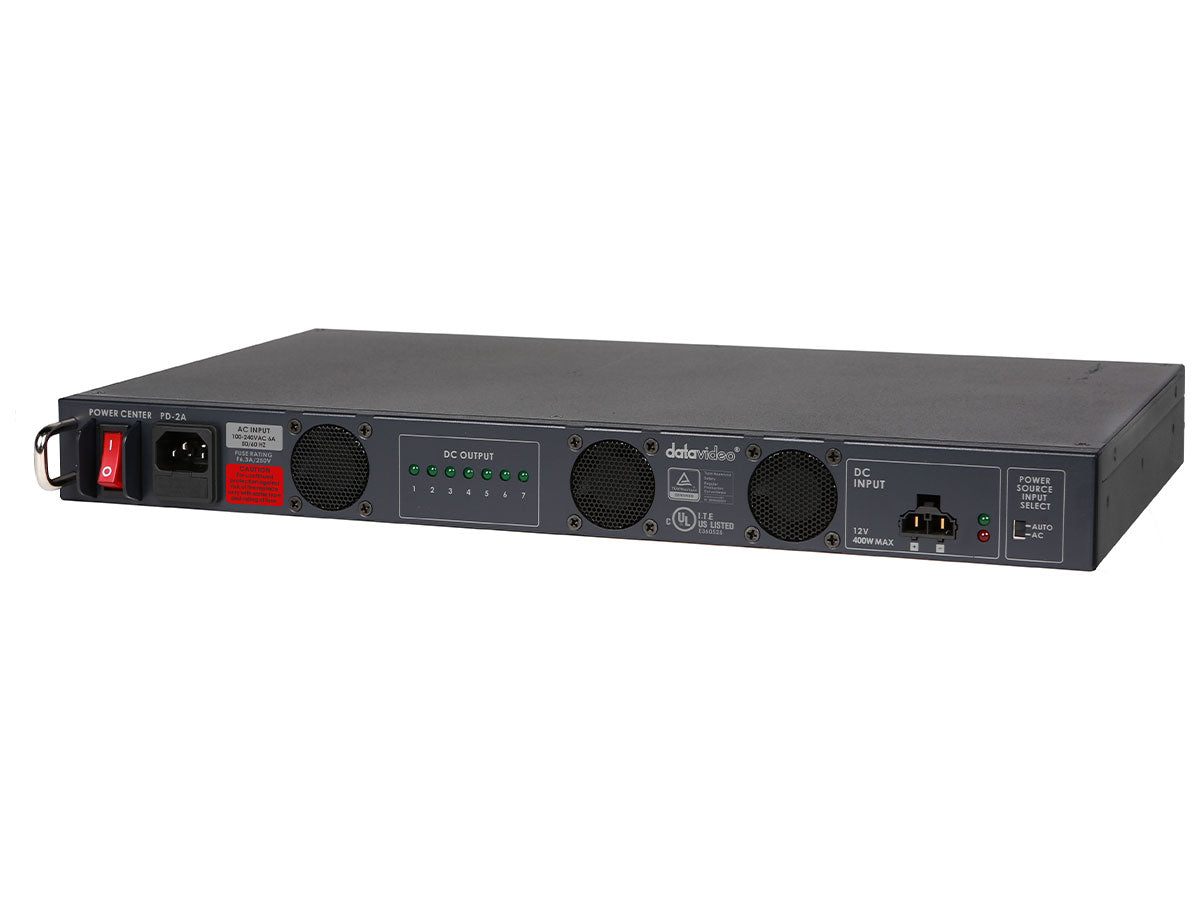

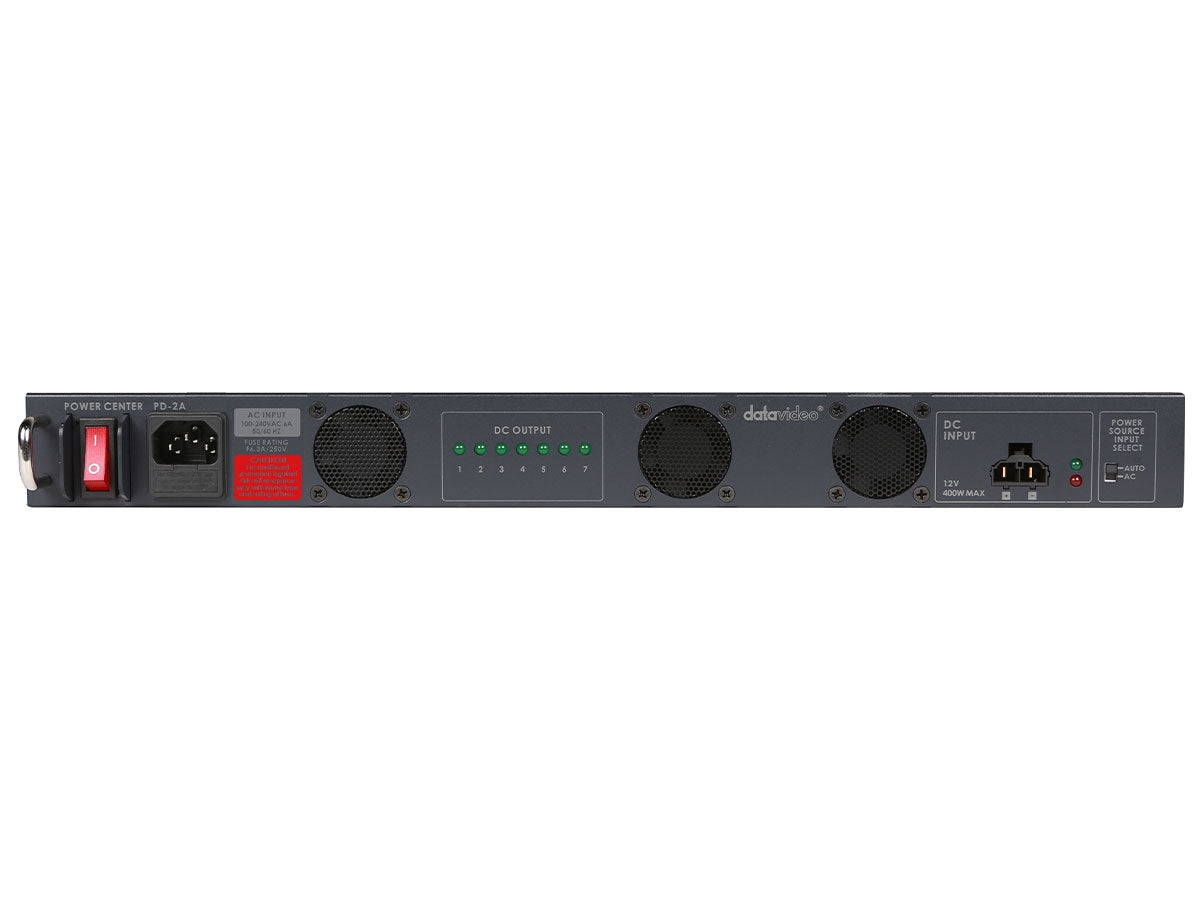

Datavideo PD-2A Power Center
Datavideo PD-2A Power Center
SKU:
DATA-PD2A
Regular price
£909.90 GBP ex VAT
£1,091.88 GBP inc VAT
£1,091.88 GBP inc VAT
Regular price
ex VAT
Sale price
£909.90 GBP ex VAT
£1,091.88 GBP inc VAT
Unit price
per
£1,091.88 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
PD-2 400 watts 1RU 19" rack Power Distribution Center is designed to provide a steady power supply for studio equipment, such as the video switcher, monitors, recorders and intercom system.
It features auto-switchable inputs of AC 110/220, a UPS interface and DC 12V ports.
PD-2 has 4 12V/3A terminals, two 12V/5A terminals, two 12V/10A terminals (shared) and XLR DC outputs. It provides up to 400 Watts.
- 400 watt rated power supply (compared with PD-1's 300w)
- Input connections:
- AC: 100-240V AC Max 6.3 A, 50Hz or 60HZ
- DC: 12V 400W
- Output connections:

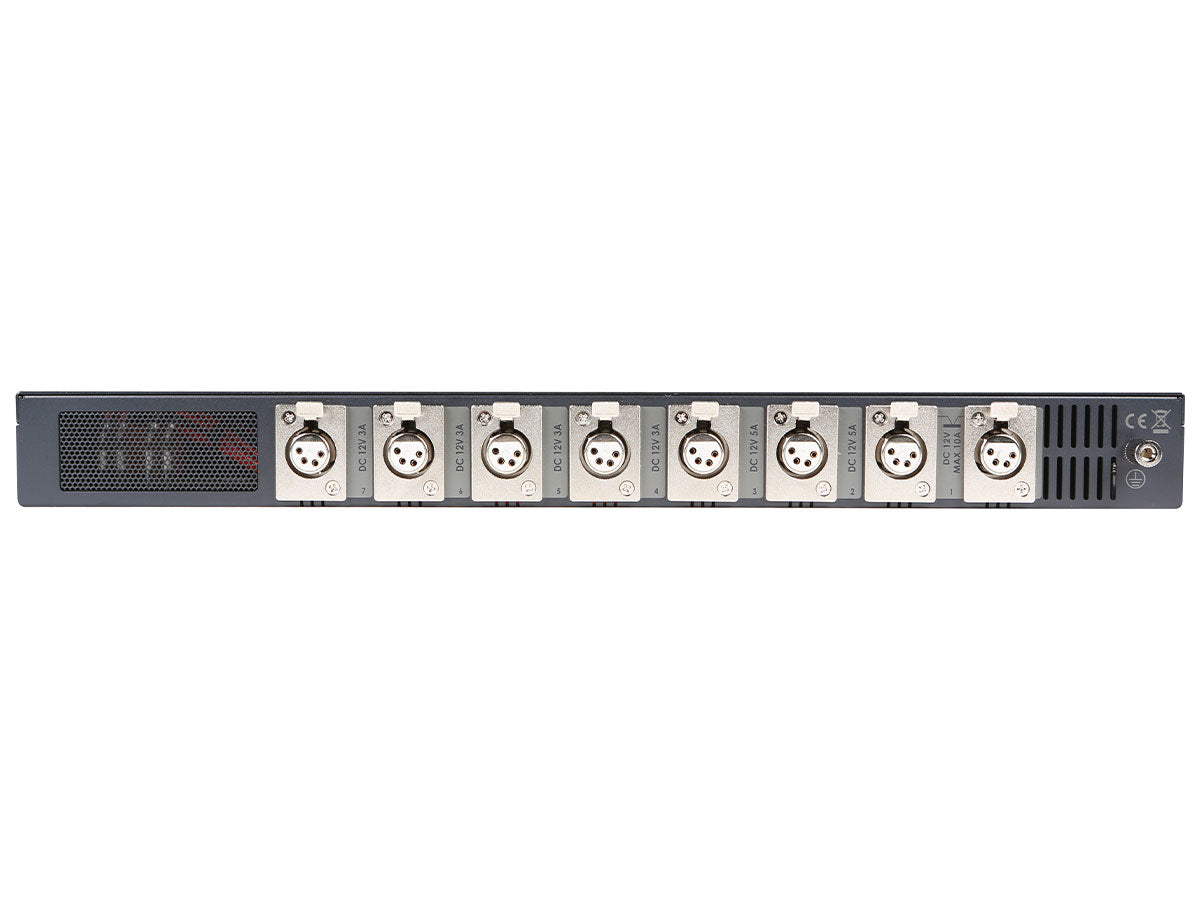

- 4 x 12V DC 3A XLR
- 2 x 12V DC 5A XLR
- 2 x 12V DC 10A XLR
- Combine up-to 10 mains power supplies into a single convenient power connection
| Model Number: | PD-2A |
| AC Input: | 100~240 VAC (50Hz or 60Hz) AC input outlet: One AC input with Power Switch |
| DC Backup Input: | One DC 12V/32A supports non-regulated DC 12V output |
| DC Output: | 8 12V±5%, 3A XLR DC Female Jack x4 12V±5%, 5A XLR DC Female Jack x2 12V±5%, 10A XLR DC Female Jack x2 |
| Max. Power Rating: | 400W |
| DC Overload: | DC overload protection, auto-recovery fuses on each DC output terminal |
| AC Overload: | Non-recovery fuse on the AC input outlet |
| LED Indicator: | 8 DC output LED indicators |
| Power Source Input: | Selectable of Auto/AC input switch |
| Dimensions (LxWxH): | 484 x 217 x 49 mm |
| Weight: | 4.6 kg |
| Power: | AC 100-240 VAC DC 12V 400W |
| Operating Temperature Range: | 0~40 °C |
- 1 x PD-2A
- 1 x AC CORD
