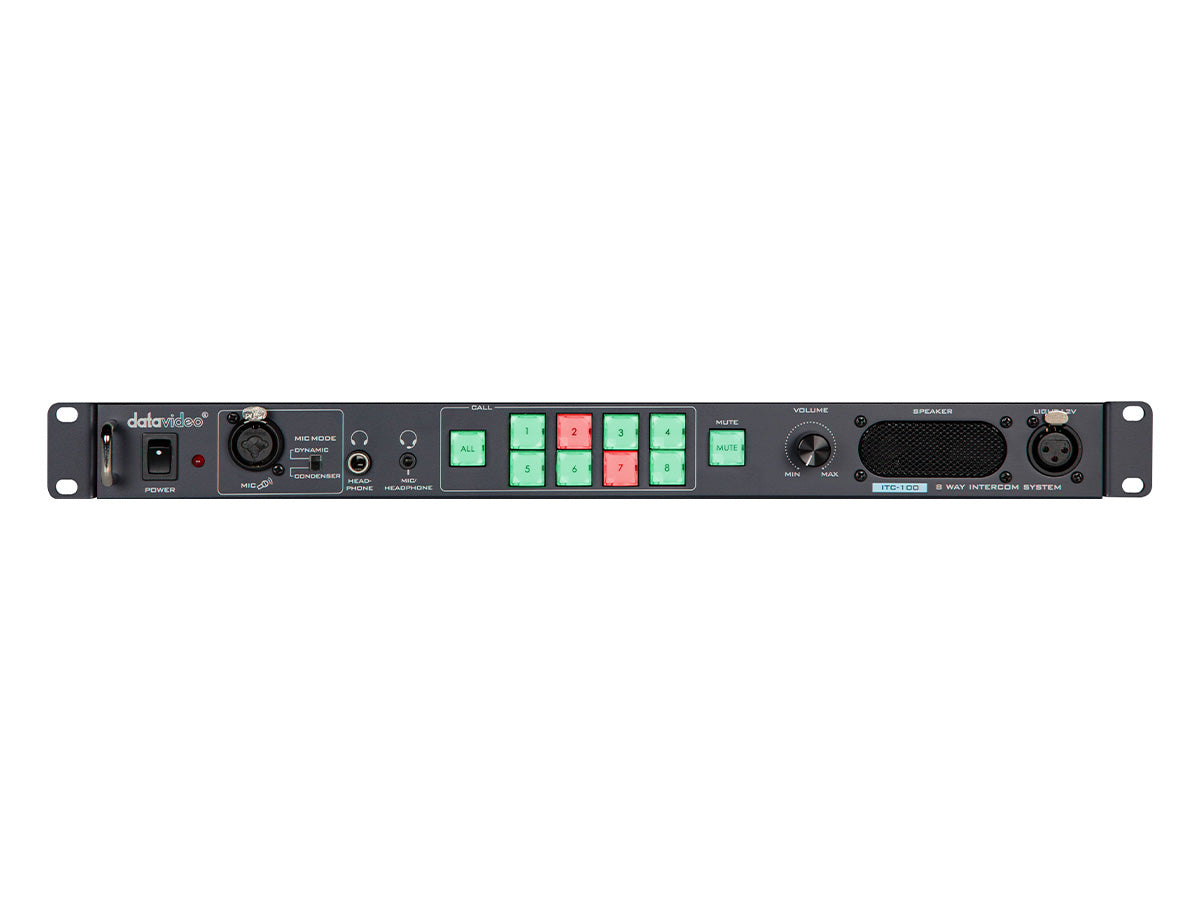

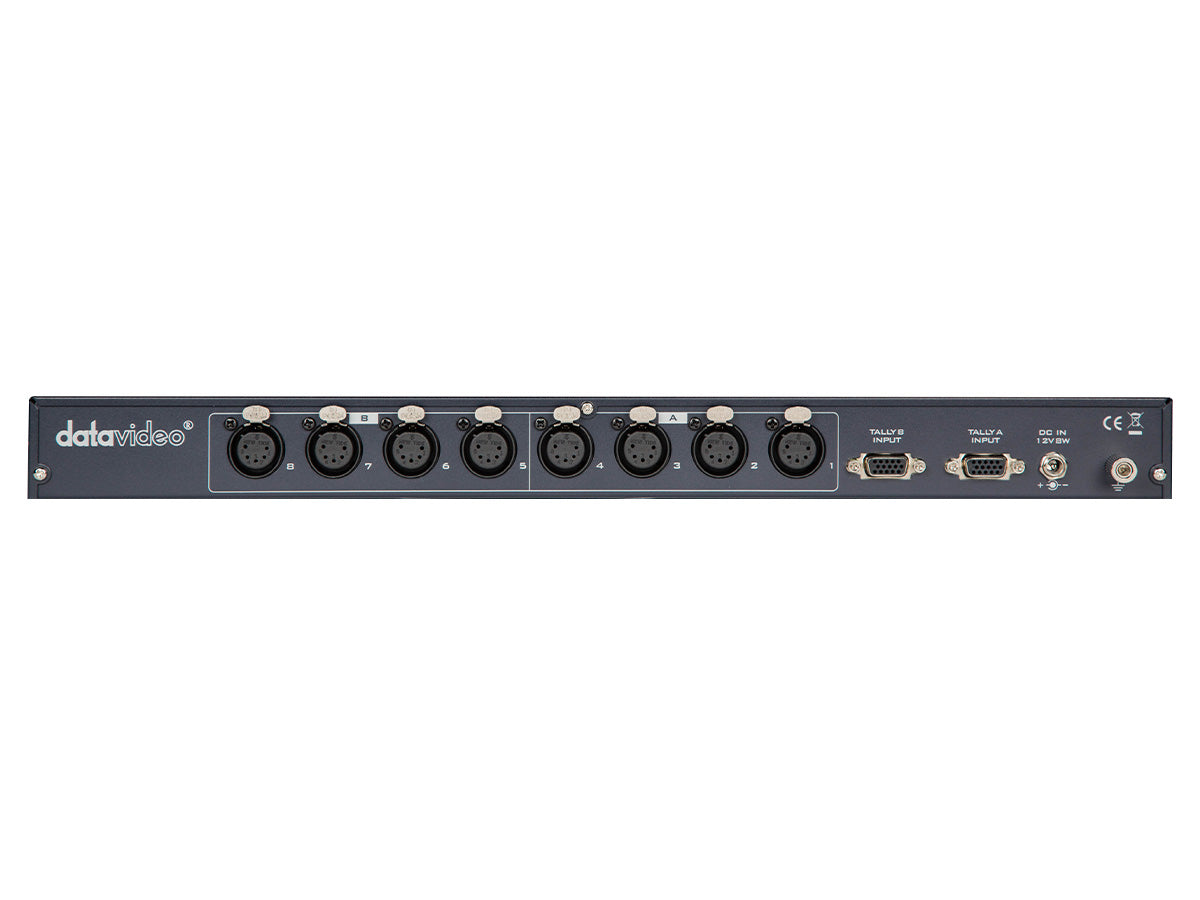

Datavideo ITC-100 Intercom System
Datavideo ITC-100 Intercom System
SKU:
DATA-ITC100
Regular price
£1,057.50 GBP ex VAT
£1,269.00 GBP inc VAT
£1,269.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,057.50 GBP ex VAT
£1,269.00 GBP inc VAT
Unit price
per
£1,269.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
In the production studio, good communication between the director, cameraman, lighting and control room is essential to produce a polished end result.
The Datavideo ITC-100 Intercom System provides 8-Way talkback and tally indicators. The director can select to talk to an individual channel or to all channels simultaneously.
The ITC-100 is a standard 19" 1U rack design, so it is easy to integrate into any rack system for using in the field or studio.
- Industry Standard 19" 1U rack design, for easy integration
- Supports 8-Way Intercom
- Additional external earphone and microphone interface
- Bi-colour tally light indicator *
- Selectable channel talk, broadcast to all or mute.
- Half-Duplex design for ITC-100SL to eliminate the environmental noise
- Enables communication between the camera crew
- Communication distance up to 200 meters
- Supplied complete with Gooseneck Microphone and Light
| Model Number: | ITC-100 |
| Tally: | 2 x 15 Pin DSub Sockets for Tally A and B |
| Mic / Headset: | 3.5 mm Stereo Jack Socket for Headphone / Microphone combination Headset Impedance 8-600 Ohms 100 mW (min) |
| Headphone: | ¼” (6.3mm) Stereo Headphone Socket Headset Impedance 8-600 Ohms 100 mW (min) |
| Light Socket (DC 12 V): | 3 PIN XLR Connector PIN 2: 12V PIN 3: GND Light Power Consumption: 12 V / 100 mA (MAX.) |
| Microphone: | 3 PIN XLR / ¼” (6.3mm) Jack Microphone Socket Switchable Condenser / Dynamic Input Microphone Level -67 dB |
| Frequency Response: | 550-3.6 kHz, <+/- 3dB |
| THD: | < 3% |
| S/N: | > 50dB |
| Built-In Speaker: | 70mm x 30mm 32 Ohm 3 Watts |
| Operating Range: | Up to 200 meters between base station and slave |
| Operating Temperature Range: | 0~40 °C |
| Dimensions: | 482 x 127 x 46 mm |
| Weight: | 1.9 kg |
| Power: | DC 12V, 8W |

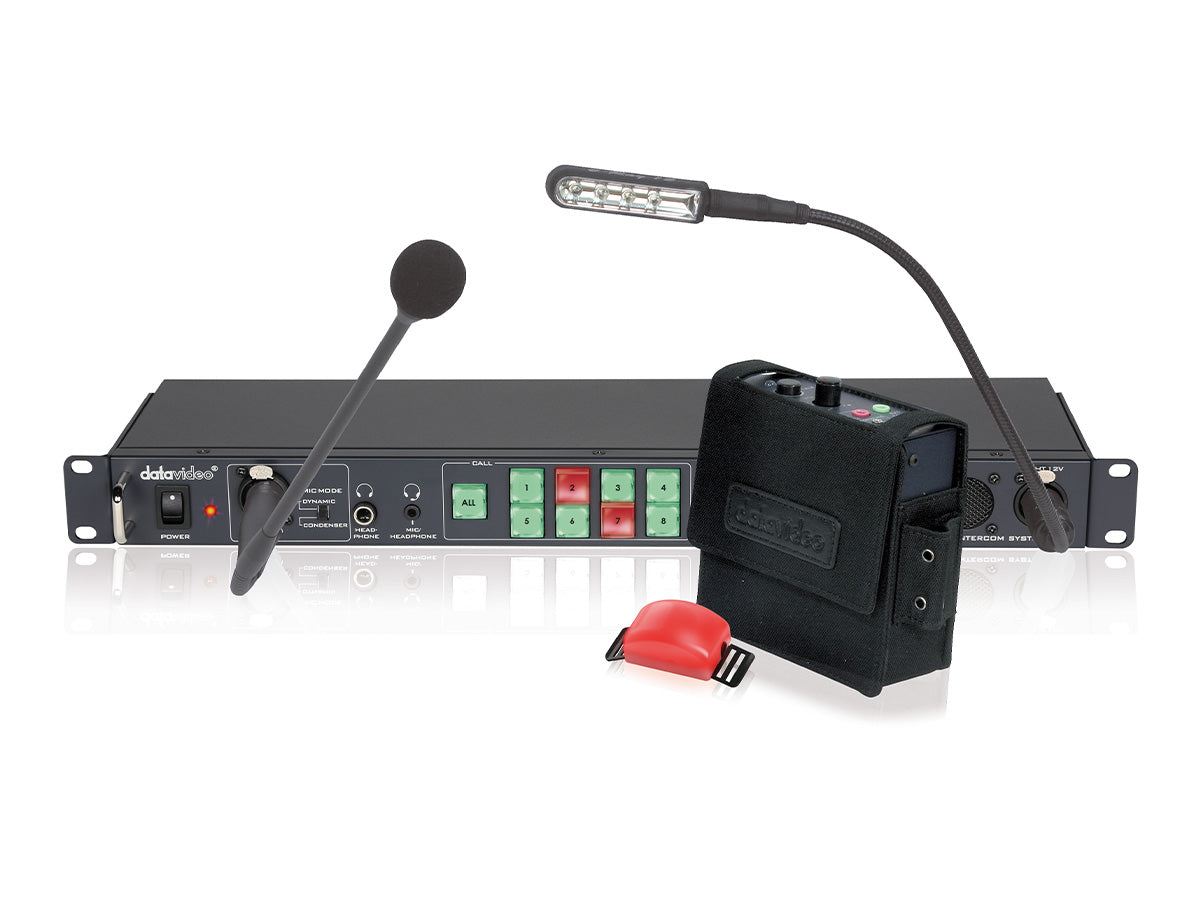

- 1 x ITC-100 Base Unit
- 4 x ITC-100SL Belt Pack
- 4 x ITC-100SL Carry Case
- 4 x Cable 5piin XLR to XLR
- 4 x 3.5mm Jack to 3.5mm Jack Cable
- 4 x Headset with microphone
- 4 x Tally LED Indicator
- 1 x XLR Gooseneck Microphone
- 1 x XLR Gooseneck Light
- 1 x 12V 1A Power Supply Unit
