Datavideo HDR-80 ProRes Video Recorder
Datavideo HDR-80 ProRes Video Recorder
SKU:
DATA-HDR80
Regular price
£2,157.30 GBP ex VAT
£2,588.76 GBP inc VAT
£2,588.76 GBP inc VAT
Regular price
ex VAT
Sale price
£2,157.30 GBP ex VAT
£2,588.76 GBP inc VAT
Unit price
per
£2,588.76 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications

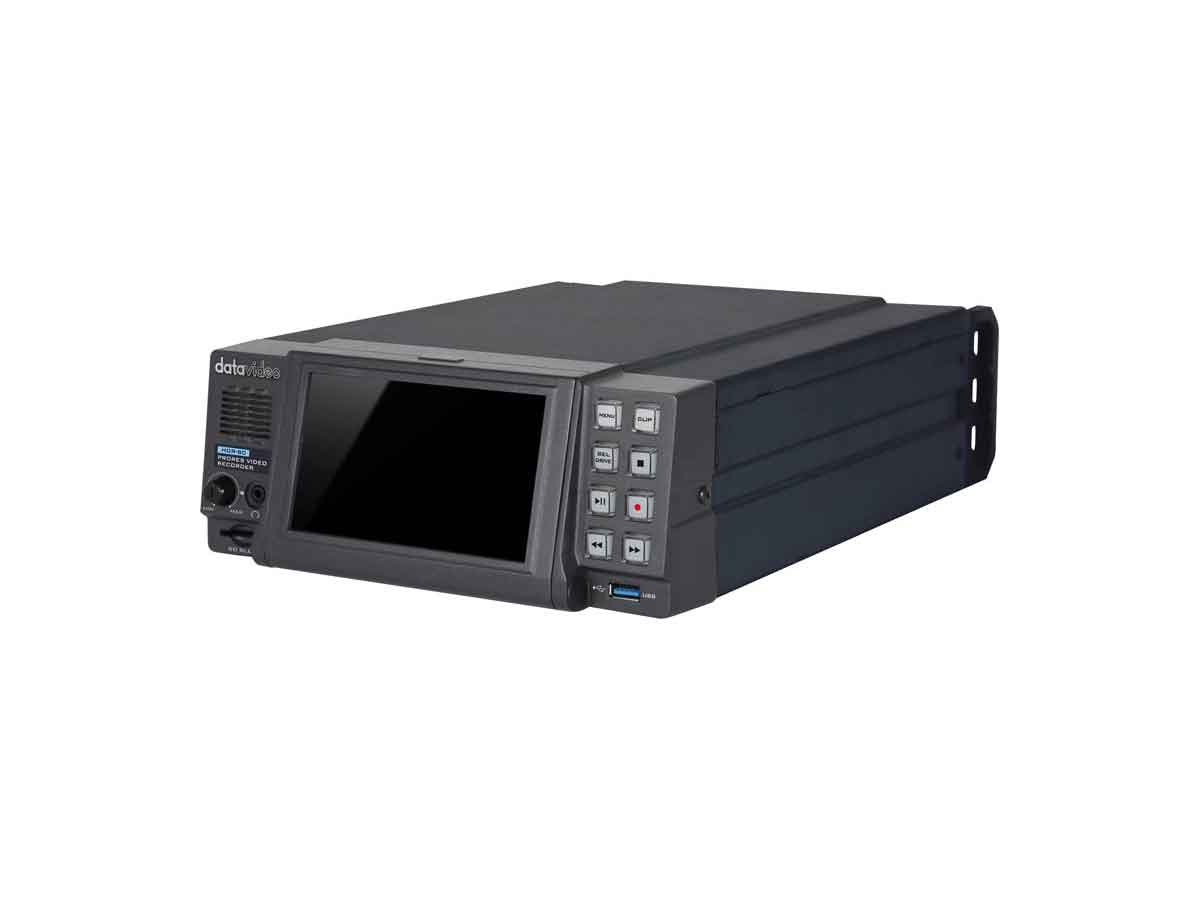

The HDR-80 is Datavideo’s newly designed dual 2.5-inch hard disk recorder. The device has a built-in 5-inch touch screen, allowing you to easily configure parameters and view the video. 3G-SDI and HDMI inputs utilize the ProRes video compression technique to provide superior video quality.
The HDR-80 offers close caption function. Subtitles can be saved as a separate file on the disk for quick post-editing. Audio input can be embedded into video for output playback thus making HDR-80 the device for live event broadcast. Control interface includes DVIP (Ethernet), GPI and RS-232, which are adaptable in all environments.
- ProRes Video Recorder

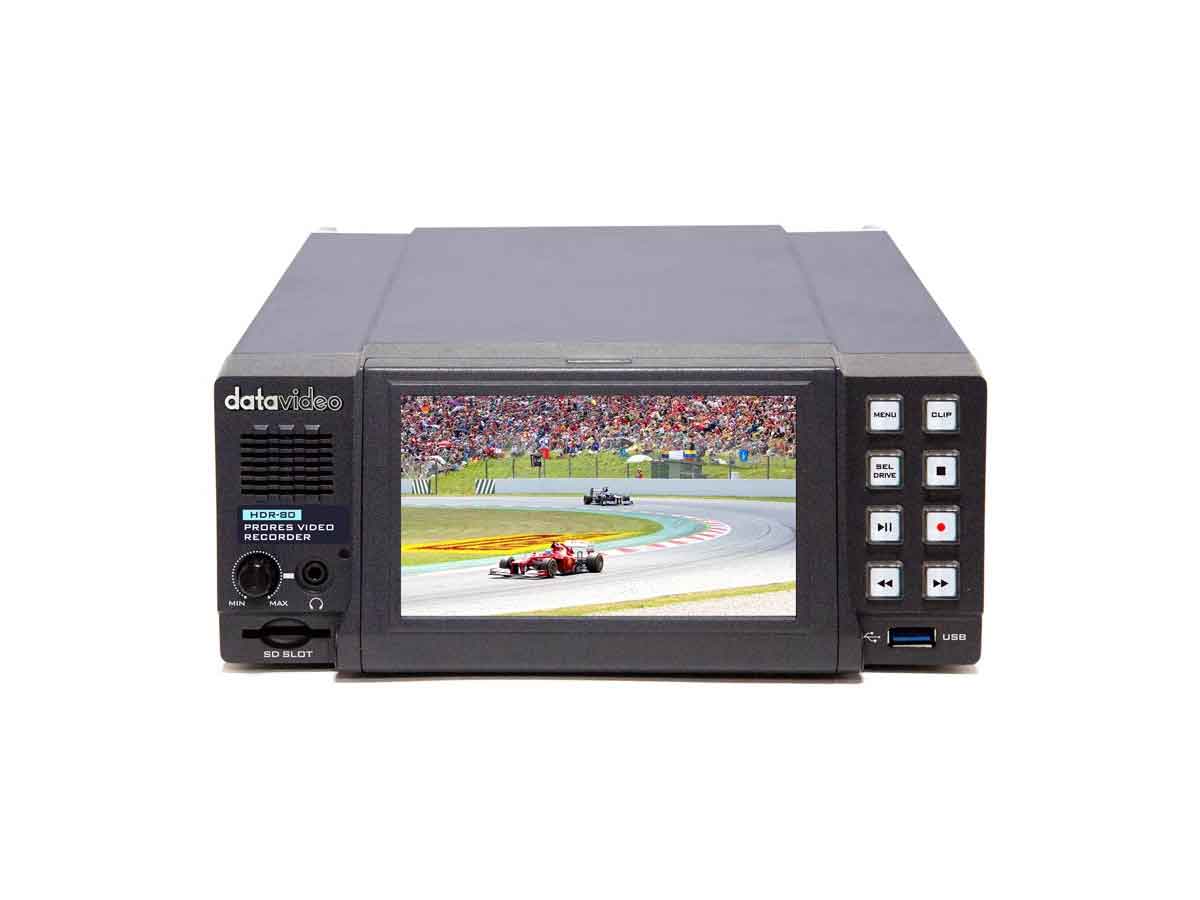

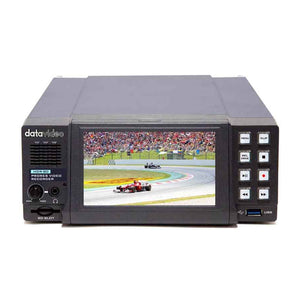

- 5-inch LCD touch screen for operation and monitoring live recording status
- 3G/HD/SD-SDI and HDMI input and output with audio embedding
- Multiple ProRes video compression techniques for recording (ProRes 422 Proxy, ProRes 422 LT, ProRes 422, ProRes 422 HQ) with superior 10-bit 4:2:2 image quality
- Dual 2.5" SSD storage so there is always more than enough for long hour recording

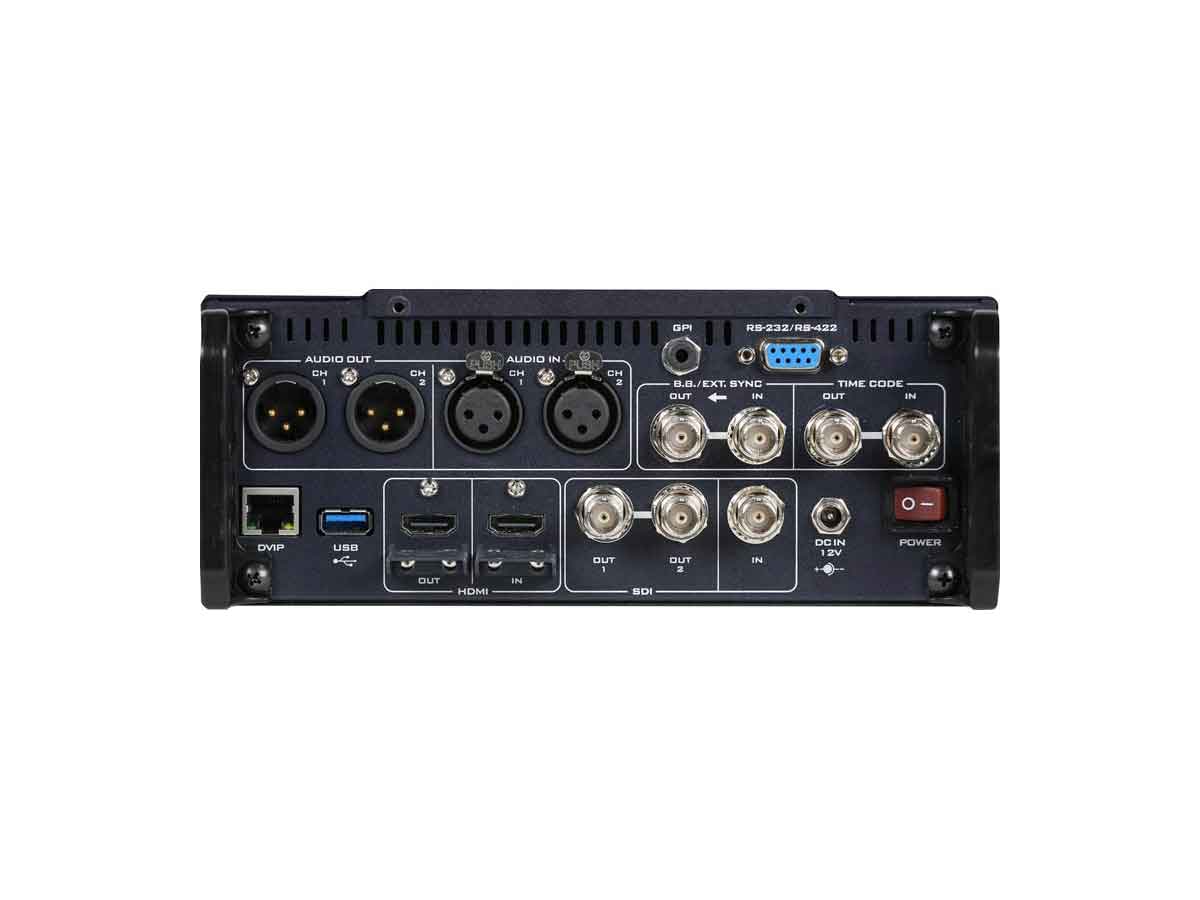

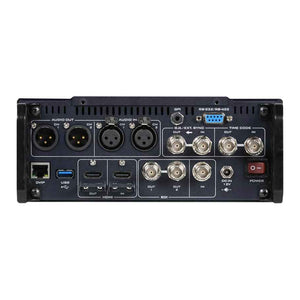

- Video input: 1 x 3G-SDI, 1 x HDMI
- Video output: 2 x 3G-SDI (one loop thru), 1 x HDMI
- Audio input: 2 x XLR Analogue
- Audio output: 2 x XLR Analogue
- Control interface includes DVIP (Ethernet), GPI and RS-232, which are adaptable in all environments
- Provides time code as well as black burst and tri-level sync signals
- Close caption function allowing the subtitle to be saved separately as meta data in .mov file format
- Video Standard: HD & SD
- Video Format: 1080p 23.97/24/25/29.97/30/50/59.94/60Hz | 1080i 50/59.94/60Hz | 720p 50/59.94/60Hz
- Supported Video Input Signal: 1 x SDI | 1 x HDMI
- Monitoring / Playback output: 1 x SDI | 1 x SDI Loop Out | 1 x HDMI
- Analogue Audio Input & Audio Output: 2 x Balanced XLR (Stereo pair)
- Embedded Audio: SDI Input / Output (8CH) | HDMI Input / Output (2CH)
- Storage Medium: 2.5” SSD, USB Flash Drive, SD Card
- Estimated Record Time (min per 10GB): SD: 90 (Proxy), 39 (LT), 27 (Standard), 18 (HQ) | HD: 27 (Proxy), 11.5 (LT), 8 (Standard), 5.5 (HQ) | 3G: 13 (Proxy), 6 (LT), 4 (Standard), 2.5 (HQ)
- Recording Media: Removable SSD,USB, SD Card
- Storage File System: exFAT
- Recorded File Format: QuickTime | .MOV
- Video Recording Bit Rate / Colour Sampling: ProRes HQ 4:2:2 | ProRes Standard 4:2:2 | ProRes LT 4:2:2 | ProRes Proxy 4:2:2
- Audio Recording Format: Uncompressed PCM | Sampling rate 48KHz 24bit
- Time code in/out: Yes
- External Sync/ Genlock: Black Burst & Tri-level with loop thru
