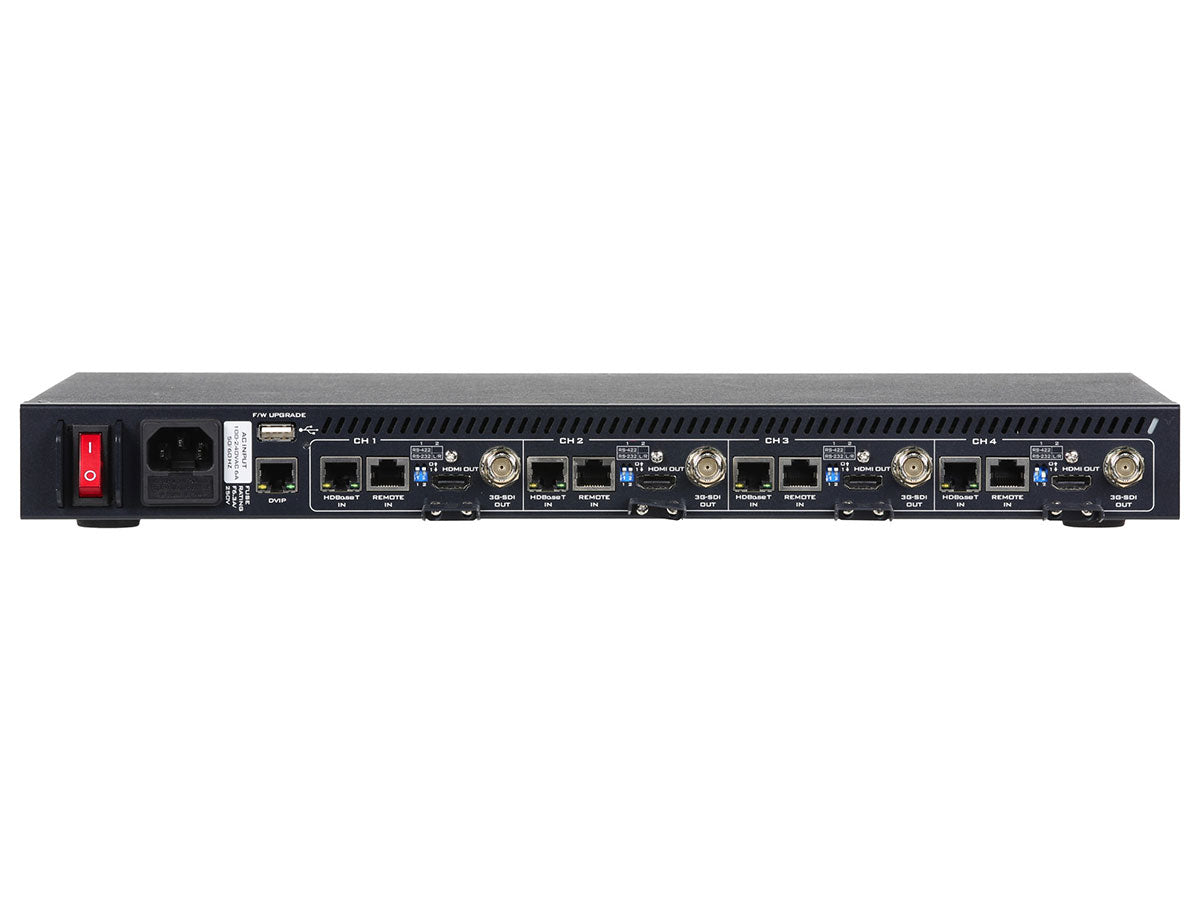

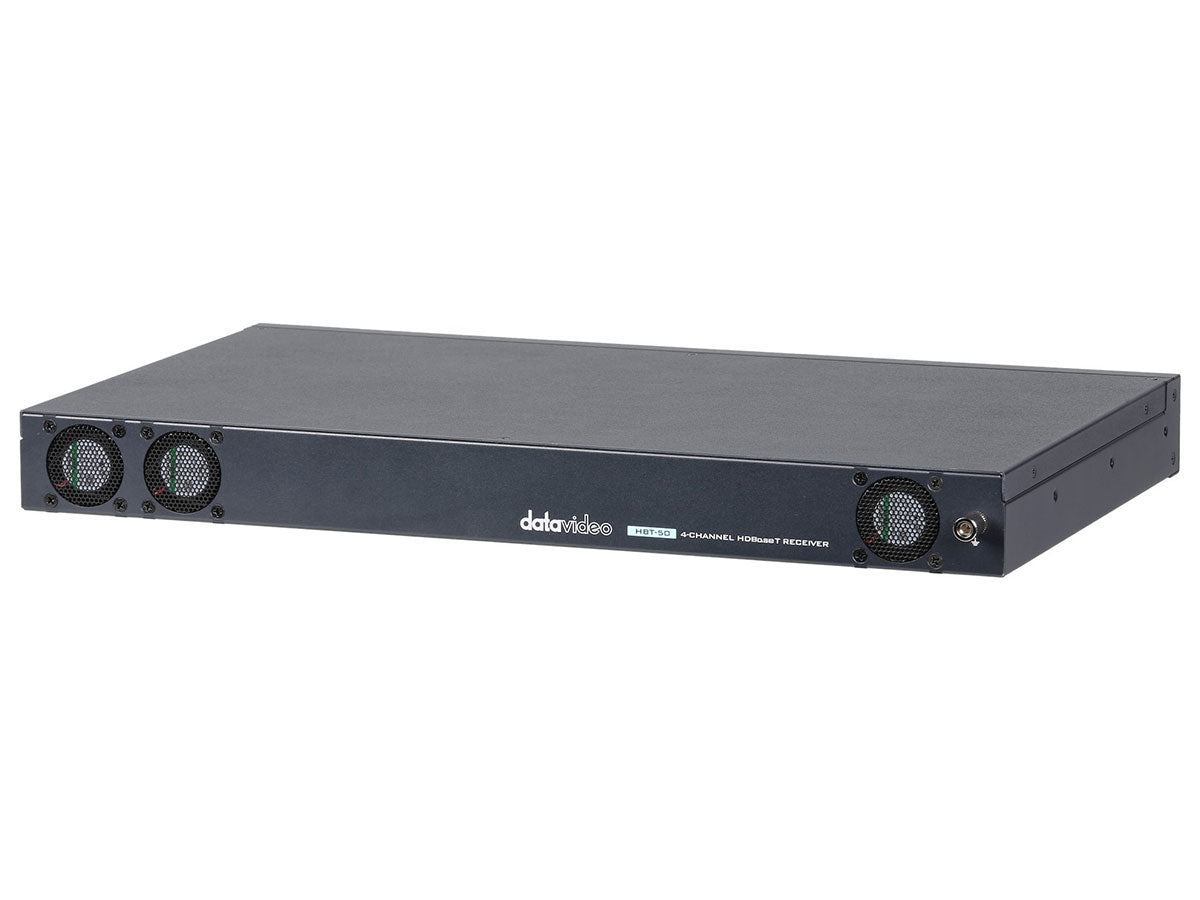

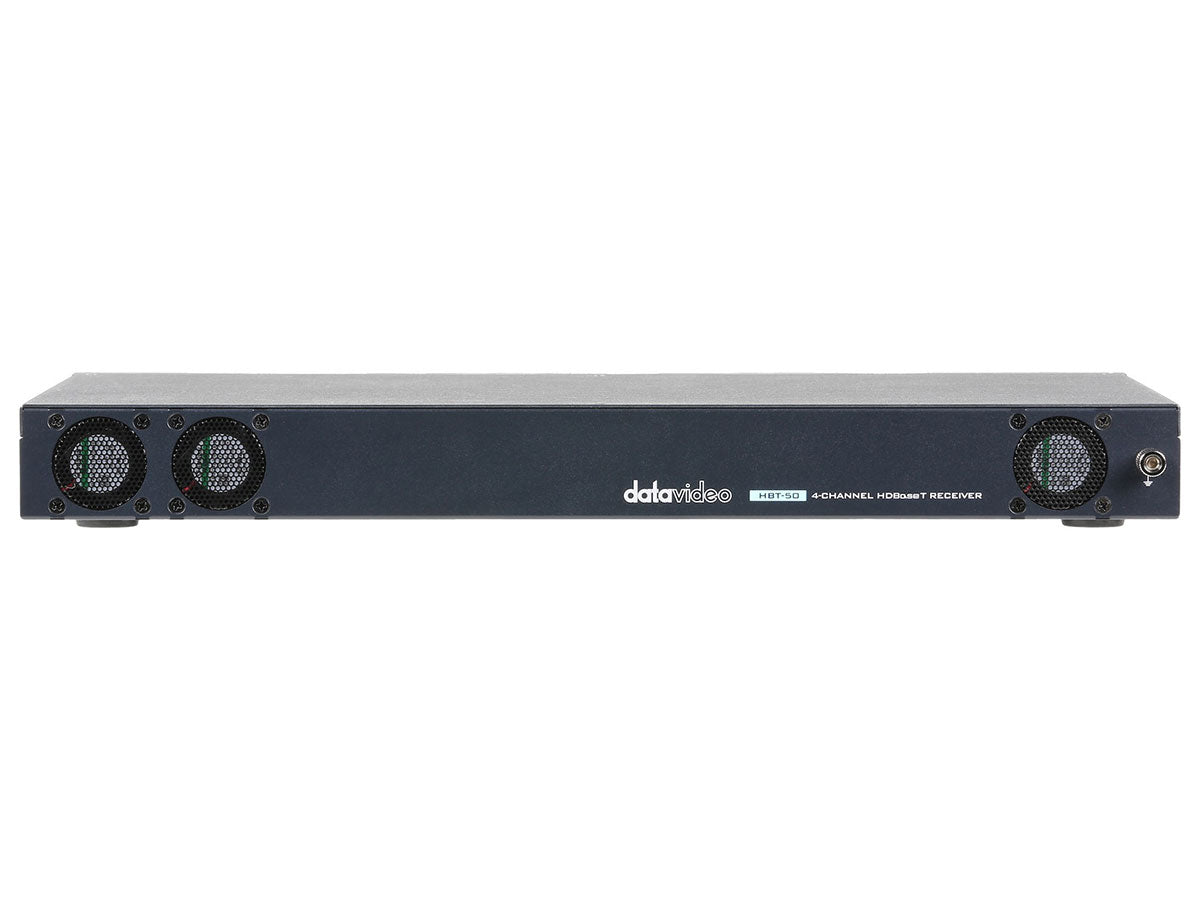

Datavideo HBT-50 4-Channel HDBaseT Receiver with SDI and HDMI Outputs

Datavideo HBT-50 4-Channel HDBaseT Receiver with SDI and HDMI Outputs

SKU: DATA-HBT50
Regular price £2,237.40 GBP ex VAT
£2,684.88 GBP inc VAT
Regular price ex VAT Sale price £2,237.40 GBP ex VAT
£2,684.88 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
An essential link to connect all your equipment for your live production
The HBT-50 supplies power, video signal, and camera control up to 4 devices up to 100 meters distance. It simultaneously outputs HDMI, SDI, RS-422 and IP control signals.

Add HDBaseT to your SDI Workflow seamlessly
HBT-50 can power the PTZ video cameras via PoE, transmit signals over a single ethernet cable to and from the camera and can be used to remotely control various camera parameters such as iris, presets and etc. Most importantly, it can output SDI signal to your switcher.

Integrate camera control, switcher and recorder operations
HBT-50 simultaneously transmits SDI (up to 1080p60) and HDMI (up to 1080p60) as well as camera control. With the HBT-50, the system can be integrated camera controller, video switcher, and ISO recorder.

Simultaneously outputs HDMI, SDI
HBT-50 provides outputs HDMI and SDI simultaneously. It is great us on long distance camera video transmitting to switcher, or ISO recorder. These is no need to prepare 4 additional HDBaseT receiver, HBT-50 will get the work done for it.

Perfect solution for your broadcast SDI workflow.
Remote control of camera functions via RS-422 or DVIP with SDI video transmission (up to 1080p50/60) and HDMI video transmission (up to 1080p50/60) up to 4 cameras simultaneously up to 100m.
  • 4-Channel HDBaseT Receiver with SDI and HDMI Outputs
  • Supplies power, video signal, and camera control up to 4 devices up to 100 meters distance
  • Simultaneously output HDMI and SDI
Input Connectors 4 x RJ45 (HDBaseT)
Output Connectors 4 x HDMI (HDMI 2.0)
4 x BNC (3G-SDI)
Other I/O 4 x RJ45 RS-232, RS-422
1 x RJ45 HDBaseT
HDCP Support None
EDID Support None
Max Transmission Distance 1080p at 60 Hz:
328.1' / 100 m
Video Format RJ45 Input
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
Supported Cable Types Cat 6a
Power Connector 1 x IEC C14 Input
PoE Support Yes
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 17.3 x 11.3 x 1.9" / 440 x 286 x 49 mm
Weight 9.3 lb / 4.2 kg
  • 1x HBT-50 main unit
  • 1x AC Cord
