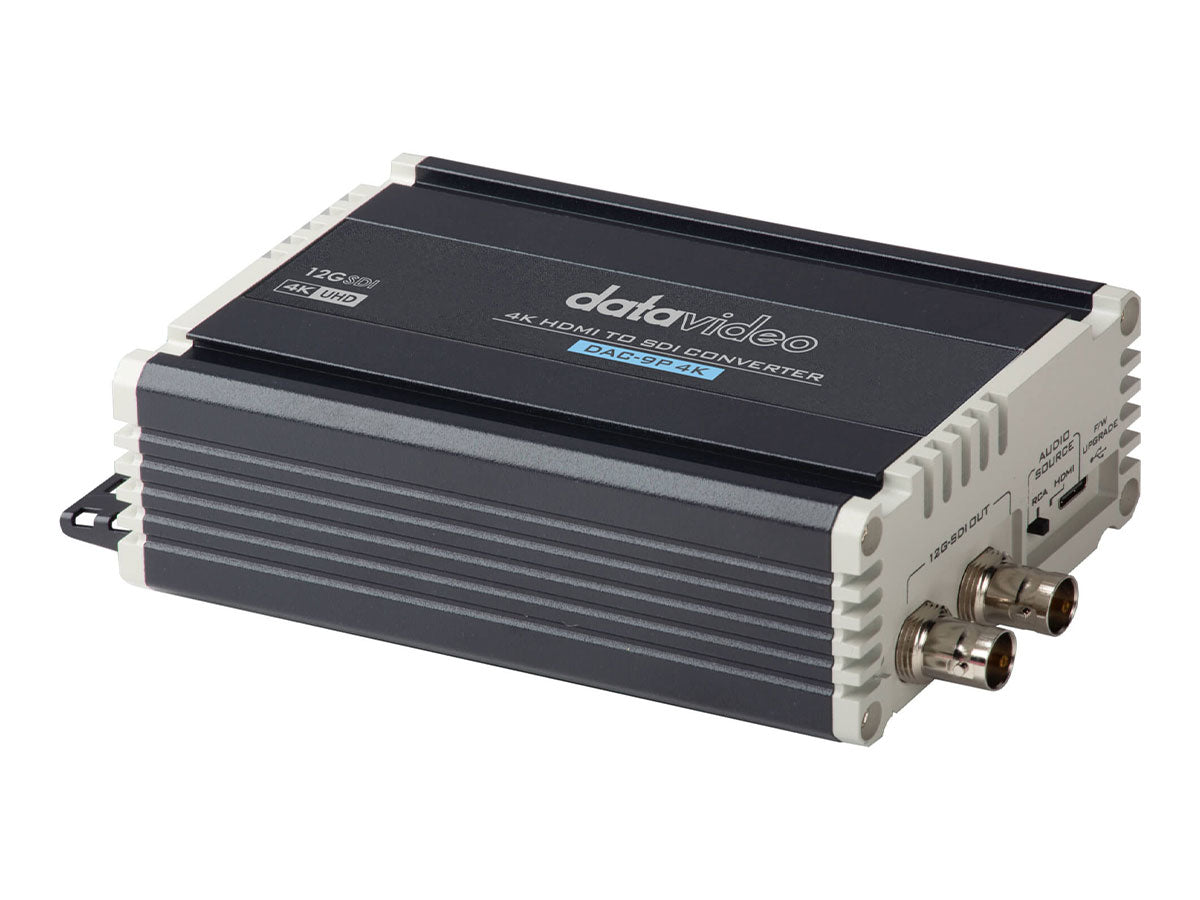

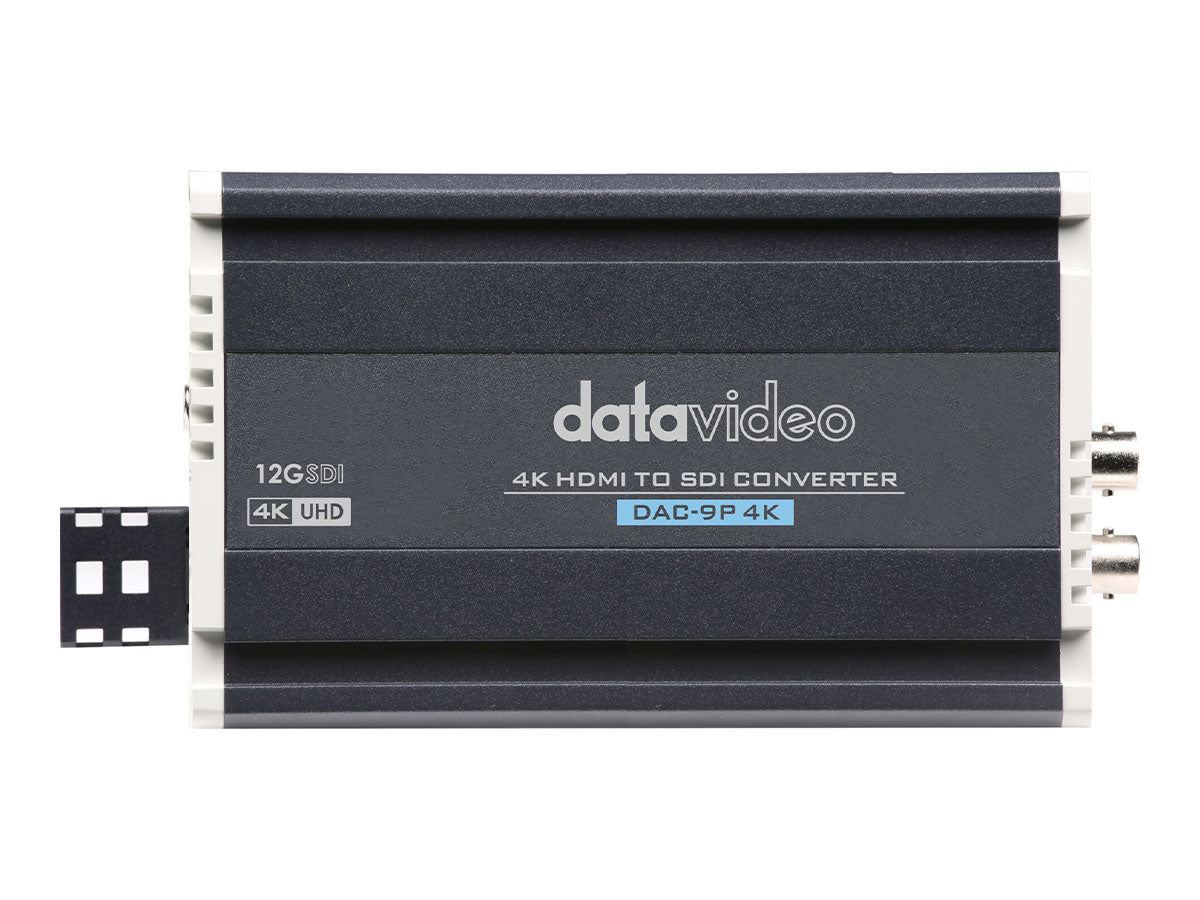

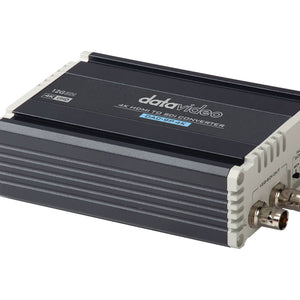

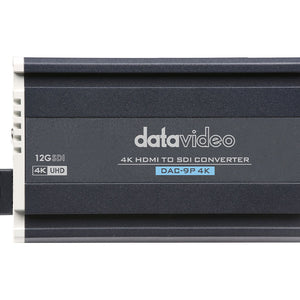

Datavideo DAC-9P4K - 4K HDMI to 12G-SDI Converter
Datavideo DAC-9P4K - 4K HDMI to 12G-SDI Converter
SKU:
DATA-DAC-9P4K
Regular price
£508.00 GBP ex VAT
£609.60 GBP inc VAT
£609.60 GBP inc VAT
Regular price
ex VAT
Sale price
£508.00 GBP ex VAT
£609.60 GBP inc VAT
Unit price
per
£609.60 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Broadcast Quality 4K HDMI to 12G-SDI Converter
The DAC-9P 4K Converter converts 4K HDMI in resolutions up to 4K50/60 to 12G-SDI, it is easy to connect the 4K HDMI signal devices and professional 12G-SDI video equipment.
Featuring HDMI input to SDI output, and with HDMI loop output, audio is selectable from the HDMI input or RCA analog input.
The DAC-9P 4K Converter is useful for a variety of broadcast and professional AV applications.
Supports Up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)
The DAC-9P 4K is broadcast quality converter, and it supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160).
The DAC-9P 4K is also very easy to use. It is a plug and play converter, so there is no need to use a laptop for adjusting any settings.
4K HDMI 2.0 Input and Loop-Through Output
In addition to the converted 12G-SDI output, there is a HDMI loop thru for sending a signal to other devices in your workflow.
Supports Re-Clocking
DAC-9P 4K will regenerate the video signal, and provide less jitter to improve output signal quality. DAC-9P 4K allows for a long distance transmission.
Not Just a Video Converter, but Also an Audio Embedder
DAC-9P 4K provides a video converter from HDMI to SDI, and it also provides you an additional audio embedded selectable from 2-channel RCA analog audio or input from HDMI video to your live production.
Plug-and-Play
No Dip switch or laptop adjustment needed, Just plug and play you will receive the perfect SDI video signal for your video production.
Aluminium Appearance Design, Rugged and Durable
Super sturdy and durable. The DAC series products have a rugged metal housing for use in the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
- 4K HDMI to 12G-SDI Converter
- Supports Up to DCI 4K and UHD 4K
- 4K HDMI 2.0 Input and Loop-Through Output
- Supports Re-clocking
| Model Number: | DAC-9P 4K |
| Conversion: | 4K HDMI to 12G/3G/HD/SD-SDI |

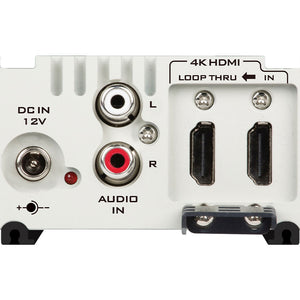

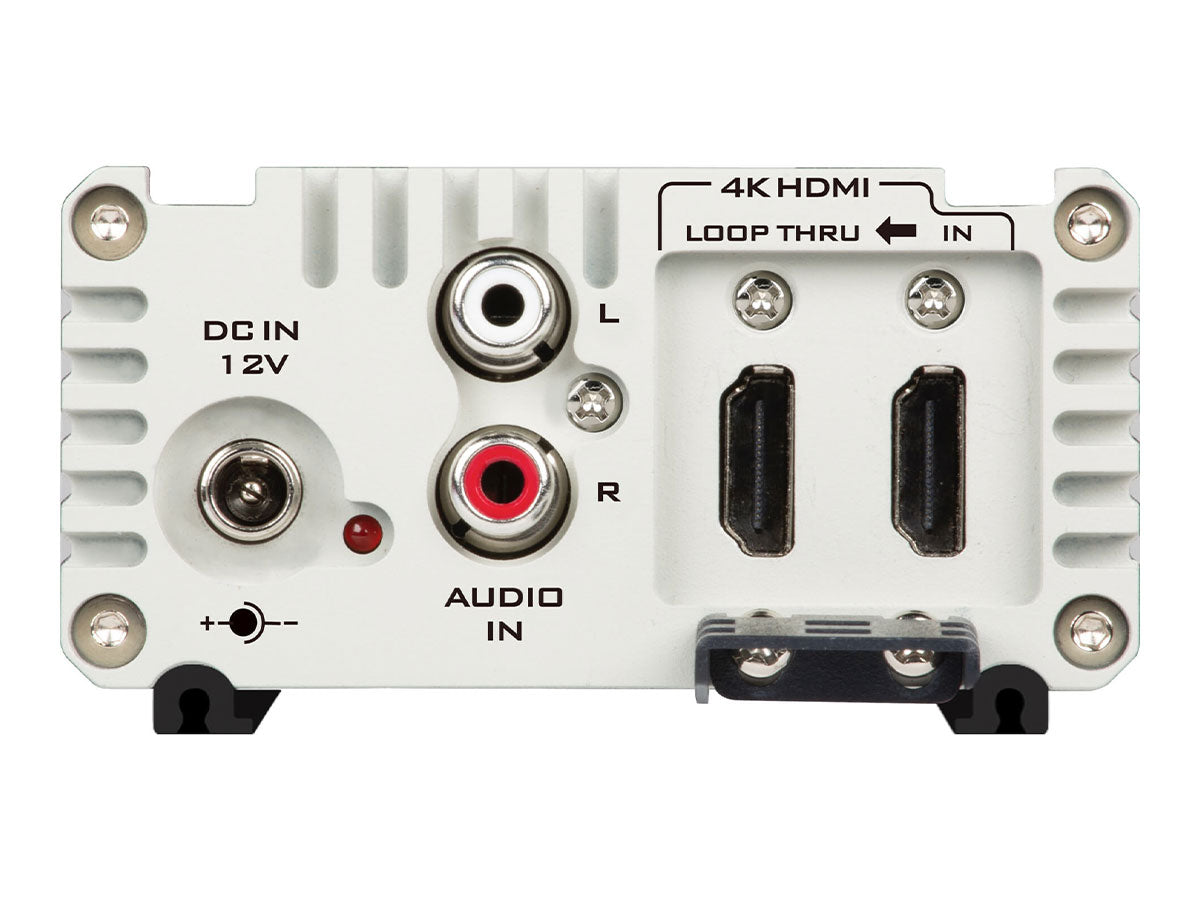

| Video Inputs: | 1x HDMI 2.0 Type A |
| Loop Through: | 1 x HDMI 2.0 Type A |

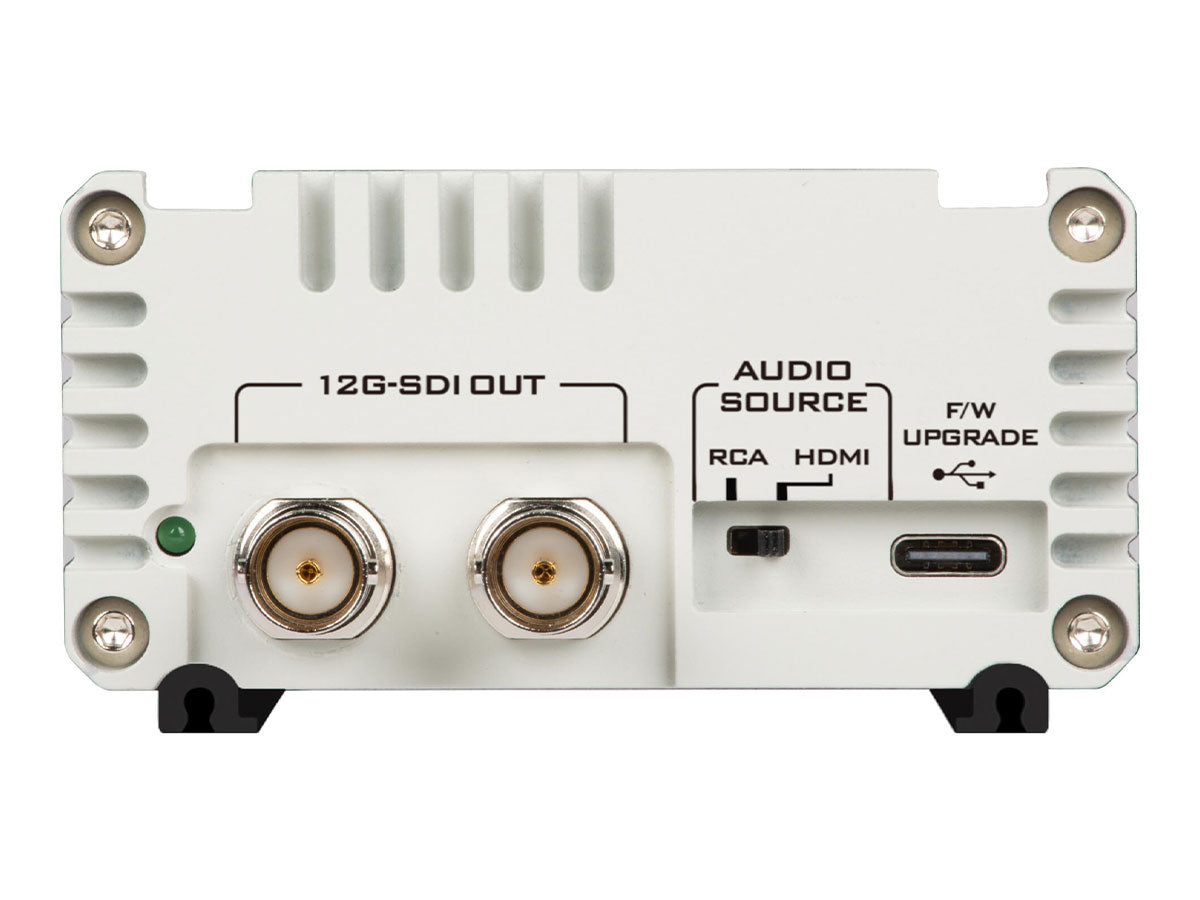

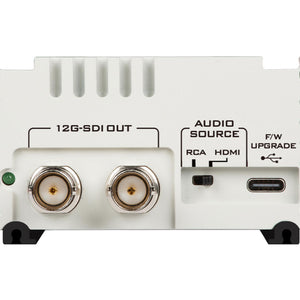

| Video Outputs: | 2 x 12G-SDI (3G-SDI Level A) |
| Audio Inputs: | 2 x RCA (Unbalanced Audio L/R) HDMI embedded audio, 24-bit, 8-channel |
| Audio Outputs: | SDI embedded audio, 24-bit, 8-channel |
| Audio Format Selection: | N/A |
| Audio Gain: | N/A |
| Supported Video Input Formats: | 4096x2160p: 60/50/30/25/24 3840x2160p: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50, 720p: 60/50 |
| Output Resolutions: | Automatically matches the SD, HD and 4K HDMI video input |
| Equalizer: | N/A |
| Reclock: | Yes |
| SDI Cable Drive: | Yes |
| Updates & Configuration: | USB Type C |
| Dimensions: | 136.5 x 85 x 45 mm |
| Weight: | 0.39 kg |
| Operating Temperature Range: | 0~40 °C |
| Power: | DC 12V, 9.4W |
- 1x DAC-9P 4K
- 1x AD Switch DC 12V
