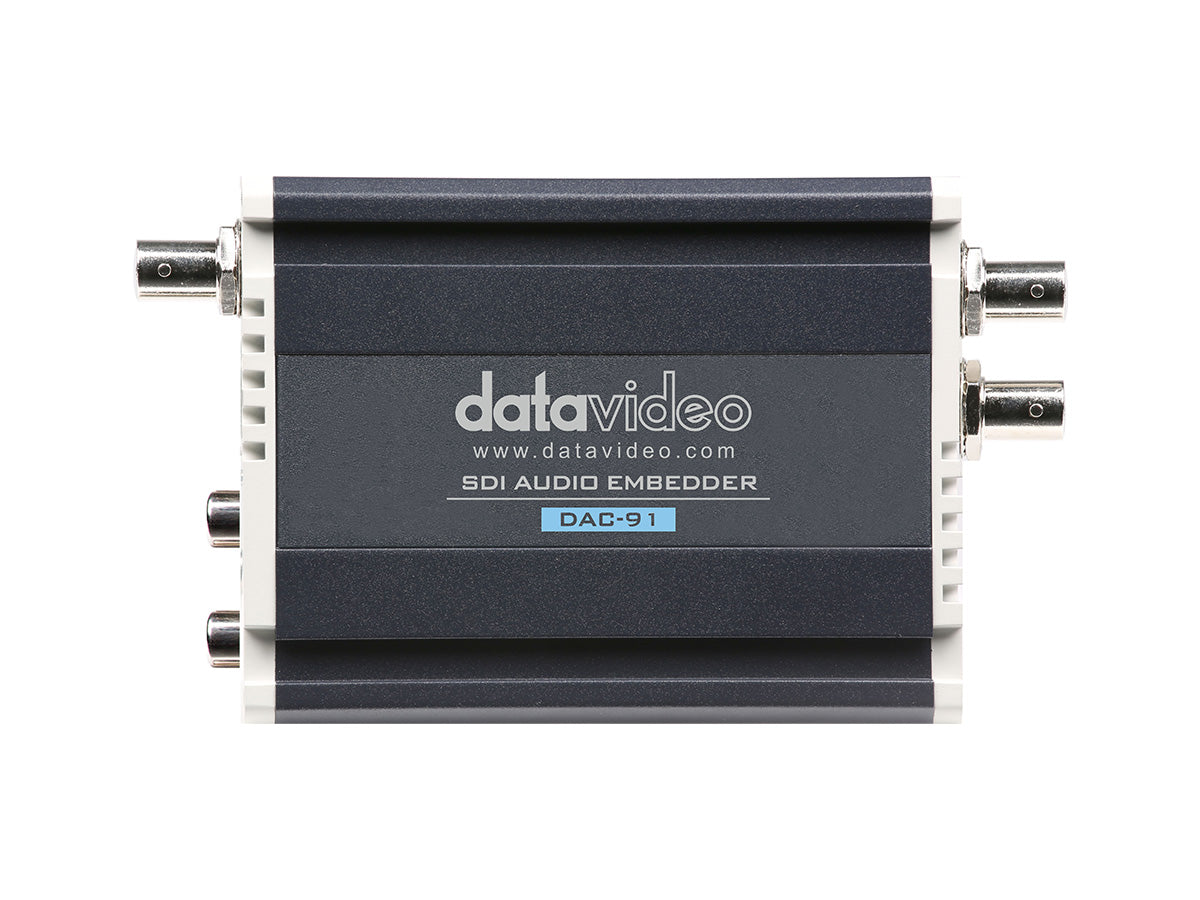

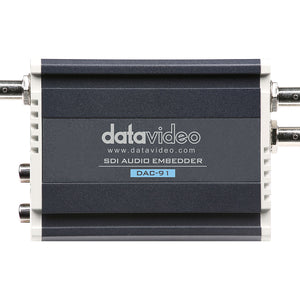

Datavideo DAC-91 Audio Embedder
Datavideo DAC-91 Audio Embedder
SKU:
DATA-DAC91
Regular price
£312.30 GBP ex VAT
£374.76 GBP inc VAT
£374.76 GBP inc VAT
Regular price
ex VAT
Sale price
£312.30 GBP ex VAT
£374.76 GBP inc VAT
Unit price
per
£374.76 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Auto Detects SD, HD and 3G Signals
Allow users to embed 2 channels of analogue audio into SDI video signal.
It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides mini XLR and RCA audio connectors for inputting analogue audio.
Auto Sets Compatible Formats to Embed External Sound Sources to SDI Output
Embed Audio into an SDI Signal
Supports SMPTE and EBU
Audio level indicator display
Audio level adjustment
Audio level adjustment

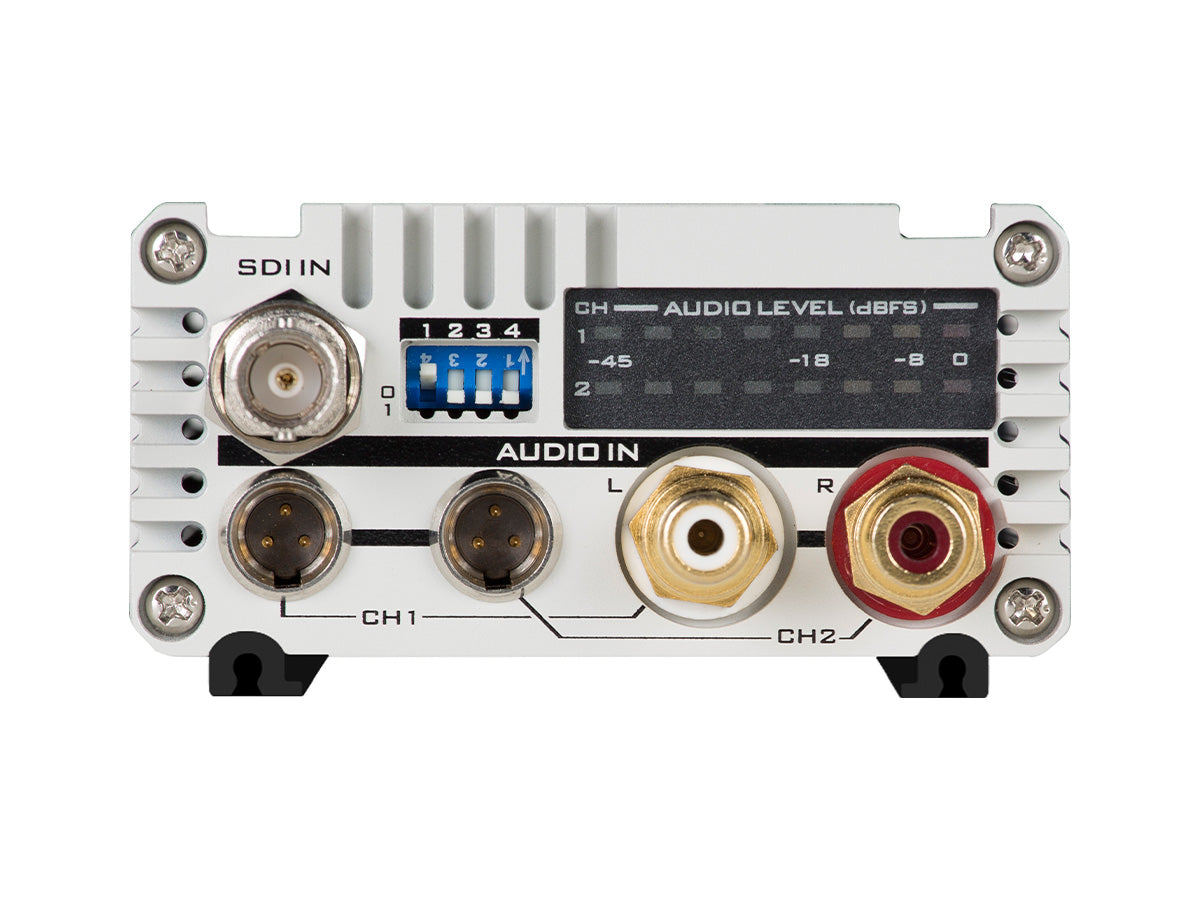

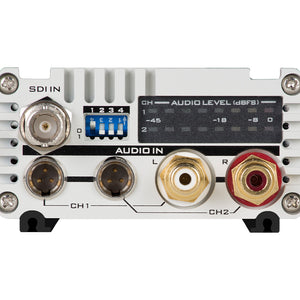

4 x Analogue Audio Inputs (Mini XLR x 2, RCA x 2)
The Audio box also has audio level adjustment by using the built-in DIP switches.

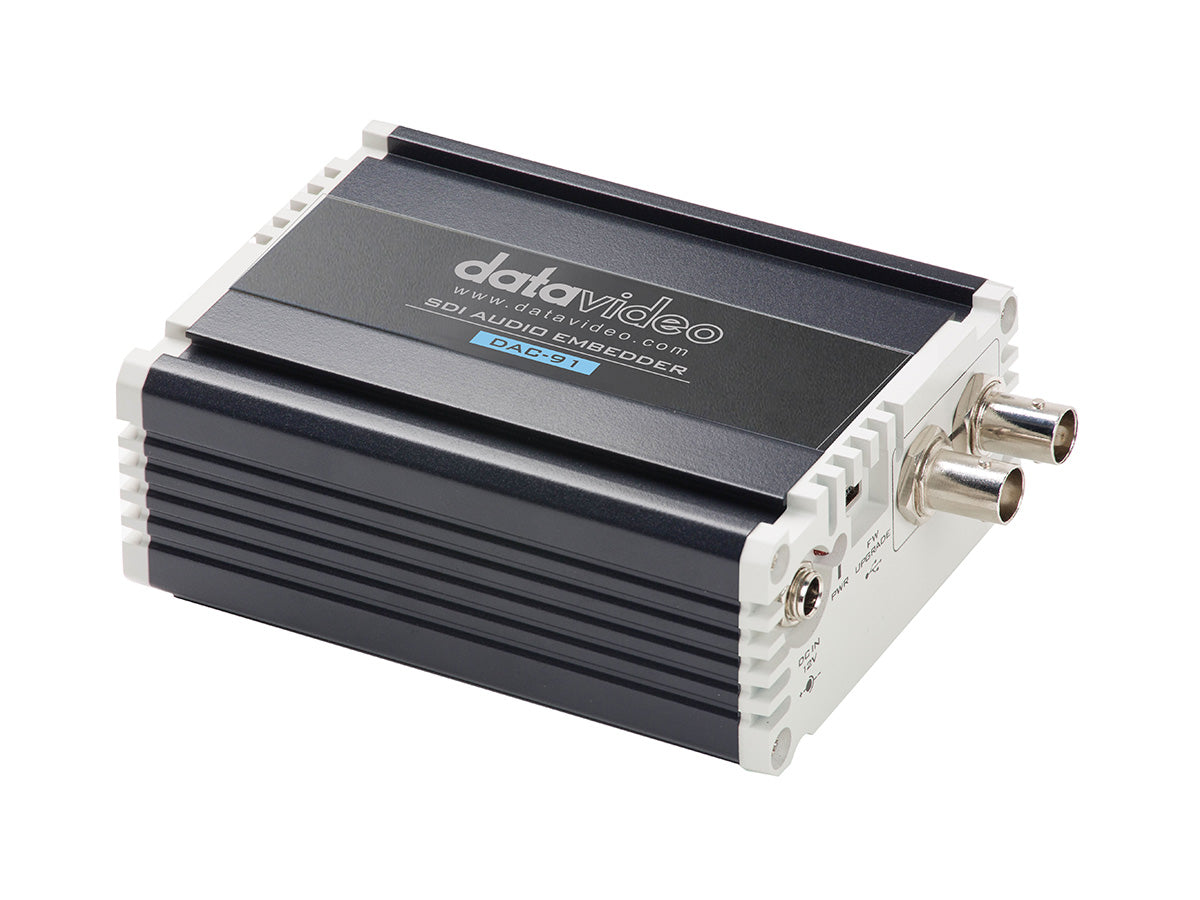

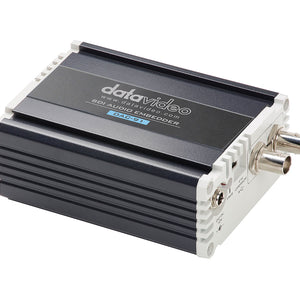

Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
- Audio Embedder
- Embed Audio into an SDI Signal
- Automatically detects 3G, HD, SD signal
- 4 x Analogue Audio inputs (Mini XLR x 2, RCA x 2)
- Audio level indicator display
- Audio level adjustment
- Control via DIP Switches
| Model Number: | DAC-91 |
| Conversion: | Audio Embedder |
| Video Inputs: | 3G/HD/SD-SDI x 1 |
| Loop Through: | ---- |

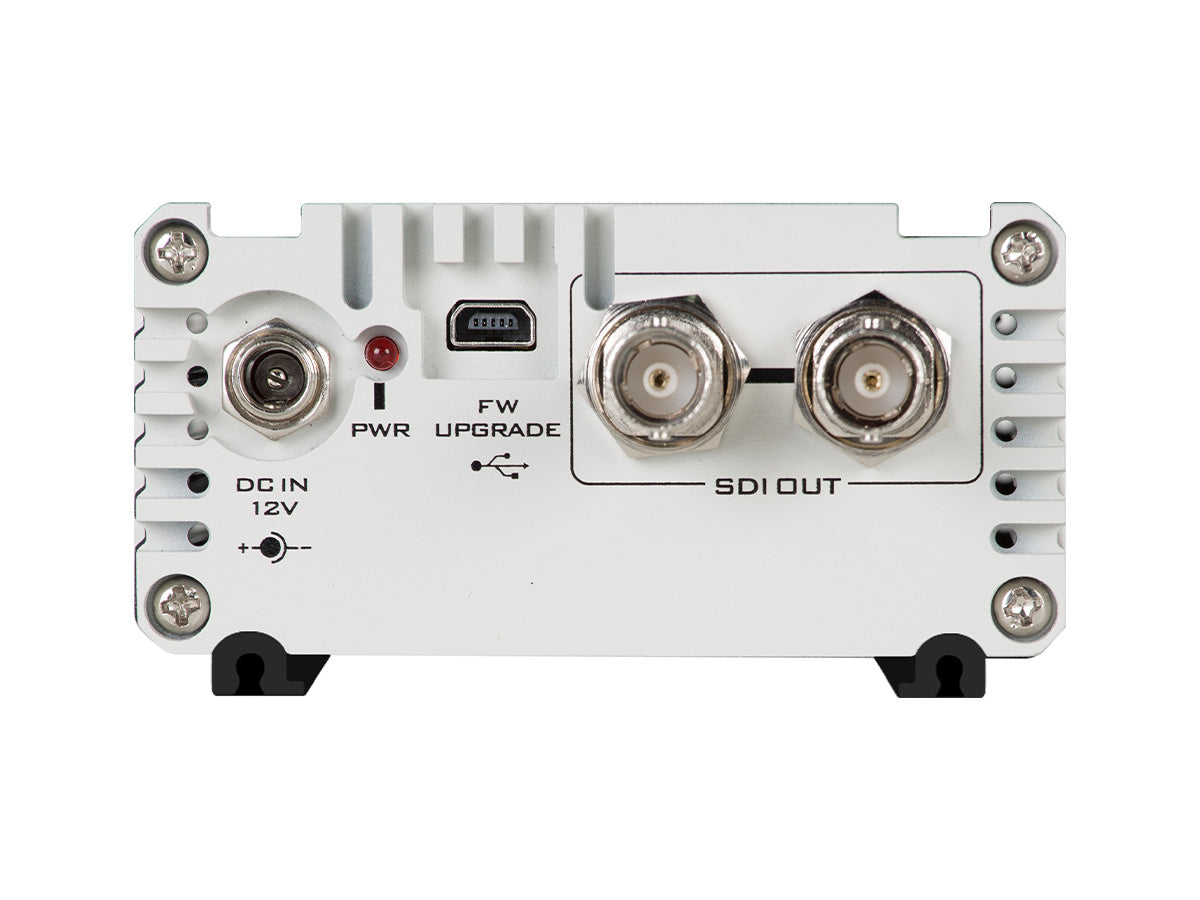

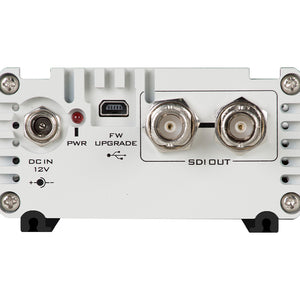

| Video Outputs: | 3G/HD/SD-SDI x 2 |
| Audio Inputs: | Mini XLR (balanced) x 2, RCA (unbalanced) x 2 *Mini XLR1 & RCA1 mixed to CH1 *Mini XLR2 & RCA2 mixed to CH2 |
| Audio Outputs: | ---- |
| Audio Format Selection: | SMPTE, EBU |
| Audio Gain: | Yes |
| Supported Video Input Formats: | ---- |
| Output Resolutions: | ---- |
| Equalizer: | ---- |
| Reclock: | ---- |
| SDI Cable Drive: | ---- |
| Updates & Configuration: | Mini USB x 1 |
| Dimensions: | 112 x 85 x 45 mm |
| Weight: | 0.4 kg |
| Operating Temperature Range: | 0~40 °C |
| Power: | DC 12V, 0.5A |
- 1 x DAC-91
- 1 x AD Switch DC 12V
- 2 x Mini XLR to female XLR cable
