Datavideo DAC-90 SDI Audio De-Embedder
Datavideo DAC-90 SDI Audio De-Embedder
SKU:
DATA-DAC90
Regular price
£277.20 GBP ex VAT
£332.64 GBP inc VAT
£332.64 GBP inc VAT
Regular price
ex VAT
Sale price
£277.20 GBP ex VAT
£332.64 GBP inc VAT
Unit price
per
£332.64 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
De-Embed Audio from SDI Signal
Assignable De-embedded audio signal
Auto Detects Video Format, Support Up to 1080p 50/60
Allows users to de-embed 16 analogue audio signals (4 at a time) from SDI video signal.
SMPTE and EBU Audio Level Switchable and Control via DIP Switches
Audio level indicator displayControl via DIP Switches.
Loop Through SDI Output

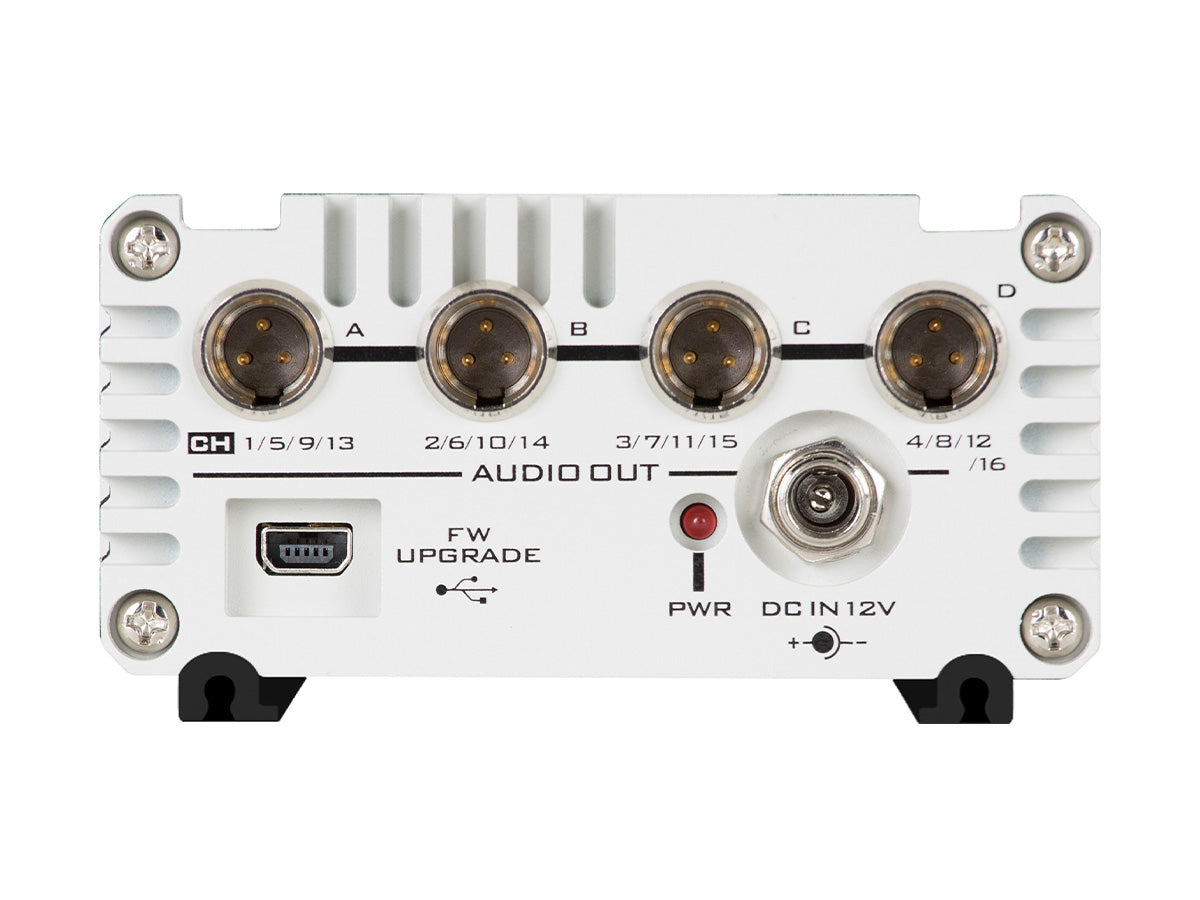

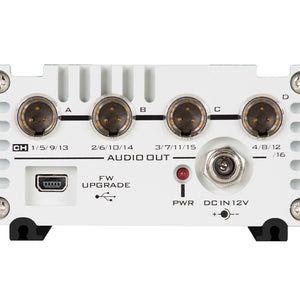

4 x Analogue Mini XLR Audio outputs
Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
- Audio De-Embedder
- De-Embed Audio from SDI Signal
- Automatically detects 3G, HD, SD signal
- 4 x Analogue Mini XLR Audio outputs
- Assignable De-embedded audio signal

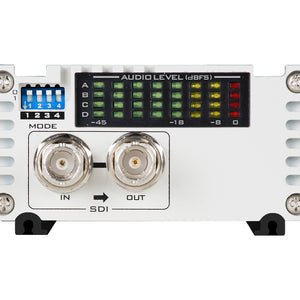

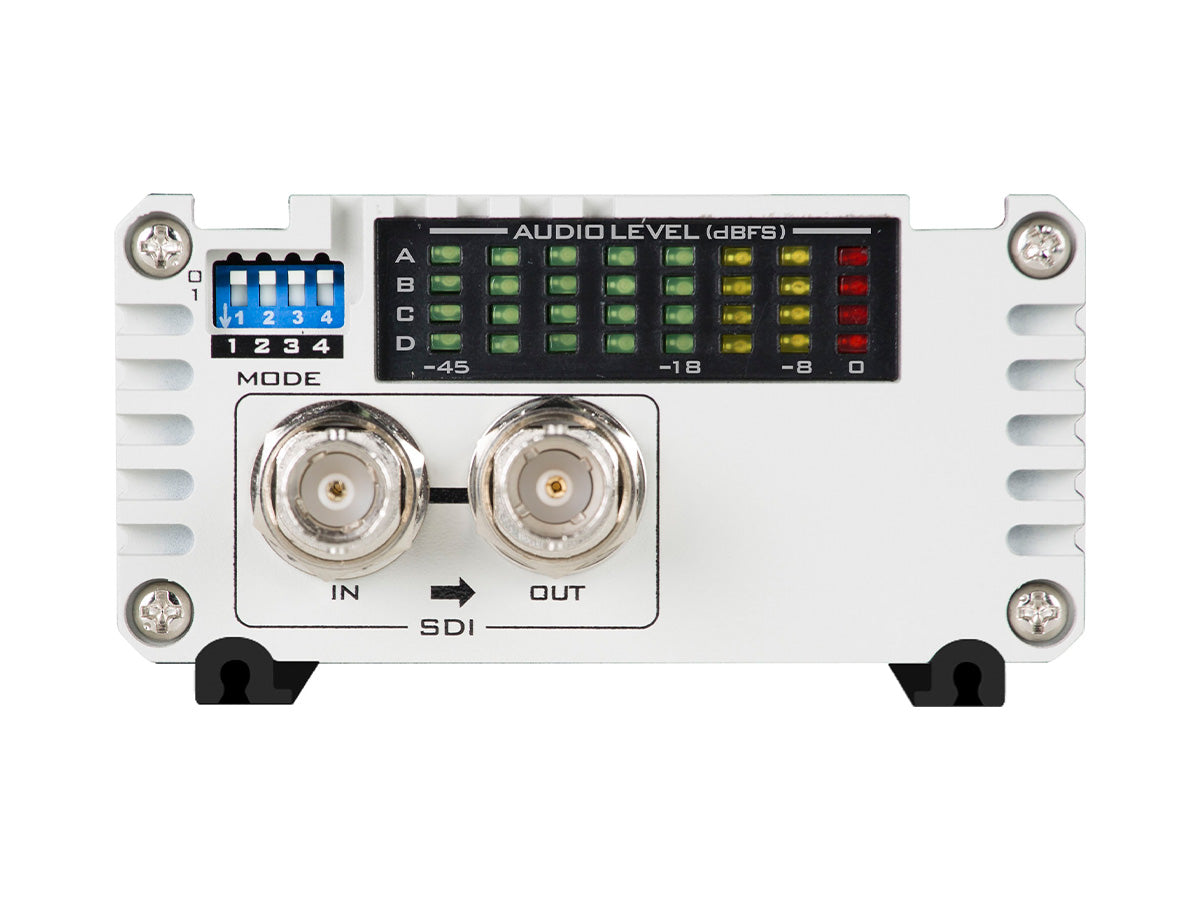

- Audio level indicator display
- SMPTE and EBU Audio level switchable
- Control via DIP Switches
| Model Number: | DAC-90 |
| Conversion: | Audio De-embedder |
| Video Inputs: | 3G/HD/SD-SDI x 1 |
| Loop Through: | ---- |
| Video Outputs: | 3G/HD/SD-SDI x 1 (Re-clocked Loop through) |
| Audio Inputs: | ---- |
| Audio Outputs: | Mini XLR (Balanced) x 4 |
| Audio Format Selection: | SMPTE, EBU |
| Audio Gain: | ---- |
| Supported Video Input Formats: | ---- |
| Output Resolutions: | ---- |
| Equalizer: | ---- |
| Reclock: | ---- |
| SDI Cable Drive: | ---- |
| Updates & Configuration: | Mini USB x 1 |
| Dimensions: | 112 x 85 x 45 mm |
| Weight: | 0.4 kg |
| Operating Temperature Range: | 0~40 °C |
| Power: | DC 12V, 0.5A |
- 1 x DAC-90
- 1 x AD Switch DC 12V
- 2 x Mini XLR to male XLR cable
