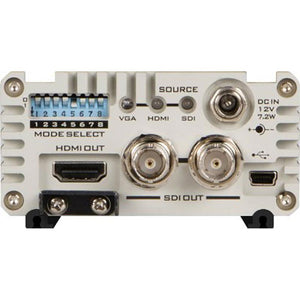

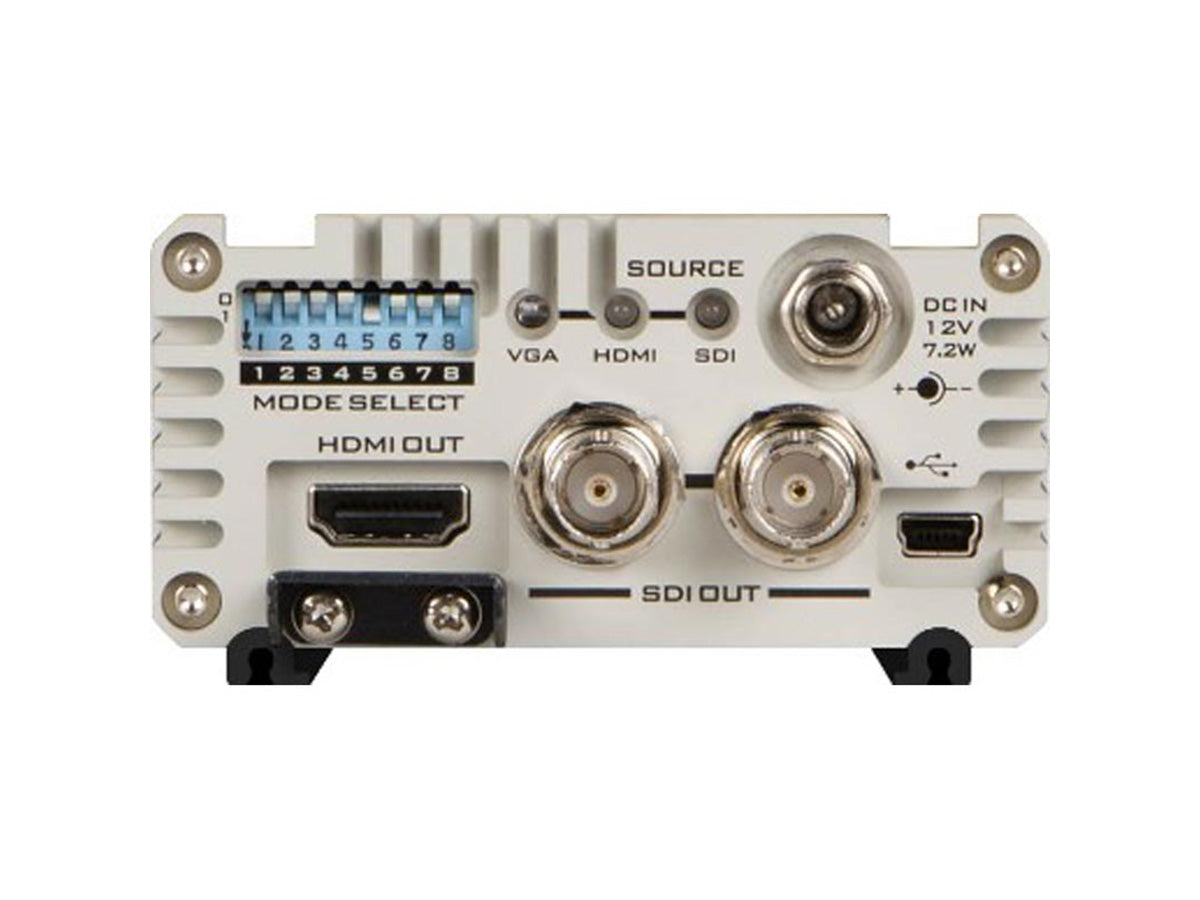

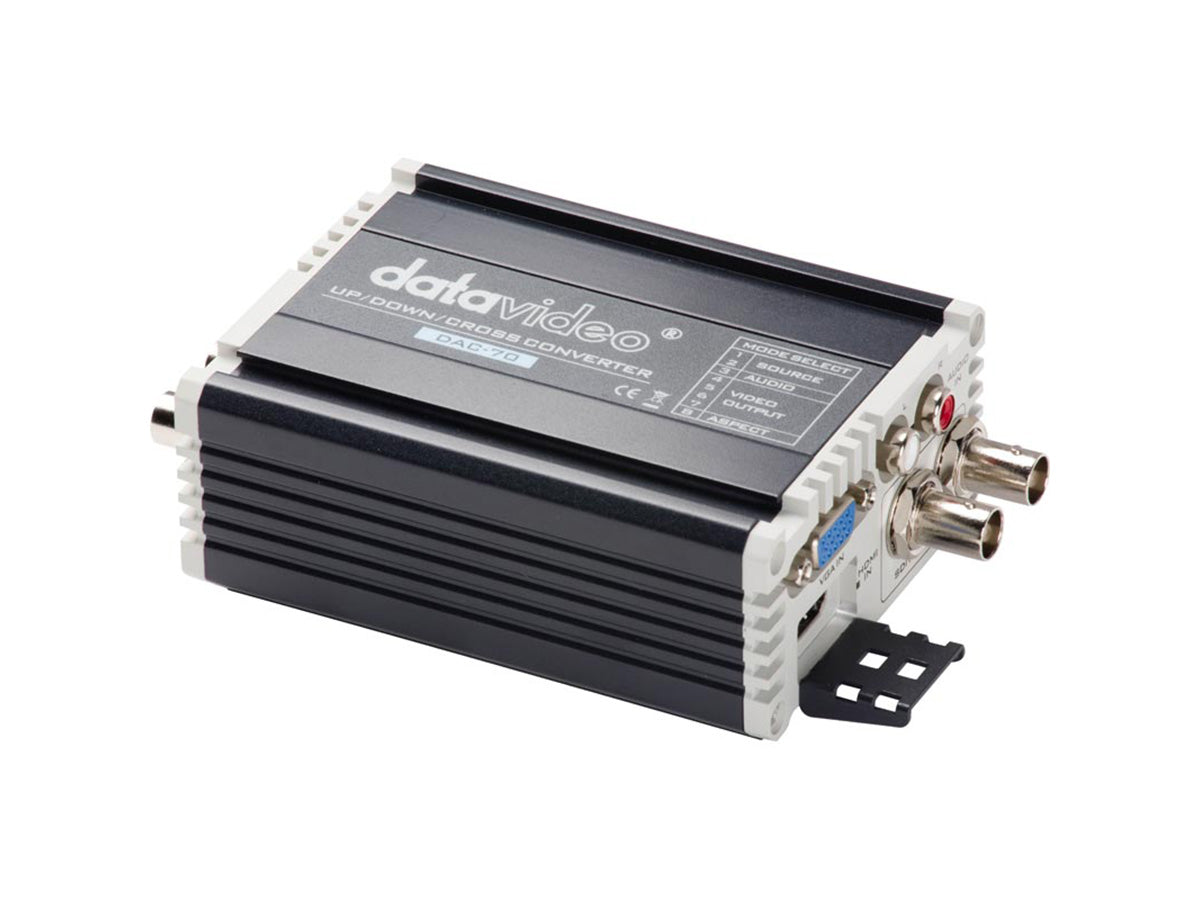

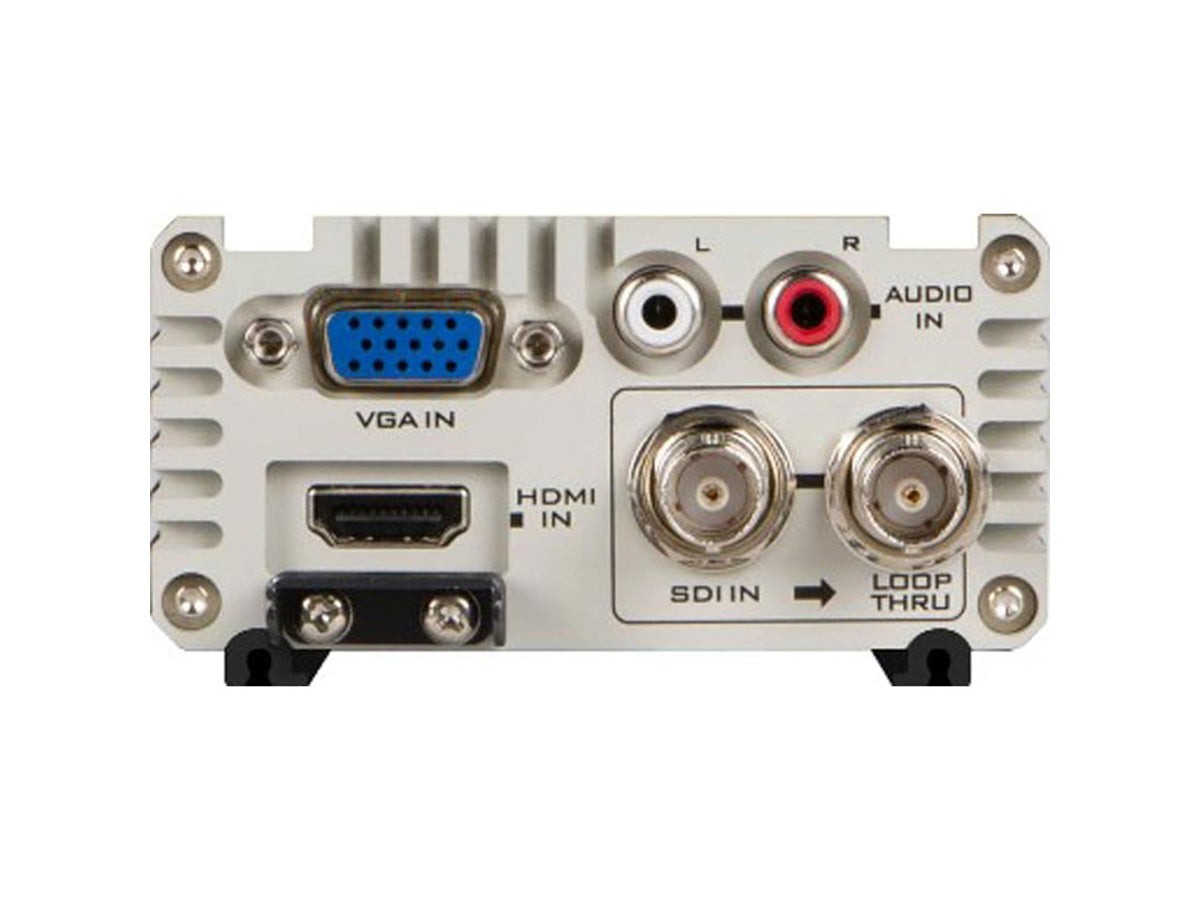

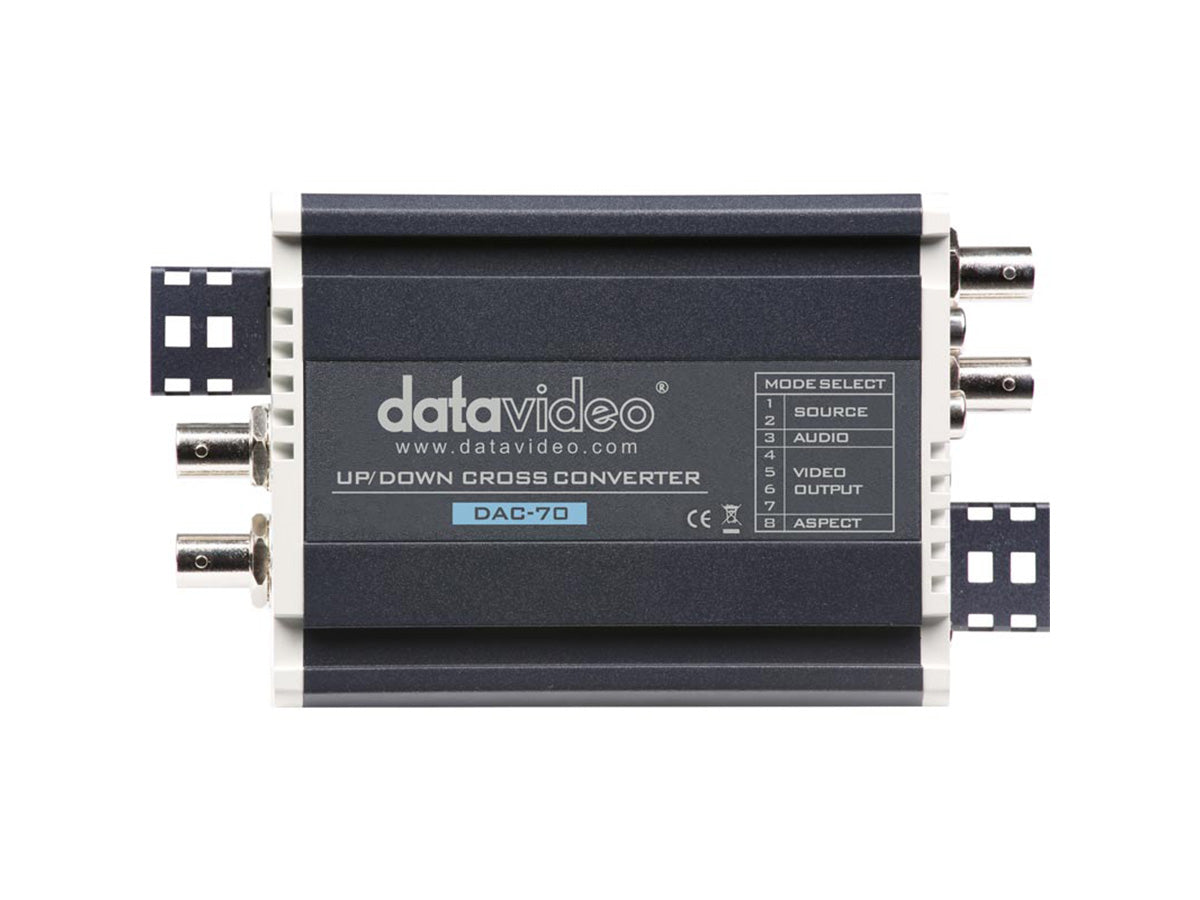

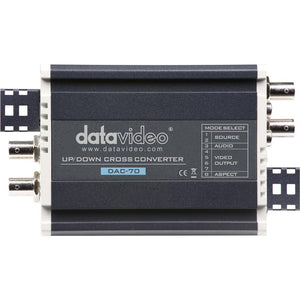

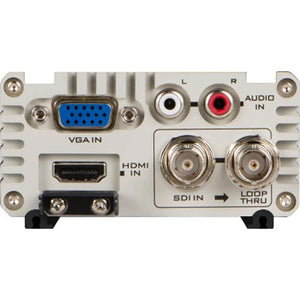

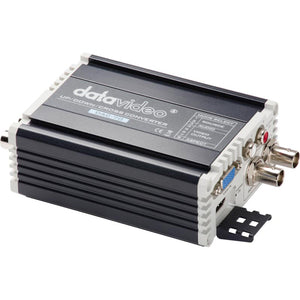

Datavideo DAC-70 Up / Down / Cross Converter
Datavideo DAC-70 Up / Down / Cross Converter
SKU:
DATA-DAC70
Regular price
£463.50 GBP ex VAT
£556.20 GBP inc VAT
£556.20 GBP inc VAT
Regular price
ex VAT
Sale price
£463.50 GBP ex VAT
£556.20 GBP inc VAT
Unit price
per
£556.20 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Ultra Wide Range Scaler for Excellent Compatibility
The DAC-70 supports a multitude of video resolutions ranging from SD to Full HD. If you need to connect two otherwise incomptible video devices together, the Swiss Army Knife of converters has you covered.
Add External Audio or Keep the Embedded Audio
Keep the embedded audio in the stream, or replace the audio using the RCA inputs.
Adjustable Brightness, Contrast, Hue, and Saturation Settings
Use the DAC Center Utility to adjust the video output. Simply connect a PC computer to the DAC-70 via USB.
Built-in Distribution Amplifier
The DAC-70 always scales, converts, and outputs video to 3 ports (2x SDI and 1x HDMI)
Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
- 3G/HD/SD Up/Down/Cross convert
- Audio/HDMI/SDI/VGA input
- 3G/HD/SD SDI and HDMI output
- Can be rackmounted using optional RMK-2 2RU Rack solution
- DC 12V, 3.6 watts
| Model Number: | DAC-70 |
| Conversion: | VGA/HDMI/SDI to HDMI/SDI Multi-format Up/Down/Cross |
| Video Inputs: | 1x VGA, 1x HDMI, 1x 3G/HD/SD-SDI (support Level A and Level B) |
| Loop Through: | Yes |
| Video Outputs: | 2x 3G/HD/SD-SDI with embedded Audio (support Level A and Level B) 1x HDMI |
| Audio Inputs: | 2x RCA (Stereo Pair), 2x SDI/HDMI Audio embedded |
| Audio Outputs: | SDI embedded audio up to 8CH, 48KHz, PCM audio HDMI embedded audio up to 8CH, 48KHz, PCM audio |
| Audio Format Selection: | ---- |
| Audio Gain: | ---- |
| Supported Video Input Formats: | 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz) |
| Output Resolutions: | 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 525i |
| Equalizer: | Yes |
| Reclock: | Yes |
| SDI Cable Drive: | Yes |
| Updates & Configuration: | Mini USB x 1 |
| Dimensions: | 112 x 85 x 45 mm |
| Weight: | 0.4 kg |
| Operating Temperature Range: | 0~40 °C |
| Power: | DC 12V, 6W |
- 1 x DAC-70
- 1 x AD Switch DC 12V
- 1 x DIP switch Pin 8 label
