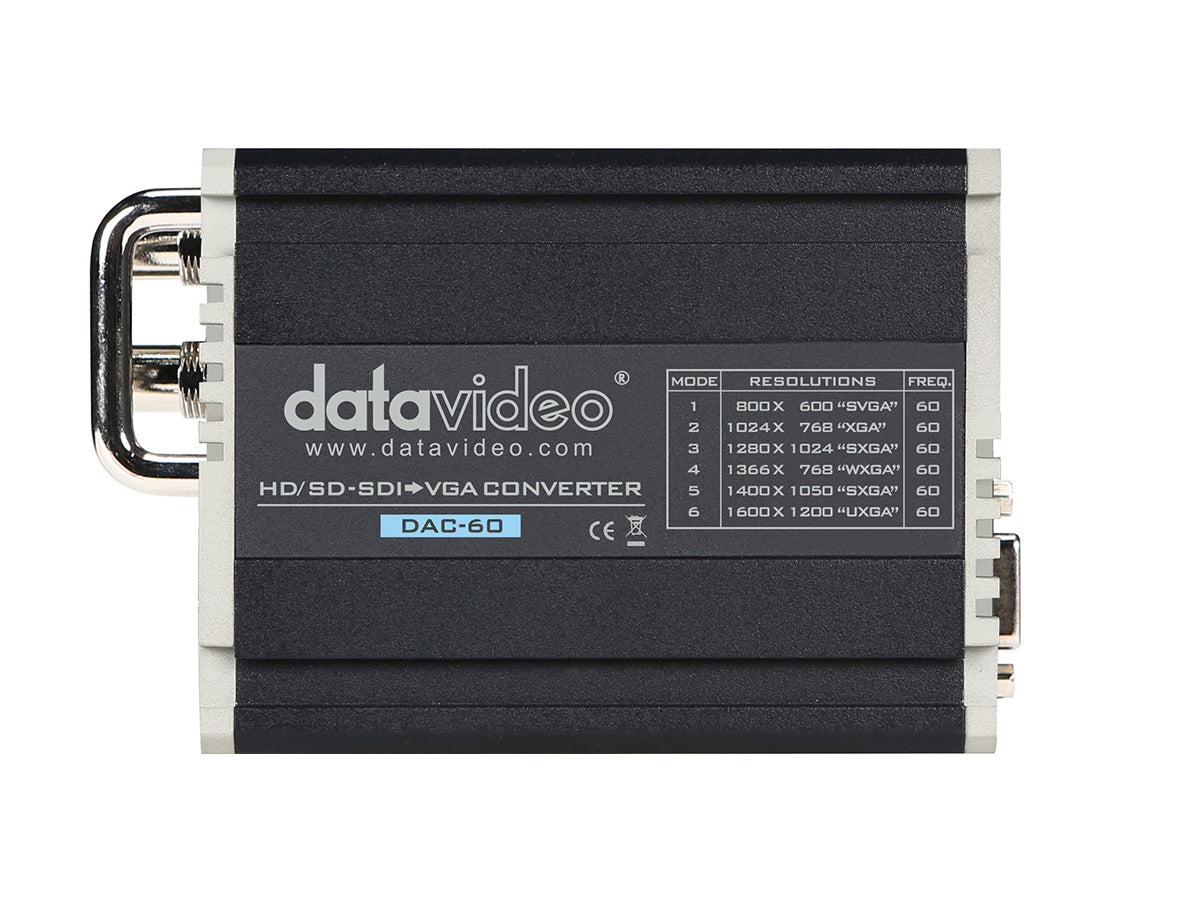

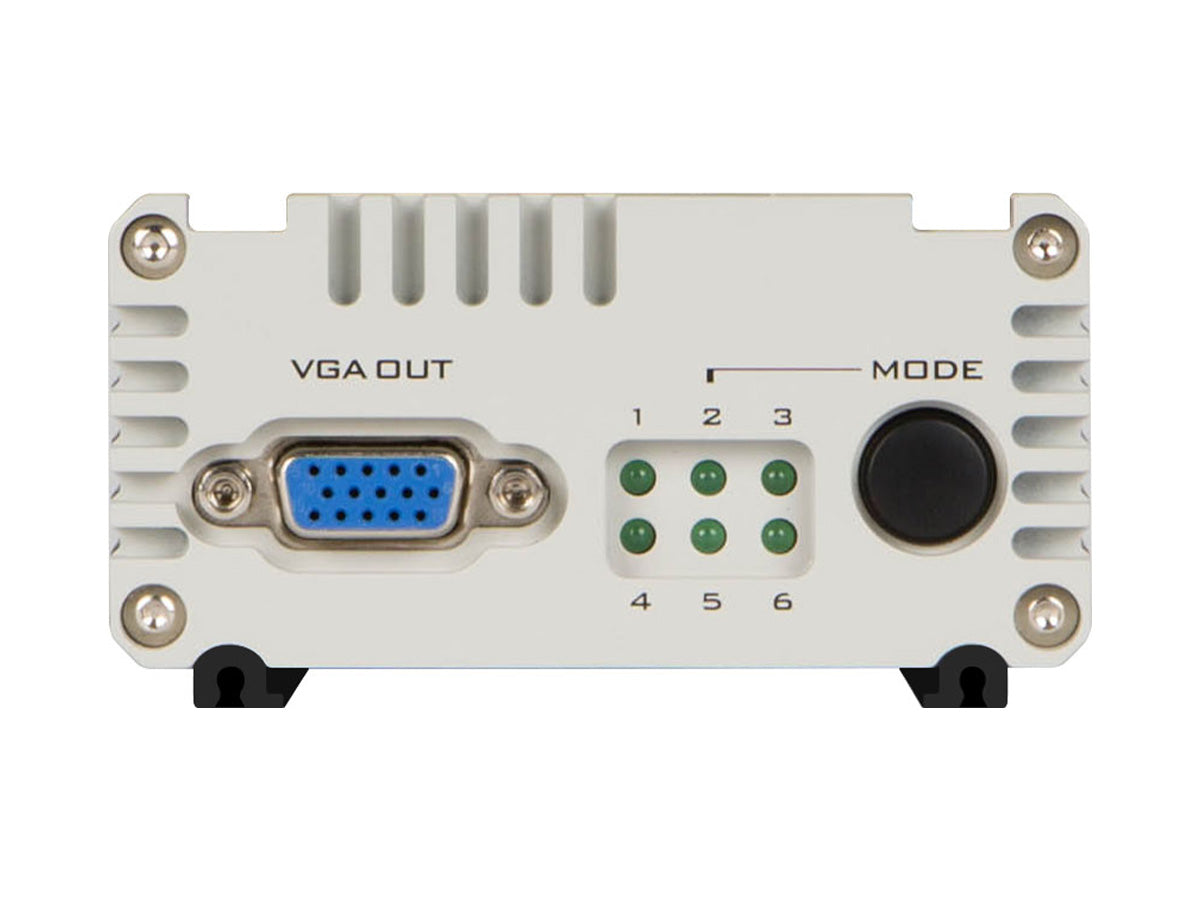

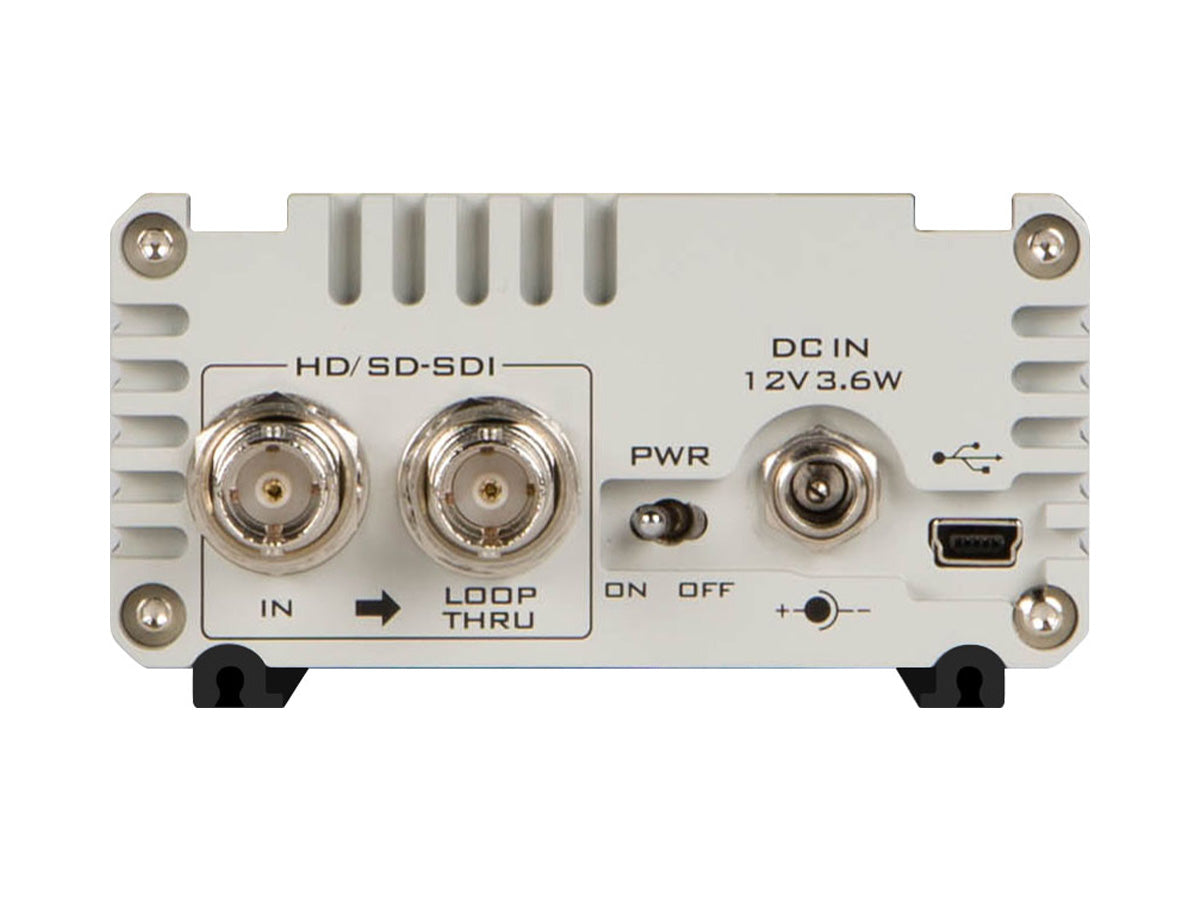

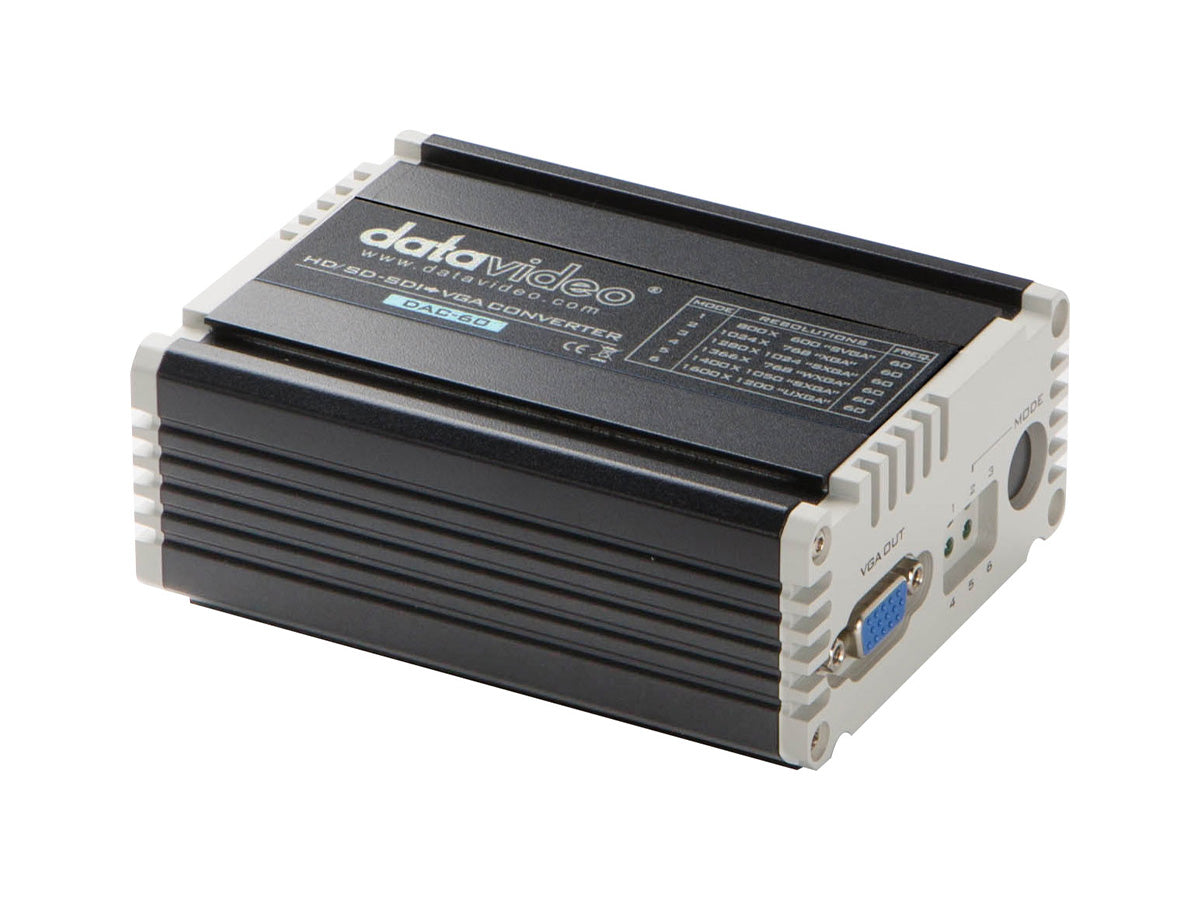

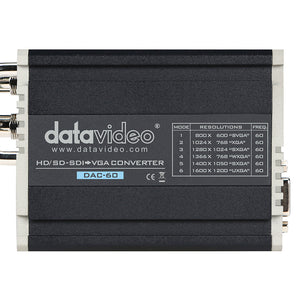

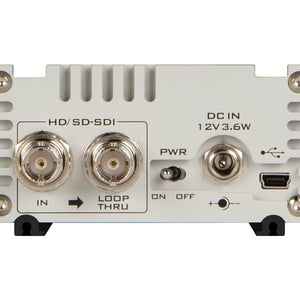

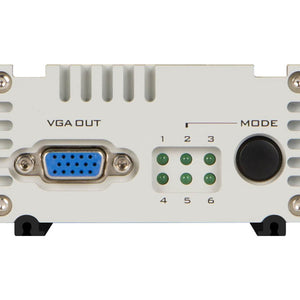

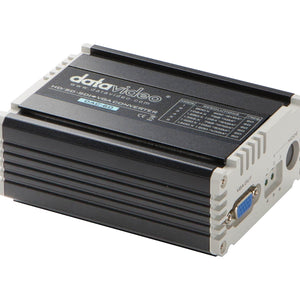

Datavideo DAC-60 SDI to VGA Converter

Datavideo DAC-60 SDI to VGA Converter

SKU: DATA-DAC60
£319.50 GBP ex VAT
£383.40 GBP inc VAT
ex VAT £319.50 GBP ex VAT
£383.40 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
Wide Range Conversion for Great Compatibility
The DAC-60 supports 3G/HD/SD-SDI to VGA conversion, suits projector and LCD screen display really well.

Independent SDI Loop Through
SDI loop through is unaffected by the adjustments of resolution setting to the VGA signal, users can connect the original video signal to other terminal device.

Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
  • Supports Brightness, Contrast, Hue and Saturation of Adjustment
  • Supplied with a Windows application that connects via USB and enables adjustment of  the colour, contrast or saturation
  • Settings from the application are retained when the computer and power are removed
  • SDI loop through is unaffected by the adjustments to the VGA signal
  • Dual output available (SDI & VGA)
  • Supports 3G/HD/SD-SDI format:
    • - SD - 720 x 480 i / 720 x 576 i
    • - HD - 1280 x 720 50p/60p/59.94p
    • - 1920 x 1080 50i/60i/59.94i
    • - 1920 x 1080 24p/25p/30p
    • - 3G - 1920 x 1080 50p/60p/59.94p Support 525i & 625i SD D1 format
  • Auto 3G/HD/SD-SDI detection
  • VGA Output formats:
    • 800 x 600
    • 1024 x 768
    • 1280 x 800
    • 1280 x 1024
    • 1366 x 768
    • 1400 x 1050
    • 1600 x 1200
    • 1920 x 1080
    • 1920 x 1200
Model Number: DAC-60
Conversion: 3G/HD/SD-SDI to VGA
Video Inputs: 1x 3G/HD/SD-SDI
Loop Through: Yes
Video Outputs: 1x VGA
Audio Inputs: ----
Audio Outputs: ----
Audio Format Selection: ----
Audio Gain: ----
Supported Video Input Formats: 1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
576i (PAL), 480i (NTSC)
Output Resolutions: 1920x1200 (60Hz), 1920x1080(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1280x800 (60Hz), 1024x768 (60Hz), 800x600 (60Hz)
Equalizer: Yes
Reclock: Yes
SDI Cable Drive: Yes
Updates & Configuration: Mini USB x 1
Dimensions: 112 x 85 x 45 mm
Weight: 0.4 kg
Operating Temperature Range: 0~40°C
Power: DC 12V, 3.6W
  • 1x DAC-60
  • 1x AD Switch DC 12V
