Datavideo BC-15PN 4K POV NDI Camera
Datavideo BC-15PN 4K POV NDI Camera
SKU:
DATA-BC15PN
Regular price
£985.00 GBP ex VAT
£1,182.00 GBP inc VAT
£1,182.00 GBP inc VAT
Regular price
ex VAT
Sale price
£985.00 GBP ex VAT
£1,182.00 GBP inc VAT
Unit price
per
£1,182.00 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Compact Versatility with 4K Quality and NDI Connectivity
The small box design of the BC-15PN makes it incredibly flexible for mounting anywhere. Despite its compact size, this device does not compromise on quality. Equipped with a 1/2.3” 4K CMOS sensor, it captures high-quality images, showcasing incredible details of the subject. Additionally, it supports NDI connection, enhancing its versatility for seamless video streaming and integration into various network-based workflows.
Built-in Fixed Lens
Built-in swappable fixed lens. No need to purchase additional lenses, which can be costly.
1/2.3” CMOS Sensor with 4K 50/60p Output
Equipped with a 1/2.3” CMOS sensor, the BC-15PN delivers stunning 4K 50/60p output, ideal for eSports and versatile in various settings. The specialized eSports lens captures dynamic scenes with clarity, while the standard lens adapts to a wide range of applications.
Elevate Your Content with Seamless 4K Streaming
During video production, you can stream your program to different platforms such as YouTube and Facebook. If using Datavideo dvCloud, you can even stream your program to 25 different platforms at the same time while backing up your program on the cloud server.
Low-Latency SRT Streaming Engine Allowing Online Switching to dvCloud with Nearly Zero Latency
Many viewers may have encountered streaming issues, such as video stuttering or frame loss, often attributable to fluctuating bandwidth and network instability. dvCloud incorporates the SRT protocol, effectively reducing frame loss even when your network is unstable. If you are still encountering problems with RTMP streaming, dvCloud stands out as the optimal solution for a smoother and more enjoyable viewing experience.
Built-in Tally Light
Built-in tally lights make it easier for the talent to know which camera is live during a multi-camera live production.

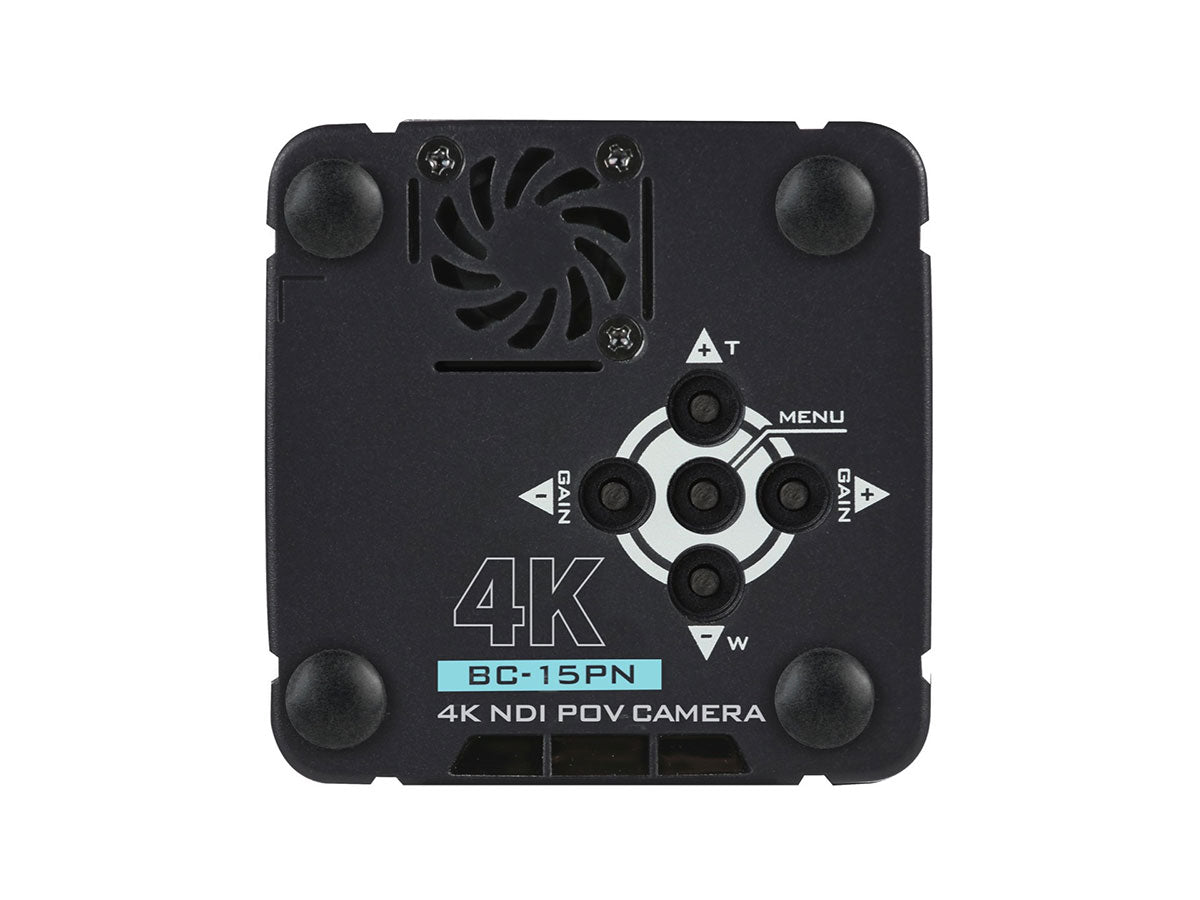

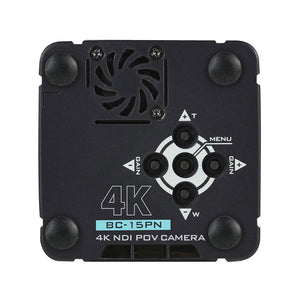

Physical Buttons Make Camera Setup Very Easy
When the camera is set up, there is no need to use an additional remote controller. The physical buttons on the rear panel of the BC-15PN make it very easy to adjust settings.
Power over Ethernet
The BC-15PN supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your BC-15PN.
1/4” Screw Hole for Mounting
Changing the camera angle is easy with the three 1/4” screw holes on the BC-15PN. It gives you the flexibility of mounting it anywhere.
Standard and Wide-Angle Lenses
Standard lens gives a nice clear quality of a close up POV shot, while the wide-angle lens captures a wide shot of your subject in great detail.
- 4K POV NDI Camera
- Compact Versatility with 4K Quality and NDI Connectivity
- Built-in Fixed Lens
- 1/2.3” CMOS Sensor with 4K 50/60p Output
- Built-in Tally Light
- Power over Ethernet
- 1/4” Screw Hole for Mounting
| Model Number: | BC-15PN |
| Video Format / Resolution: | 2160p 60/59.94/50/30/29.97/25 1080p 60/59.94/50/30/29.97/25 |
| Image Sensor: | 1/2.3" CMOS |
| Effective Pixels (Approx.): | 12.3Mega Pixels |
| S/N Ratio: | 50 dB |
| Min. Illumination: | 0.5Lux (F1.0, AGC ON) |
| Electronic Shutter: | 1/25(1/30), 1/50(1/60), 1/75(1/90), 1/100(1/120), 1/125(1/150), 1/150(1/180), 1/200(1/210), 1/500(1/600), 1/1000(1/1200), 1/2000(1/2400), 1/4000(1/4800), 1/8000(1/9000) sec |
| Zoom Ratio: | 2x Digital Zoom |
| Gamma Control: | Standard / Mode1 / Mode2 / Mode3 |
| Iris Control: | Fixed IRIS (F1.0) |
| Digitan Noise Reductions: | 2D/3D |
| On-Screen Display (OSD): | English/Simplified Chinese/Traditional Chinese |
| White Balance: | Auto, Indoor, Outdoor, OnePush, Color Temp., R/B Gain, Lock |
| AGC / Gain Control: | Auto(AGC) / Manual / Lock (Follow Exposure Mode) |
| HDR / WDR: | WDR |
| Mirror / Flip Image: | Yes |
| Focus Mode: | Full Manual |
| Focal Length: | Standard Lens: 6mm Wide Lens: 2.8mm |
| Field of View (Horizontal, Wide): | Standard Lens: H: 38.6, V:21.9, D: 44.1 Wide Lens: H: 75.5, V:46.6, D:82.7 |
| Image Compensation: | Auto |
| Video Output: | HDMI 2.0 x1 |
| Audio Input: | 3.5mm Line in/Mic in (Stereo) |
| Tally LED: | Dual color (Red, Green) |
| Lens Filter: | IR cut built-in |
| Control Protocol: | DVIP |
| Remote Control Interface: | RJ-45: for IP control (DVIP) |
| Video Compression Format: | H.265, H.264 |
| Audio Compression Format: | AAC |
| Audio Bitrate: | 128Kbps |
| HD IP Interface: | 10/100/1000M |
| Streaming Protocols: | RTMP(S), SRT, NDI |
| First Stream Supported Resolution: | 1920x1080 1280x720 1024x576 960x540 640x480 640x360 |
| Video Bitrate: | 1Mbps ~ 7Mbps |
| Video Bitrate Mode: | VBR, CBR |
| Encoding Frame Rate: | 50Hz: 1-50fps 60Hz: 1-60fps |
| POE: | IEEE 802.3af |
| F/W Update: | Ethernet |
| Camera Control Unit: | RMC-300 series/BC View Assist APP |
| Tripod Mount: | 1/4-20 UNC |
| Colour: | Black |
| Dimensions: | 77mm (W) x 82mm (D) x 78mm (H) |
| Weight: | 200g |
| Operating Temperature Range: | 0~40 °C |
| Power: | DC 12V 9W PoE |
- 1 x BC-15PN Main Unit
- 1 x Standard Lens (attached on camera with lens cap)
- 1 x Wide-angle Lens (attached with lens caps)
- 1 x DC 12V power adaptor
- 1 x Carry Case
