Datavideo AD-200 6-Channel Audio Delay/Mixer with Level Adjustment
Datavideo AD-200 6-Channel Audio Delay/Mixer with Level Adjustment
SKU:
DATA-AD200
Regular price
£843.30 GBP ex VAT
£1,011.96 GBP inc VAT
£1,011.96 GBP inc VAT
Regular price
ex VAT
Sale price
£843.30 GBP ex VAT
£1,011.96 GBP inc VAT
Unit price
per
£1,011.96 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

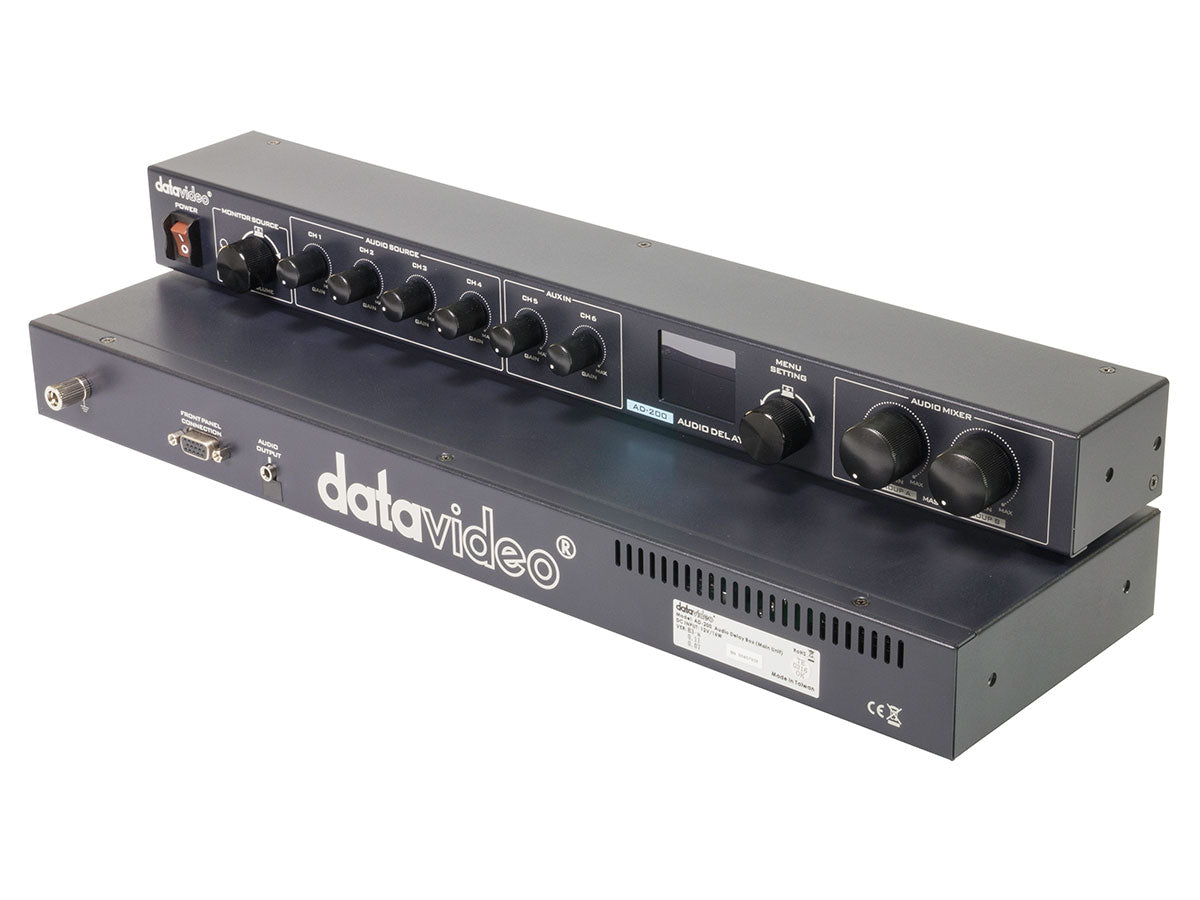

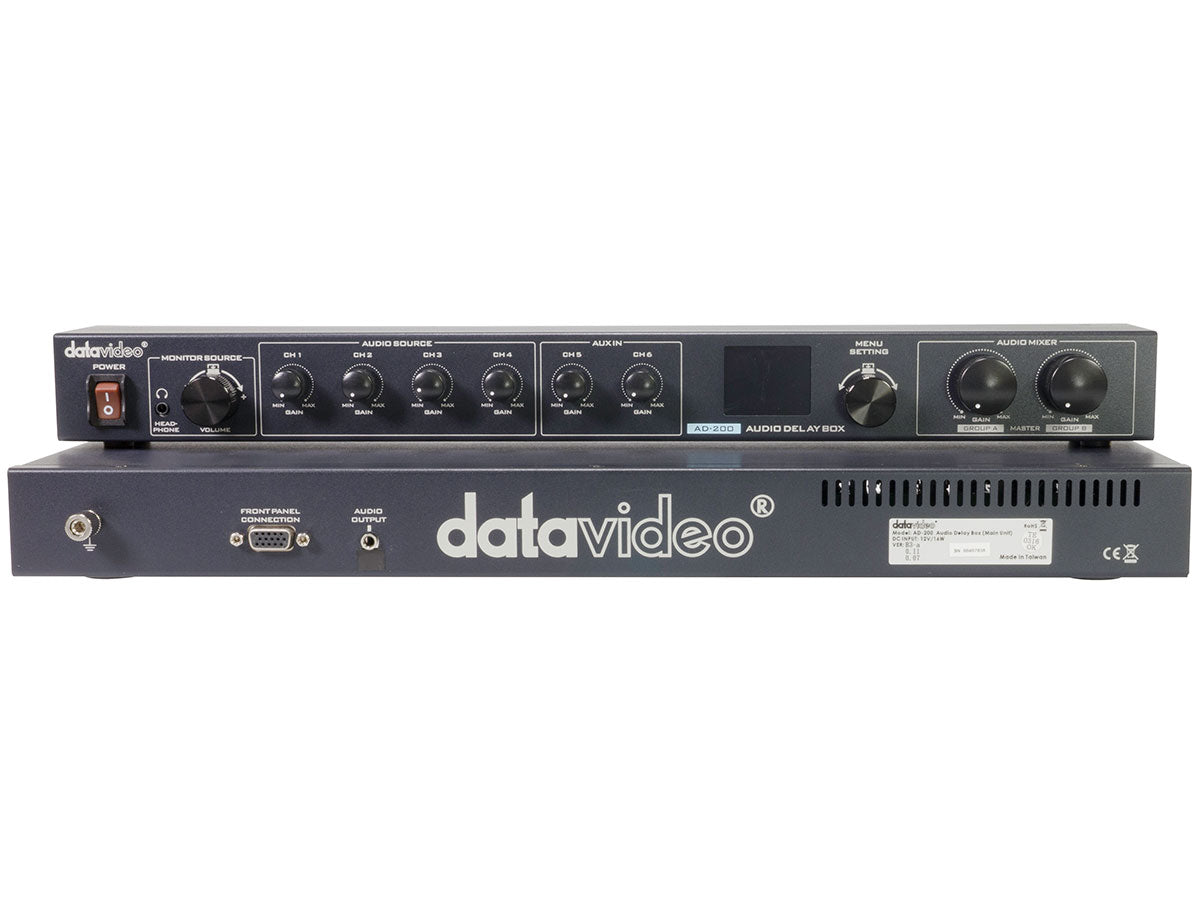

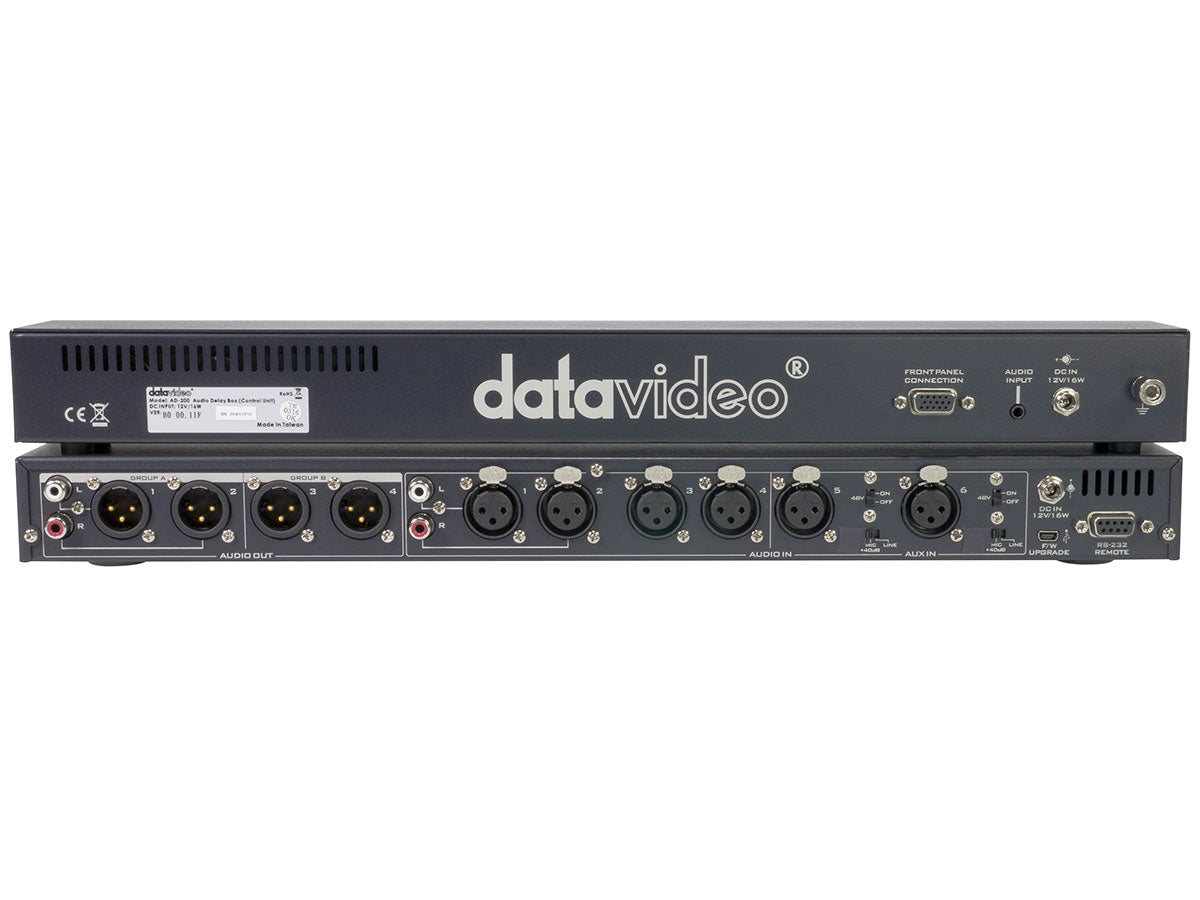

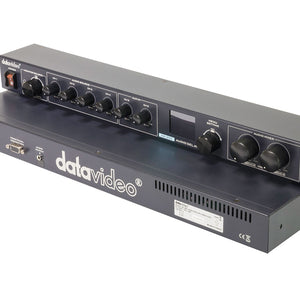

Datavideo AD–200 is an integration of 6-Channel audio delay with a matrix mapping function of 4-Channel outputs Audio Mixer, a combination design with front panel and main unit, 2 separate parts by 1RU rack mount design which can be easily installed to OB Van or customized rack.
- 4-CH balanced audio inputs, 2-CH AUX inputs selectable of Mic/Line level
- 4-CH balanced audio outputs, 2-CH unbalanced-audio outputs
- Support up to 3sec audio delay adjustment for each input channel
- Audio level adjustment of each input
- 6-CH Audio mixer and matrix router to 4-CH audio outputs
| Model Number: | AD-200 |
| Audio Input: | 6x XLR, 2x RCA |
| Audio Output: | 4x XLR, 2x RCA, 1x 3.5mm |
| Audio Indicator: | 1.77" Color OLED |
| Audio Delay: | Up to 3000ms |
| Audio Sample Rates: | 48 KHz |
| Special Feature: | Audio Delay and Mix, delay by channel |
| Chassis: | 2 units, rack-mount mainframe |
| Power: | DC 12V 19W (front) DC 12V 16W (rear) |
| Dimensions: | 440 x 126 x 42 mm |
| Weight: | 1.8 kg |
| Operating Temperature Range: | 0~40 °C |
- 1 x AD-200 Main Unit
- 1 x AD-200 Control Unit
- 1 x AD Switch DC 12V
- 1 x D-SUB cable, Male to Male Cable
- 1 x 3.5mm Stereo Cable, 1.2m
- 4 x 1U Rack Kit
- 16 x Screws M4 x 8mm
