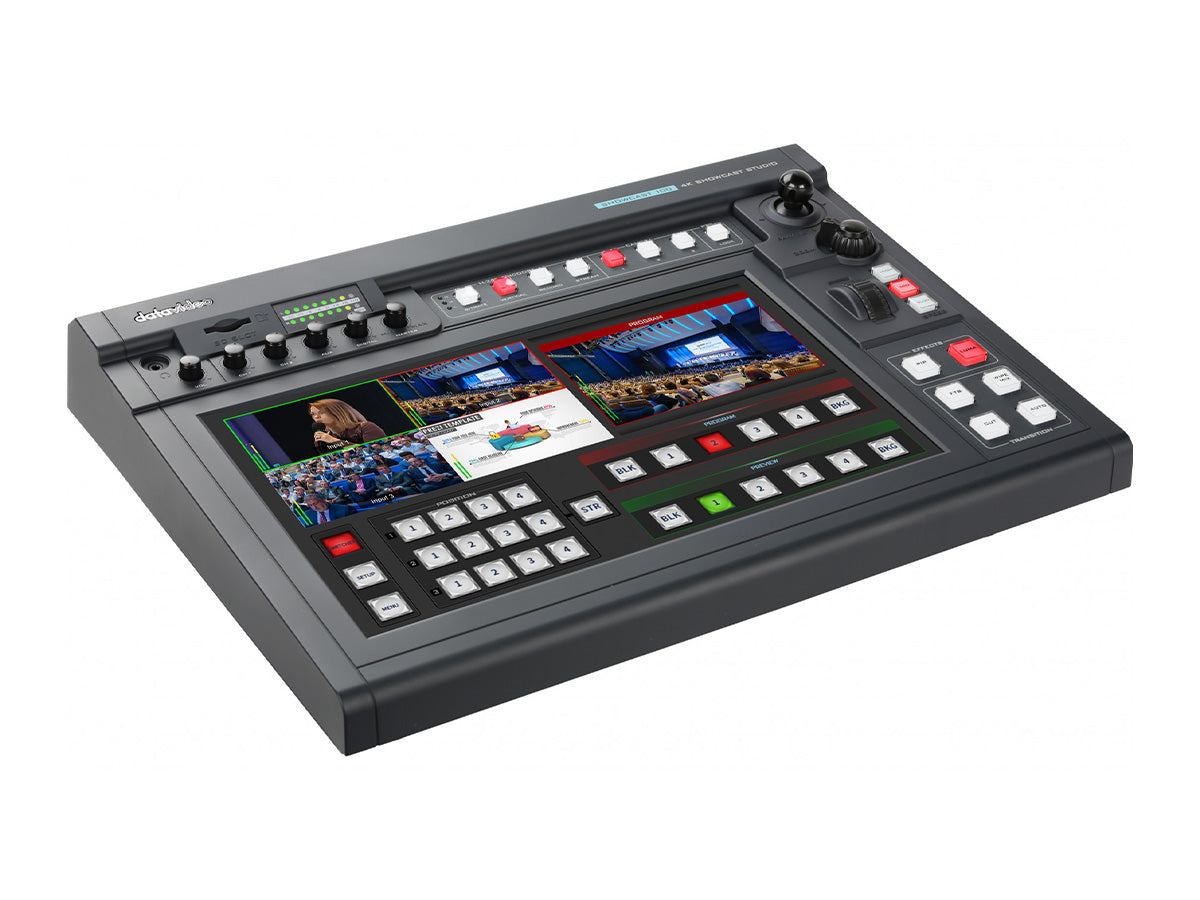

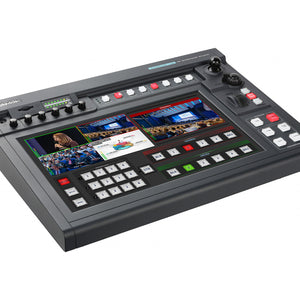

Datavideo 4K SHOWCAST Streaming Studio
Datavideo 4K SHOWCAST Streaming Studio
SKU:
DATA-SHOWCAST100
Regular price
£3,641.40 GBP ex VAT
£4,369.68 GBP inc VAT
£4,369.68 GBP inc VAT
Regular price
ex VAT
Sale price
£3,641.40 GBP ex VAT
£4,369.68 GBP inc VAT
Unit price
per
£4,369.68 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Innovative, Compact, Easy to Use and All-in-One
The SHOWCAST 100 is a brand new 4K 4-Channel All-in-one Production Studio that features 7 major functions. It can switch video, overlay text and graphics, control cameras, live stream, record, and mix audio all from a single unit. Similar to a tablet, the 14-inch touch panel allows easy and intuitive access to switcher functions.
4K60p 4-Channel All-in-One Production Studio
The touch panel allows easy and intuitive access to a variety of switcher functions. The SHOWCAST 100 has many functions with easy setup.
The unique all-in-one design streamline your video production workflow by reducing the number of external devices that you need to connect. SHOWCAST100 is light and compact. Its mobility makes it ideal for any live production environment.
-
Video Switching - The four HDMI input/output channels are designed for basic video production workflow of meetings, corporate conferences, church events, etc.
-
Subtitles - The SHOWCAST 100 offers two ways to overlay subtitles. A lumakeyed subtitle is usually used for logos, animated texts, etc. Another way is to overlay subtitles using the built-in network streaming encoder.
-
Camera Control - The SHOWCAST 100's built-in camera control functions allow you to simultaneously control three PTZ cameras. You can directly save the lens position presets, pan and tilt camera lens in real time, zoom in and out of an image, and adjust the white balance, iris and mirror mode.
-
Video Streaming and Recording - The built-in dual live streaming encoder allows you to record and stream simultaneously. With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post production edits without much effort.
Useful and Simple Transition Effects
Cut, Mix and Wipe are the three useful and simple transition effects built into the switcher. Via an easy-to-use 14 inch touchscreen UI, the transition settings will be immediately accessible after selection of a particular effect. For example, if you've selected WIPE, you can easily adjust the transition speed by dragging a slider with your finger or tap to select a color for the border.
PIP and Split
PIP is often required in video production. Most of the time, the PIP window size need to be adjusted for the program view. The SHOWCAST 100 allows you to drag different sliders on the touchscreen UI with your finger to set the aspect ratio of the PIP window. The split window is usually used for live interview, corporate presentations, and panel discussions.
Camera Control
The SHOWCAST 100's built-in camera control functions allow you to simultaneously control three PTZ cameras. You can directly save the lens position presets, pan and tilt positions in real time and zoom in and out of a shot. In addition, you can adjust the white balance, iris and mirror mode of each camera.
Camera Presets
Even though SHOWCAST 100 can control only three PTZ cameras, you can save up to four presets per camera, giving you a total of 12 different angles for your production. The 12 memory presets allow the director to instantaneously switch between different camera angles on SHOWCAST 100 by pushing corresponding preset buttons.
Fine Tuning the Camera Parameters
On the intuitive touchscreen UI, you can easily adjust the camera's focus, iris and white balance settings. Settings of a particular program can be saved in memory presets for future use.
Two Ways to Overlay Subtitles
The SHOWCAST 100 offers two ways to overlay subtitles. A lumakeyed subtitle is usually used for logos, animated texts, etc. Lumakeyed subtitles can be previewed on the multiview screen and transitioned to program.
Another way is to overlay the subtitles using the built-in network streaming encoder. On the web UI of the streaming encoder, enter the subtitle texts in the text field of the CG page after which the subtitle will be shown on your streamed video as streaming starts and recorded on the SD card along with the video. If lumkeyed subtitle and CG texts are shown at the same time, they will all be recorded on the SD card.
Lumakeyed Subtitle
Luma key is an image processing technique that deals with the brightness level of an image or a video, thereby generating a foreground subtitle or logo. SHOWCAST 100's luma key function is designed for logos, text and animated images.
Character Generation Using the Network Streaming Server
The CG texts or image generated using the network streaming server can be overlaid on the video during streaming. The text size and color can be customized with a border added. The text or image position can also be adjusted accordingly.
Custom Real-time Captions and Subtitles for Your Programs Such as News Broadcast
Transcribe audio by entering subtitles line by line using News CG then play subtitles in real time by simply tapping the space bar on the keyboard.
Adjust the Size, Position, Color and Borders
Highlight the information that you wish to convey to your audience. You can also transcribe audio by entering subtitles line by line using News CG after which you will be able to play subtitles in real time by simply tapping the space bar on the keyboard controller.
Live Streaming Encoder
The built-in dual live streaming encoder allows you to record and stream simultaneously. With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post production edits without much effort.
Depending on the bandwidth, you can set the bitrate to low, medium or high. To meet growing demand for mobile viewing, the portrait view can now be easily activated on the SHOWCAST 100 by simply pressing the VERTICAL button so that viewers will be able to view the program on their mobile devices by holding them upright without having to change the orientation.
Dual Streaming
During video production, you can simultaneously stream to two live streaming platforms such as Facebook, Youtube and Twitch. With Datavideo dvCloud, you can stream to 25 live streaming platforms at the same time and automatically back up your video files on the cloud server.
dvCloud and SRT
dvCloud is a professional live streaming platform developed by Datavideo. Once you've login, you will be allowed to create and manage all video streaming channels on dvCloud and stream your video to 25 live stream servers without any time constraints. The best part about dvCloud is that it allows you to back up video files on the cloud server for future downloads. The SHOWCAST 100 forms a low latency, secure and reliable streaming work flow with the SRT protocol and the dvCloud server.
Vertical Streaming
For each live streaming video, 50% of the audience view on mobile phones, and 94% of the mobile users prefer holding the phone upright to view the video. It takes only a few basic setups for the vertical streaming function of the SHOWCAST 100 to generate a portrait view of your streaming video.

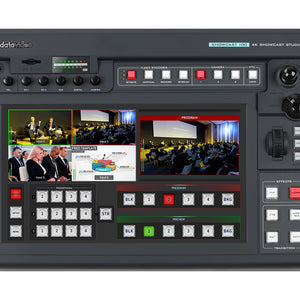

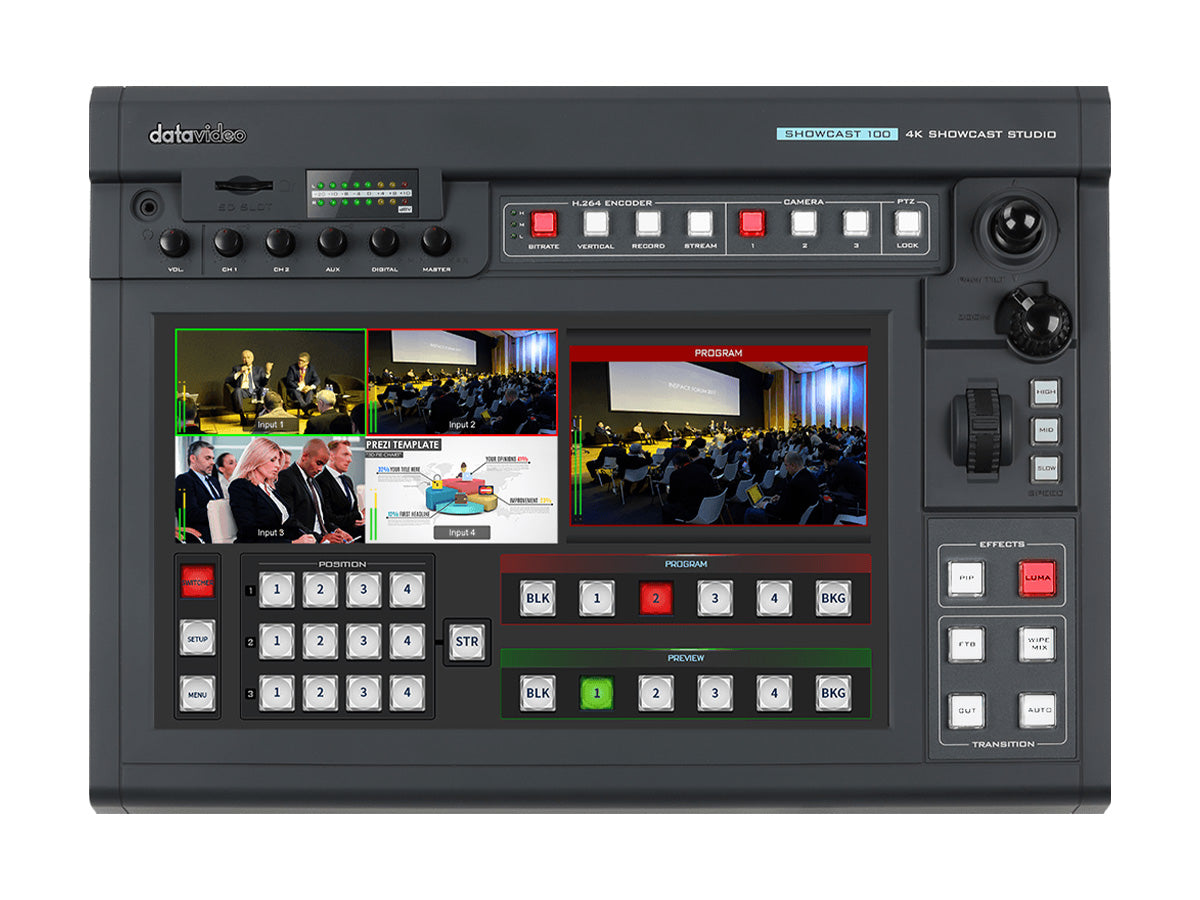

14 Inch Touch Screen and Intuitive Operation using the Touchscreen UI
The traditional physical keyboard of the switcher is replaced by a professional touchscreen UI to allow video switching, activation of subtitle overlay, camera control, video recording, audio mixing, etc. Operating of these functions is intuitive and easy to learn, even to novice users.
The SHOWCAST 100's intuitive touchscreen UI has several buttons with each assigned of one function only. The pane-like design divides the functions into different groups. Like a tablet, the touchscreen UI is intuitive and easy to use.
SD Card Recording
With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post-edits, etc without much effort.
Audio Mixing
The 4 Channel Audio Mixer accepts embedded audio, two LINE input channels, one AUX channel and one HDMI audio channel, giving you the ability to mix the audios while processing the image.

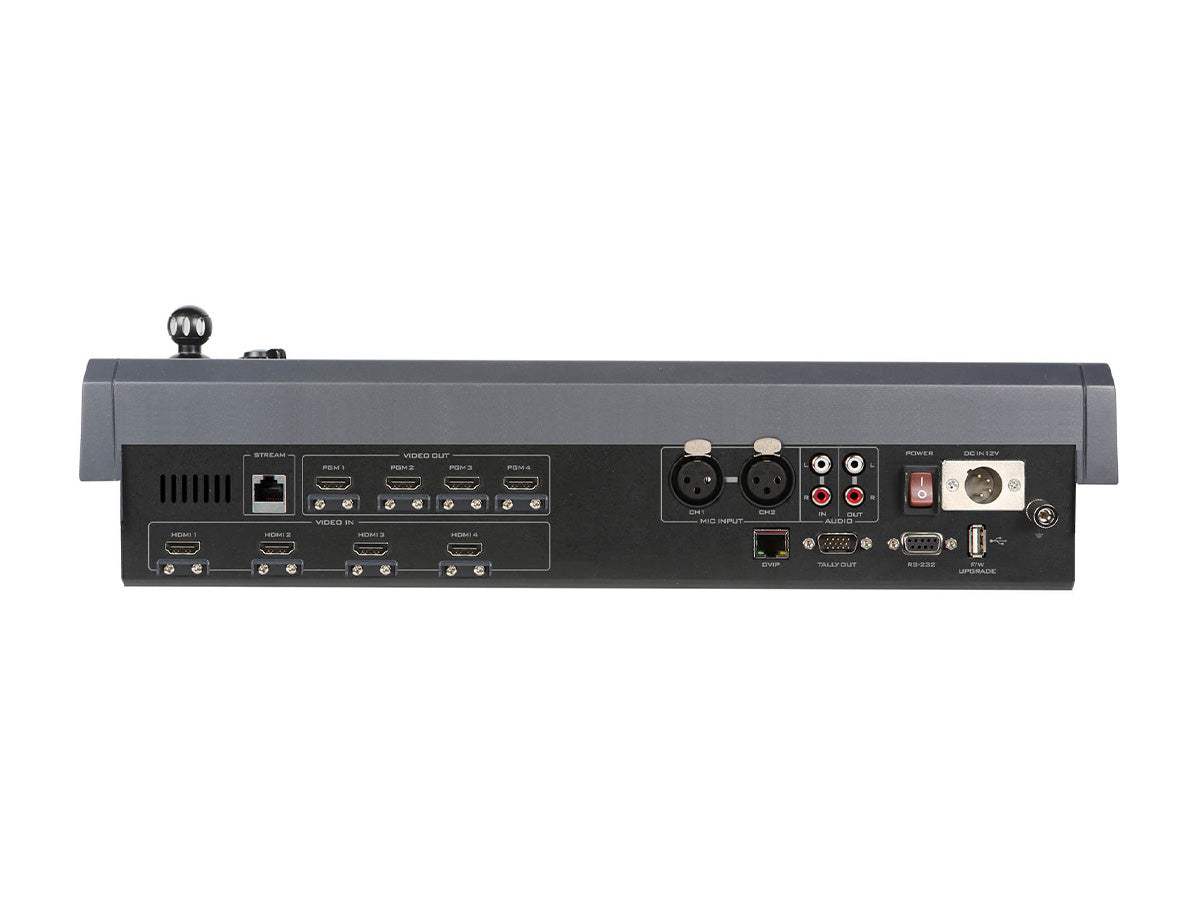

The SHOWCAST 100 has two XLR/6.3mm composite ports for LINE inputs. The dual channel RCA port is designed for analog audio input. The RCA output serves to connect external audio equipment for audio monitoring.
- 4K ShowCast Streaming Studio
- 4K 4-Channel Touch Panel Switcher
- Built-in camera control
- Video Streaming and Recording
- Useful and Simple Transition Effects
- PIP and Split
- Powerful Camera Presets
- Live Streaming Encoder
- Dual Streaming
- SD Card Recording
- Audio Mixing
| Model Number: | SHOWCAST 100 | |
| Video Standard: | 4K & HD | |
| Video Format: | Input: | 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 VGA, XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x1200), WUXGA (1920 x 1200) |
| Output: | 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 | |
| Video Processing: | 4K60: | YUV4:4:4 8bit, YUV 4:2:2 8/10bit, YUV 4:2:0 8bit, RGB 4:4:4 8bit |
| 4K30: | YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, YUV 4:2:0 8bit, RGB 4:4:4 8/10/12bit | |
| HD: | YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, RGB 4:4:4 8/10/12bit | |
| Input Routable / Crosspoint: | N/A | |
| Video Input: | 4 x HDMI 2.0 | |
| Mix HD & SD Source: | ---- | |
| Computer Graphic Interface: | 4 via HDMI | |
| Video Output: | 3 x HDMI 2.0 for PGM 1 x HDMI for CG Preview | |
| Down-Converted Output: | Yes | |
| Built-In Multi-View Monitoring Out: | On 14" Touch Panel | |
| Analogue Audio Input: | 2 x 3 Pin XLR / 1/4” (6.3mm) Combo Socket 1 x Stereo RCA set (L/R) Audio Input Switch: Stereo / Mono | |
| Analogue Audio Output: | 1 x Stereo RCA set (L/R) 1 x Stereo headphone (Mini Jack with volume control) | |
| Digital Embedded Audio Support: | Input 2 channels, Output 2 channels | |
| Audio Delay Calibration: | Up to 200ms | |
| A+V Switching: | Yes | |
| Chromakey: | ---- | |
| Title Creator: | Web GUI | |
| USK: | Lumakey | |
| DSK: | ---- | |
| Picture In Picture: | 1 | |
| Logo Insertion: | ---- | |
| Still Store: | ---- | |
| Effects: | Seamless Cut, WIPE, Mix | |
| Transition Preview: | ---- | |
| Sync / Reference In/Out: | Built-in Genlock (internal) | |
| Tally Output: | D-Sub -15 Male connector | |
| PC Remote Control: | Web browser UI for configuration and control Socket commands | |
| Camera Control: | DVIP / RS-422 / RS-232 | |
| Built-In Audio Mixer: | Yes | |
| Storage: | 1 x SD Card Slot Supports SD, SDHC and SDXC card (UHS-I) (Class 10 above) | |
| Recording File System: | FAT, NTFS, exFAT | |
| Recording File Format: | MP4 | |
| Video Encode: | H.264 / AVC, Main/ High Profile Record Only: Up to 16Mbps (1080p 50/60) Stream Only: Up to 10Mbps (1080p 50/60) Rec and Stream: Up to 10Mbps (1080p 25/30) Rec and Stream: Up to 36Mbps (1080p50/60), Dual Stream | |
| Audio Encode: | AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit | |
| Streaming Protocol: | TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP (Publish) | |
| Firmware Update: | USB | |
| Special Features: | 14.0" Touchscreen Display | |
| Chassis: | Unibody | |
| Dimensions: | 437.6 x 330.5 x 96.5mm | |
| Weight: | 5.4 Kg | |
| Power: | DC 12V 82W | |
| Operating Temperature Range: | 0~40 °C | |
- 1x Showcast 100 product
- 1x AD Switch DC 12V with AC Cord
