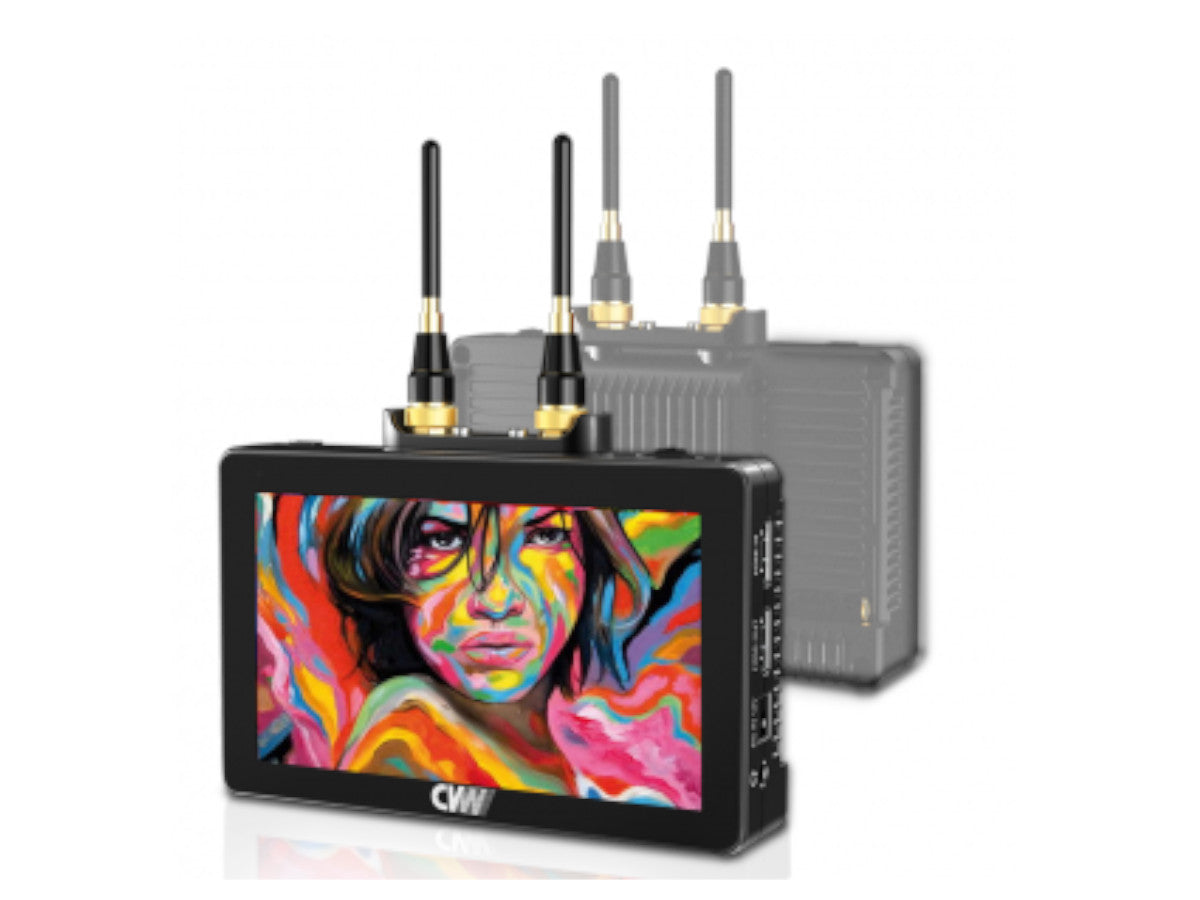

CVW Swift 5.5 Inch Wireless Monitor

CVW Swift 5.5 Inch Wireless Monitor

SKU: CVW-2705.0033
£662.49 GBP ex VAT
£794.99 GBP inc VAT
ex VAT £662.49 GBP ex VAT
£794.99 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

The Swift Z is a kit of 5.5” touch-screen monitors with built-in wireless modules. Being accessible and deployment-friendly, it will definitely make monitoring much easier. It is also compatible with a wide variety of cameras.

The Swift Z has an edge over similar products in being much more professional and convenient. Above all, it delivers a panoply offantastic features and can be used for film &TV productions, live streaming, weddings, andso on. The Swift Z is a must-have item for videoproduction teams.

  • 5.5" touch-screen monitors with built-in wireless modules
  • The transmitter end can be used as a non-camera HDMI monitor and the receiver end as a director monitor
  • Ultra-low Latency ≤ 70ms
  • Transmission range up to 250m/800ft at 1080p60Hz
  • Selectable channels to minimise interference
  • Supports HDMI input/output & audio output
  • Supports HDR, 3D LUT import & professional video analysis functions
  • Supports dual battery and even reverse-charging for another device
  • Supports 500 nits of brightness
  • Pocket-sized and user-friendly
Screen Size 5.5” touch screen
Resolution 1920 × 1080
Frequency 5.1 ~ 5.9(GHz)
Audio Format PCM
Latency 70ms
Video Compression standard H.264
Transmission Distance 250m/800ft (LoS)
Antenna Mode 2T2R 2dBi x 2
Pixel Size 0.0639 (H) × 0.0213 (W) mm
Pixel Density 400ppi
Aspect Ratio 16:9
Brightness 500cd/m2
Contrast 1000:1
Viewing Angle 80°/80°(L/R) 80°/80°(U/D)
Input HDMI
Output HDMI, 3.5mm audio jack
Power In DC IN 12V
Power Out DC 8V
HD Input / Output Supported Formats When the wireless module is on
  480P,576I,576P,720P60/59.94/50,
  1080I50/59.94/60
  1080p23.98/24/25/29.97/30/50/59.97/60

  When the wireless module is off
  480P,576I,576P,720P60/59.94/50,
  1080I50/59.94/60
  1080p23.98/24/25/29.97/30/50/59.97/60
  4K UHD 3840×2160p
  (30/29.97/25/24/23.98Hz)
  DCI 4K 4096×2160p (24Hz)

Power Input Voltage 7 ~ 24V
Power Consumption ≤18W
Mounting option 1/4” thread
Dimension 148Lx93Hx20W (mm)
Net Weight 370g (TX), 370g (RX)
Operating Temperature -20°C ~ 55°C
Storage Temperature -30°C ~ 65°C
  • 1x  Wireless monitor (TX 7109)
  • 1x  Wireless monitor (RX 3109)
  • 2x  Sunhoods
  • 1x  HDMI cable
  • 4x  Antennas
  • 1x  Cold Shoe Mount
  • 1x  USB Type-C adaptor
  • 1x  Manual
  • 2x  Drawstring bags
