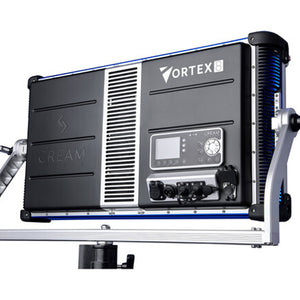

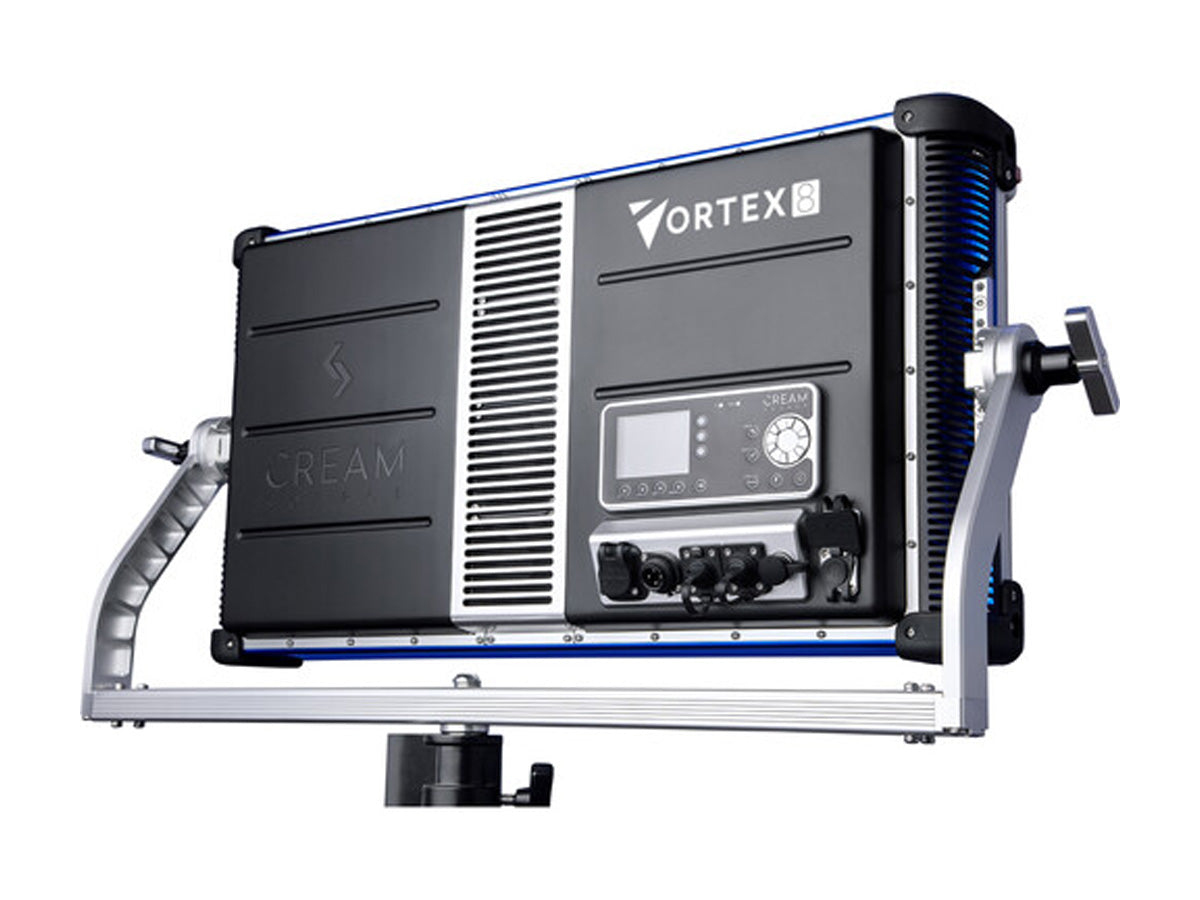

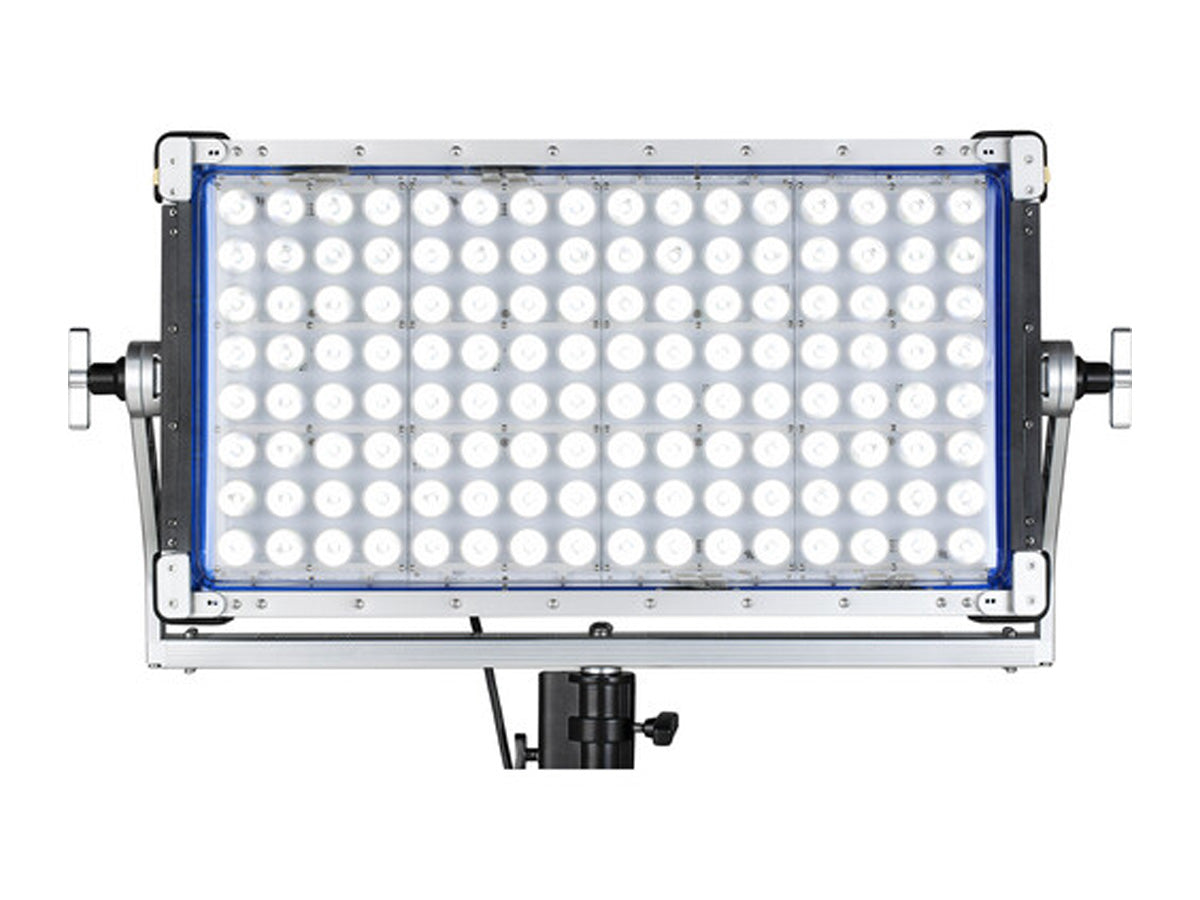

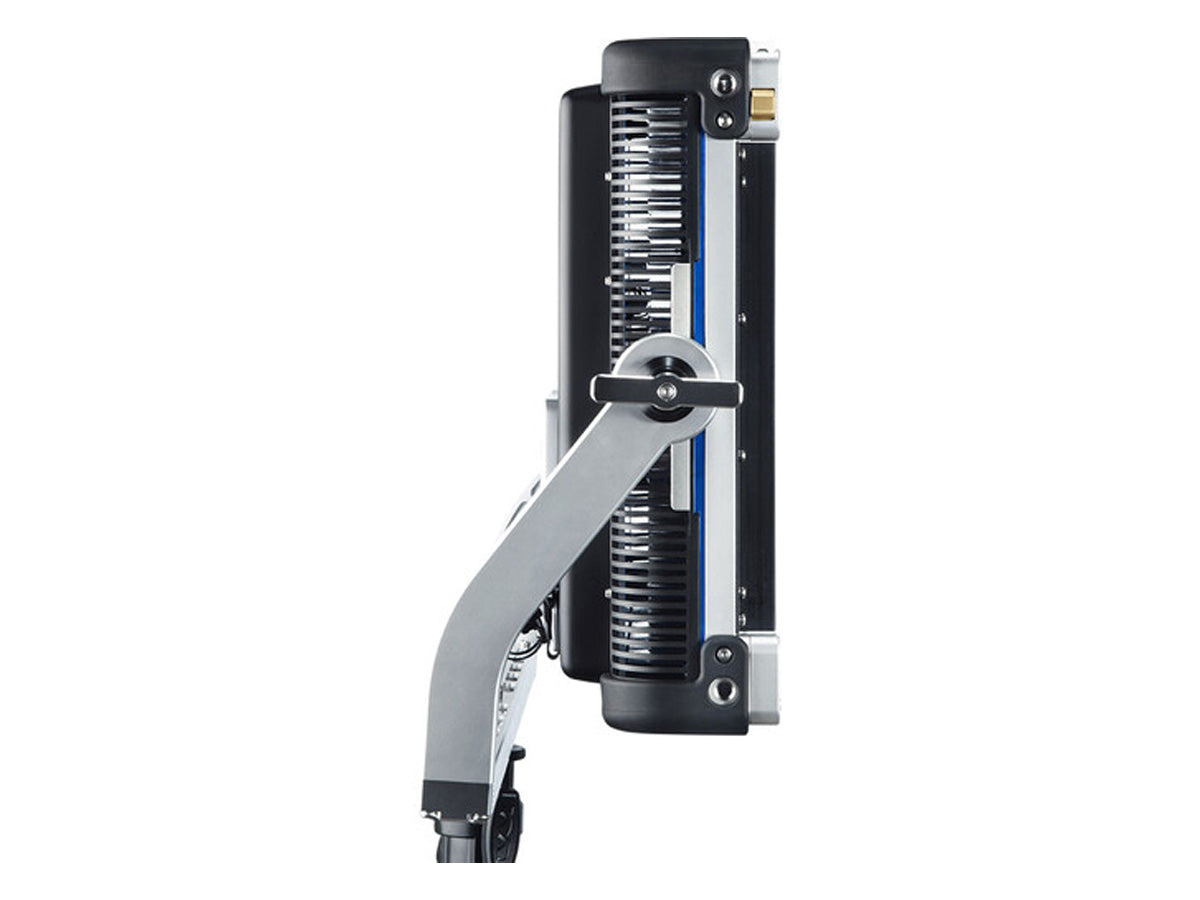

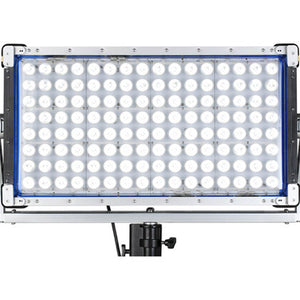

Creamsource Vortex8 650W RGBW Light
Creamsource Vortex8 650W RGBW Light
SKU:
CS-K-CSV-8-ESS
Regular price
£5,895.00 GBP ex VAT
£7,074.00 GBP inc VAT
£7,074.00 GBP inc VAT
Regular price
ex VAT
Sale price
£5,895.00 GBP ex VAT
£7,074.00 GBP inc VAT
Unit price
per
£7,074.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Bright LED Rivaling HMI
Vortex8 is a 650W high-power RGB LED system in a 2x1 configuration, offering the intensity of some 1200W HMI systems. It achieves a massively bright 14000 lux at 9.8' and has an ultra-narrow 20° beam angle.
Effects and Colors
Effects and digital color gels are built into the latest CreamOS architecture in addition to a range of new features wrapped into an intuitive user interface.
IP65 Weather Resistant
The Vortex8 is built and designed to withstand all weather conditions and is rated IP65. The Vortex8 is an ultra-quiet fan-based system with optimum thermal efficiency. The fan system and heatsink placement allows for core electronics to be sealed and isolated.
Connectivity
Interaction between Vortex8 and various third party instruments and protocols are endless, opening various wired and wireless control options. Connectivity options include built-in LumenRadio TimoTwo, Ethernet, Bluetooth, 5-pin DMX, Wi-Fi, USB Type-A, and a Creamsource Accessory port.
Operating System and Interface
The new Vortex Series has been built with new software architecture at its base, supporting a myriad of new features, protocols, and connectivity options in CreamOS. With the ability to control and map eight zones, the new feature set has been wrapped into a new user interface, enhancing the user experience.
Design
Built with elegance and durability in mind, the Vortex8 is made with aluminium machining and a technopolymer infusion with the PSU as well as the antennas integrated into the head.
- A premium high powered 2×1 LED fixture designed for heavy use in all conditions.
- IP65 Water resistant with a built in power supply and all the advanced connectivity for professional use.
- Optimised for a range of applications with RGBW, a wide CCT range and high speed modes for shooting up to 5000fps.
- Sync Input for Triggering and Syncing to Camera Shutter.
| Material: | Aluminium/Technopolymer |
| Light Source: | RGBW LED |
| Colour Range: | CCT: 2200 - 15000K, PLUS/MINUS GREEN, HUE/SATURATION, XY, GELS, DIRECT RGBW, EFFECTS |
| CRI: | Typical 95 |
| TLCI: | Typical 95 |
| Beam Angle, SPOT Lens: | 20° (Half Peak Angle) |
| Tilt Angle: | 360° |
| Photometrics: | 3200K: 68,200 lx / 6,340 fc @ 1m / 3.3ft 26,200 lx / 2,430 fc @ 2m / 6.6ft 12,700 lx / 1,180 fc @ 3m / 9.8ft 7,400 lx / 690 fc @ 4m / 13.1ft 4,800 lx / 450 fc @ 5m / 16.4 ft 3,400 lx / 320 fc @ 6m / 19.7 ft 5600K: 73,500 lx / 6,830 fc @ 1m / 3.3ft 28,600 lx / 2,660 fc @ 2m / 6.6ft 13,900 lx / 1,290 fc @ 3m / 9.8ft 8,000 lx / 740 fc @ 4m / 13.1ft 5,200 lx / 480 fc @ 5m / 16.4 ft 3,700 lx / 340 fc @ 6m / 19.7 ft |
| Mounting: | 8x 3/8” Threaded Insert Rigging Points |
| Yoke: | Removable quick release yoke |
| Filter Rails: | 2 Filter Rails for Secondary Lenses, Diffusers, Accessories |
| User Interface: | High Precision Digital Magnetic Encoder, Backlit Keypad, Colour LCD Display |
| Dimming: | 0-100% with High Resolution, Super-Smooth Low End Mode |
| High Speed Capability: | Over 5000fps Flicker Free in High Speed Mode |
| Synchronization: | Sync Input for Triggering and Syncing to Camera Shutter |
| Max Ambient Temperature: | 40°C |
| Cooling: | Low noise variable speed fans |
| Estimated LED LIfespan: | 50,000hrs (L70) |
| Input (AC): | 100-240V AC, 50/60Hz, Max 6.6A, 660W. Neutrik PowerConTrue connector |
| Input (DC): | 48V DC, Max 13.75A, Can run at 100% brightness on DC input |
| Protection Class: | IP65 |
| Weight: | 15.9kg / 35lb (Excluding Yoke) 1.93kg / 4.2lb (Yoke weight) |
| Dimensions: | 690 x 380 x 121mm / 27.2” x 15” x 4.8” (Excluding Yoke) 831 x 551 x 164mm / 32.7” x 21.7” x 6.4” (Including Yoke) |
| Warranty: | 3 Years on Fixtures, 12 Months on Accessories (5 Years registered) |
| Certifications: | Pending: CE, ETL and FCC |
| Control: | On-Board Interface, DMX via standard 5-pin XLR connectors, Wired Remote Control Accessory, Integrated Lumen radio Timo Two with Bluetooth, Ethernet, USB Type A |
