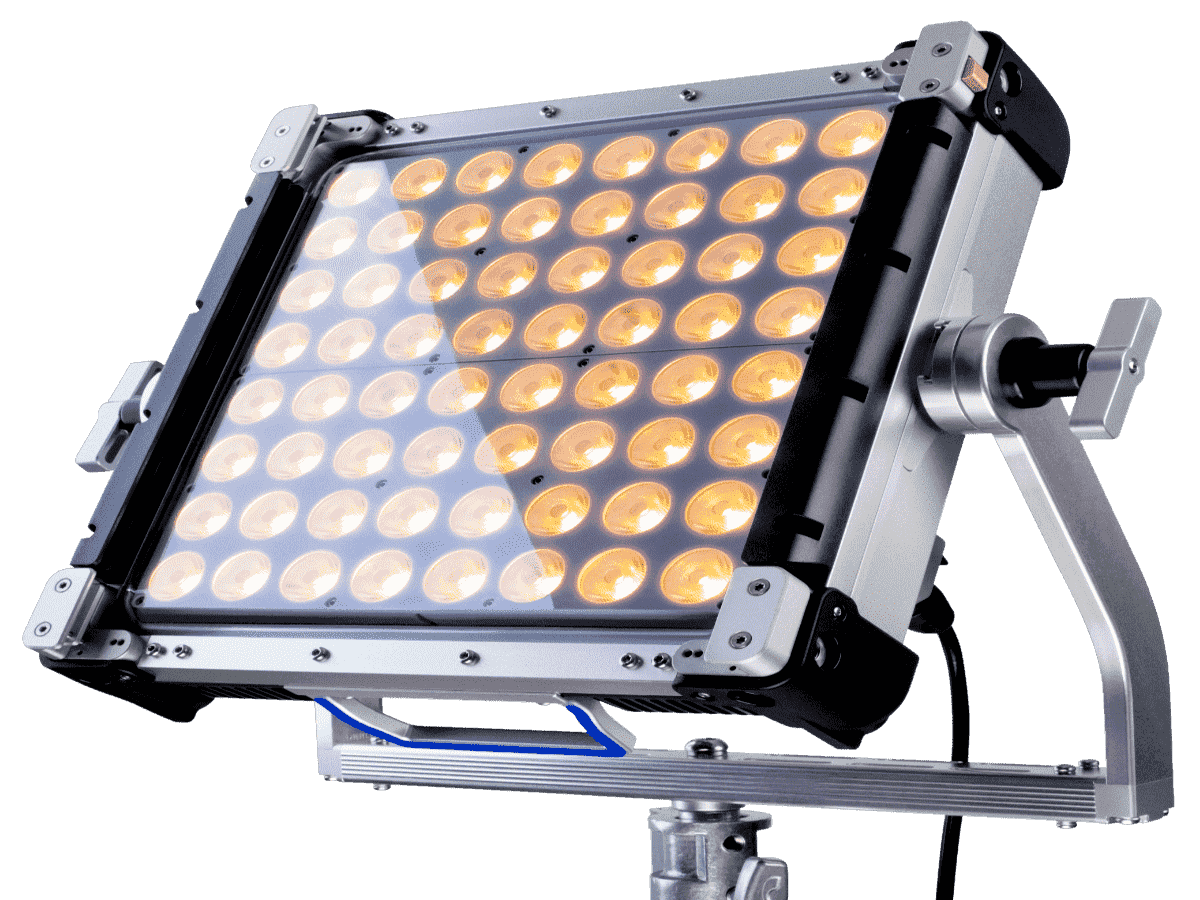

Creamsource Vortex4 325W RGBW Light

Creamsource Vortex4 325W RGBW Light

SKU: CS-K-CSV-4-ESS
£2,995.00 GBP ex VAT
£3,594.00 GBP inc VAT
ex VAT £2,995.00 GBP ex VAT
£3,594.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

The Vortex4 is a 1×1 RGBW All-In-One system with PSU and antennas integrated, reading 7300lux @3m on the meter. This fixture has a CCT range from 2200K to 15000K. Vortex can be used as a hard light or soft light with the Creamsource Diffuser or Dome.

Effects and colour gels and our latest technology ‘FrameSync’ are built into the latest CreamOS architecture. Like it’s big brother, Vortex4 has no problem with weather, messy effects machines or extreme dust. The Vortex4 is IP65 water resistant and sealed for the ultimate security and efficiency.

  • A premium high powered 1×1 LED fixture designed for heavy use in all conditions.
  • IP65 Water resistant with a built in power supply and all the advanced connectivity for professional use.
  • Optimised for a range of applications with RGBW, a wide CCT range and high speed modes for shooting up to 5000fps.
  • Sync Input for Triggering and Syncing to Camera Shutter.
Material: Aluminium/Technopolymer
Light Source: RGBW LED
Colour Range: CCT: 2200 - 15000K, PLUS/MINUS GREEN, HUE/SATURATION, XY, GELS, DIRECT RGBW, EFFECTS
CRI: Typical 95
TLCI: Typical 95
Beam Angle, SPOT Lens: 20° (Half Peak Angle)
Tilt Angle: 360°
Photometrics: 3200K:
48,500 lx / 4,507 fc @ 1m / 3.3ft
15,000 lx / 1,394 fc @ 2m / 6.6ft
6,700 lx / 623 fc @ 3m / 9.8ft
3,900 lx / 362 fc @ 4m / 13.1ft
2,500 lx / 232 fc @ 5m / 16.4 ft
1,700 lx / 158 fc @ 6m / 19.7 ft
5600K:
53,100 lx / 4,935 fc @ 1m / 3.3ft
16,300 lx / 1,515 fc @ 2m / 6.6ft
7,300 lx / 678 fc @ 3m / 9.8ft
4,200 lx / 390 fc @ 4m / 13.1ft
2,700 lx / 251 fc @ 5m / 16.4 ft
1,900 lx / 177 fc @ 6m / 19.7 ft
Mounting: 8x 3/8” Threaded Insert Rigging Points
Yoke: Removable quick release yoke
Filter Rails: 2 Filter Rails for Secondary Lenses, Diffusers, Accessories
User Interface: High Precision Digital Magnetic Encoder, Backlit Keypad, Colour LCD Display
Dimming: 0-100% with High Resolution, Super-Smooth Low End Mode
High Speed Capability: Over 5000fps Flicker Free in High Speed Mode
Synchronization: Sync Input for Triggering and Syncing to Camera Shutter
Max Ambient Temperature: 40°C
Cooling: Low noise variable speed fans
Estimated LED Lifespan: 50,000hrs (L70)
Input (AC): 100-240V AC, 50/60Hz, Max 3.3A. Neutrik PowerConTrue connector
Input (DC): 48V DC, Max 6.9A, Can run at 100% brightness on DC input
Protection Class: IP65
Weight: 9.9kg / 21.8lb (Excluding Yoke)
1.72kg / 3.8lb (Yoke weight)
Dimensions: 380 x 380 x 121mm / 15” x 15” x 4.8”
(Excluding Yoke)
525 x 570 x 179.25mm / 20.7” x 22.4” x 7.1”
(Including Yoke)
Warranty: 3 Years on Fixtures, 12 Months on
Accessories (5 Years registered)
Certification: Pending: CE, ETL and FCC
Control: On-Board Interface, DMX via standard 5-pin XLR connectors, Wired Remote Control Accessory, Integrated Lumen radio Timo Two with Bluetooth, Ethernet, USB Type A
  • Vortex4 325W Colour
  • Yoke
  • Power cable
  • Flat diffuser
