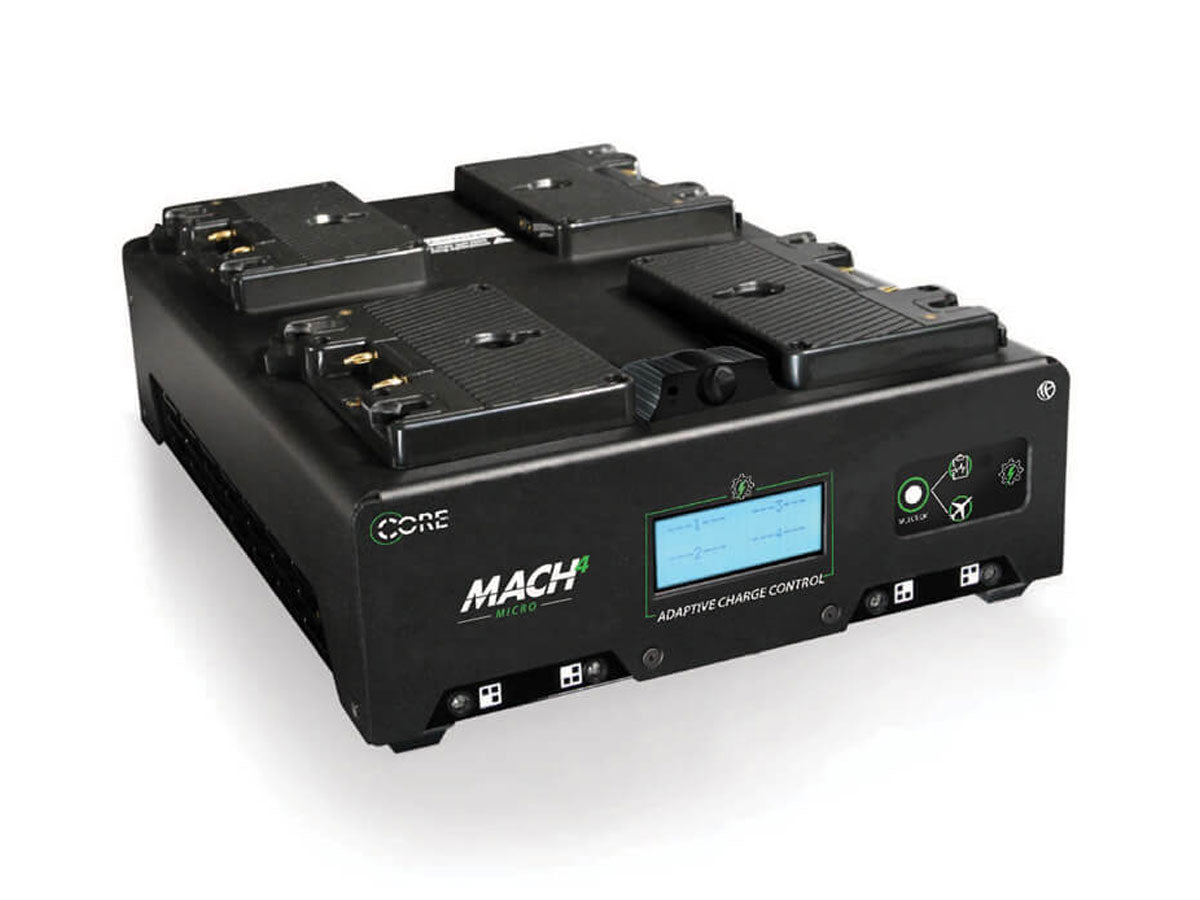

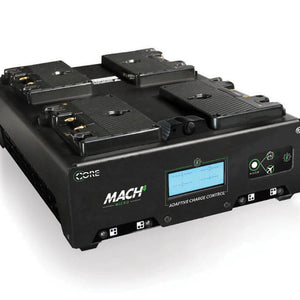

CoreSWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger (Gold Mount)
CoreSWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger (Gold Mount)
£1,412.77 GBP inc VAT
£1,412.77 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Incorporating CoreSWX's VoltBridge technology for wireless managing of your fleet of batteries, the CoreSWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger for Gold Mount Batteries is capable of simultaneously charging four batteries at 3A each. This means that four 98Wh batteries can be charged in under 2.5 hours. The onboard LCD display screen allows you to easily monitor your battery's smart data without needing to connect to a computer. The micro-USB connector allows for firmware updates and for connection to a PC.
The built-in Battery Management Test mode allows the charger to determine battery health and recharge performance. Activating the SafeFly mode forces the charger to discharge or charge connected batteries to a 30% charge level to meet air travel and shipping requirements. While plugged into an AC power source, the charger can either charge batteries or be used as a camera power supply via the built-in 4-pin XLR. In the absence of AC power, you can use the charger to feed the 4-pin XLR from connected batteries providing unregulated power. The housing is made of aluminum, providing a robust build.
- Four position charger, 4A Simultaneous rapid charge, Adaptive Charge Control
- Four independent charge bays with Simultaneous charging
- Approximately 90min. charge time for four 98Wh batteries
- Red and green status LEDs with diagnostic LCD and Test function
- Compatible with Voltbridge and Voltbridge Mesh Enterprise
- 90-240 VAC worldwide compatible input voltage
- Weighs 5 lb
- Recessed carry handle
- Quick Charge Current: 4A Simultaneous
- Discharge Current: Up to 2A per channel
- LCD: 4x20 Character Backlit
- Size: 8.9” x 3.35” x 12.4”
- Weight: 5lbs.
- Input Voltage: 90-240VAC 50/60Hz
| Mount / Series Type | Gold Mount |
| Number of Battery Bays | 4 |
| AC Input Power | 90 to 240 VAC, 50 / 60 Hz |
| Output Voltage | 12 VDC |
| Multi-Bay Charging Modes | Simultaneous |
| Chemistry | Lithium-Ion |
| Maximum Wattage | 90 W |
| Dimensions | 9.1 x 3.35 x 12.17" / 23.11 x 8.51 x 30.91 cm |
| Weight | 5 lb / 2.3 kg |
| Package Weight | 6.425 lb |
| Box Dimensions (LxWxH) | 17.1 x 12.4 x 4.35" |
- Core SWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger for Gold Mount Batteries
- AC Power Cable (4')
