CoreSWX Powerbase EDGE LINK 70Wh Battery Pack (V-Mount)
CoreSWX Powerbase EDGE LINK 70Wh Battery Pack (V-Mount)
£277.99 GBP inc VAT
£277.99 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

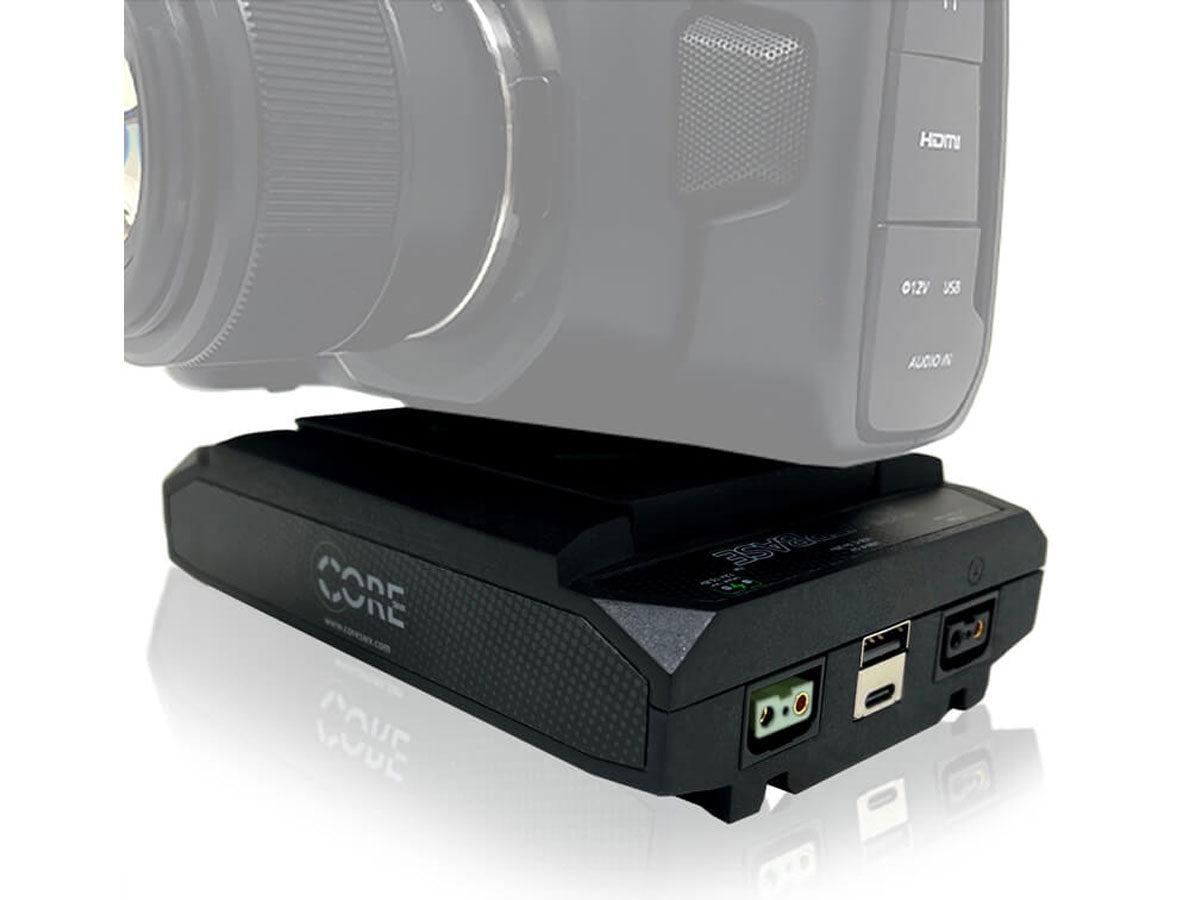

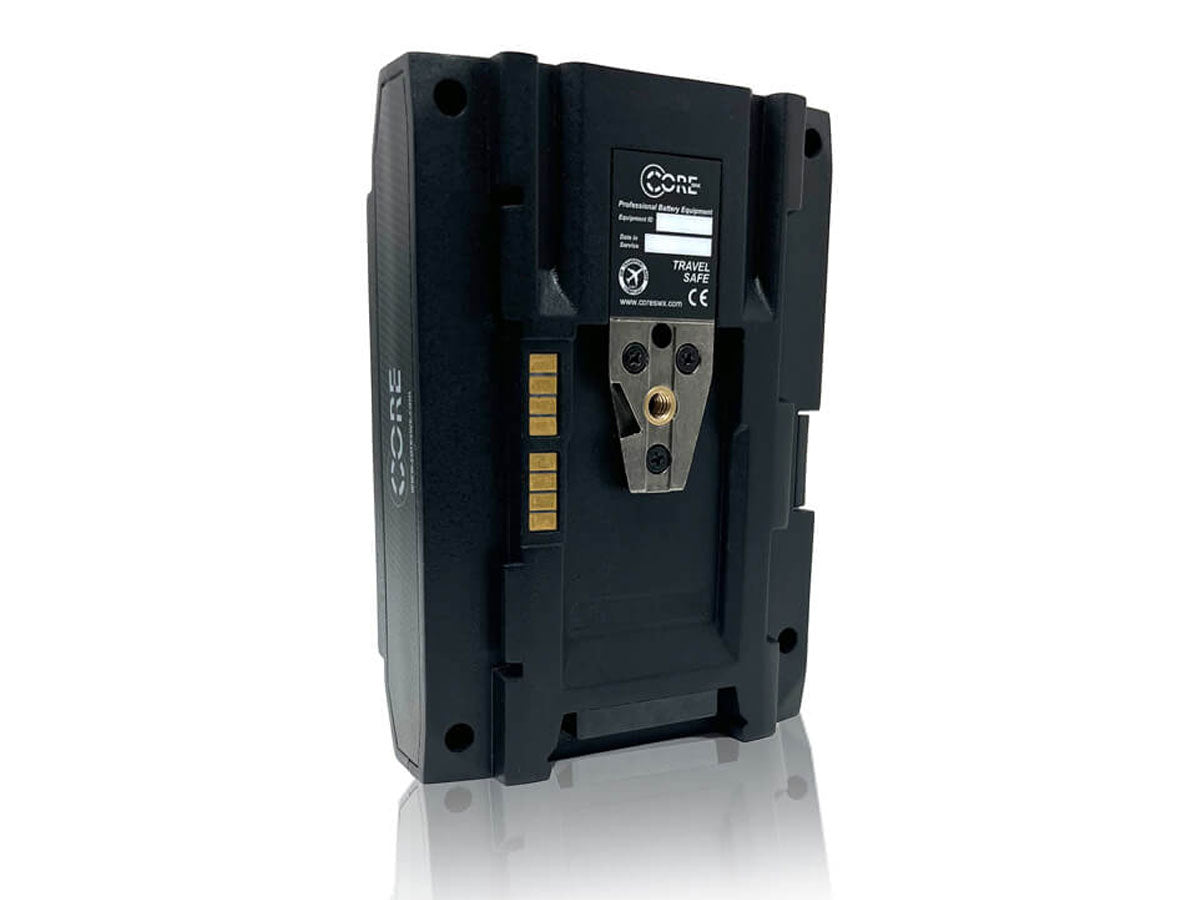

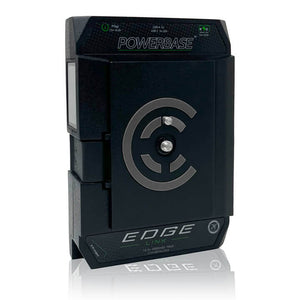

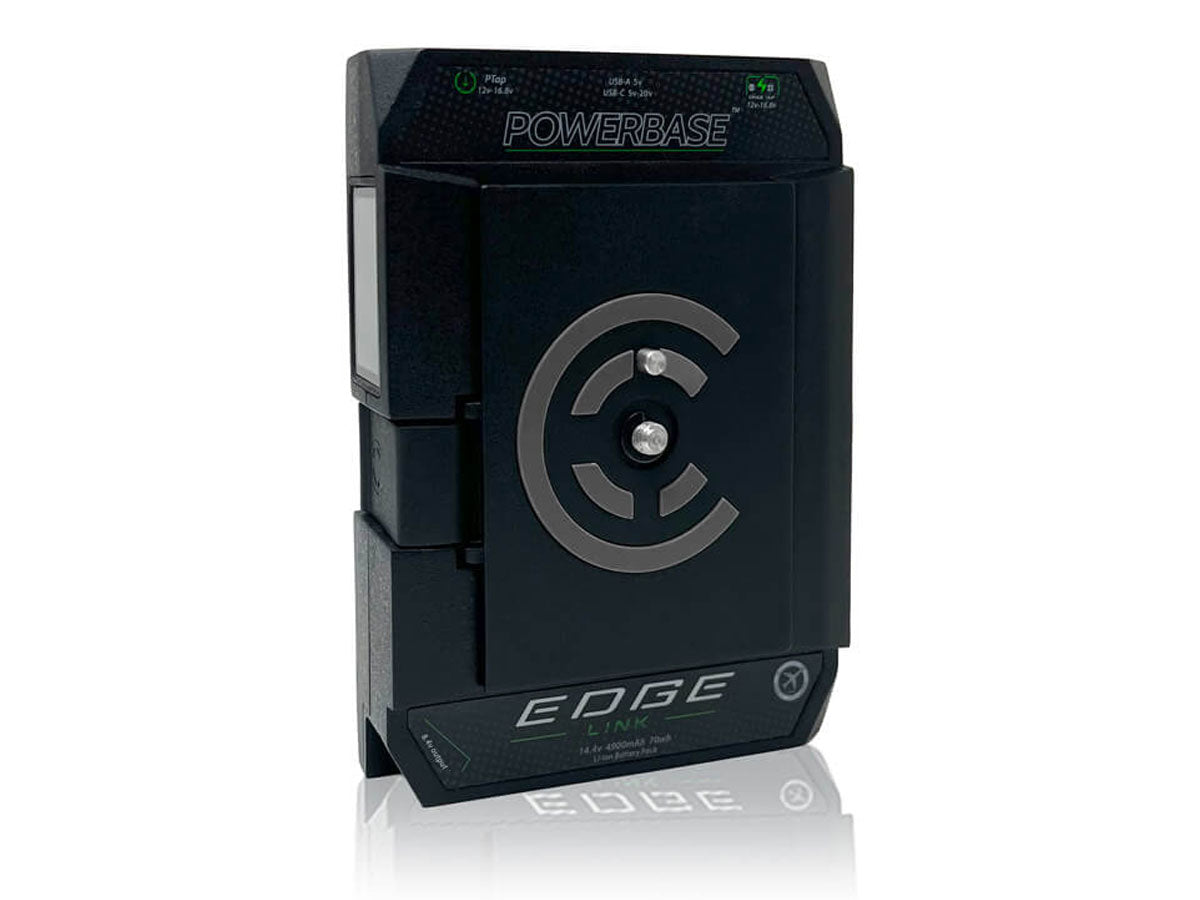

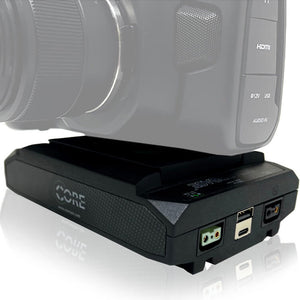

Power your camera and its accessories for more than 12 hours with this V-mount Powerbase EDGE LINK 70Wh Battery Pack from Core SWX. This 14.8V battery has a maximum continuous draw of 8A and can be linked with other packs using its V-mount to double or triple its capabilities. Featuring a dovetail-style quick release plate and multiple 1/4"-20 threads, the battery can easily attach and disengage from your camera for a modular fit.

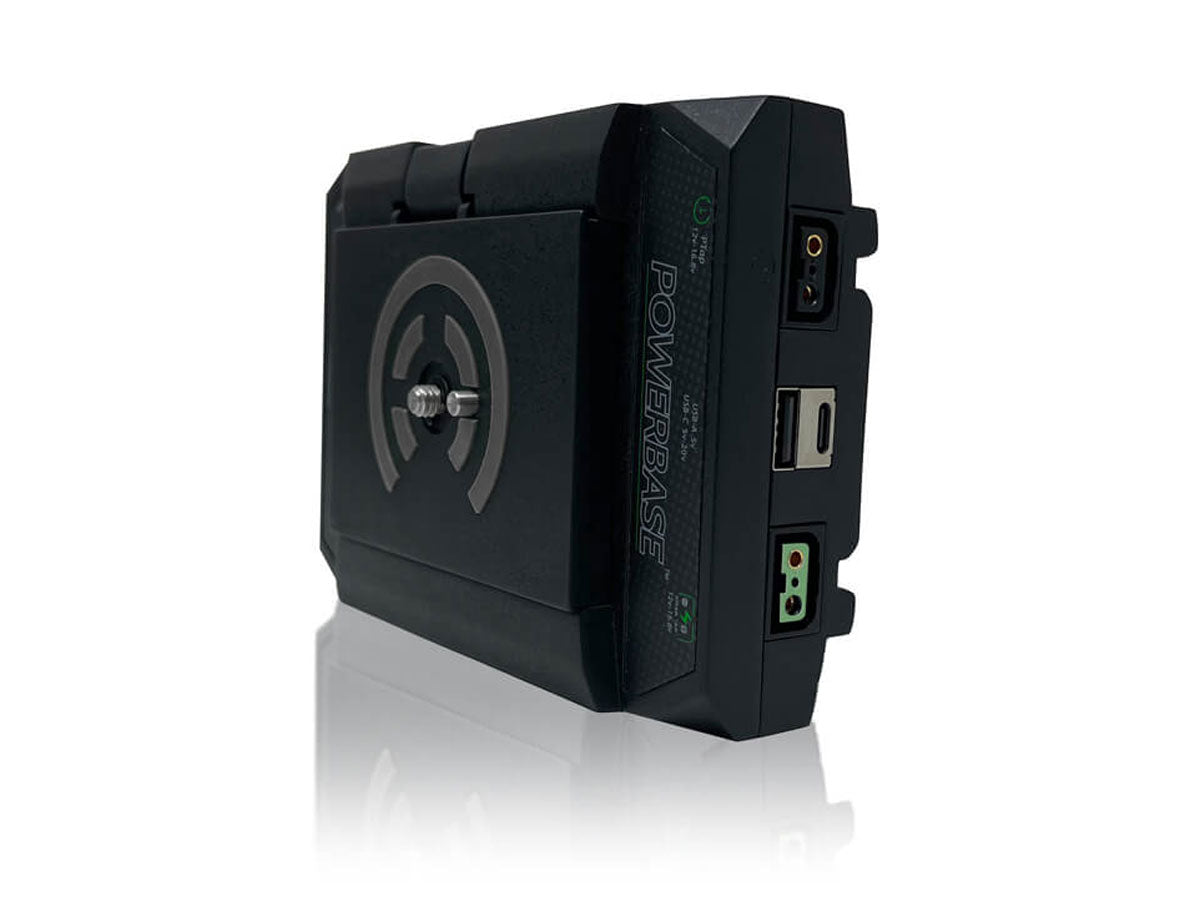

Two unregulated D-Tap ports on the device can power your on-camera monitor or wireless transmitter, while one USB Type-A output and one USB Type-C output can charge everything from mobile devices to laptops. Another 8V output is compatible with legacy battery paddle cables to attach to your DSLR camera or camcorder. Monitoring your battery's status is easy with the built-in runtime LCD. The Powerbase EDGE LINK can be recharged with a separately available D-Tap or V-mount charger.
- Small Form Cine V-mount Battery Pack 70wh, 14.8v
- 70wh V-mount pack with ¼-20 threads
- Larger, dovetail style Quick Release plate on top to quickly disconnect/reconnect(not compatible with legacy PowerBase Edge model quick release plate)

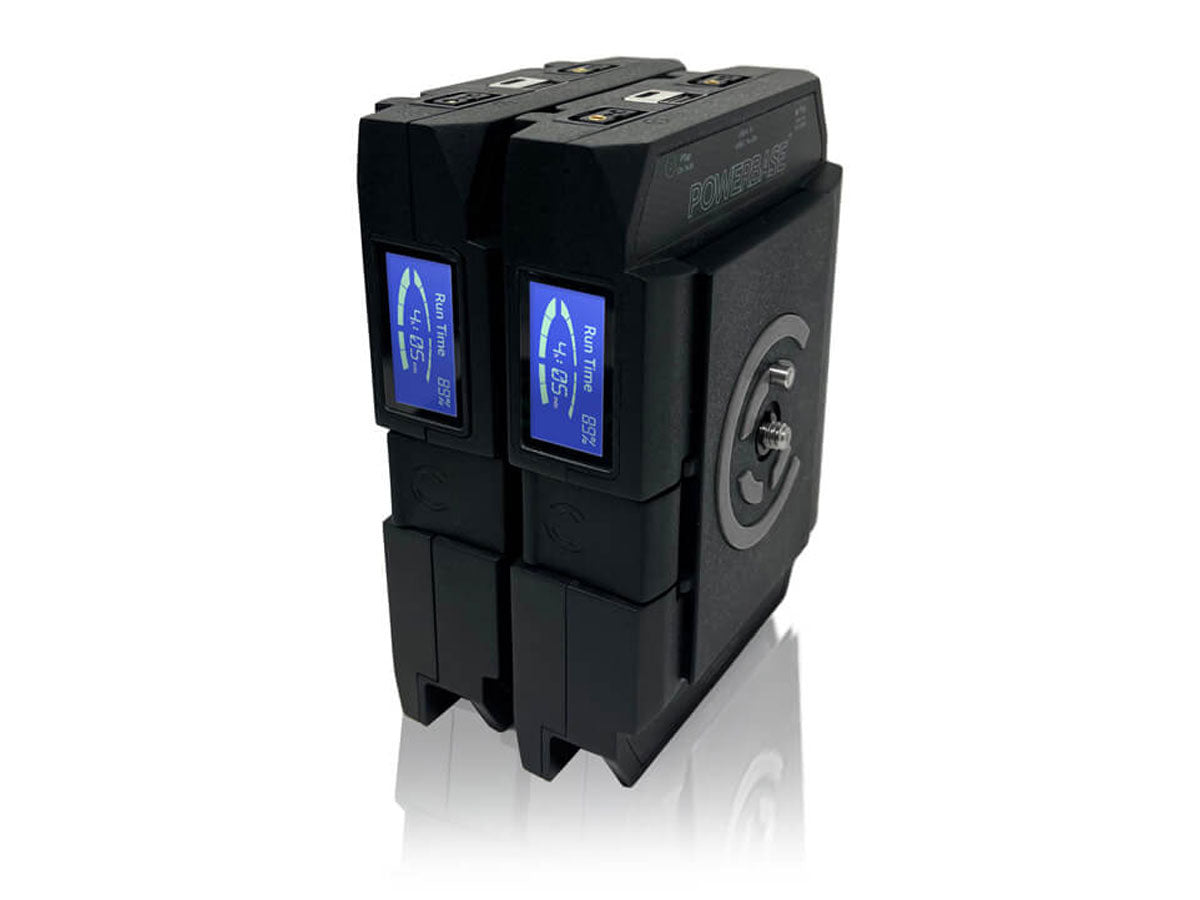

- Battery packs can “link” to parallel power output of multiple packs

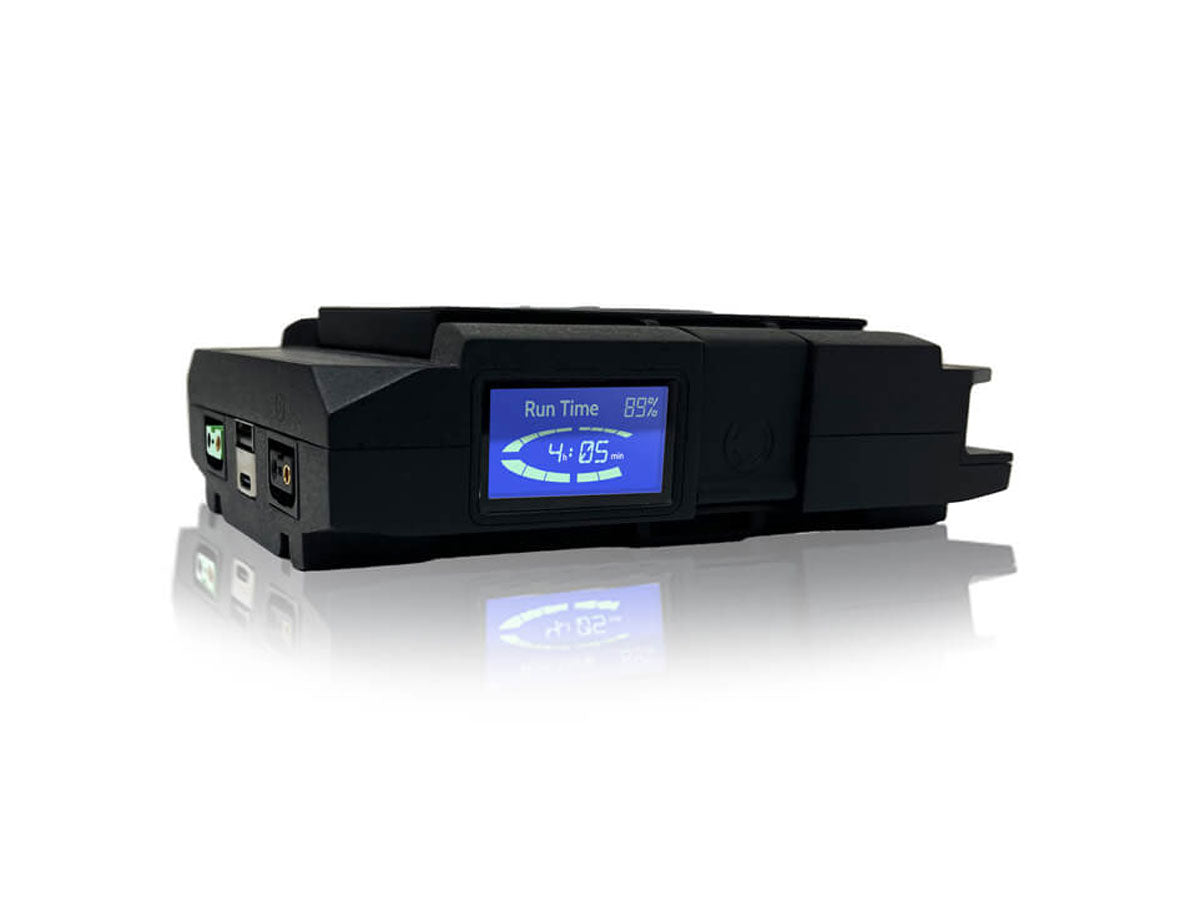

- Runtime LCD
- 2x unregulated ptap for accessories
- 1x 5v USB, 3A output for quick charging mobile devices
- 1x USBC-PD, adaptive 5v-20v charge for everything from mobile devices up to laptops
- 1x 8v output to use legacy PowerBase Edge battery paddle cables to power DSLRs/Camcorders
- Charges through ptap or V-mount charger
- Capacity: 70wh (14.8vdc, 4.7Ah )
- Size: 5.6” x 3.9” x 1.65”
- Weight: 1.4lbs.
- Max Continuous Load: 8A
- Normal Runtime: approx. 12+ hours (Sony A7 w/o accessories)
| Mount / Series Type | V-Mount |
| Battery Capacity | 70 Wh |
| Output Voltage | 14.8 VDC |
| Maximum Load | 8 A |
| Accessory Port | 2 x D-Tap Output Unregulated 1 x USB Type-A Output 5 1 x USB Type-C Output 5-20 |
| Maximum Load (Accessory Port) | 3 A (USB Type-A) |
| USB Output | 5 V 20 V |
| Accessory Mounting Thread | 4 x 1/4"-20 Female |
| Dimensions (W x H x D) | 5.6 x 3.9 x 1.7" / 14.2 x 9.9 x 4.3 cm |
| Weight | 1.4 lb / 0.6 kg |
