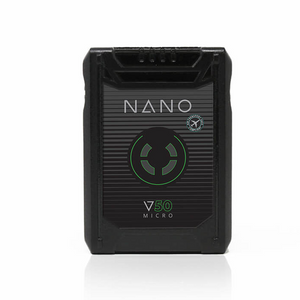

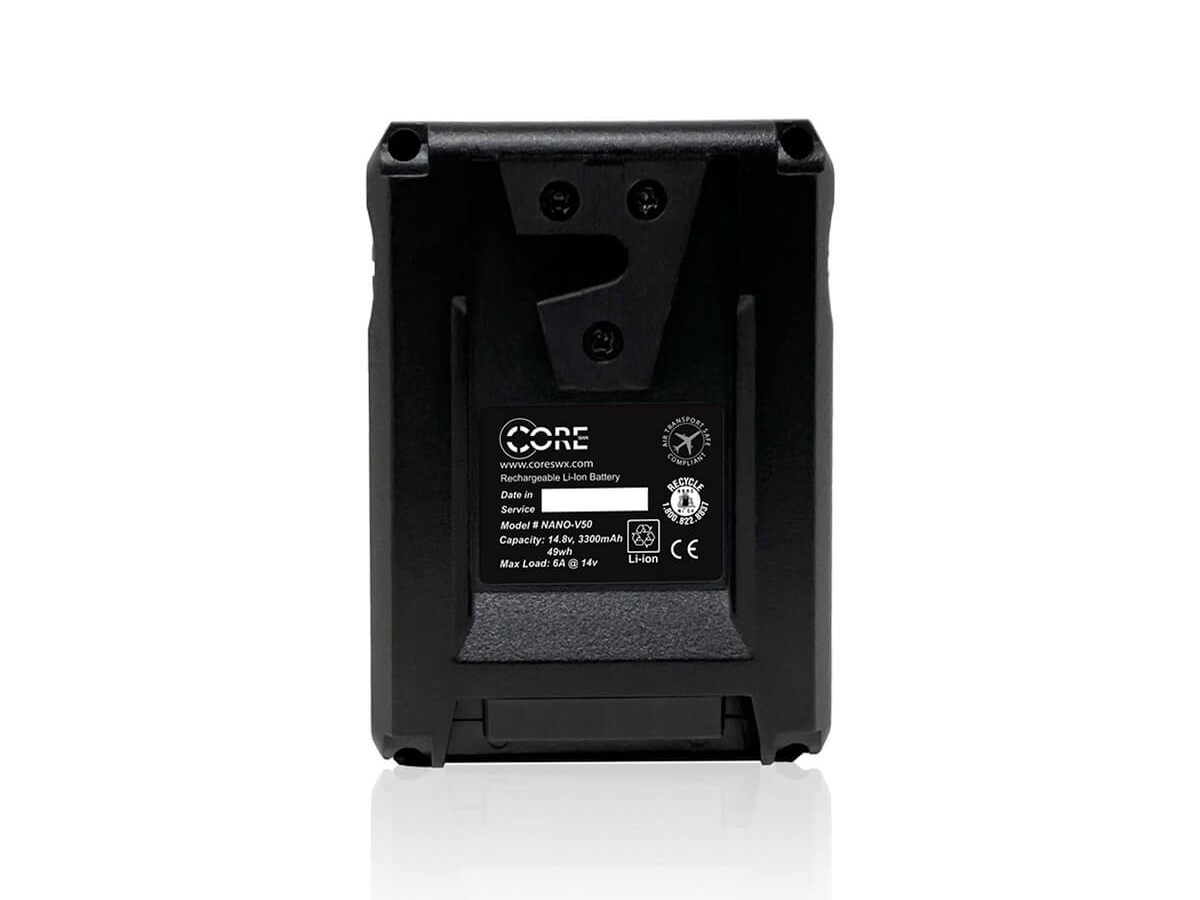

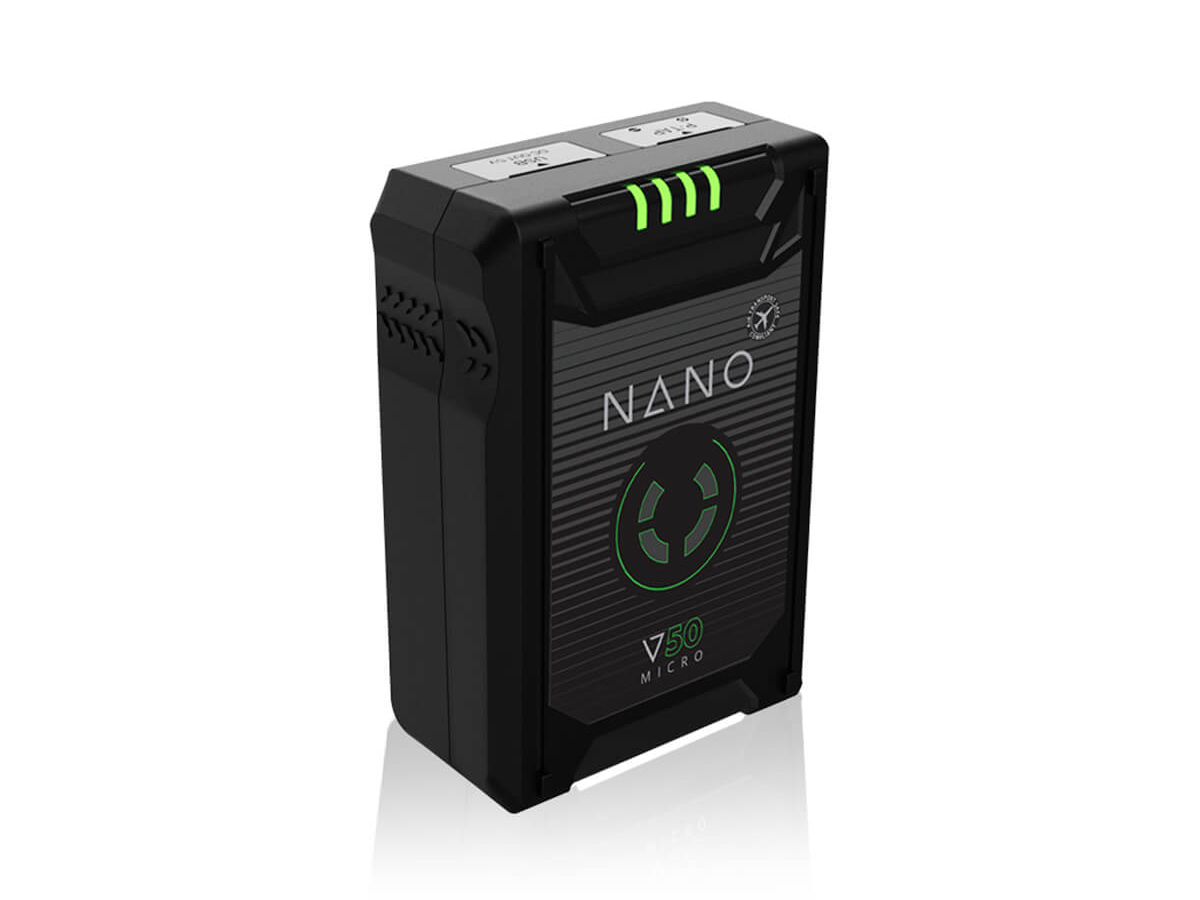

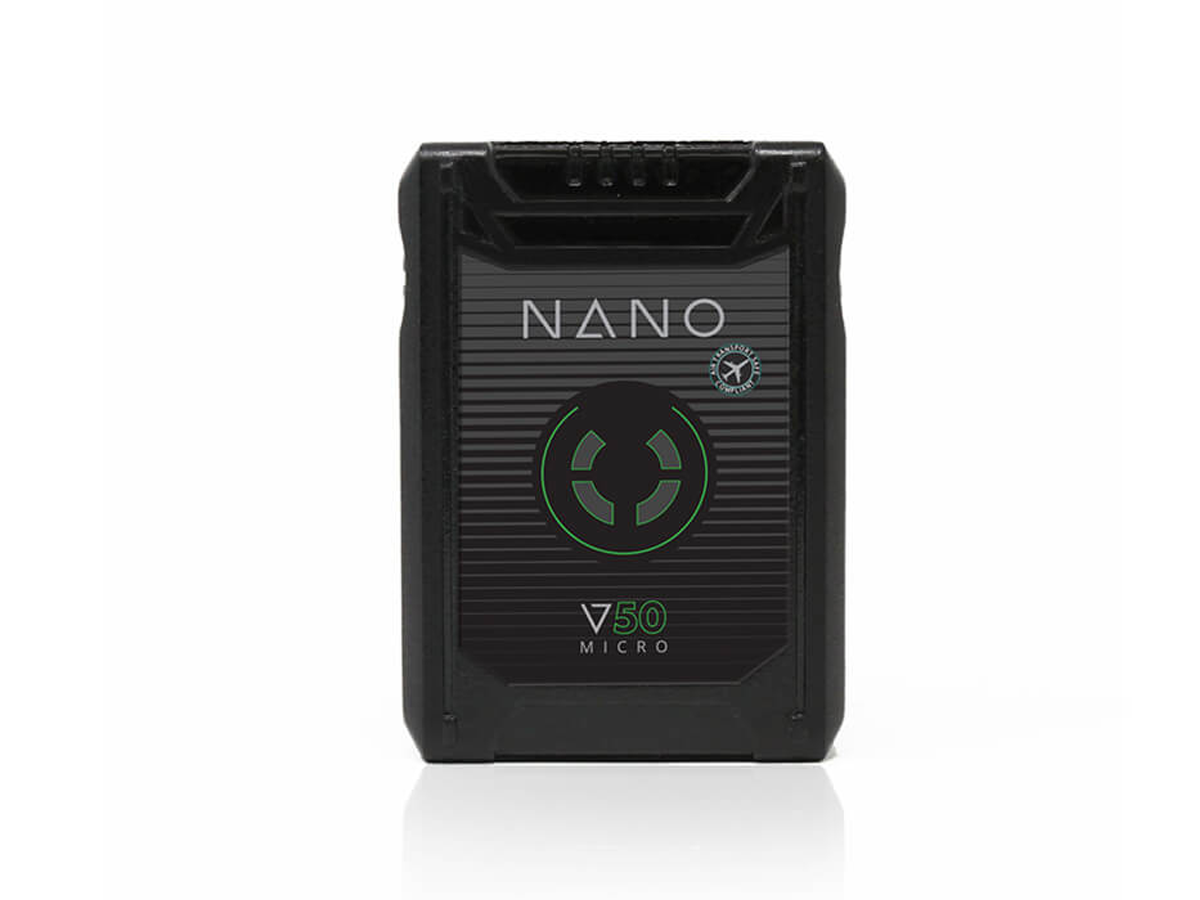

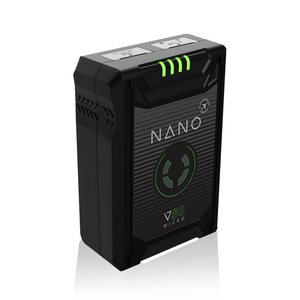

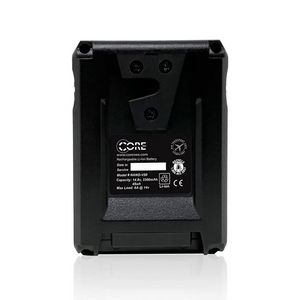

CoreSWX NANO Micro 50 Lithium-Ion Battery (V-Mount)
CoreSWX NANO Micro 50 Lithium-Ion Battery (V-Mount)
£199.00 GBP inc VAT
£199.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
The Nano Micro 50 is quite possibly the smallest style pack on the market today. Measuring in at less than 4″ in height and 1.5″ in depth, while weighing a feathery 0.8 lbs., the NANO-V50 is the perfect “grab and go” pack for powering on-board monitors, recorders, wirless tx/rx, etc., while still being able to handle lighter camera powering applications like RED Komodo and Canon Cinema builds when utilizing the proper mount plate.
The 14.8v, 49wh capacity allows for the packs to be transported carry-on without restrictions under IATA, ICAO, and UN regulations. The packs have been UN tested and certified, passing UN38.3 certification.
The NANO packs feature an on-board unregulated p-tap which can be used to power most 12vdc devices, as well as doubling as a charge input port. The packs also include a 5V, 3A USB for powering/charging mobile devices, and a 4-stage LED gauge to view remaining power.
- 14.8v 49wh Micro V-mount battery pack w/ ptap and USB
- Lithium-ion battery chemistry
- V-mount with SMBUS camera/charger communication
- Ultra Slim at 1.49” providing a very low profile for on-board monitors, gimbal mounting and other accessories
- 4-state LED gauge
- P-Tap for aux output and 5v USB for powering mobile devices
- Capacity: 49Wh(14.8v, 3.3Ah)
- Operational Voltage: DC 12v-16.8v
- Size: 2.82″ x 3.93″x 1.49″
- Weight: 0.8lbs.
- Normal Runtime: (25w) 1.8hrs.
- Load: 6A
- Mount Type: V-mount
| Mount / Series Type | V-Mount |
| Chemistry | Lithium Iron Phosphate |
| Battery Capacity | 3300 mAh / 49 Wh |
| Output Voltage | 14.8 VDC |
| Maximum Load | 6 A |
| Accessory Port | 1 x D-Tap Output 1 x USB Type-A Output |
| USB Output | 5 V |
| Dimensions (W x H x D) | 3.93 x 2.82 x 1.49" / 9.98 x 7.16 x 3.78 cm |
| Weight | 12.8 oz / 363 g |
