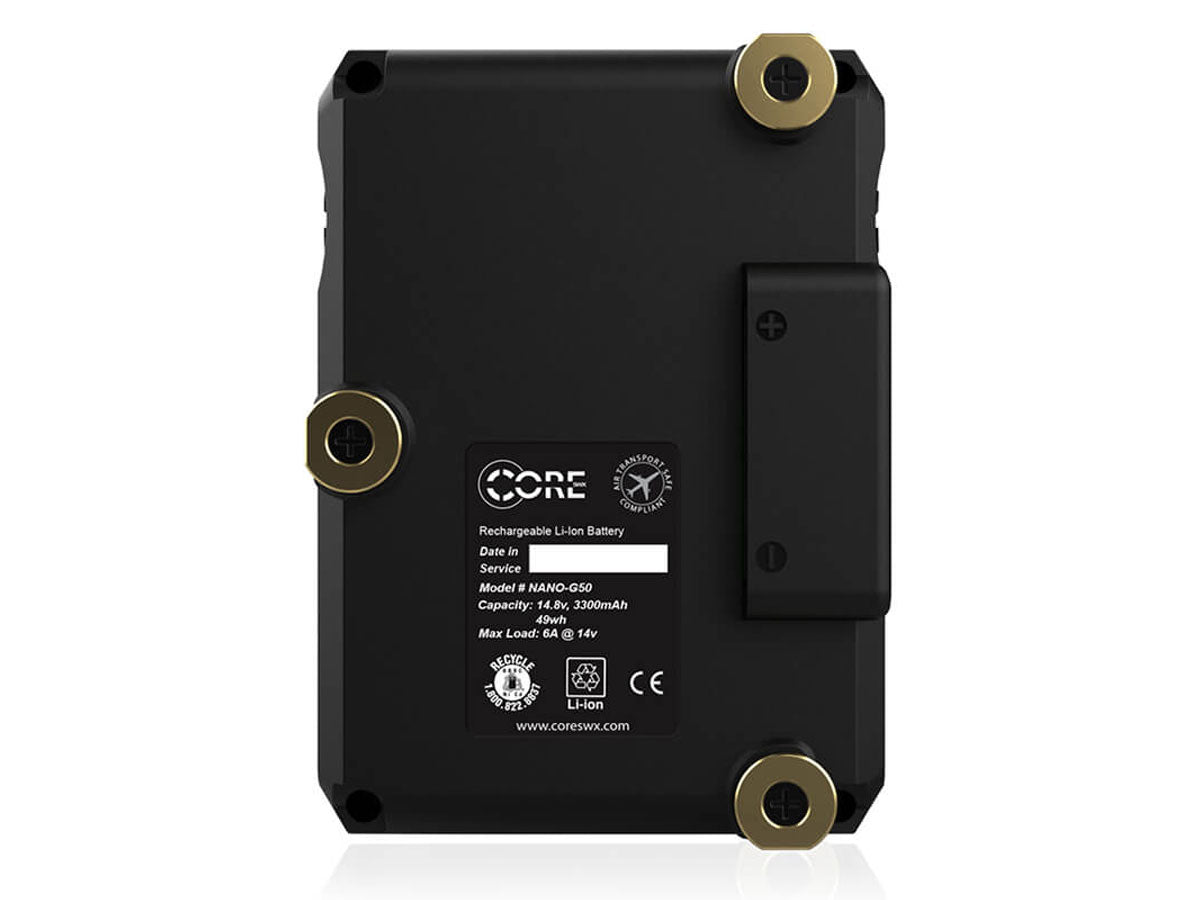

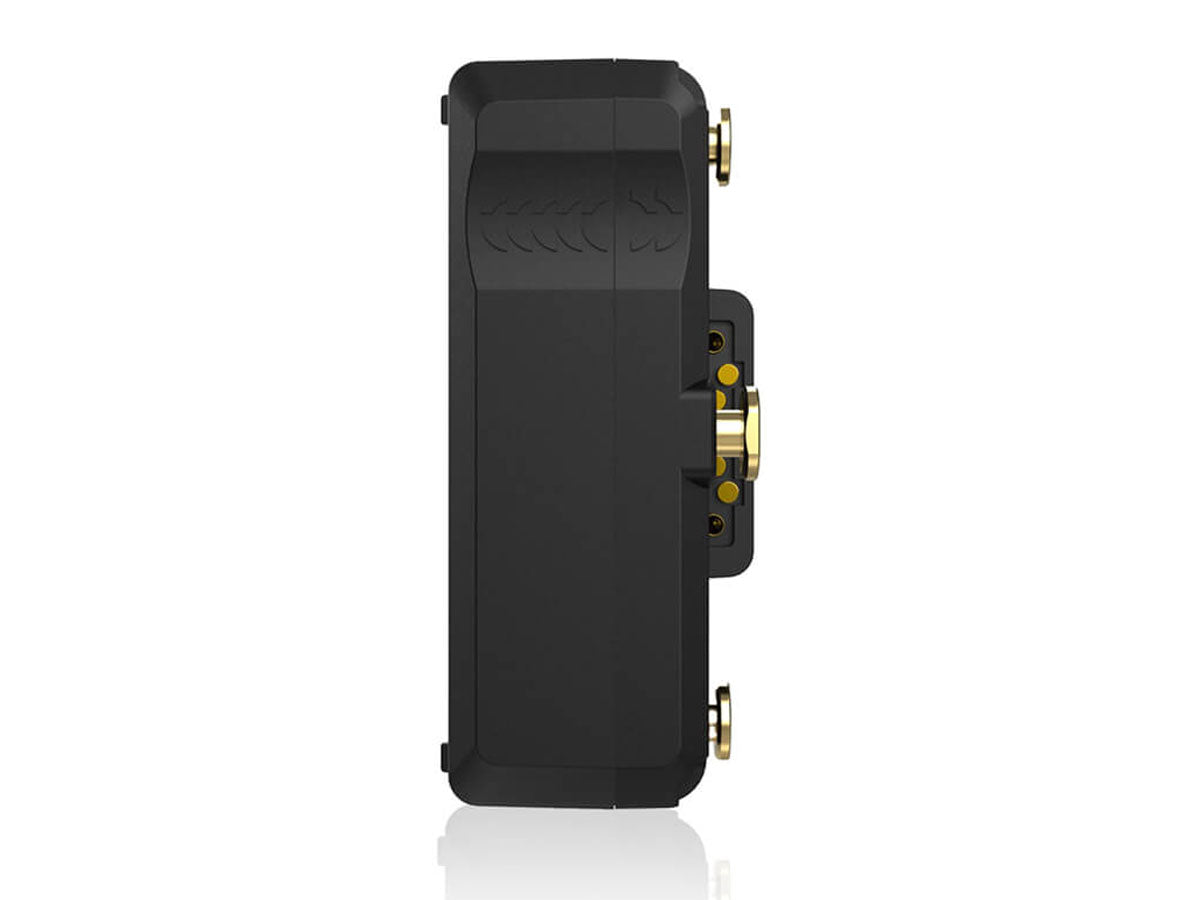

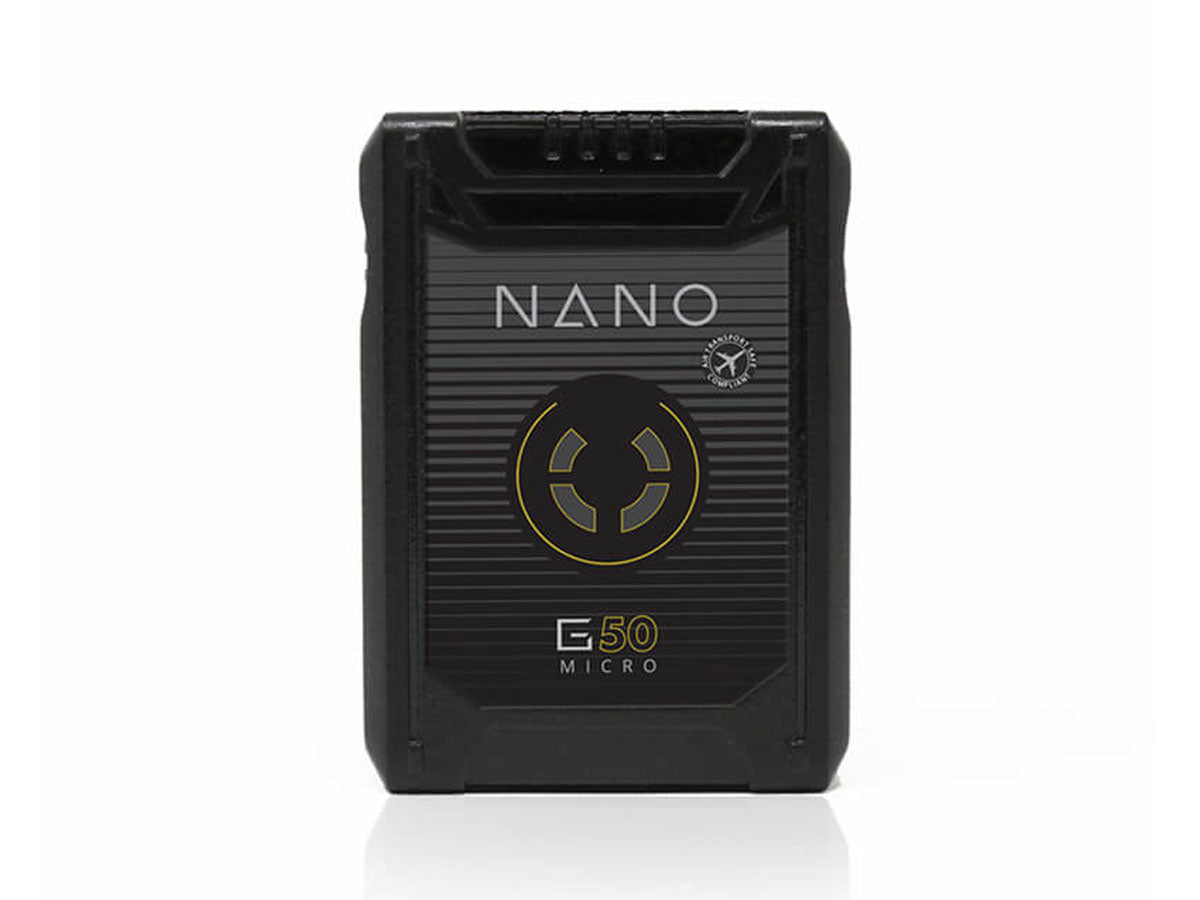

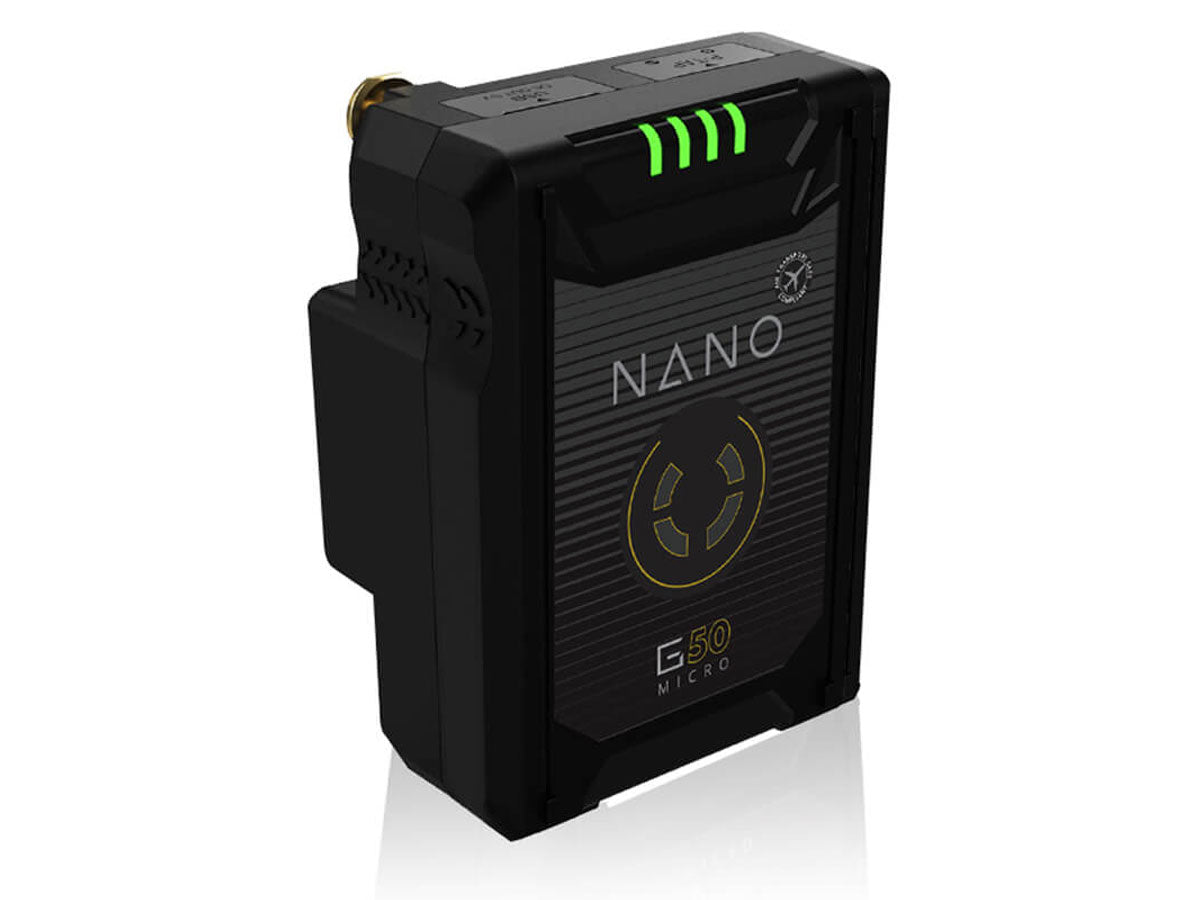

CoreSWX NANO Micro 50 Lithium-Ion Battery (Gold Mount)

CoreSWX NANO Micro 50 Lithium-Ion Battery (Gold Mount)

SKU: CORE-NANO-G50
£161.66 GBP ex VAT
£193.99 GBP inc VAT
ex VAT £161.66 GBP ex VAT
£193.99 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Ultracompact, yet powerful, and ideal for devices from cameras to monitors, the Gold mount NANO Micro 50 Lithium-Ion Battery from Core SWX powers your gear while keeping the weight to a minimum. The battery features 14.8V output to power your professional devices, and it supports up to 6A continuous draw.

The battery provides one unregulated D-Tap output port, and it also features one 5V USB Type-A port to charge smaller devices such as a smartphone. The 4-stage LED gauge shows the battery level status. The NANO Micro can be charged on a Core SWX or most third-party Gold mount chargers, as well as via the D-Tap port.

  • 14.8v 49wh Micro 3-Stud battery pack w/ ptap and USB
  • Lithium-ion battery chemistry
  • G-mt with A/B charge compatibility
  • Ultra Slim at 1.49” providing a very low profile for on-board monitors, gimbal mounting and other accessories
  • 4-state LED gauge
  • PTap for aux output and 5v USB for powering mobile devices
  • Capacity: 49Wh(14.8v, 3.3Ah)
  • Operational Voltage: DC 12v-16.8v
  • Size: 2.82″ x 3.93″x 1.49″
  • Weight: 0.8lbs.
  • Normal Runtime: (25w) 1.8hrs.
  • Load: 6A
  • Mount Type: 3-Stud/G-mt
Mount / Series Type Gold Mount
Chemistry Lithium Iron Phosphate
Battery Capacity 3300 mAh / 49 Wh
Output Voltage 14.8 VDC
Maximum Load 6 A
Accessory Port 1 x D-Tap Output
1 x USB Type-A Output
USB Output 5 V
Dimensions (W x H x D) 3.93 x 2.82 x 1.49" / 9.98 x 7.16 x 3.78 cm
Weight 12.8 oz / 363 g
  • Core SWX NANO Micro 50 Lithium-Ion Battery (Gold Mount)
